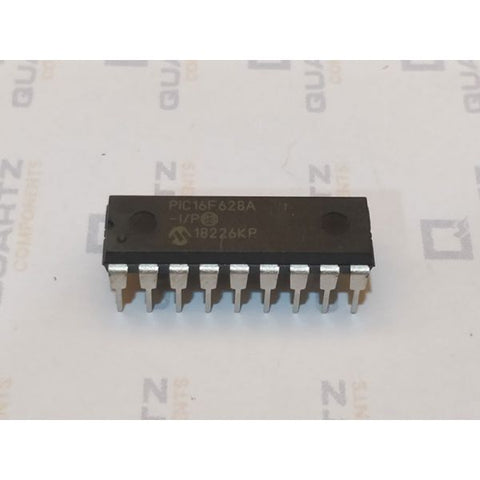

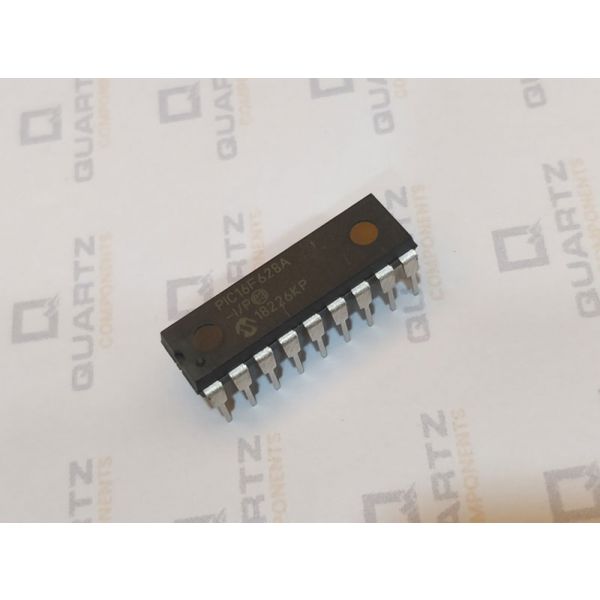

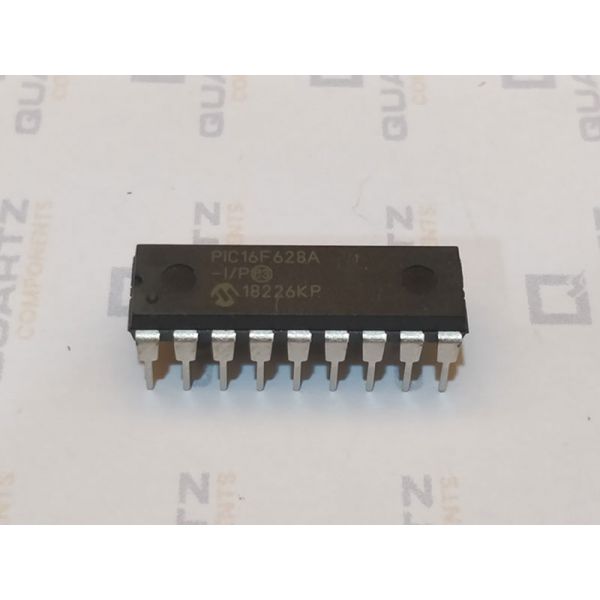

PIC16F628A Microcontroller PIC16F628A Microcontroller

QC0054

15 In stock

Rs. 99.00
-
+
Rs. 99.00
(inc. GST)
[Delivery: 2 to 5 days]

The PIC16F628A microcontroller is an 18-pin microcontroller with 8-bit PIC Architecture. The controller has an in-built internal oscillator with 4MHz frequency and 128 bytes of EEPROM data. It has enhanced core features, an eight-level deep stack, and multiple internal and external interrupt sources. The separate instruction and data buses of the Harvard architecture allow a 14-bit wide instruction word with the separate 8-bit wide data. The two-stage instruction pipeline allows all instructions to execute in a single cycle, except for program branches (which require two cycles). A total of 35 instructions (reduced instruction set) are available, complemented by a large register set.

It has an operating voltage from 2V to 5.5V hence suitable for low voltage applications. It has two 8-bit timers and one 16-bit timer and 2 comparators. It also has a CCP module enabling compare, capture and PWM operations. It supports UART communication while I2C and SPI are not supported.

PIC16F628A microcontrollers typically achieve a 2:1 code compression and a 4:1 speed improvement over other 8-bit microcontrollers in their class. PIC16F628A devices have integrated features to reduce external components, thus reducing system cost, enhancing system reliability and reducing power consumption.


PIC16F628A pinout:

PIC16F628A Pinout


PIC16F628A features, Specification:

Features: -

  • 16 I/O pins with individual direction control
  • High current sink/source for direct LED drive
  • Analog comparator module with:

   - Two analog comparators
   - Programmable on-chip voltage reference (VREF) module
   - Selectable internal or external reference
   - Comparator outputs are externally accessible

  • Timer0: 8-bit timer/counter with 8-bit programmable prescaler
  •  Timer1: 16-bit timer/counter with external crystal/ clock capability
  • Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
  • Capture, Compare, PWM module:

        - 16-bit Capture/Compare
        - 10-bit PWM

  • Addressable Universal Synchronous/Asynchronous Receiver/Transmitter USART/S



Specification

  • Program Memory Type                                 Flash
  • Program Memory Size (KB)                         3.5
  • CPU Speed (MIPS/DMIPS)                            5
  • SRAM (B).                                                      224
  • Temperature Range (°C)                            -40 to 125
  • Operating Voltage Range (V)                       2V to 5.5V
  • Pin Count                                                      18
  • Timers                                                           2 x 8-bit, 1×16-bit
  • Data EEPROM/HEF (bytes)                         128
  • Digital Communication Peripherals              1-UART
  • Capture/Compare/PWM Peripherals              1 Input Capture, 1 CCP

PIC16F628A Applications:

  • Small Embedded hardware
  • PC to MCU communication
  • Data processing
  • Small Industrial Embedded devices


PIC16F628A Dimension and footprint:

PIC16F628A

Example Projects on PIC16F628A:

PIC16F628A Projects

Additional Resources:

PIC16F628A Datasheet


Package Contains

1x PIC16F628A

The PIC16F628A microcontroller is an 18-pin microcontroller with 8-bit PIC Architecture. The controller has an in-built internal oscillator with 4MHz frequency and 128 bytes of EEPROM data. It has enhanced core features, an eight-level deep stack, and multiple internal and external interrupt sources. The separate instruction and data buses of the Harvard architecture allow a 14-bit wide instruction word with the separate 8-bit wide data. The two-stage instruction pipeline allows all instructions to execute in a single cycle, except for program branches (which require two cycles). A total of 35 instructions (reduced instruction set) are available, complemented by a large register set.

It has an operating voltage from 2V to 5.5V hence suitable for low voltage applications. It has two 8-bit timers and one 16-bit timer and 2 comparators. It also has a CCP module enabling compare, capture and PWM operations. It supports UART communication while I2C and SPI are not supported.

PIC16F628A microcontrollers typically achieve a 2:1 code compression and a 4:1 speed improvement over other 8-bit microcontrollers in their class. PIC16F628A devices have integrated features to reduce external components, thus reducing system cost, enhancing system reliability and reducing power consumption.


PIC16F628A pinout:

PIC16F628A Pinout


PIC16F628A features, Specification:

Features: -

  • 16 I/O pins with individual direction control
  • High current sink/source for direct LED drive
  • Analog comparator module with:

   - Two analog comparators
   - Programmable on-chip voltage reference (VREF) module
   - Selectable internal or external reference
   - Comparator outputs are externally accessible

  • Timer0: 8-bit timer/counter with 8-bit programmable prescaler
  •  Timer1: 16-bit timer/counter with external crystal/ clock capability
  • Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
  • Capture, Compare, PWM module:

        - 16-bit Capture/Compare
        - 10-bit PWM

  • Addressable Universal Synchronous/Asynchronous Receiver/Transmitter USART/S



Specification

  • Program Memory Type                                 Flash
  • Program Memory Size (KB)                         3.5
  • CPU Speed (MIPS/DMIPS)                            5
  • SRAM (B).                                                      224
  • Temperature Range (°C)                            -40 to 125
  • Operating Voltage Range (V)                       2V to 5.5V
  • Pin Count                                                      18
  • Timers                                                           2 x 8-bit, 1×16-bit
  • Data EEPROM/HEF (bytes)                         128
  • Digital Communication Peripherals              1-UART
  • Capture/Compare/PWM Peripherals              1 Input Capture, 1 CCP

PIC16F628A Applications:

  • Small Embedded hardware
  • PC to MCU communication
  • Data processing
  • Small Industrial Embedded devices


PIC16F628A Dimension and footprint:

PIC16F628A

Example Projects on PIC16F628A:

PIC16F628A Projects

Additional Resources:

PIC16F628A Datasheet


Package Contains

1x PIC16F628A
