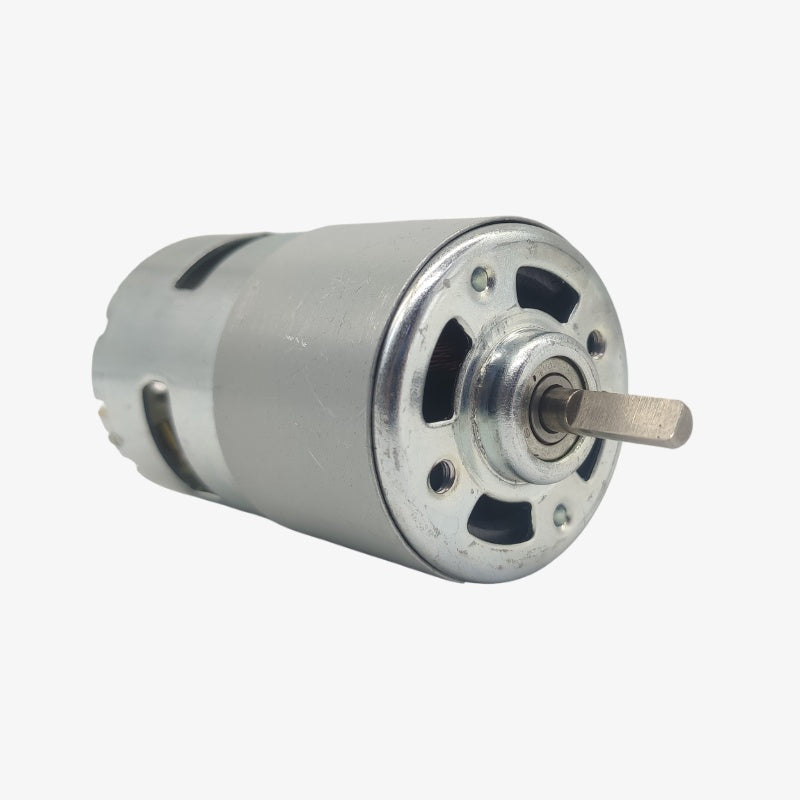

The D Shaft 775 DC Motor with Bearing 12V to 24V is a high-torque motor designed for various applications requiring reliable performance. It offers optimal operation at 12V, with the capability to run at 24V, though it is not recommended.
Features:
- Operating Voltage: 12V (Can work upto 24V)
- No-load Current: 0.6A
- Maximum Current: 2A
- No Load Speed RPM @12V: Approx ~5000/6000 RPM
- No Load Speed RPM @24V: Approx ~11000/12000 RPM
- Mounting Screw Hole Diameter: ~4 mm
- Distance between Screw Holes: ~33 mm
- Diameter of the Motor: 41mm
- Length of the Motor (Body): 67mm
- Motor Shaft Type: D Shaft
- Length of Shaft: ~16-20 mm (Varies with every lot but usually lies in this bracket)
-
Motor Shaft Diameter: 5mm
Package Includes:
1x 775 D-shaft DC Motor
