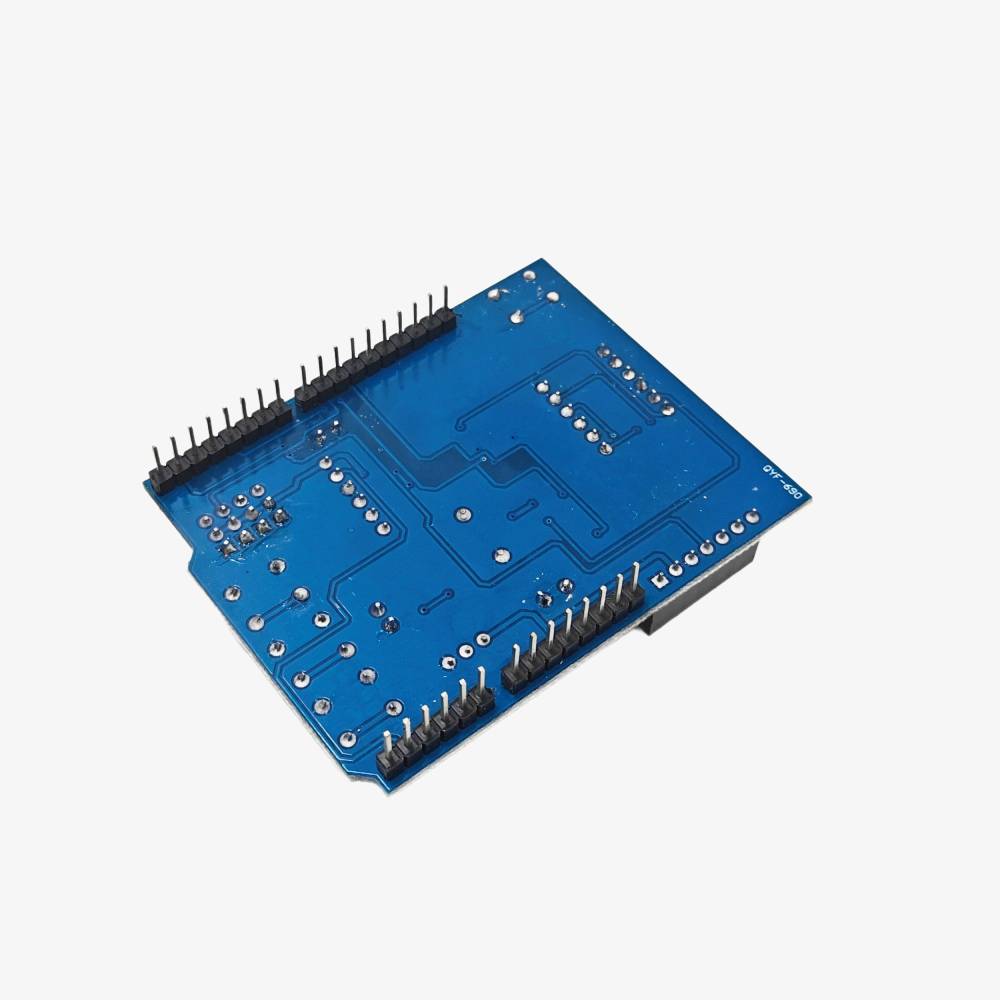

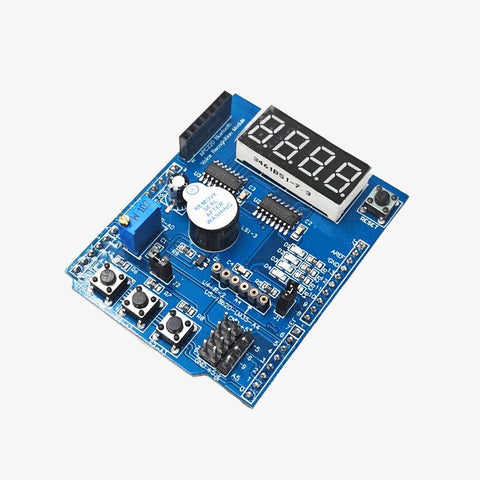

Multifunction Shield For Arduino Uno / Leonardo

QC2679
5 In stock
Rs. 156.00 (Exc. GST)
Rs. 156.00

This Multifunction Shield For Arduino Uno / Leonardo is a powerful and versatile expansion board designed to provide enhanced connectivity and functionality to both the Arduino UNO R3 and Arduino Leonardo microcontroller boards. This expansion board extends the capabilities of the base Arduino boards, making it easier to connect a wide variety of sensors, actuators, motors, and other peripherals with minimal wiring.

Ideal for users working on more complex projects, the board includes multiple ports for digital, analog, PWM, I2C, and serial communication, supporting a broad array of use cases, including robotics, home automation, IoT, and more. The board’s layout is designed to match the pinout of the Arduino UNO and Leonardo, making integration with these boards seamless, and it includes several specialized features like motor driver interfaces, relay control, and enhanced power management.

The expansion board is equipped with clearly labeled ports, allowing users to quickly identify connections for different devices and components. It also provides additional power supply options, supporting 5V and 3.3V devices, which is essential for powering a wide range of peripherals. With this multifunctional expansion board, users can easily interface multiple sensors and actuators, making it an excellent tool for prototyping, educational purposes, and professional-level projects requiring comprehensive hardware control.

Specifications:

  • Interface Compatibility: Designed for Arduino UNO R3 and Leonardo boards
  • Operating Voltage: 5V (powered by the Arduino board)
  • Pinout Compatibility: Matches Arduino UNO R3 and Leonardo pinout
  • Features:
    • Multiple digital, analog, PWM, and I2C interfaces
    • Supports motor control and relay modules
    • Dedicated ports for serial communication and debugging

Pinout:

  • Power Pins:

    • VCC: 5V power supply
    • GND: Ground
    • 5V: Power supply for 5V devices
    • 3.3V: Power supply for 3.3V devices
  • Digital I/O Pins (D0 to D13):

    • D0 - D13: Digital input/output pins for connecting digital sensors, switches, or actuators
  • PWM Pins (D3, D5, D6, D9, D10, D11):

    • PWM Pins: D3, D5, D6, D9, D10, D11 (for Pulse Width Modulation control)
  • Analog Pins (A0 to A5):

    • A0 - A5: Analog input pins for analog sensors, such as temperature sensors, light sensors, and more
  • I2C Pins:

    • SDA (A4): Serial Data Line for I2C communication
    • SCL (A5): Serial Clock Line for I2C communication
  • Serial Communication Pins (TX, RX):

    • TX (D1): Transmit data pin for serial communication
    • RX (D0): Receive data pin for serial communication
  • Motor Control Pins:

    • Motor Pins: D12, D13 (for connecting motor drivers or motor control modules)
  • Relay Pins:

    • Relay Control Pins: D7, D8 (for connecting relay modules for controlling external devices)
