ESP8266 ESP12 WiFi Board ESP8266 ESP12 WiFi Board

QC0168

10 In stock

Rs. 216.00
-
+
Rs. 216.00
(inc. GST)

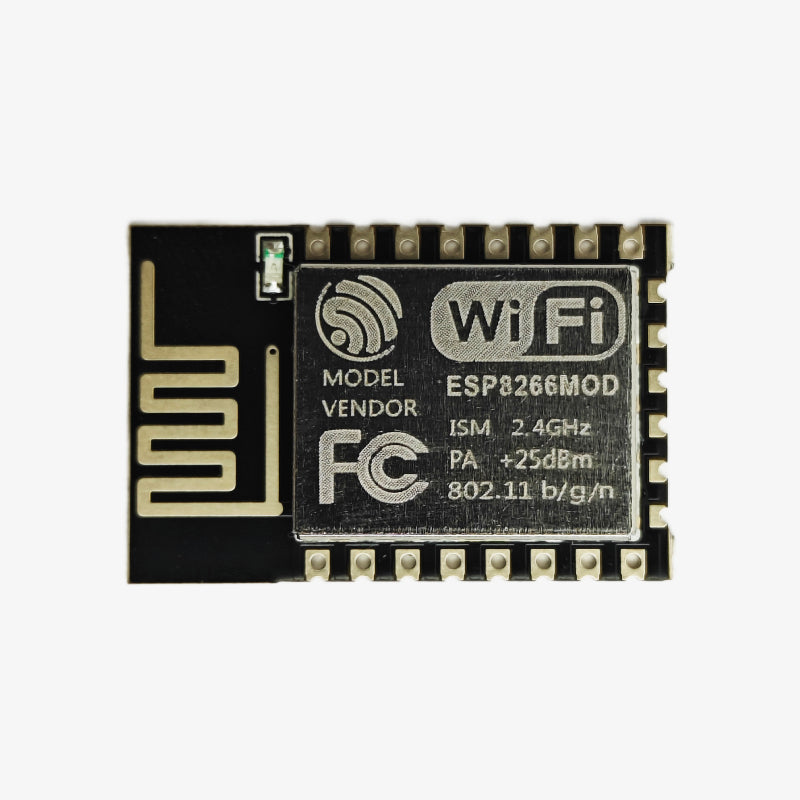

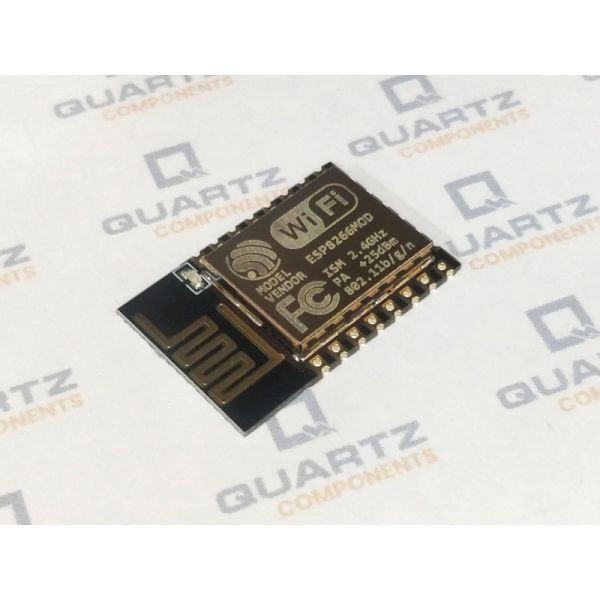

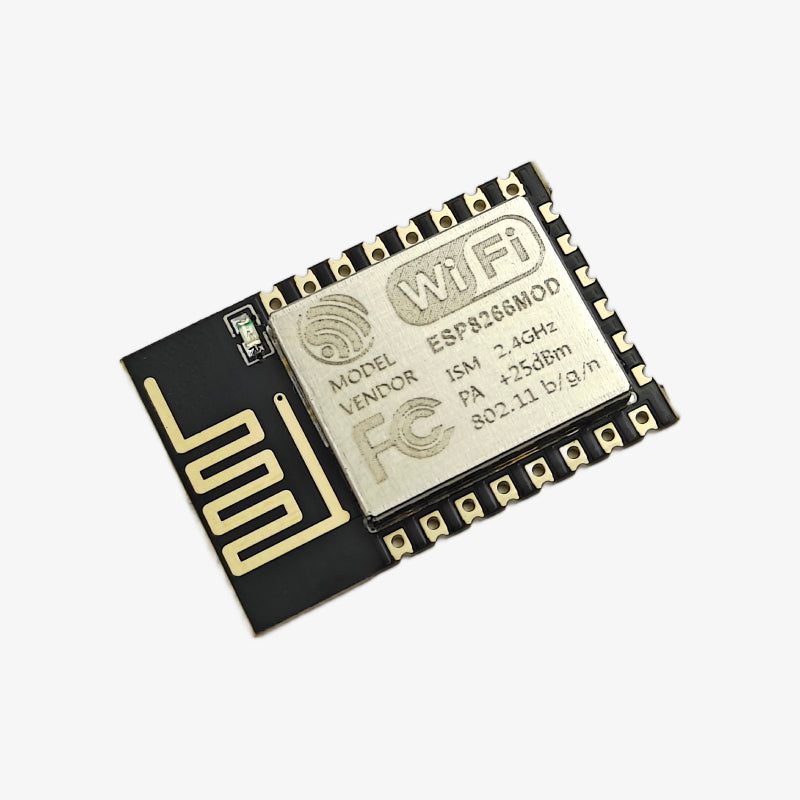

ESP8266 ESP-12 development Board is an SMT (Surface Mount Technology) based small, compact, and bite-sized version of ESP8266. ESP12E SMT Board is well suited for PCB design and saving space. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor. It employs an I2S interface for high fidelity audio applications. It also has integrated WEP, TKIP, AES, and WAPI engines and is available in the 32-pin QFN package. It has applications in IoT projects, Portable Electronics, home automation, and Wireless Data Logging, etc. You can also take a look at ESP8266-01, NodeMCU.



Specifications

  • Wi-Fi Direct (P2P), soft-AP, 802.11 b/g/n
  • 80Mhz low power 32-bit processor
  • Integrated TCP/IP protocol stack
  • Integrated TR switch, balun, LNA, power amplifier and matching network
  • Integrated PLLs, regulators, DCXO and power management units
  • 19.5dBm output power in 802.11b mode
  • Power down leakage current of <10uA

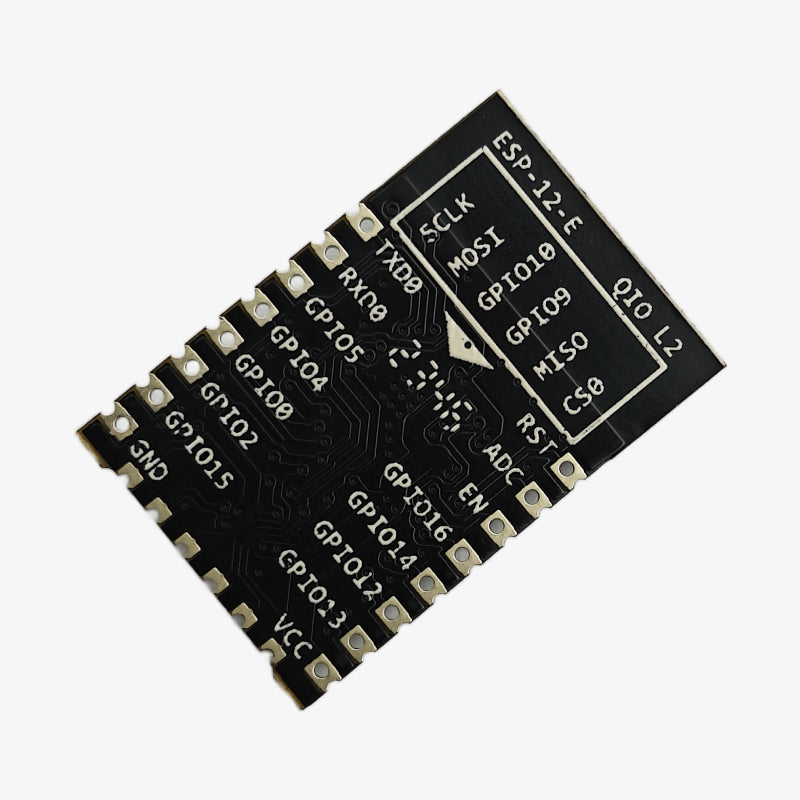

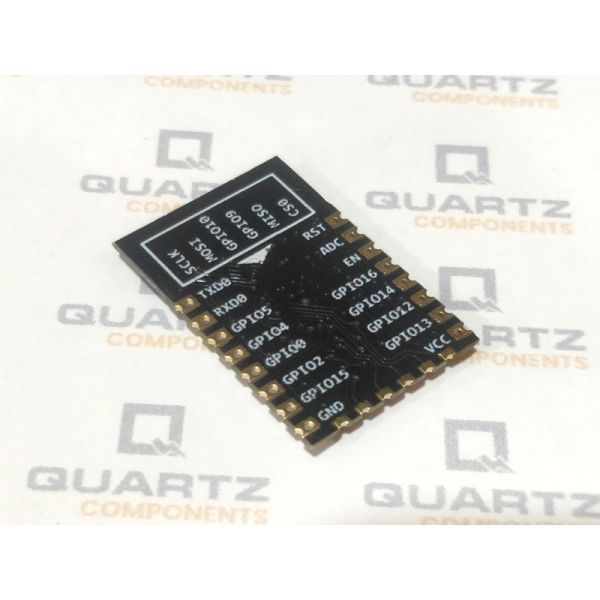

  • 9 GPIO pins, Each PWM Capable
  • SDIO 1.1/2.0, SPI, UART
  • 3.3V power supply



To program ESP You will need FTDI friend or USB/Serial converter. FTDI cable 3 V will work only if You provide other power sources, FTDI cable as the board works only on 3.3V supply so make sure you use 3.3V FTDI programmer.



Additional Resources

 ESP8266 Datasheet



Package Contents

1×ESP8266 ESP-12 Development Board

    ESP8266 ESP-12 development Board is an SMT (Surface Mount Technology) based small, compact, and bite-sized version of ESP8266. ESP12E SMT Board is well suited for PCB design and saving space. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor. It employs an I2S interface for high fidelity audio applications. It also has integrated WEP, TKIP, AES, and WAPI engines and is available in the 32-pin QFN package. It has applications in IoT projects, Portable Electronics, home automation, and Wireless Data Logging, etc. You can also take a look at ESP8266-01, NodeMCU.



    Specifications

    • Wi-Fi Direct (P2P), soft-AP, 802.11 b/g/n
    • 80Mhz low power 32-bit processor
    • Integrated TCP/IP protocol stack
    • Integrated TR switch, balun, LNA, power amplifier and matching network
    • Integrated PLLs, regulators, DCXO and power management units
    • 19.5dBm output power in 802.11b mode
    • Power down leakage current of <10uA
    • 9 GPIO pins, Each PWM Capable
    • SDIO 1.1/2.0, SPI, UART
    • 3.3V power supply



    To program ESP You will need FTDI friend or USB/Serial converter. FTDI cable 3 V will work only if You provide other power sources, FTDI cable as the board works only on 3.3V supply so make sure you use 3.3V FTDI programmer.



    Additional Resources

     ESP8266 Datasheet



    Package Contents

    1×ESP8266 ESP-12 Development Board
