LWOG2-V1 Outdoor LoRaWAN SX1302 8-Channel Ethernet & 4G LTE Industrial IoT Gateway
SKU:
MOD-QC6046
Availability:
2
In Stock
-
- Rs. 38,240.00
- Unit price
- per
Subtotal:
Rs. 38,240.00
Description

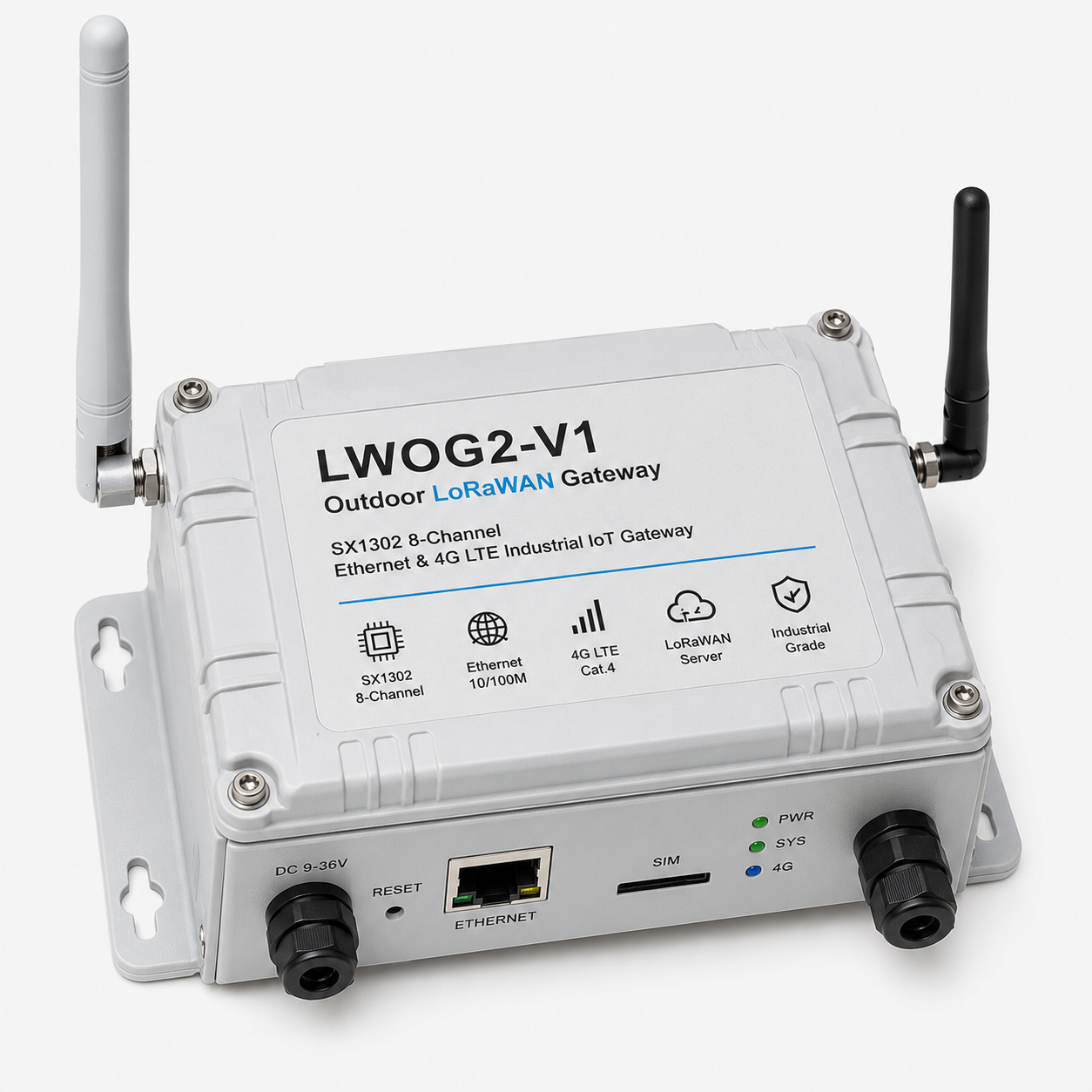

xLWOG2-V1 Outdoor LoRaWAN SX1302 8-Channel Ethernet & 4G LTE Industrial IoT Gateway is a rugged industrial-grade LoRaWAN® gateway designed for reliable outdoor IoT deployments. Powered by the Semtech SX1302 LoRaWAN® baseband processor, it supports 8 simultaneous LoRa channels for long-range communication with thousands of end devices. Featuring Ethernet and 4G LTE backhaul connectivity with automatic failover, the gateway is built for continuous operation in harsh environments, making it ideal for smart cities, industrial automation, smart agriculture, utility monitoring, and remote IoT infrastructure.
LWOG2-V1 Outdoor LoRaWAN 8-Channel Ethernet & 4G LTE Gateway Datasheet
Features:
- Industrial-grade outdoor LoRaWAN® gateway
- Semtech SX1302 LoRaWAN® baseband processor
- 8 simultaneous LoRaWAN® channels
- 865–867MHz ISM band operation
- Ethernet and 4G LTE backhaul connectivity
- Automatic Ethernet to 4G LTE failover
- Supports Semtech LoRa® Packet Forwarder
- High RF output power for extended coverage
- High receiver sensitivity for reliable communication
- Linux-based gateway platform
- Supports private and public LoRaWAN® networks
- Designed for 24/7 industrial operation
- Suitable for smart cities, agriculture, industrial monitoring, and utility applications
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Outdoor LoRaWAN® Gateway |
| Model | LWOG2-V1 |
| LoRa Baseband Processor | Semtech SX1302 |
| RF Front End | 2 × SX1250 |
| Host Processor | 64-bit ARM Cortex-A72 |
| RAM | 1GB LPDDR4 |
| Storage | 16GB Flash |
| Frequency Band | 865–867MHz ISM Band |
| LoRa Channels | 8 Channels (125kHz per Channel) |
| Spread Factor | SF7 to SF12 |
| Data Rate | 250 to 5470bps |
| Maximum RF Output Power | Up to +27dBm |
| Receiver Sensitivity | Up to -141dBm |
| LoRa Antenna Port | 1 × 50Ω SMA Female |
| Ethernet | 10/100Mbps |
| Cellular Connectivity | 4G LTE |
| Cellular Antenna Port | 1 × 50Ω SMA Female |
| Power Supply | 12V DC |
| Typical Power Consumption | 5W |
| Maximum Power Consumption | 6.5W |
| Enclosure | Industrial Outdoor Housing |
| Mounting | Pole Mount / Wall Mount |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -20°C to +85°C |
| Compliance | LoRaWAN®, RoHS |
Also Check These Out:
LWM1-62-HP LoRaWAN SX1262 High Power Long Range Wireless Transceiver
LRTC-1262 LoRa Transceiver RF Module SX1262 Long Range SPI Wireless Module
LWIG2-V1 Indoor LoRaWAN SX1302 8-Channel Ethernet & 4G LTE IoT Gateway
LWM2-62 LoRaWAN RF Module SX1262 Long Range Wireless Transceiver
Package Includes:
1 x LWOG2-V1 Outdoor LoRaWAN SX1302 8-Channel Ethernet & 4G LTE Industrial IoT Gateway
