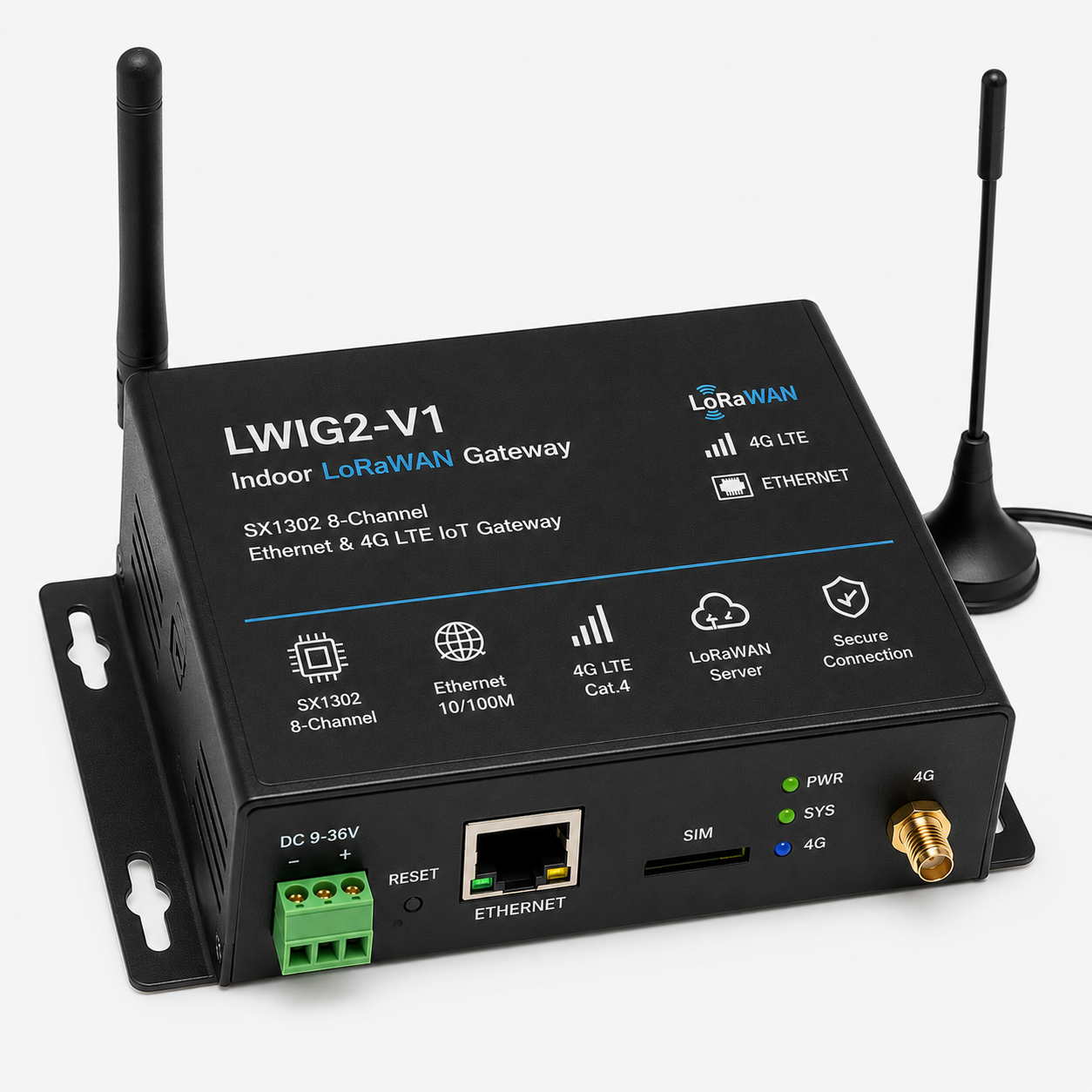

LWIG2-V1 Indoor LoRaWAN SX1302 8-Channel Ethernet & 4G LTE IoT Gateway
SKU:
MOD-QC6045
Availability:
2
In Stock
-
- Rs. 26,480.00
- Unit price
- per
Subtotal:
Rs. 26,480.00
Description
xLWIG2-V1 Indoor LoRaWAN SX1302 8-Channel Ethernet & 4G LTE IoT Gateway is a compact, high-performance indoor LoRaWAN® gateway designed for long-range IoT deployments. Built around the Semtech SX1302 baseband processor with dual SX1250 RF front ends, it supports 8 LoRaWAN channels operating in the 865–867MHz ISM band. The gateway features automatic Ethernet-to-4G LTE failover, a Linux-based host processor, and a user-friendly web interface, making it ideal for smart metering, industrial monitoring, home automation, asset tracking, and private LoRaWAN® networks.
LWIG2-V1 Indoor LoRaWAN 8-Channel Ethernet 4G LTE IoT Gateway Datasheet
Features:
- Semtech SX1302 LoRaWAN® baseband processor
- Dual SX1250 RF front-end architecture
- 8 simultaneous LoRaWAN® channels
- 865–867MHz ISM band operation
- Automatic Ethernet backhaul with 4G LTE fallback
- Linux-based gateway platform
- Supports Semtech LoRa® Packet Forwarder
- Up to +27dBm RF output power
- Receiver sensitivity up to -141dBm
- Wall-mount or tabletop installation
- Simple web-based configuration interface
- Designed for private LoRaWAN® network deployments
- Suitable for smart metering, industrial IoT, building automation, and tracking applications
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Indoor LoRaWAN® Gateway |
| Model | LWIG2-V1 |
| LoRa Baseband Processor | Semtech SX1302 |
| RF Front End | 2 × SX1250 |
| Host Processor | 64-bit ARM Cortex-A72 |
| Clock Frequency | 1.8GHz |
| RAM | LPDDR4-3200 SDRAM, 1GB |
| Storage | 16GB Flash |
| Frequency Band | 865–867MHz ISM Band |
| LoRa Channels | 8 Channels (125kHz per Channel) |
| Spread Factor | SF7 to SF12 |
| Data Rate | 250 to 5470bps |
| Maximum RF Output Power | Up to +27dBm |
| Receiver Sensitivity | Up to -141dBm (SF12, 125kHz BW) |
| LoRa Antenna Port | 1 × 50Ω SMA Female |
| Ethernet | 10/100Mbps |
| Wi-Fi | Limited Coverage |
| Cellular Connectivity | 4G LTE |
| Cellular Antenna Port | 1 × 50Ω SMA Female |
| Power Supply | 12V DC |
| Typical Power Consumption | 5W |
| Maximum Power Consumption | 6.5W |
| Protection Rating | IP54 |
| Mounting | Wall Mount / Table Top |
| Dimensions | 115 × 115 × 50mm |
| Weight | 950g |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -20°C to +85°C |
| Relative Humidity | 0% to 90% (Non-condensing) |
| Compliance | LoRaWAN®, RoHS |
Also Check These Out:
LWM1-62-HP LoRaWAN SX1262 High Power Long Range Wireless Transceiver
LRTC-1262 LoRa Transceiver RF Module SX1262 Long Range SPI Wireless Module
LWM2-62 LoRaWAN RF Module SX1262 Long Range Wireless Transceiver
LWOG2-V1 Outdoor LoRaWAN SX1302 8-Channel Ethernet & 4G LTE IoT Gateway
Package Includes:
1 x LWIG2-V1 Indoor LoRaWAN SX1302 8-Channel Ethernet & 4G LTE IoT Gateway
