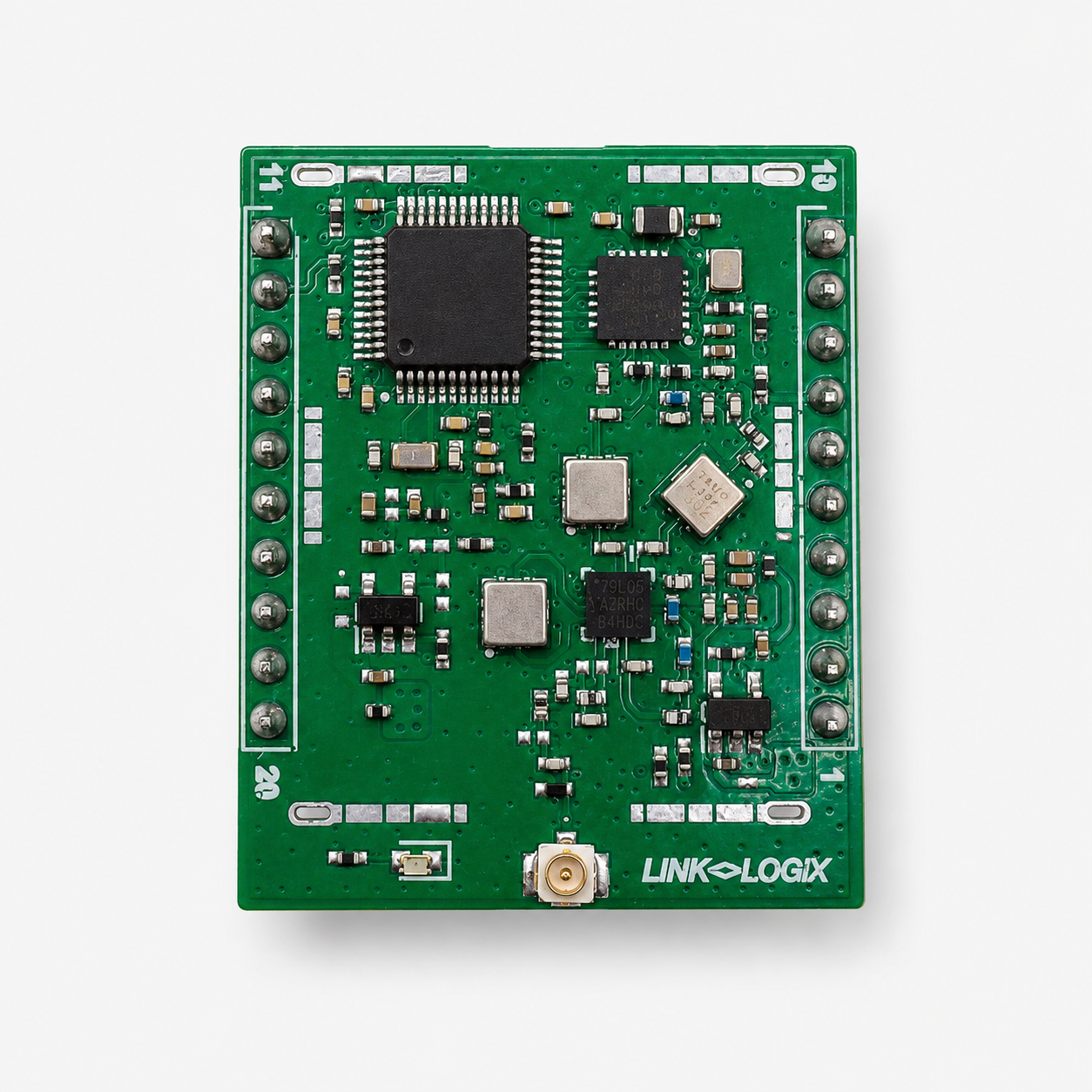

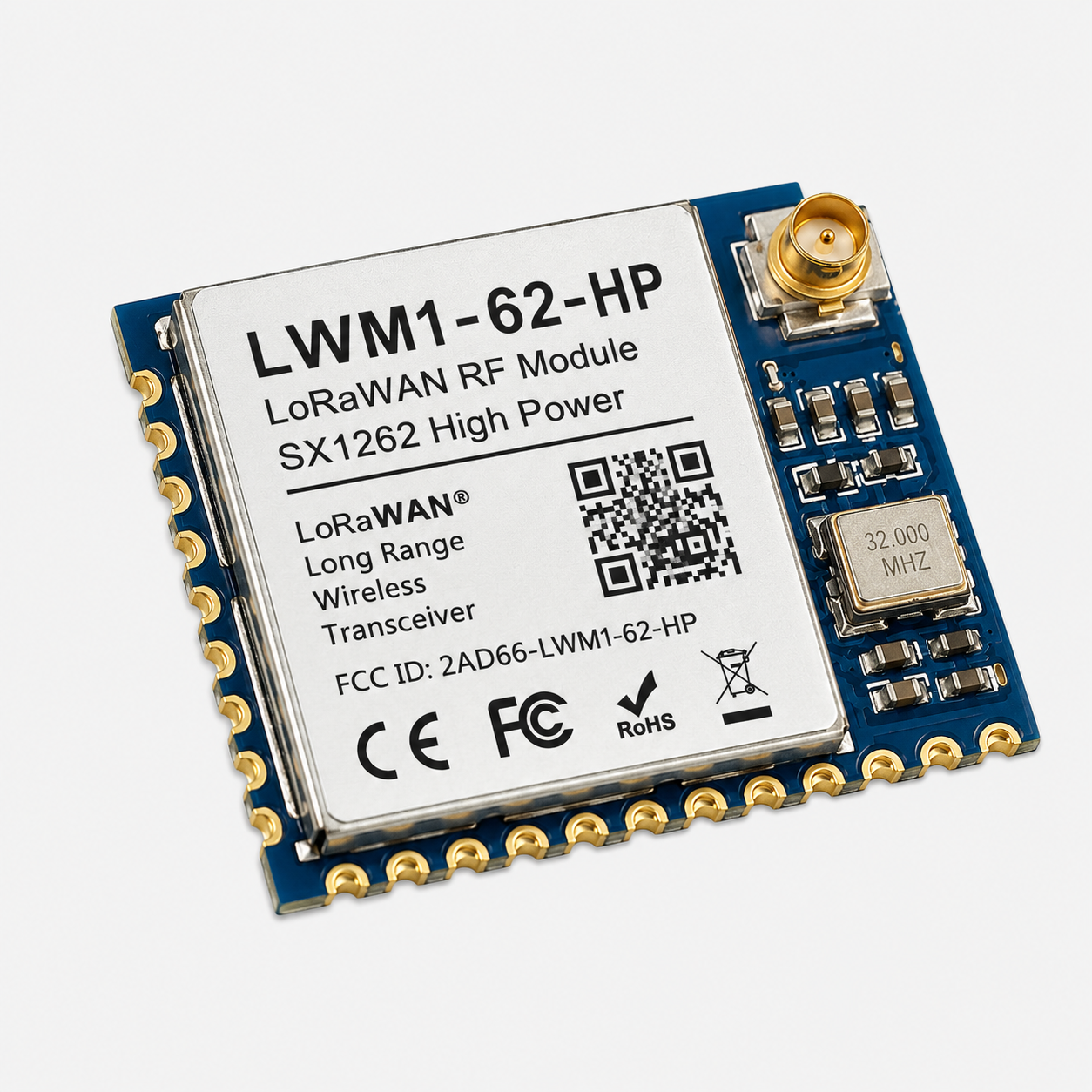

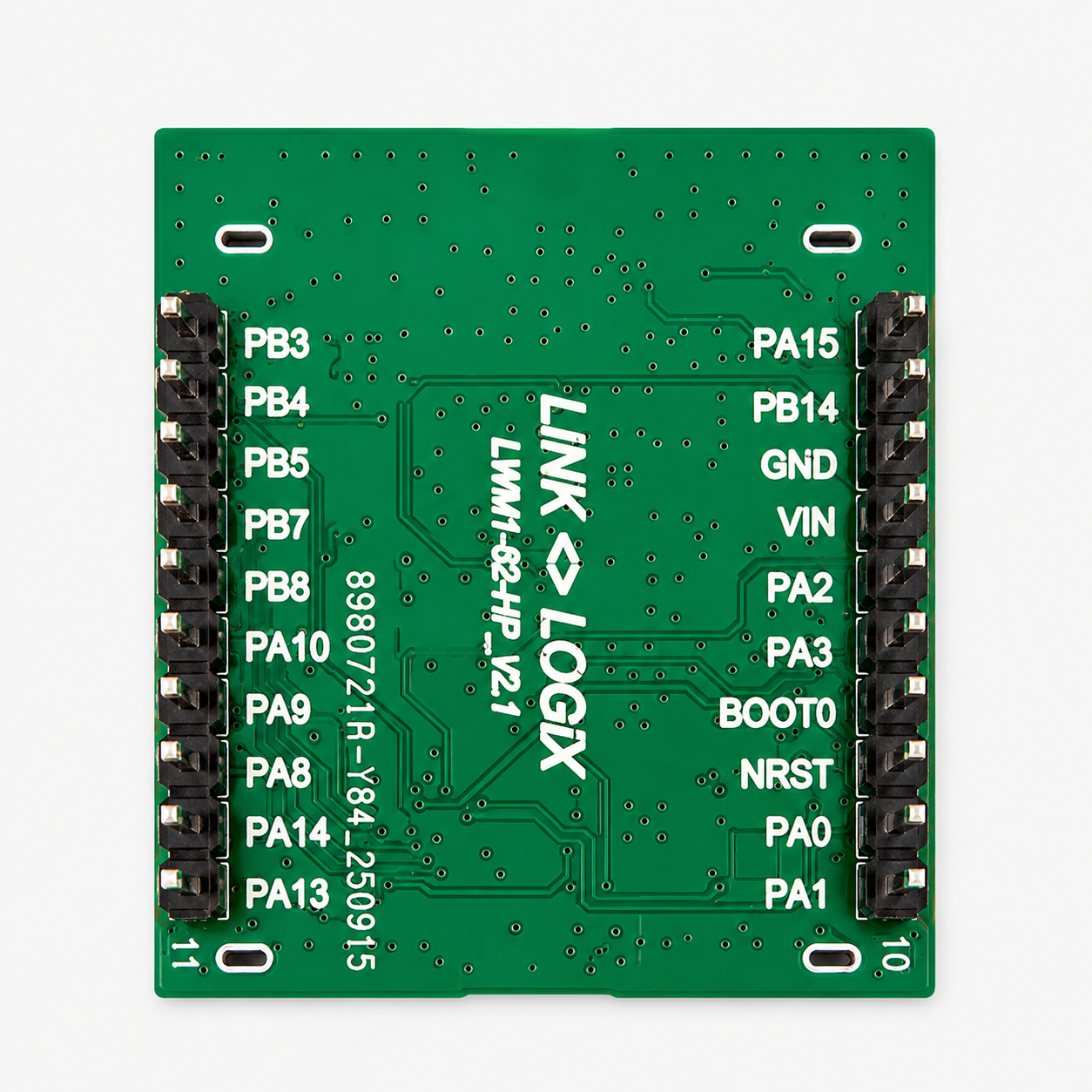

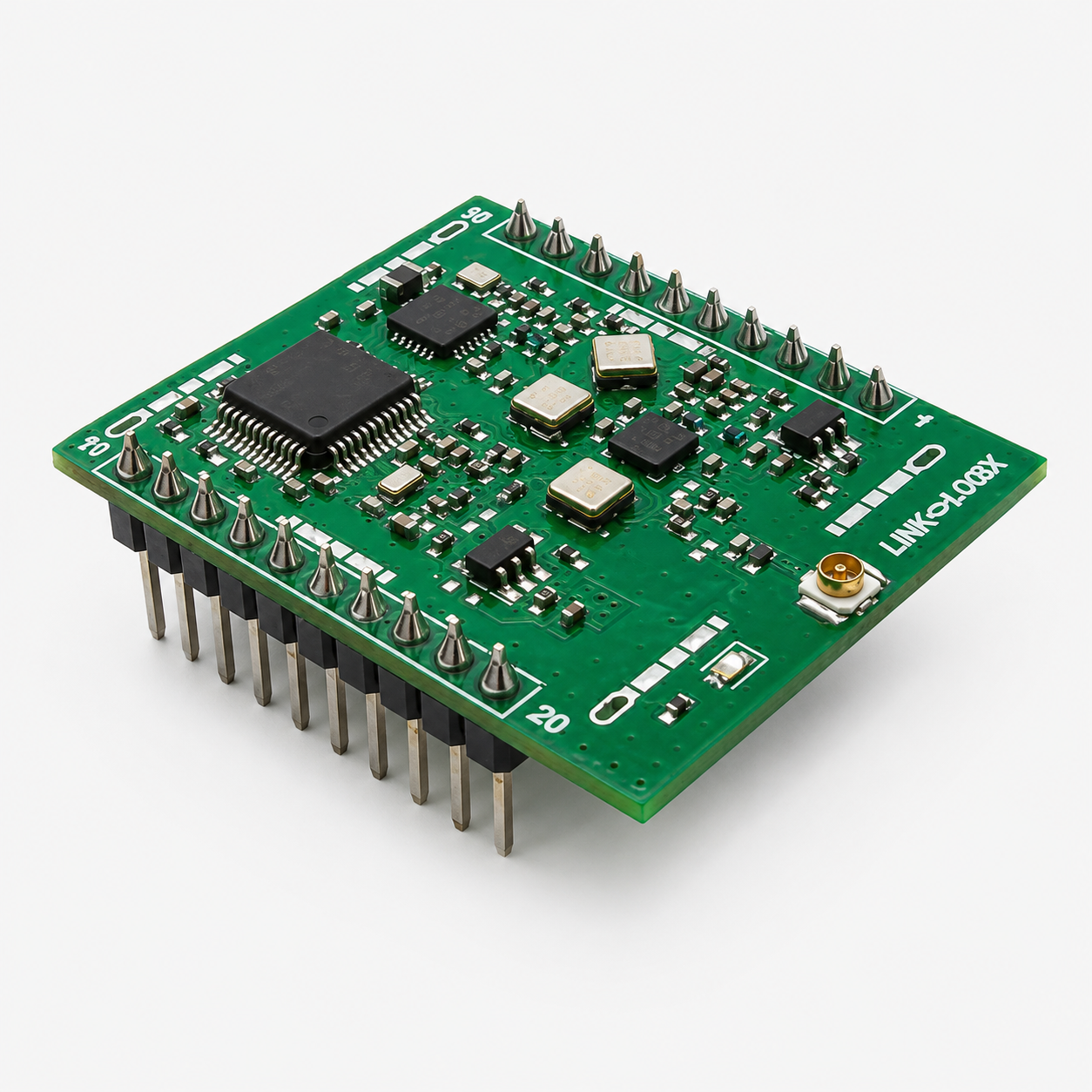

LWM1-62-HP LoRaWAN RF Module SX1262 High Power Long Range Wireless Transceiver

LWM1-62-HP LoRaWAN RF Module SX1262 High Power Long Range Wireless Transceiver is a high-performance LPWAN wireless module designed for long-range IoT communication. Built around the Semtech SX1262 LoRa transceiver, an STM32 ARM Cortex-M0+ microcontroller, and a high-power low-noise RF front end, it supports both LoRaWAN® Class A & C and LoRa® Point-to-Point communication (with appropriate firmware). Operating in the license-free 865–867MHz ISM band, the module delivers up to +27dBm RF output power, exceptional receiver sensitivity, and communication distances of up to 6km line-of-sight, making it ideal for industrial IoT, smart metering, asset tracking, and remote monitoring applications.

LWM1-62-HP LoRaWAN High Power Long Range Wireless Transceiver Datasheet

Features:

1. Semtech SX1262 ultra-long-range LoRa transceiver
2. Integrated High-Power Low-Noise RF Front End
3. STM32 ARM Cortex-M0+ 32-bit microcontroller
4. Supports LoRaWAN® Class A & C protocol
5. Supports LoRa® Point-to-Point communication (firmware dependent)
6. 865–867MHz ISM band operation
7. Up to +27dBm RF output power
8. Receiver sensitivity up to -152dBm
9. Communication range up to 6000m (line of sight)
10. Built-in EEPROM for non-volatile data storage
11. UART, I²C, and SPI communication interfaces
12. Wide operating voltage from 3.3V to 5.5V
13. Compact 36 × 30mm metal-shielded module
14. Suitable for industrial and long-range IoT applications

Specifications:

Also Check These Out:

LWM2-62 LoRaWAN RF Module SX1262 Long Range Wireless Transceiver

LRTC-1262 LoRa Transceiver RF Module SX1262 Long Range SPI Wireless Module

LWIG2-V1 Indoor LoRaWAN SX1302 8-Channel Ethernet & 4G LTE IoT Gateway

LWOG2-V1 Outdoor LoRaWAN SX1302 8-Channel Ethernet & 4G LTE IoT Gateway

Package Includes:

1 x LWM1-62-HP LoRaWAN RF Module SX1262 High Power Long Range Wireless Transceiver
