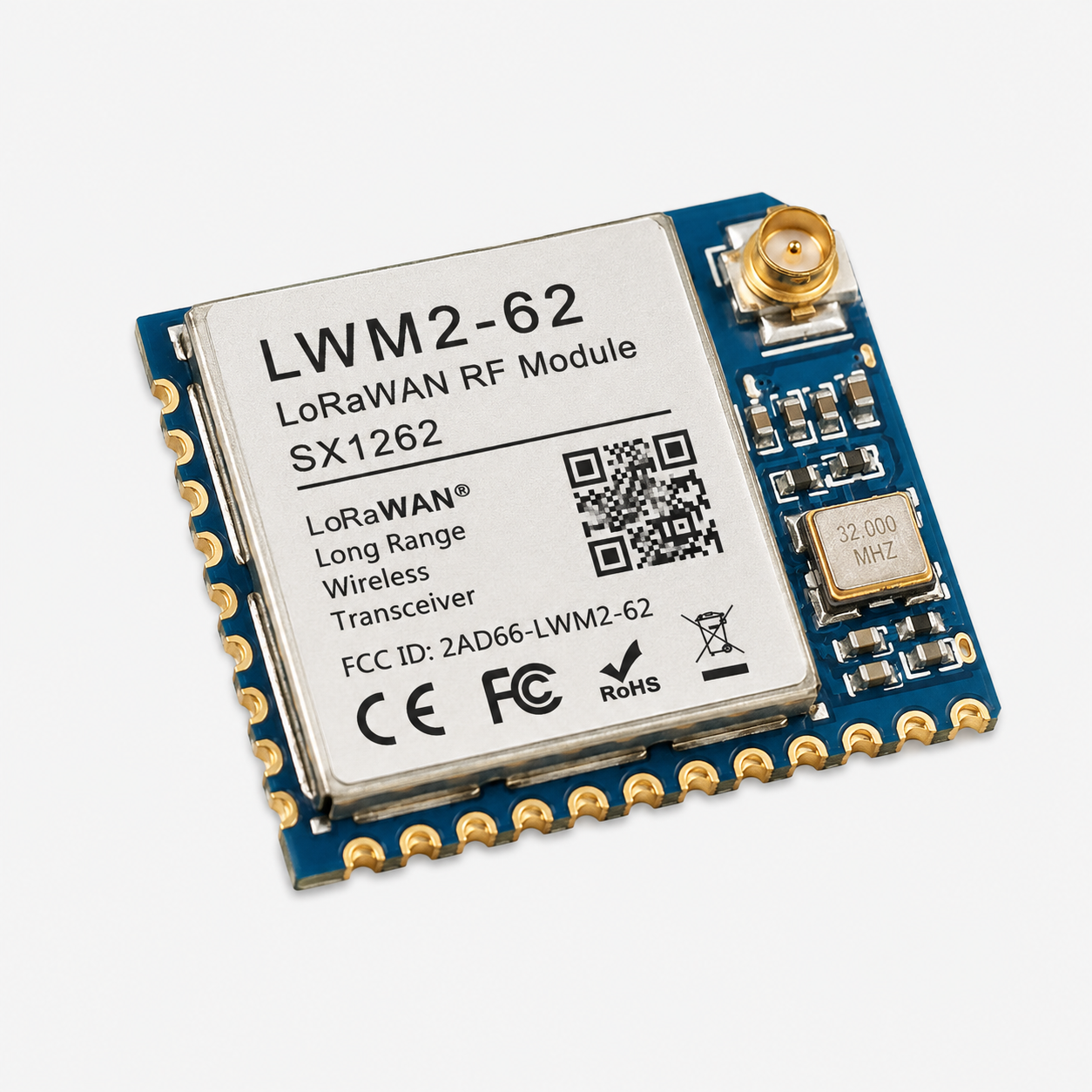

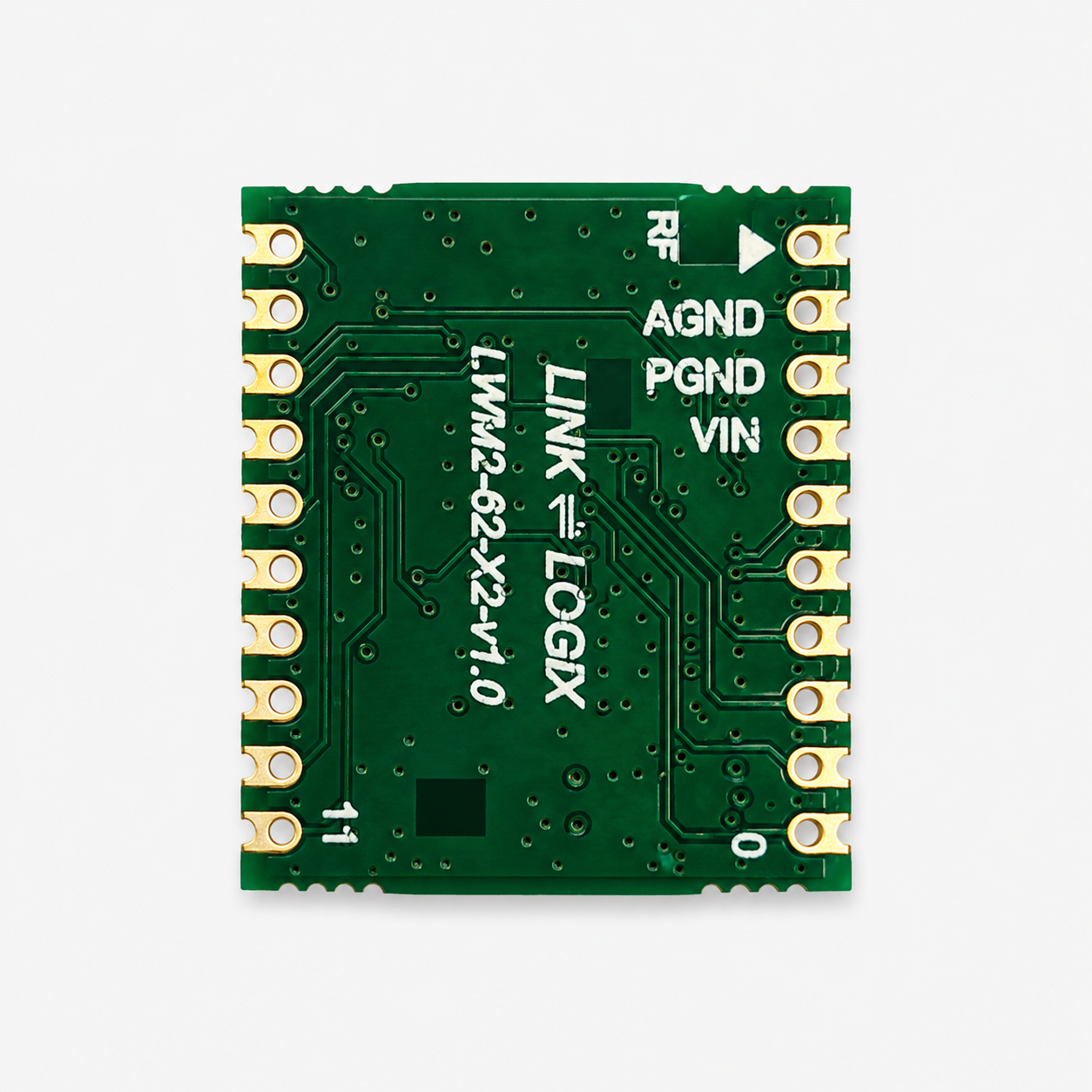

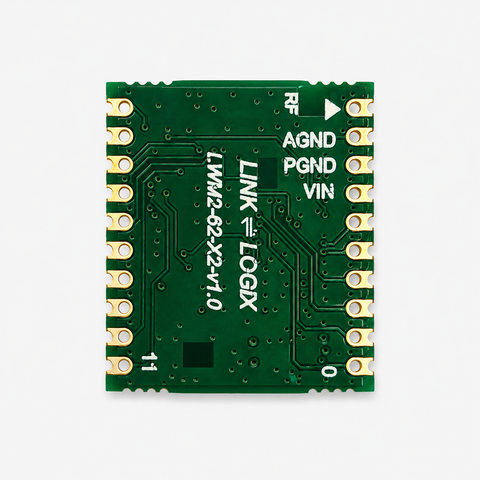

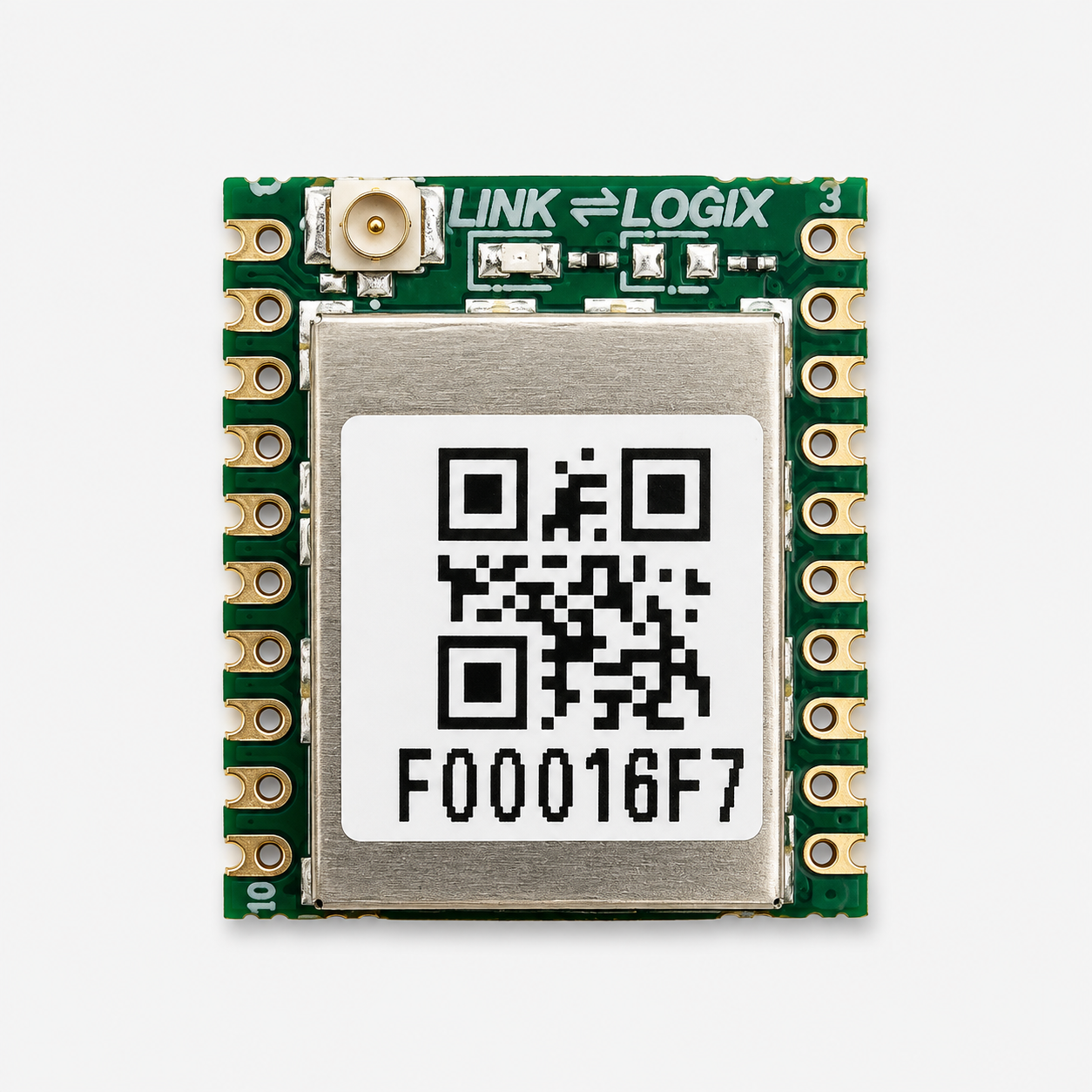

LWM2-62 LoRaWAN RF Module SX1262 Long Range Wireless Transceiver

Brand: GENERIC
SKU: MOD-QC6042
Availability: 2 In Stock
Rs. 835.00
Subtotal: Rs. 835.00
Description
Description
x

LWM2-62 LoRaWAN RF Module 865–867MHz SX1262 Long Range Wireless Transceiver is a compact, low-power LPWAN wireless module designed for long-range IoT communication. Based on the Semtech SX1262 LoRa transceiver and an STM32 ARM Cortex-M0+ microcontroller, it supports both LoRaWAN® Class A & C and LoRa® Point-to-Point communication (with appropriate firmware). Operating in the license-free 865–867MHz ISM band, the module delivers up to +22dBm RF output power, receiver sensitivity of -137dBm, and communication distances of up to 5km line-of-sight, making it ideal for smart metering, industrial automation, asset tracking, and IoT edge devices.

LWM2-62 LoRaWAN RF Module SX1262 Long Range Wireless Transceiver Datasheet

Features:

  1. Semtech SX1262 ultra-long-range LoRa transceiver
  2. STM32 ARM Cortex-M0+ 32-bit microcontroller
  3. Supports LoRaWAN® Class A & C protocol
  4. Supports LoRa® Point-to-Point communication (firmware dependent)
  5. 865–867MHz ISM band operation
  6. Up to +22dBm RF output power
  7. Receiver sensitivity up to -137dBm
  8. Communication range up to 5km (line of sight)
  9. Built-in EEPROM for non-volatile data storage
  10. Ultra-low sleep current consumption
  11. UART and I²C communication interfaces
  12. Compact 22 × 19mm shielded module

Specifications:

Parameter Value
Product Type LoRaWAN RF Module
Model LWM2-62
RF Transceiver Semtech SX1262
MCU STM32 ARM Cortex-M0+ 32-bit
Frequency Band 865–867MHz ISM
Wireless Protocol LoRaWAN® Class A & C, LoRa® Point-to-Point
RF Output Power Up to +22dBm
Receiver Sensitivity -137dBm
RF Data Rate 0.24 to 5kbps
Communication Range Up to 5000m (Line of Sight)
Operating Voltage 3.0V to 3.6V
Sleep Current <5µA
Receive Current 17mA
Transmit Current 130mA
Interfaces UART, I²C
GPIO Digital I/O, Analog Inputs
Operating Temperature -40°C to +85°C
Module Dimensions 22 × 19mm
Antenna Options U.FL Connector, Spring Helical Antenna, PCB RF Pad
Compliance LoRaWAN®, RoHS



Also Check These Out:

LWM1-62-HP LoRaWAN SX1262 High Power Long Range Wireless Transceiver

LRTC-1262 LoRa Transceiver RF Module SX1262 Long Range SPI Wireless Module

LWIG2-V1 Indoor LoRaWAN SX1302 8-Channel Ethernet & 4G LTE IoT Gateway

LWOG2-V1 Outdoor LoRaWAN SX1302 8-Channel Ethernet & 4G LTE IoT Gateway

Package Includes:

1 x LWM2-62 LoRaWAN RF Module SX1262 Long Range Wireless Transceiver
