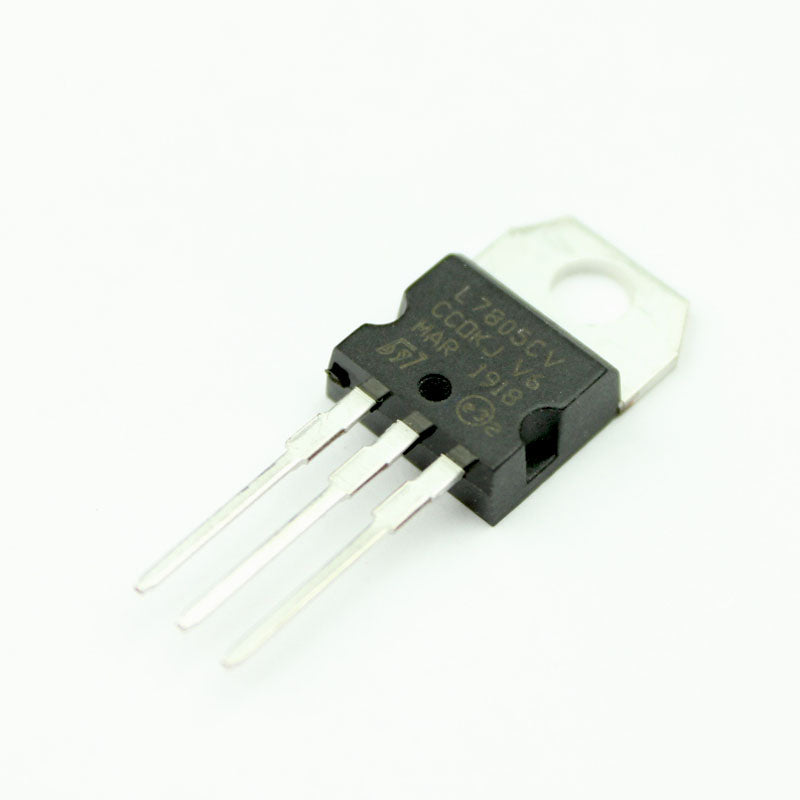

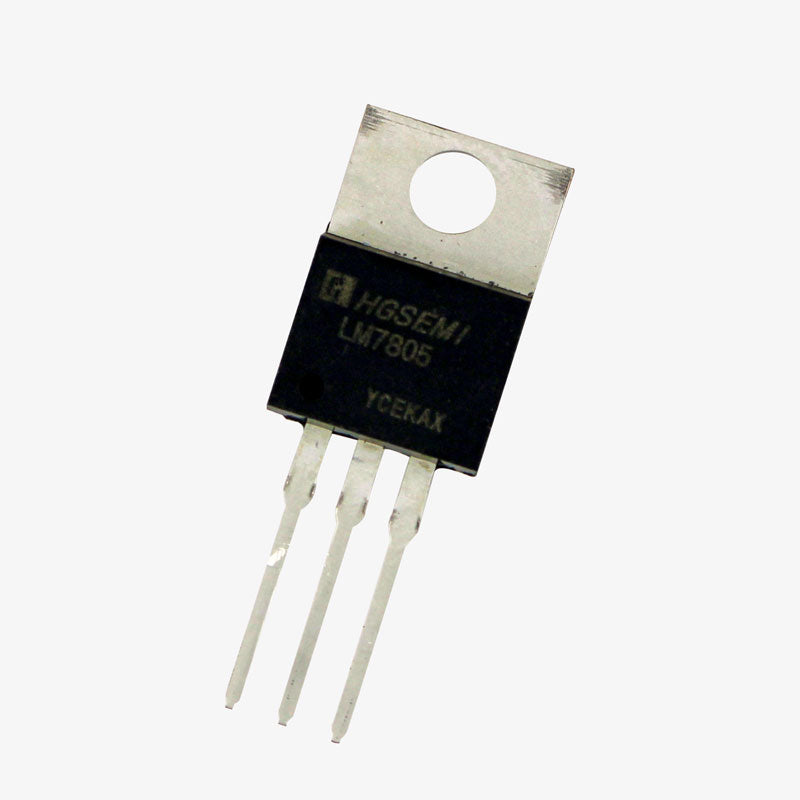

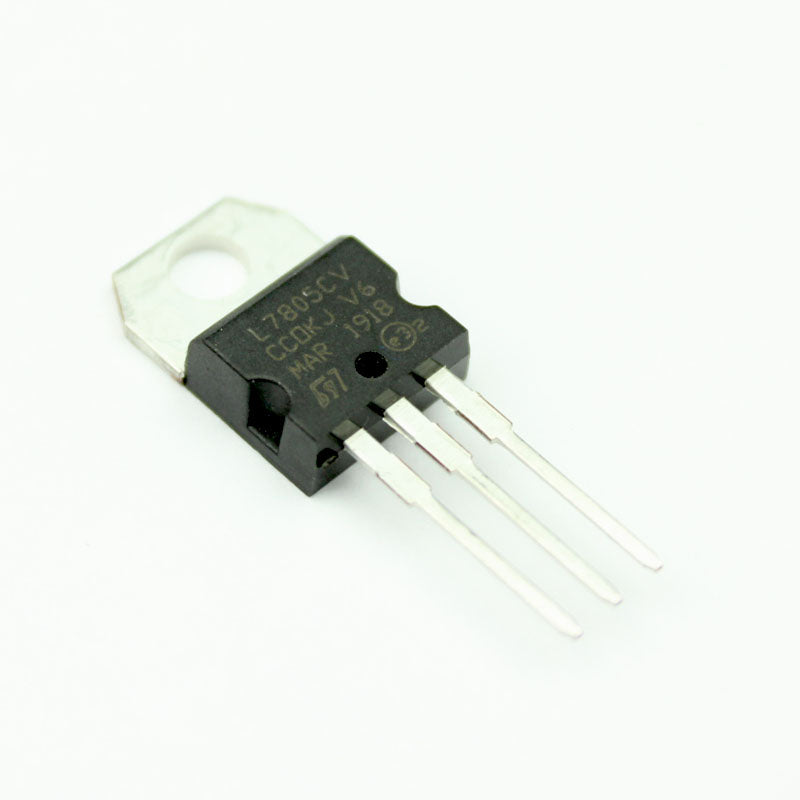

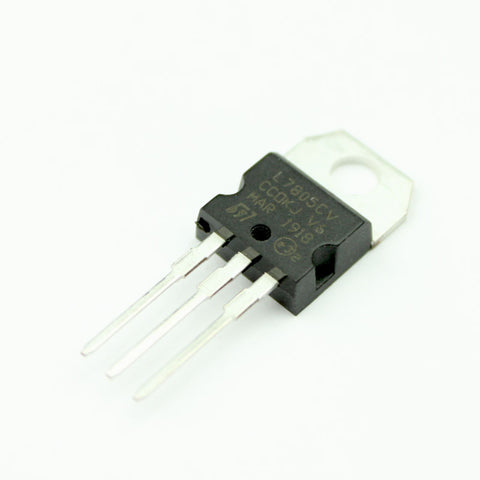

LM7805 - 5V Positive Voltage Regulator LM7805 - 5V Positive Voltage Regulator

QC0250

55 In stock

Rs. 12.00
-
+
Rs. 12.00
(inc. GST)

LM7805 is one of the most commonly used Positive Regulator in Electronic circuits to lower down the voltage from the higher input voltage and it provides a regulated output of +5V with 2% regulation. This regulator has a ~2.5V linear drop-out. That means it must get at least +7V to get a clean +5V out. It dissipates the excess voltage in the form of heat, so you need to use a heat sink along with it to make sure it is working properly. There is a constant 'quiescent' current draw of 6mA. It has 3 terminals in the TO-220 package and it can handle up to 1A current. It is commonly used in Regulated power supply, as a current limiter in certain applications, constant 5V supply in many microcontrollers, sensors, and electronic appliances, etc. If you want a negative -5V Voltage Regulator, check out LM7905 IC.



Specifications

  • Output voltage: 5v
  • Dropout voltage (Max): 2.5v @ 1A
  • Output Current: 1.5 A
  • Load regulation: 100 mv
  • Line Regulation: 50 mv
  • Maximum Operating Temp: 150 c
  • Minimum operating Temp: 0 c
  • Mounting Style: Through hole
  • Package: TO-220



Product Description



To use it as a Voltage Regulator, connect your Input Supply to Input Terminal and Ground Terminal, and take the regulated output from Output Terminal and Ground Terminal. Make sure ground terminals of both Input and Output supplies are the same. You can also connect ceramic capacitors across input and output supplies to make the system more stable and reliable.



Additional Resources

Datasheet of IC 7805 Voltage Regulator

Making Breadboard Power Supply using LM7805

Cell Phone Charger Circuit using LM7805



Package Contents

1×LM7805 Voltage Regulator IC

    LM7805 is one of the most commonly used Positive Regulator in Electronic circuits to lower down the voltage from the higher input voltage and it provides a regulated output of +5V with 2% regulation. This regulator has a ~2.5V linear drop-out. That means it must get at least +7V to get a clean +5V out. It dissipates the excess voltage in the form of heat, so you need to use a heat sink along with it to make sure it is working properly. There is a constant 'quiescent' current draw of 6mA. It has 3 terminals in the TO-220 package and it can handle up to 1A current. It is commonly used in Regulated power supply, as a current limiter in certain applications, constant 5V supply in many microcontrollers, sensors, and electronic appliances, etc. If you want a negative -5V Voltage Regulator, check out LM7905 IC.



    Specifications

    • Output voltage: 5v
    • Dropout voltage (Max): 2.5v @ 1A
    • Output Current: 1.5 A
    • Load regulation: 100 mv
    • Line Regulation: 50 mv
    • Maximum Operating Temp: 150 c
    • Minimum operating Temp: 0 c
    • Mounting Style: Through hole
    • Package: TO-220



    Product Description



    To use it as a Voltage Regulator, connect your Input Supply to Input Terminal and Ground Terminal, and take the regulated output from Output Terminal and Ground Terminal. Make sure ground terminals of both Input and Output supplies are the same. You can also connect ceramic capacitors across input and output supplies to make the system more stable and reliable.



    Additional Resources

    Datasheet of IC 7805 Voltage Regulator

    Making Breadboard Power Supply using LM7805

    Cell Phone Charger Circuit using LM7805



    Package Contents

    1×LM7805 Voltage Regulator IC
