MG996R Tower Pro Digital Metal Gear High Torque Servo Motor - 360 Degree Rotation

QC2556
1 In stock
Rs. 231.00 (Exc. GST)
Rs. 231.00

This Tower Pro MG996R Digital Metal Gear High Torque Servo Motor (360 Degree Rotation) features metal gearing resulting in extra high 10kg stalling torque in a tiny package. The MG996R is essentially an upgraded version of the famous MG995 servo, and features upgraded shock-roofing and a redesigned PCB and IC control system that make it much more accurate than its predecessor. The gearing and motor have also been upgraded to improve dead bandwidth and centering. The unit comes complete with 30cm wire and 3 pin ‘S’ type female header connector that fits most receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum and Hitec.

Important: Please note that these are not Full Metal Gear Servo motors, only the top gear comes in metal.

Wire Configuration :

  • RED    –   Positive
  • Brown – Negative
  • Orange – Signal (PWM)

Specifications :

  • Operating voltage: 4.8 V - 7.2 V
  • Running Current 500 mA – 900 mA (6V)
  • Stall Current 2.5 A (6V)
  • Temperature range: 0 ºC – 55 ºC
  • Control System: Analog
  • Operating Angle: 360degree
  • Required Pulse: 900us-2100us
  • Direction: CCW
  • Operating speed: 0.17 s/60º (4.8 V), 0.14 s/60º (6 V)
  • Dead band width: 5 μs
  • Wire length: 30cm
  • Connector: 3 pin 'S' type female header
  • Weight: 55 g
  • Dimension: 40.7 x 19.7 x 42.9 mm approx.
  • Stall torque: 9.8 kgf·cm (4.8 V ), 11 kgf·cm (6 V)
  • Stable and shock proof double ball bearing design
Read More
Read Less

Returns Policy

Due to the type of products we sell, we accept limited returns. Below are the conditions where we can accept a return request.

1. Damaged During Shipment
If you receive a product damaged during shipment, please notify us within the 3 days of you receive the product, supported by the proper pictures and description. Once our support team accept the return, we will provide a replacement or a complete refund including the return shipping cost.

2. Wrong Item Shipped

If your item looks different from what is shown in the image on our website, we will take the item back and provide a refund or replacement as per your choice.

Limitation of Returns
We don't accept the returns for the products damanged by improper use of the product. Moreover we don't accept the return, if the ordered product is not fit for any specific application. Please read the product specifications and datasheet before selecting and ordering a product. Returns are accepted only with 3 days from the date of delivery.

Shipping

We ship to all over India with free shipping on all prepaid orders above 500. For Cash on Delivery orders INR 80 will be charged for orders below INR 599 and INR 30 will be charged for the orders above 599. Please contact to our support team at support@quartzcomponents.com for any question related to shipping.


Please note that the Minimum Order Value is INR 500 for COD orders.

Customer Reviews

Based on 1 review
0%
(0)
0%
(0)
100%
(1)
0%
(0)
0%
(0)

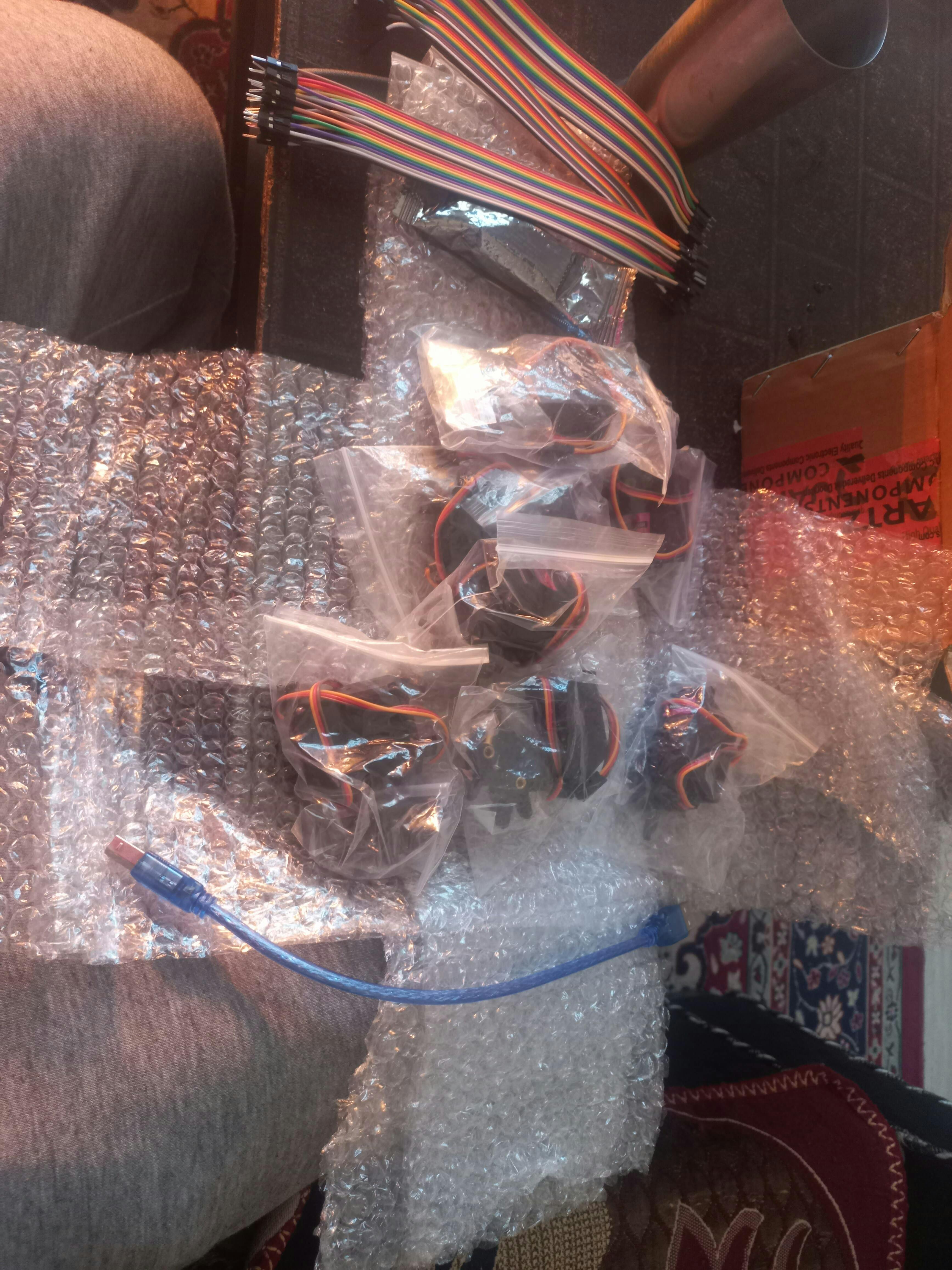

A
