MG995 Metal Gear Servo Motor (180 Degree Rotation) MG995 Metal Gear Servo Motor (180 Degree Rotation)

QC0342

10 In stock

Rs. 422.00
-
+
Rs. 422.00
(inc. GST)

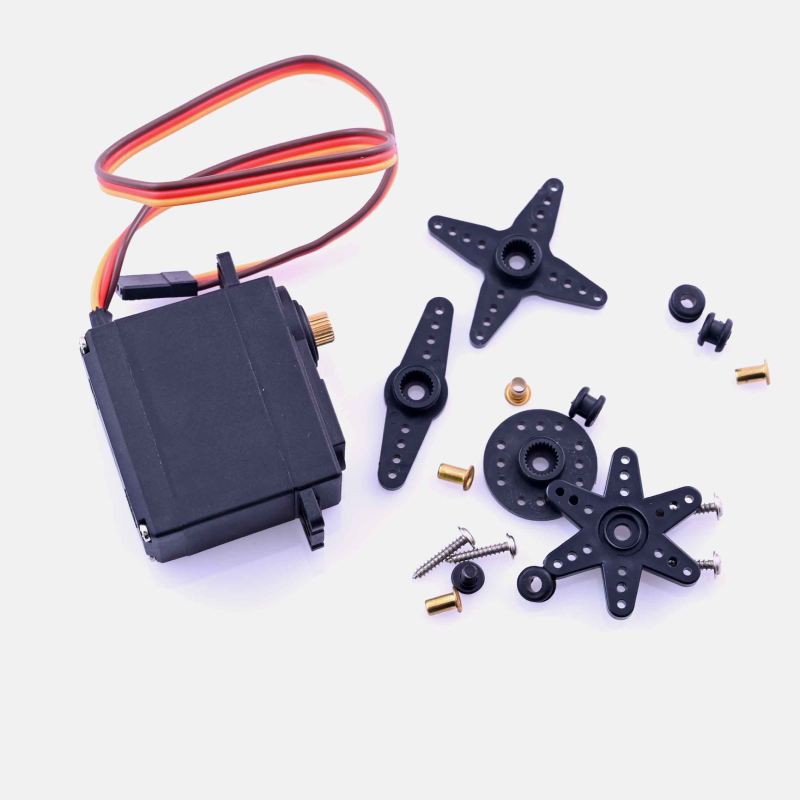

MG995 servo motor is a popular servo motor mainly used in robotics and drones applications. MG995 provides precise rotation over 180º range and comes with metal geared, and shock proof double ball bearing design, so suited for designing robotic arm in which wear and tear of motor is high.

MG995 Features and Electrical characteristics:

  • Operating voltage range is 4.8 V to 7.2 V
  • Current draw at idle is 10mA
  • No load operating current draw is 170mA
  • Current at maximum load is 1200mA
  • Dimension: 40.7×19.7×42.9mm
  • Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6v)
  • Operating speed: 0.2 s/60º (4.8 V), 0.16 s/60º (6 V)
  • Rotational degree: 180º
  • Dead band width: 5 μs
  • Metal geared servo for more life
  • Stable and shock proof double ball bearing design
  • Constant torque throughout the servo travel range
  • Dimension: 40.7×19.7×42.9mm
  • Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6v)
  • Operating speed: 0.2 s/60º (4.8 V), 0.16 s/60º (6 V)
  • Rotational degree: 180º
  • Dead band width: 5 μs

Additional Resources:

MG995 Servo Motor Datasheet

MG995 servo motor is a popular servo motor mainly used in robotics and drones applications. MG995 provides precise rotation over 180º range and comes with metal geared, and shock proof double ball bearing design, so suited for designing robotic arm in which wear and tear of motor is high.

MG995 Features and Electrical characteristics:

  • Operating voltage range is 4.8 V to 7.2 V
  • Current draw at idle is 10mA
  • No load operating current draw is 170mA
  • Current at maximum load is 1200mA
  • Dimension: 40.7×19.7×42.9mm
  • Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6v)
  • Operating speed: 0.2 s/60º (4.8 V), 0.16 s/60º (6 V)
  • Rotational degree: 180º
  • Dead band width: 5 μs
  • Metal geared servo for more life
  • Stable and shock proof double ball bearing design
  • Constant torque throughout the servo travel range
  • Dimension: 40.7×19.7×42.9mm
  • Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6v)
  • Operating speed: 0.2 s/60º (4.8 V), 0.16 s/60º (6 V)
  • Rotational degree: 180º
  • Dead band width: 5 μs

Additional Resources:

MG995 Servo Motor Datasheet
