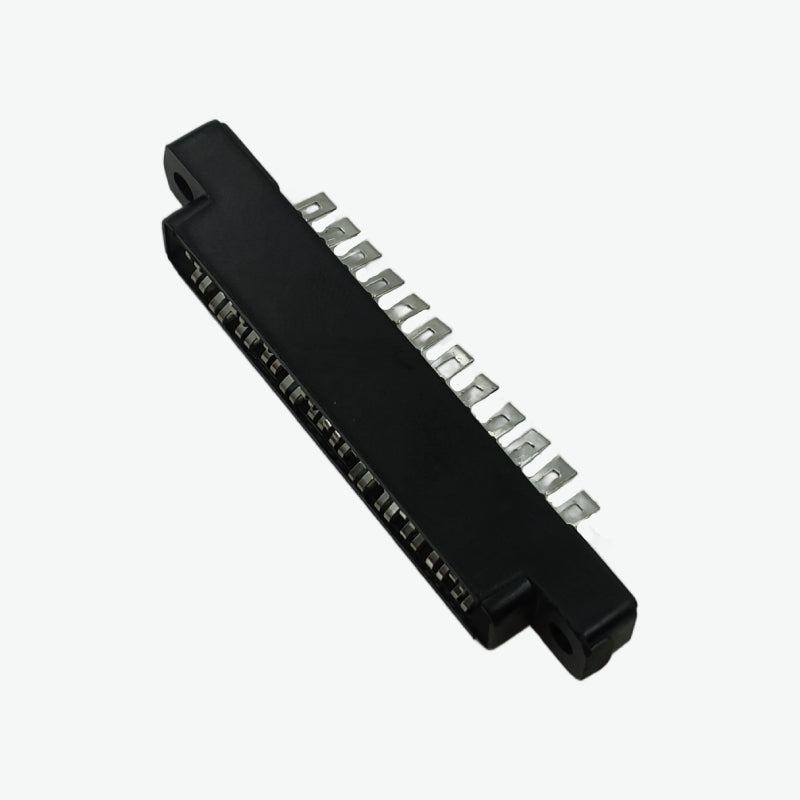

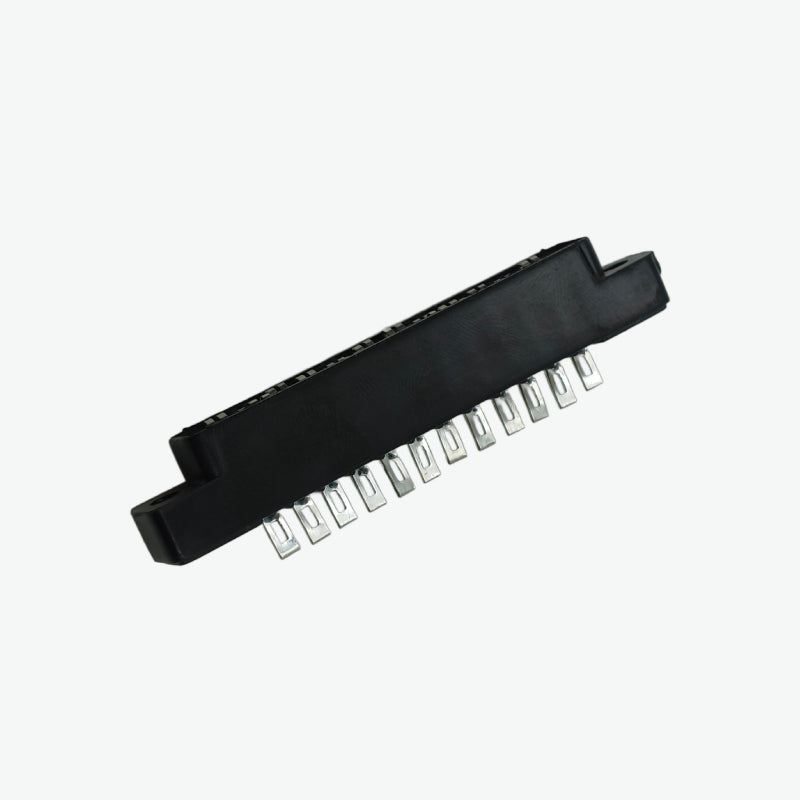

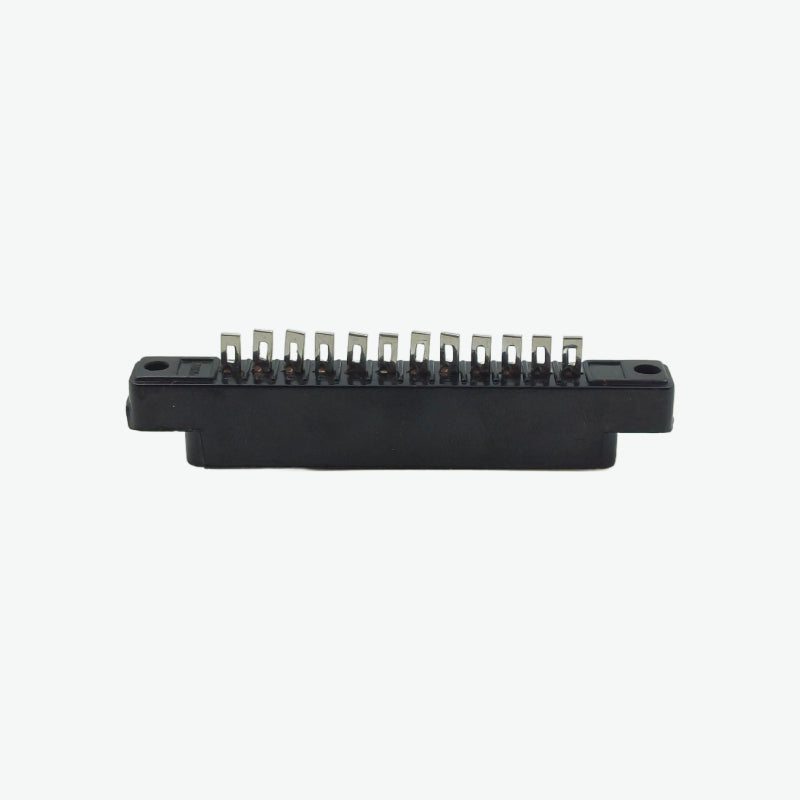

12 Contact Card Edge Connector (Black) - 3.96mm Pitch 5A 600V AC
The 12 Contact Card Edge Connector is a precision-engineered interface component designed for secure PCB-to-board connections. Built with durable materials and bifurcated bellows contacts, it ensures stable conductivity, long service life, and excellent performance across a wide temperature range. Ideal for industrial controls, instrumentation, and electronic assemblies requiring dependable electrical connections.
Features:
- 12-contact configuration with bifurcated bellows design for reliable electrical connection
- Solder/PMT type terminals for easy PCB integration
- Gold/tin-plated phosphor bronze contacts for superior conductivity and corrosion resistance
- Durable DAP/Bakelite insulator ensures high thermal and electrical strength
- Rated for 500 mating cycles, ensuring long-term stability
- RoHS compliant and UL-approved for safety and performance
Specifications:
- Model: 12 Contact Card Edge Connector
- Contact Type: Bifurcated Bellows
- Contact Terminal: Solder / PMT
- Contact Pitch: 3.96mm (0.156 inch)
- Durability: 500 Cycles
- Insulator Material: DAP / Bakelite
- Contact Material: Phosphor Bronze
- Contact Finish: Gold / Tin
- Operating Temperature Range: -65°C to +125°C
- Working Voltage: 600V RMS
- Voltage Proof: 1800V RMS
- Current Rating: 5A
- Contact Resistance: ≤10 mΩ (max)
- Insulation Resistance: ≥5000 MΩ (min)
- Compliance: RoHS Certified
- Approval: E302677
Package Includes:
1 × 12 Contact Card Edge Connector – 3.96mm Pitch
