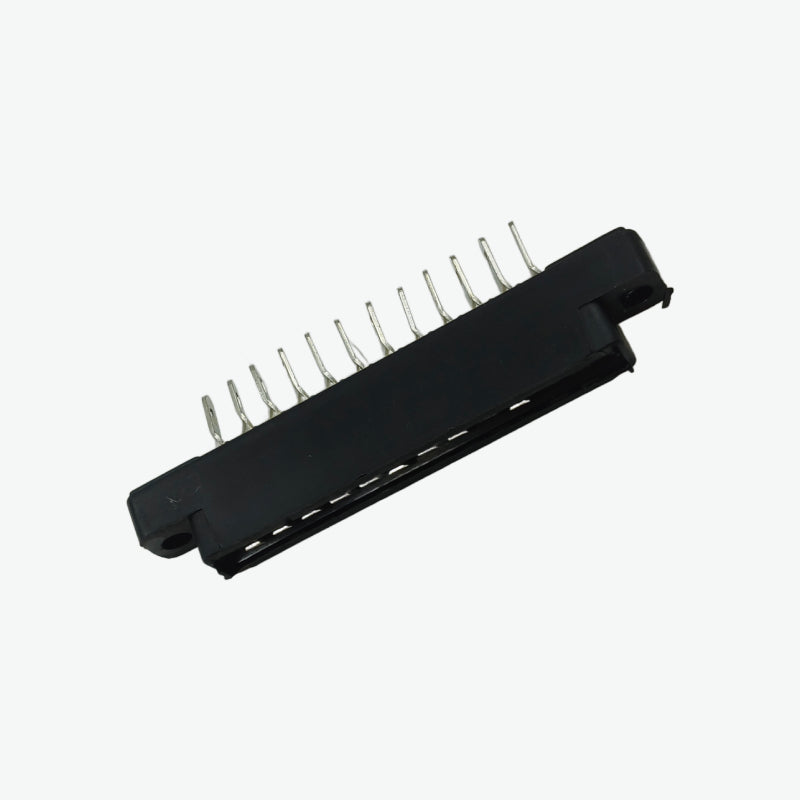

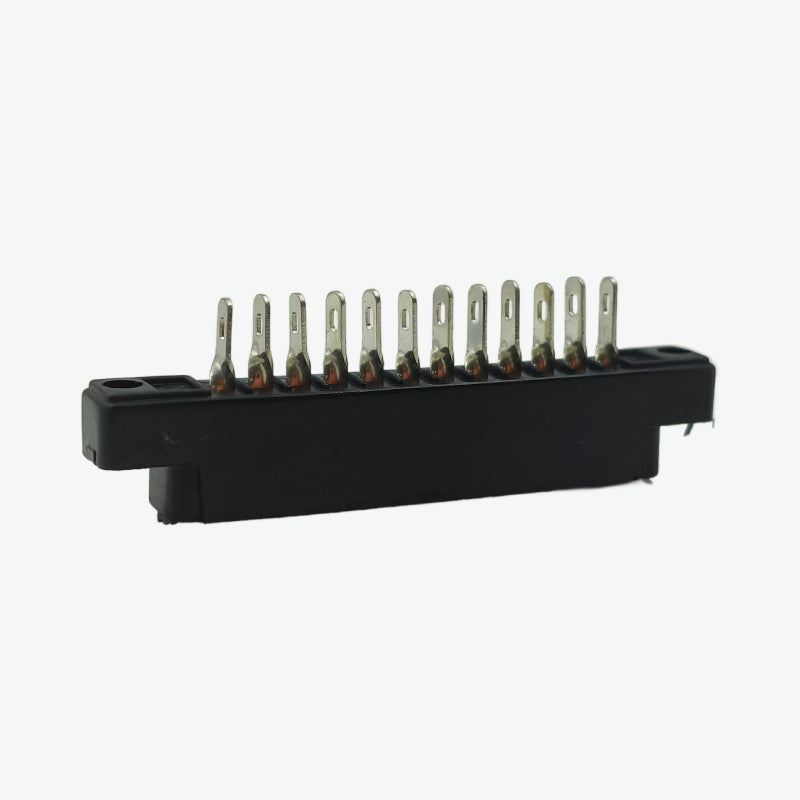

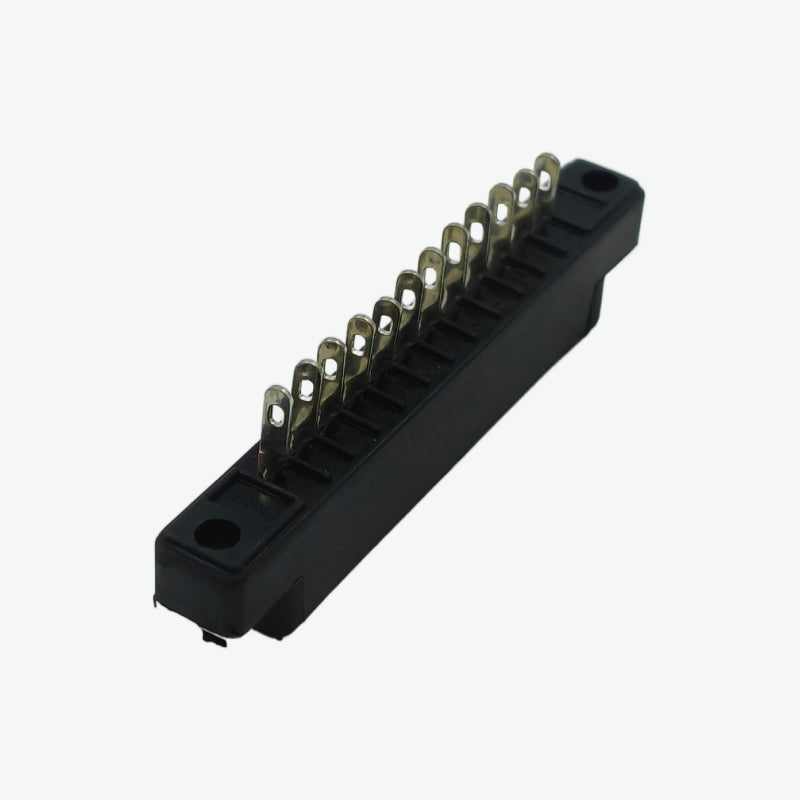

12 Contact Card Edge Connector (Black) - 3.96mm Pitch 5A 300V
The 12 Contact Card Edge Connector (PCx12 Series) features Bifurcated Double Bellows (BBT) contacts for secure and reliable PCB connections. Designed for high-density circuits, it combines robust mechanical durability with excellent electrical performance. Its PA66 insulator and gold- or tin-plated phosphor bronze contacts ensure long-lasting reliability, making it ideal for industrial electronics, communication modules, and control systems.
Features:
- 12-contact card edge connector for multi-point PCB connections
- Bifurcated Double Bellows (BBT) contact type for secure, stable connectivity
- Solder or PMT terminals for flexible PCB mounting options
- 3.96mm (0.156 inch) pitch for precise alignment and compact layouts
- Durable design rated for 500 mating cycles
- Ideal for industrial electronics, communication modules, and PCB assemblies
Specifications:
- Number of Contacts: 12
- Contact Type: Bifurcated Double Bellows (BBT)
- Colour: Black
- Contact Terminal: Solder / PMT
- Contact Pitch: 3.96mm (0.156 inch)
- Durability: 500 cycles
- Insulator Material: PA66
- Contact Material: Phosphor Bronze (PB)
- Contact Finish: Gold / Tin
- Temperature Range: -40°C to +125°C
- Working Voltage: 300V rms
- Current Rating: 5A
- Contact Resistance: ≤10 mΩ
- Insulation Resistance: ≥1000 MΩ
- Voltage Proof: 1800V rms
Package Includes:
12 Contact Card Edge Connector(Black) - 3.96mm Pitch
