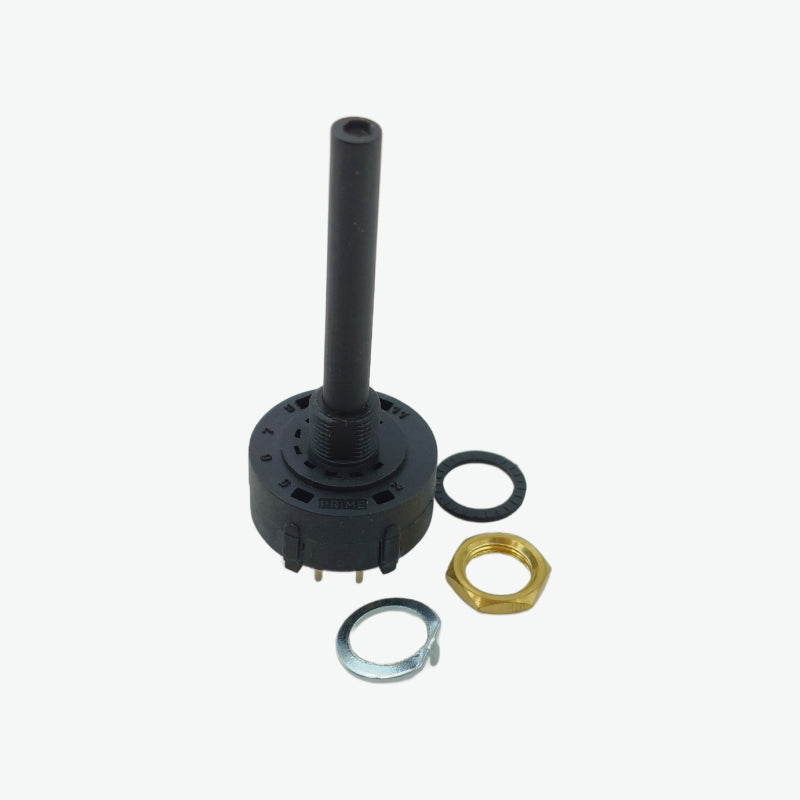

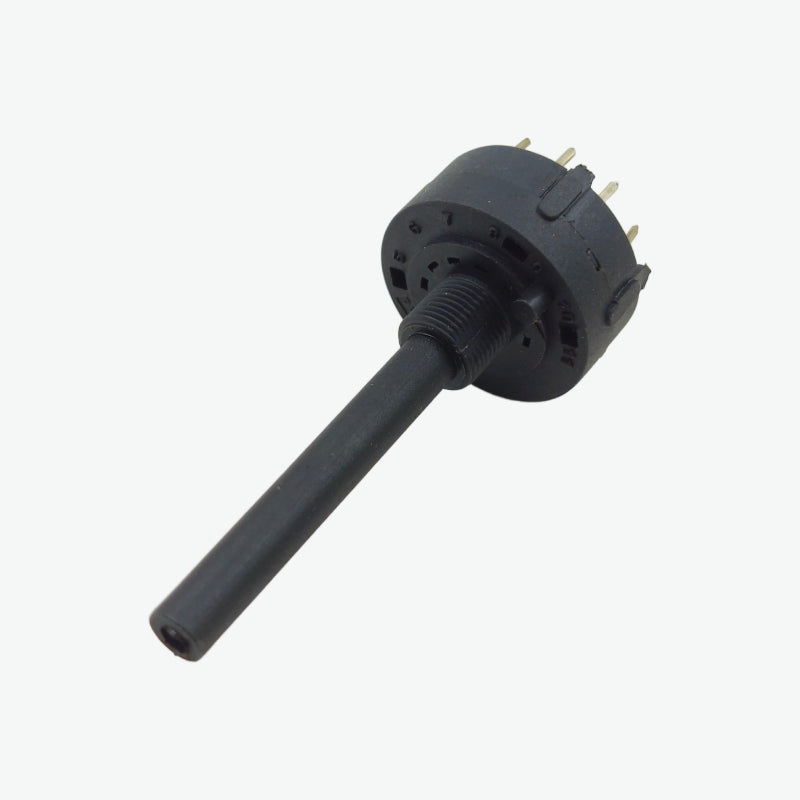

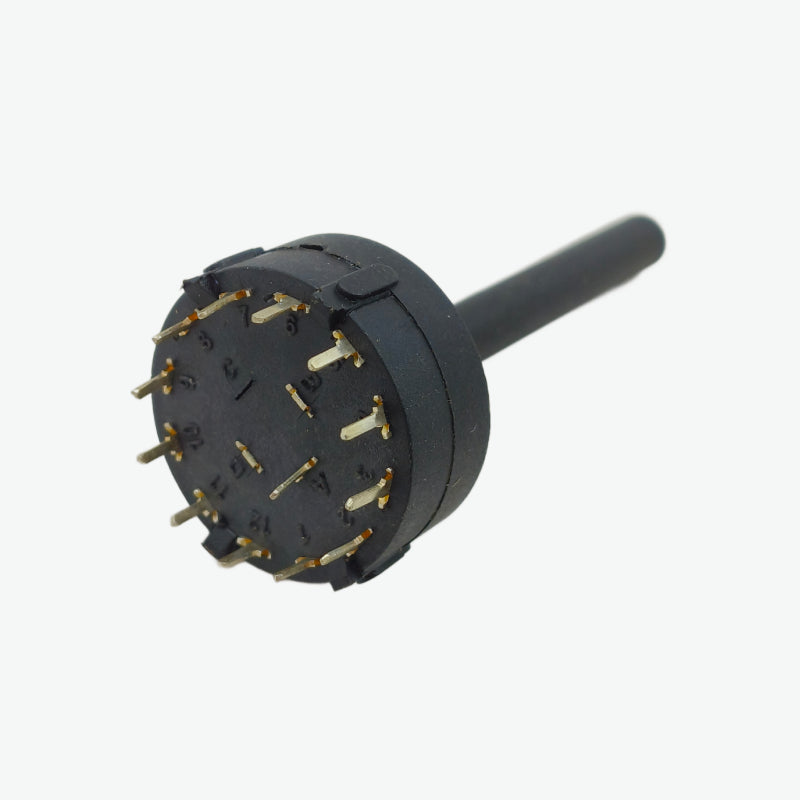

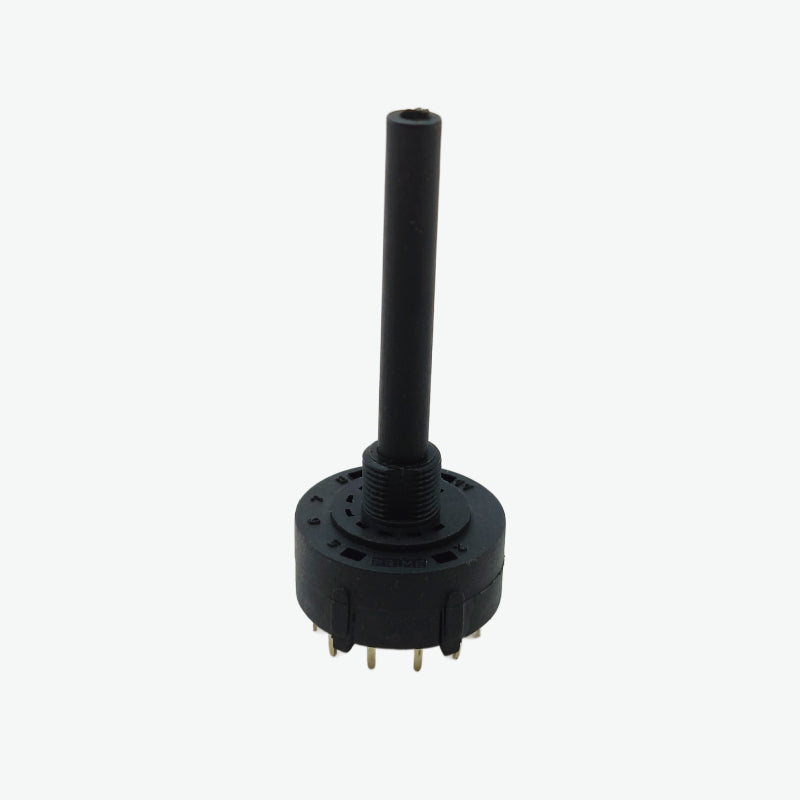

The 1 Pole 12 Way 26mm Rotary Switch (40mm Shaft) is a precision-engineered switching component designed for reliable multi-circuit control in industrial, electronic, and testing applications. Featuring a long 40mm shaft for easy knob installation and smooth operation, it offers 12 selectable positions for accurate circuit selection. Built with durable thermoplastic housing and high-quality metal contacts, this rotary switch ensures excellent insulation, conductivity, and long-term performance.
Features:
- Rated for 5A at 250V AC, suitable for multi-circuit switching
- 12-position rotary design for precise control
- Single-pole configuration for versatile applications
- Extended 40mm shaft for convenient knob mounting
- Smooth rotation with firm position detents
- Robust thermoplastic body for durability and heat resistance
- Tin/Silver-plated contacts for reliable conductivity
Specifications:
- Model: 1 Pole 12 Way Rotary Switch
- No. of Poles: 1
- No. of Ways: 12
- Type: Rotary Switch
- Rated Voltage: 250V AC
- Rated Current: 5A
- Body Diameter: 26mm
- Shaft Length: 40mm
- Switch Operation: 12 Position (Rotary Selection)
- Body Material: Engineering Thermoplastic
- Contact Material: Tin/Silver Plated Metal
- Terminal Type: Solder Lug / Push Type
- Insulation Resistance: >1000 MΩ (at 500V DC)
- Dielectric Strength: >2KV
- Operating Temperature Range: -20°C to +70°C
- Electrical Endurance: >5,000 Cycles at Rated Load
Package Includes:
1 × 1 Pole 12 Way 26mm Rotary Switch – 40mm Shaft, 5A 250V AC
