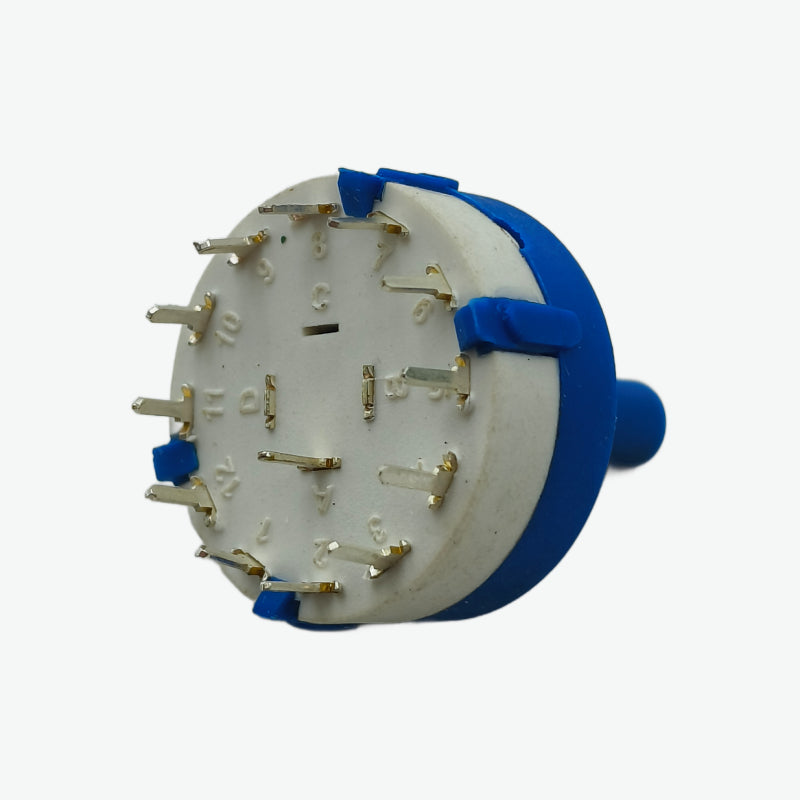

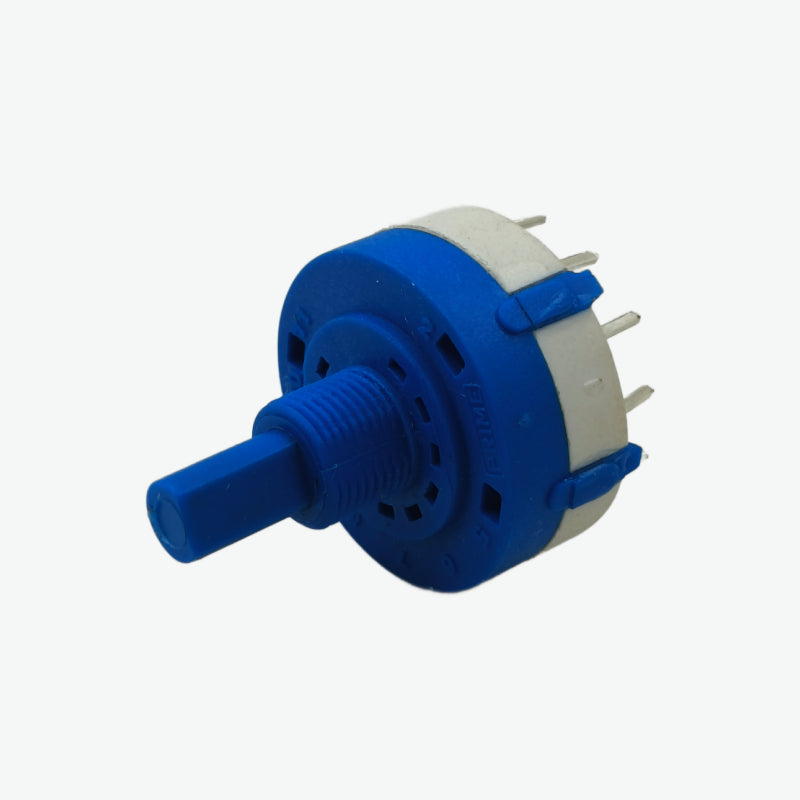

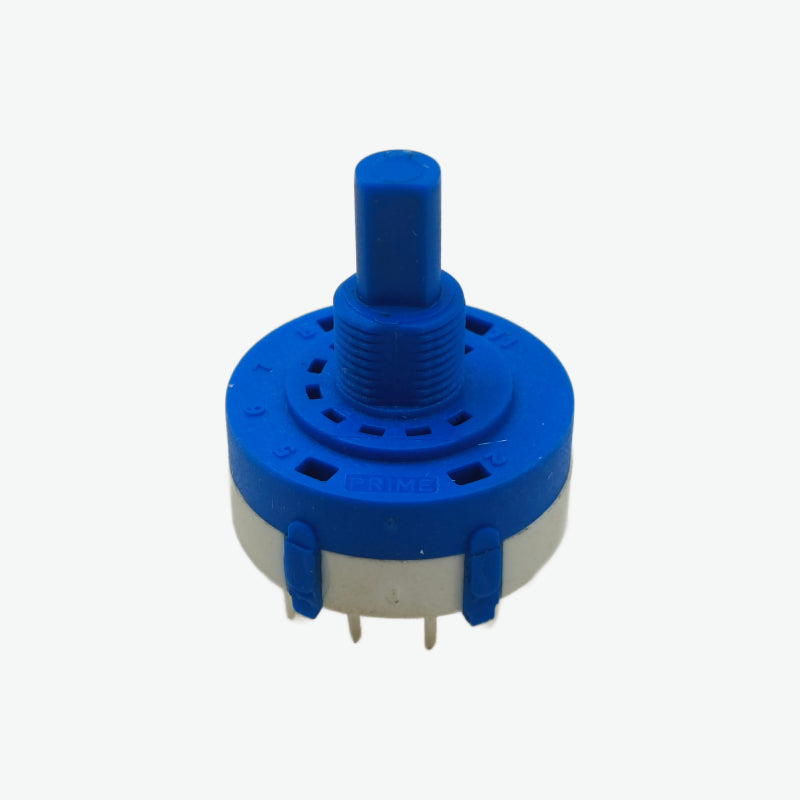

The 1 Pole 12 Way 26mm Rotary Switch is a durable and high-performance control device designed for smooth and precise regulation. With 12 selectable positions, it provides flexible control for a variety of fan or multi-speed electrical applications. Built with robust engineering thermoplastic and high-quality metal components, this rotary switch ensures excellent insulation, long operational life, and reliable performance under continuous use.
Features:
- Rated for 5A at 250V AC for standard electrical control
- 12-step rotary operation for smooth and accurate adjustment
- Single-pole design suitable for various control circuits
- High insulation resistance and dielectric strength for safety
- Rugged thermoplastic housing for enhanced durability
- Smooth rotation with clear detent positions
- Tin/Silver-plated terminals ensure stable electrical contact
- Compact 26mm mounting design for easy panel integration
Specifications:
- Model: 1 Pole 12 Way Rotary Switch
- No. of Poles: 1
- No. of Ways: 12
- Type: Rotary Fan Regulator Switch
- Rated Voltage: 250V AC
- Rated Current: 5A
- Mounting Diameter: 26mm
- Switch Operation: 12 Position (Rotary Selection)
- Body Material: Engineering Thermoplastic
- Contact Material: Tin/Silver Plated Metal
- Insulation Resistance: >1000 MΩ (at 500V DC)
- Dielectric Strength: >2KV
- Operating Temperature Range: -20°C to +70°C
- Electrical Endurance: >5,000 Cycles at Rated Load
Package Includes:

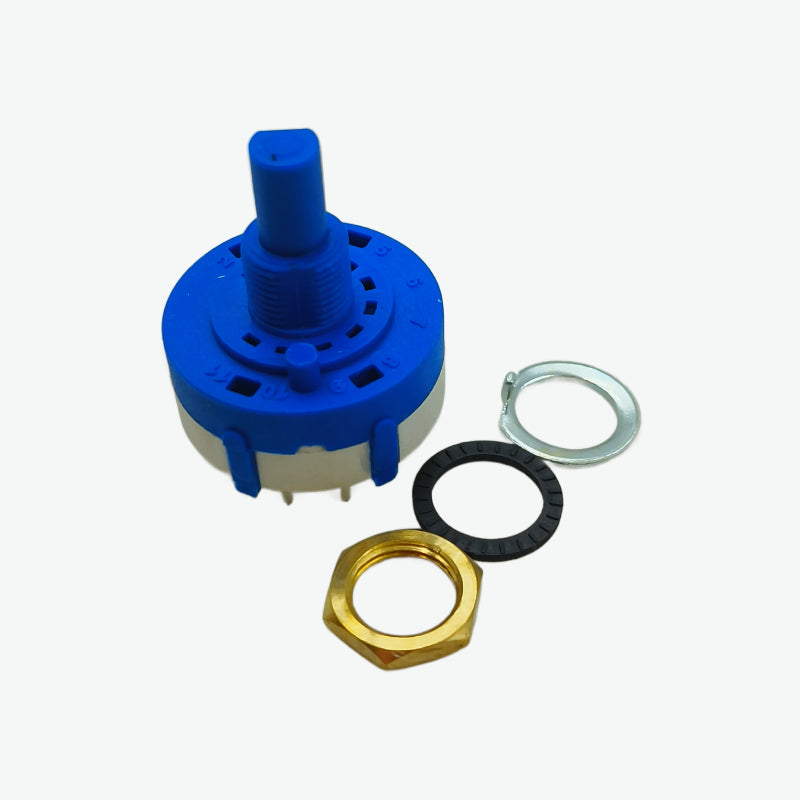

1 × 1 Pole 12 Way 26mm Rotary Switch – 5A 250V AC
