Can you envision effortlessly managing your devices from afar, eliminating the necessity for tangled wires or intricate configurations? With remarkable progress in wireless technology, the transformation of this vision into actuality is now feasible. This blog will explore the exhilarating domain of wireless control, employing the adaptable 433MHz RF module receiver. Let us begin without delaying it any further!

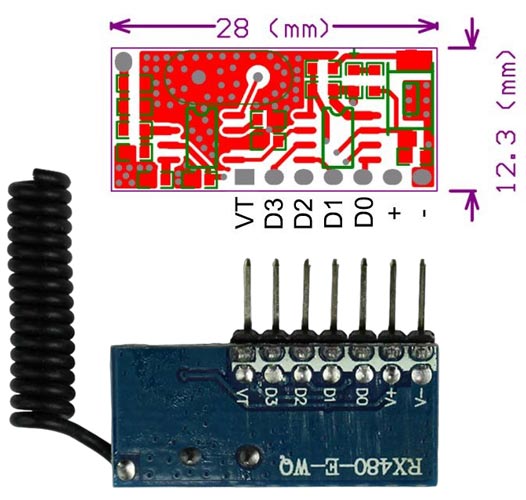

Understanding 433 MHz Receiver Module

 433 MHz RF Receiver Circuit

First, let us see some specifications of the module:

  • Working Voltage: DC3.3~5V
  • Quiescent Current: ≤5mA
  • ​Output current: 10 mA
  • Working Frequency: 433MHz
  • Receive Sensitivity: -108dB
  • Receive Distance: 15 meters above


Learning Button:

A learning button is present on the receiver module. This button can be used to change between the different modes provided by the circuit. The functioning of the button is explained below:

No. of button presses

Operating Mode


Momentary Mode


Latch Mode


Interlock Mode




Working of the Receiver Module:

The 433MHz RF receiver module operates by picking up wireless signals at the 433MHz frequency using its antenna. These signals are then amplified to make them stronger, and demodulated to separate the original data from the modulated signals. The receiver decodes the data according to the specific protocol or encoding scheme employed. Subsequently, the decoded data becomes accessible to the connected device, allowing for actions or responses based on the received information. The receiver operates in three different modes that can be switched using the learning button. A more detailed explanation of each mode can be found in the subsequent sections.

The process of decoding and signal amplification is accomplished through the ICs installed on the module. The specific ICs utilized for these applications may vary for each module, as they depend on the manufacturer. In our case, a 12F625 IC is used for the decoding application. Let us see what it contributes to the circuit.

  • 12F625 IC: The 12F625 microcontroller in a 433MHz receiver can carry out multiple functions, including decoding received signals, processing data, controlling output devices, implementing protocol-specific functions, and managing communication interfaces. Its role is crucial in ensuring the proper operation and functionality of the 433MHz receiver module.

The user can send the information by using an RF Remote. I have used a cloning remote here, you can use any other 4-channel remote as well. The working of the remote is explained in the next section.


433 MHz Cloning RF Remote

433 MHz Cloning RF Remote

This device, which can replicate the codes of a 433 MHz RF remote control, is incredibly convenient. It has a range of approximately 100m and is powered by a 3V battery. The cloning remote possesses a learning mode that allows it to capture and save the codes transmitted by the original RF remote control.

I have used 4 keys of the remote to control the 4 LEDs connected to D0, D1, D2 and D3.

To learn more about the cloning remote, you can check out our blog on Cloning Remote which explains the cloning process in detail.


Components Required for Controlling LED with 433MHz RF Module


Circuit Diagram

Circuit Diagram of 433 MHz RF Receiver


  • Connect the +ve terminal of the battery to the V+ pin of the module.
  • Connect the -ve terminal of the battery to the V- pin of the module.
  • Connect the anode pins of the 4 LEDs to pins D0, D1, D2 and D3. You can also connect other devices like a buzzer or servo motor etc.
  • Connect the cathode pins of the 4 LEDs to the -ve terminal of the battery.

Once you have made these connections, the overall circuit will look like this:

433 MHz RF Receiver Circuit



Demonstration of Controlling LEDs using RF Remote and Receiver:

The working of the overall circuit is quite simple. Once you are done connecting the LEDs to the digital pins (D0 – D3), supply power to the module by connecting it to the 3.7 V Li-ion Battery. As mentioned earlier, the module works in 3 modes, we shall go through them individually.

  • Momentary Mode or Jog Mode: In the momentary mode, the 433MHz receiver module captures wireless signals, demodulates them, decodes the data, and activates an output device only when a button is pressed or an input signal is received.

Controlling LEDs using RF Remote and Receiver

The output is then deactivated once the button is released or the input signal ends. This mode allows for the temporary activation of devices without the requirement of continuous transmission or sustained output.

To activate the momentary mode, simply press the learning button on the module once. Upon doing so, the LED will flash once. At this point, you can register a button on the remote that you wish to use to control the connected LEDs. You can repeat this exact procedure for the remaining buttons.

  • Toggle Mode or Self-Lock Mode: In the self-lock mode of a 433MHz receiver module, the output device stays active even after releasing the button or input signal. The module receives and decodes signals and activates the output according to the received data. To deactivate the output, a separate input signal or button press is usually required. This mode is commonly employed to keep the output device activated without the need for constant input.

To enter this mode, you need to press the learning button twice in a row. Once the LED starts glowing, you can register the button you want. After pressing a button, the LED will flash to indicate that the registration was successful.

  • Interlock Mode: In the interlock mode of a 433MHz receiver module, various buttons or input signals independently control distinct outputs. Each button or signal is designated to a specific output, and when one is activated, the others are deactivated. This mode guarantees that only one output is operational at any given time, preventing conflicting actions. It is utilized in systems that necessitate sequential and exclusive command, such as motor control or security systems.

To activate this mode, press the learning button three times and register the desired keys in the same way as before.



Hope you liked the demonstration of the RF Receiver Module. The connections are quite easy to understand and the module itself is easy to interface. If you have any problems related to the project, you can drop your queries in the comments below.
