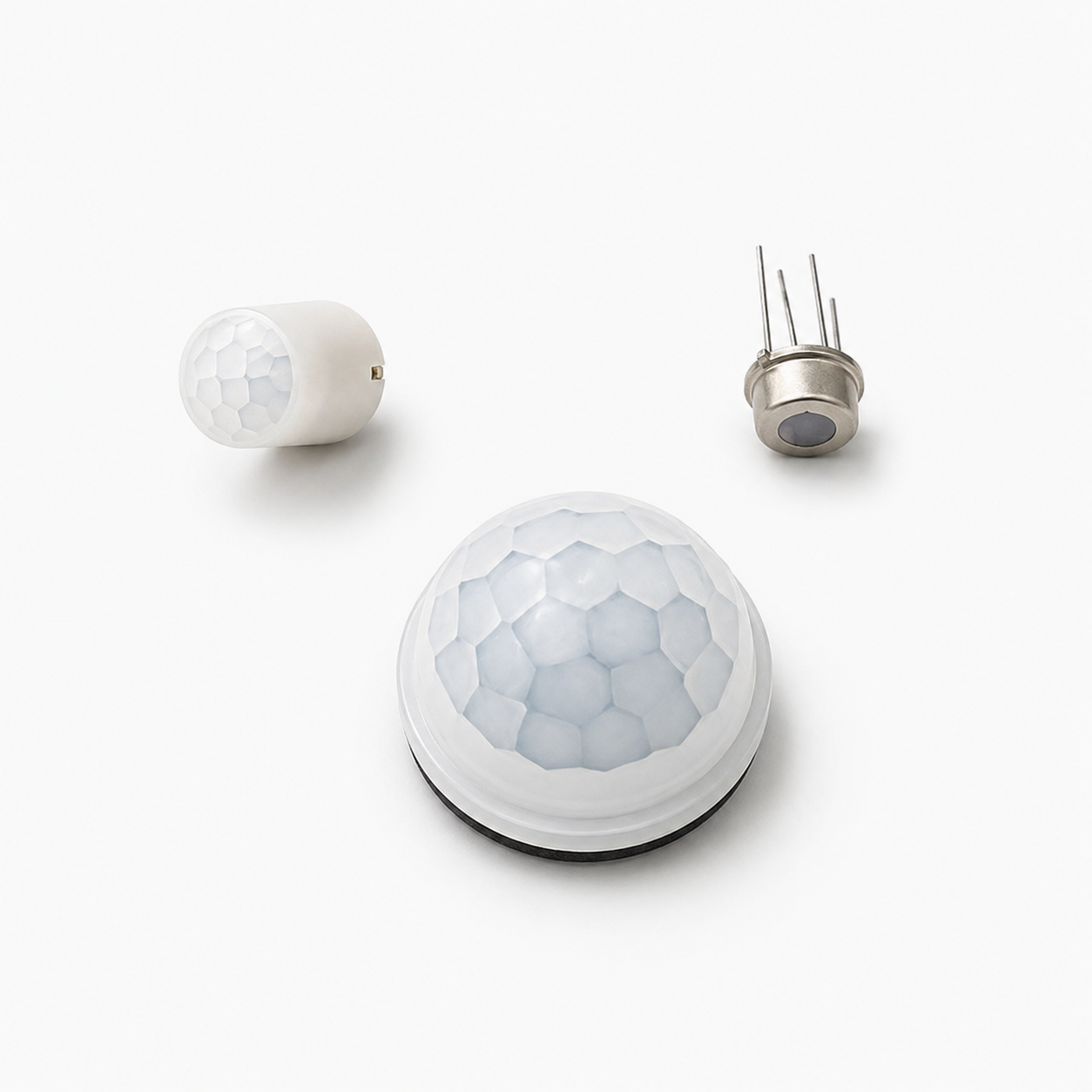

ZRD09 PIR Motion Sensor Module Automatic Human Body Induction Sensor
SKU:
MOD-QC6054
Availability:
3
In Stock
-
- Rs. 265.00
- Unit price
- per
Subtotal:
Rs. 265.00
Description
xZRD09 PIR Motion Sensor Module Automatic Human Body Induction Sensor is a compact passive infrared (PIR) motion detection module designed to detect the movement of humans and animals by sensing changes in infrared radiation. Featuring low power consumption, adjustable sensitivity, and reliable motion detection, it is ideal for automatic lighting, security alarms, smart home devices, occupancy sensing, and various DIY electronics projects.
ZRD09 PIR Motion Sensor Module Automatic Human Induction Sensor Datasheet
Features:
- Passive Infrared (PIR) human body motion detection
- Detects movement without physical contact
- Low power consumption
- High sensitivity and stable performance
- Fast response and reliable detection
- Compact PCB design for easy integration
- Suitable for automatic lighting control
- Compatible with Arduino, ESP32, ESP8266, Raspberry Pi, and other microcontrollers
- Ideal for security systems, smart home automation, and DIY projects
- Easy 3-pin interface for quick installation
Specifications:
| Parameter | Value |
|---|---|
| Product Type | PIR Motion Sensor Module |
| Model | ZRD09 |
| Detection Principle | Passive Infrared (PIR) |
| Operating Voltage | 5V–20V DC |
| Operating Current | ≤50µA (Typical) |
| Output Signal | Digital High/Low |
| Detection Distance | Up to 5–7m (Typical) |
| Detection Angle | Approximately 100° |
| Trigger Mode | Motion Detection |
| Response Time | Fast Response |
| Interface | VCC, OUT, GND |
| Operating Temperature | -20°C to +60°C |
| Mounting Type | PCB Module |
| Compatible Platforms | Arduino, ESP32, ESP8266, Raspberry Pi, STM32, AVR |
| Applications | Motion Detection, Smart Lighting, Security Systems, Occupancy Detection, Home Automation, DIY Electronics |
Also Check These Out:
Package Includes:
1 x ZRD09 PIR Motion Sensor Module Automatic Human Body Induction Sensor
