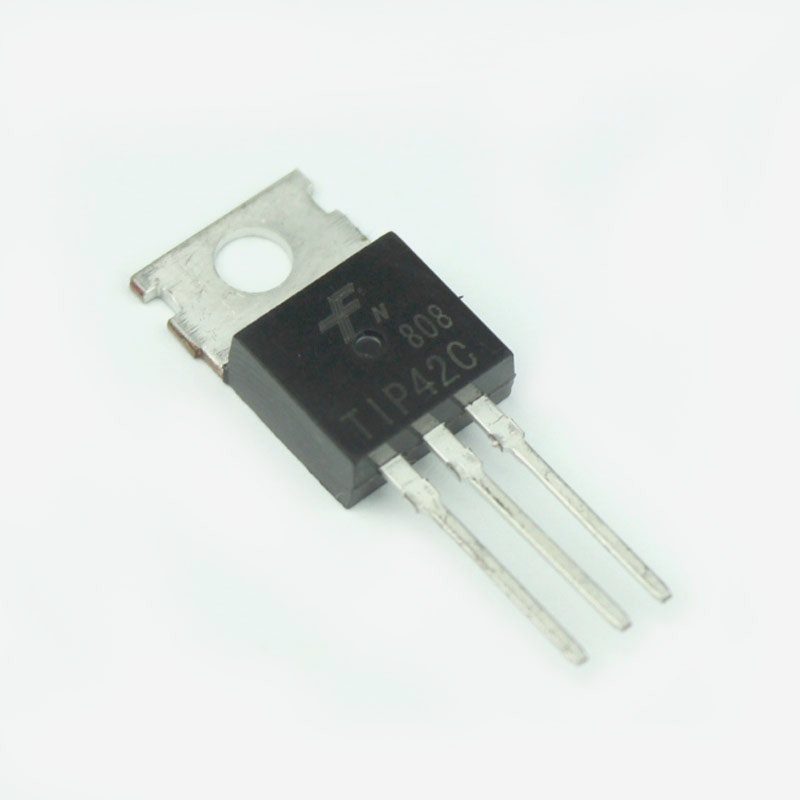

TIP42 PNP Power Transistor
Click to zoom in
  • 3-5 Days Delivery

    Fast Delivery

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

  • Free Shipping

    On orders above INR 599

  • Cash On Delivery

    COD available on all orders

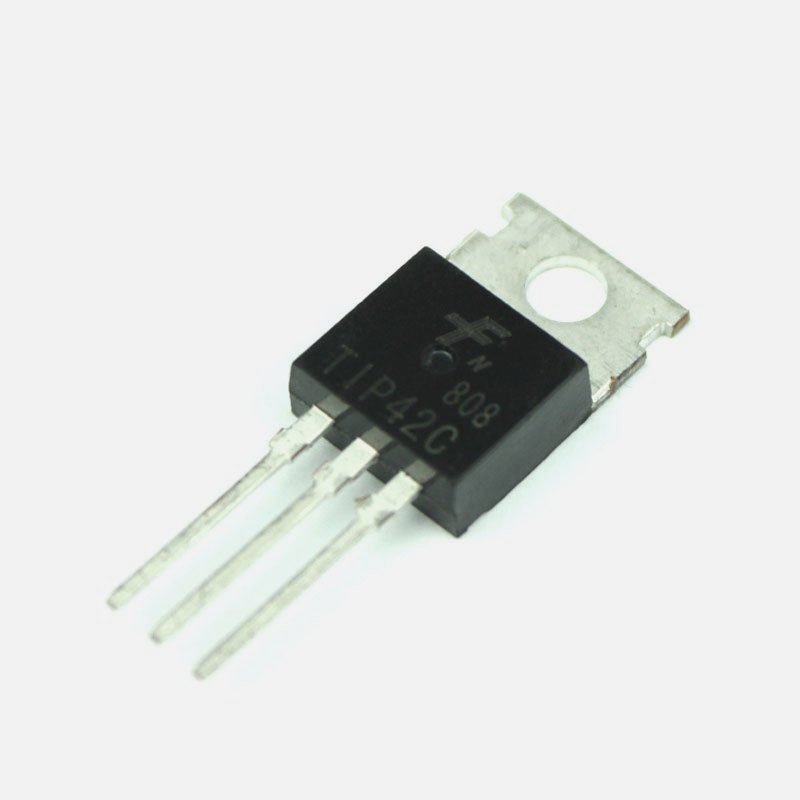

TIP42 PNP Power Transistor (TO-220)

QC0078
643 In stock
Rs. 16.00 (Exc. GST)
Rs. 16.00

TIP42 Transistor is a PNP power transistor with a maximum gain of 75. It has a collector continuous current of 6A and a Collector Emitter voltage of 100V. The base current for TIP42C transistor is about 3A and the Emitter base voltage is 5V. The TIP42 Bipolar Power Transistor is designed for a general purpose power amplifier and switching applications.



The TIP41, TIP41A, TIP41B, TIP41C (NPN); and TIP42, TIP42A, TIP42B, TIP42C (PNP) are complementary devices. It is available in TO-220 Package. You can also check out other Power Transistors from TIP series such as TIP31(NPN), TIP41 (NPN), TIP42 (PNP), TIP127 (PNP), TIP122 (NPN), TIP2955 (PNP).



Features & Specifications

  • Collector-Emitter Voltage (VCEO): -40V
  • Collector-Base Voltage (VCBO): -40V
  • Emitter−Base Voltage (VEB): -5.0V
  • Collector Current (Ic): 6A
  • DC Current Gain (hFE): 15 to 75
  • Power Dissipation (PD): 65W
  • Minimum Operating Temperature: -65 °C
  • Maximum Operating Temperature: 150 °C
  • fT Current Gain Bandwidth Product (VCE = 10V, IC = 500mA) 3.0 MH
  • Available in TO-220 Package



Package Contents

1× TIP42 PNP Power Transistor



Additional Resources

TIP42 Datasheet
