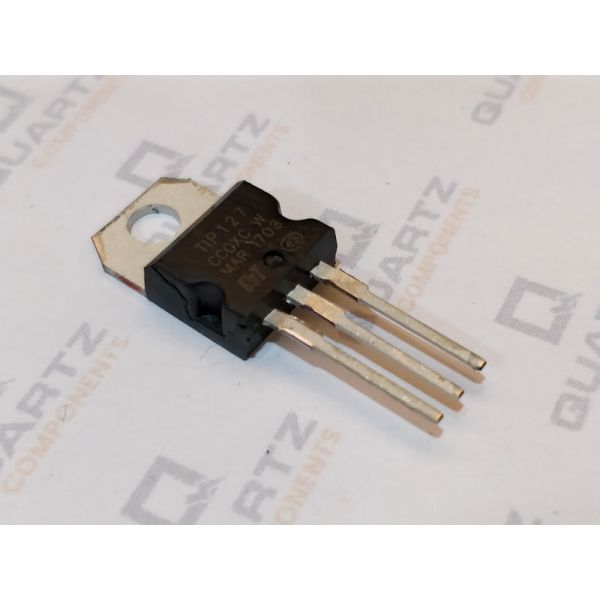

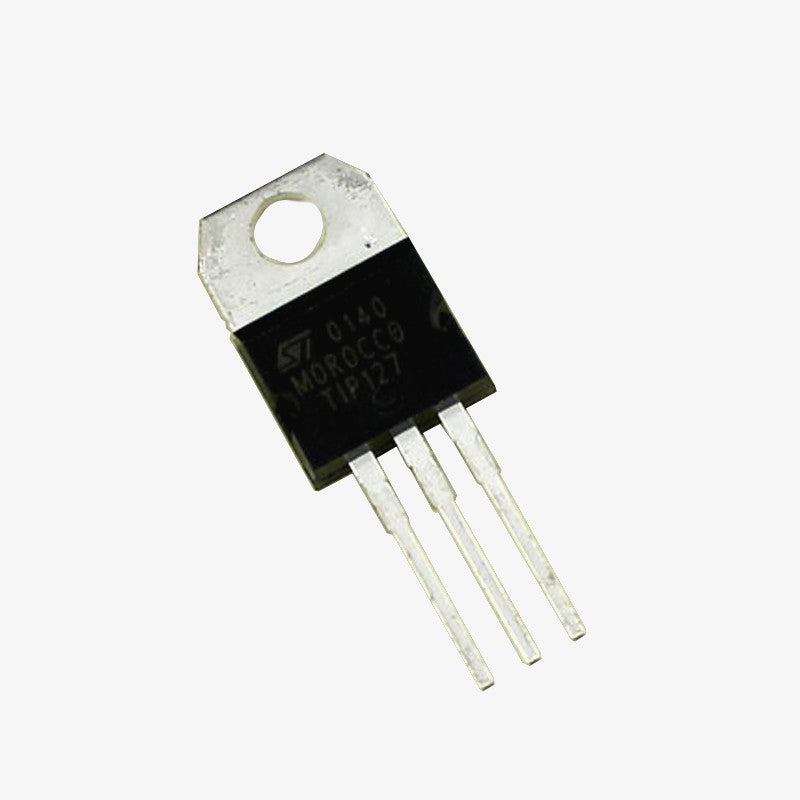

TIP127 Darlington PNP Transistor (TO-220) TIP127 Darlington PNP Transistor (TO-220)

QC0075

10 In stock

Rs. 22.00
-
+
Rs. 22.00
(inc. GST)

The TIP127 Transistor is a silicon PNP Darlington transistor in a TO−220 type package designed for general purpose amplifier and low-speed switching applications. It has a high gain of 1000, a collector continuous current of 5A, and a Collector Emitter voltage of 100V. The base current for TIP127 transistor is about 120mA and the Emitter base voltage is 5V.



TIP127 can switch loads up to 60V with a peak current of 8A and a continuous current of 5A. This makes it suitable for medium and high-power electronics like controlling motors, solenoids, or high-power LEDs. You can also check out other Power Transistors from TIP series such as TIP31(NPN), TIP41 (NPN), TIP42 (PNP), TIP127 (PNP), TIP122 (NPN), TIP2955 (PNP).



Features & Specifications

  • Collector-emitter voltage: 100V
  • Maximum Collector-Base Voltage (Vcb): 100 V
  • Collector current: 5A
  • Power dissipation: 65W
  • Maximum Emitter-Base Voltage (Veb): 5 V
  • Operating Junction Temperature: 150 °C
  • Monolithic Construction with Built−In Base−Emitter Shunt Resistors
  • Complementary to TIP120/121/122
  • Available in TO-220 Package



Package Contents

1× TIP127 Darlington PNP Transistor



Additional Resources

TIP127 Datasheet

The TIP127 Transistor is a silicon PNP Darlington transistor in a TO−220 type package designed for general purpose amplifier and low-speed switching applications. It has a high gain of 1000, a collector continuous current of 5A, and a Collector Emitter voltage of 100V. The base current for TIP127 transistor is about 120mA and the Emitter base voltage is 5V.



TIP127 can switch loads up to 60V with a peak current of 8A and a continuous current of 5A. This makes it suitable for medium and high-power electronics like controlling motors, solenoids, or high-power LEDs. You can also check out other Power Transistors from TIP series such as TIP31(NPN), TIP41 (NPN), TIP42 (PNP), TIP127 (PNP), TIP122 (NPN), TIP2955 (PNP).



Features & Specifications

  • Collector-emitter voltage: 100V
  • Maximum Collector-Base Voltage (Vcb): 100 V
  • Collector current: 5A
  • Power dissipation: 65W
  • Maximum Emitter-Base Voltage (Veb): 5 V
  • Operating Junction Temperature: 150 °C
  • Monolithic Construction with Built−In Base−Emitter Shunt Resistors
  • Complementary to TIP120/121/122
  • Available in TO-220 Package



Package Contents

1× TIP127 Darlington PNP Transistor



Additional Resources

TIP127 Datasheet
