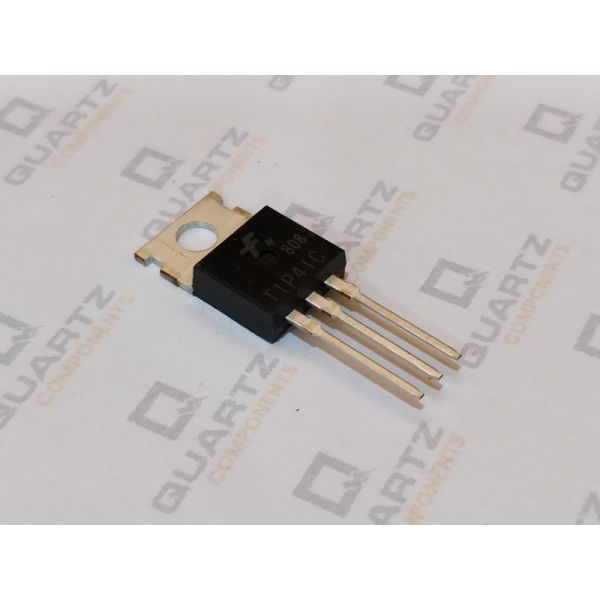

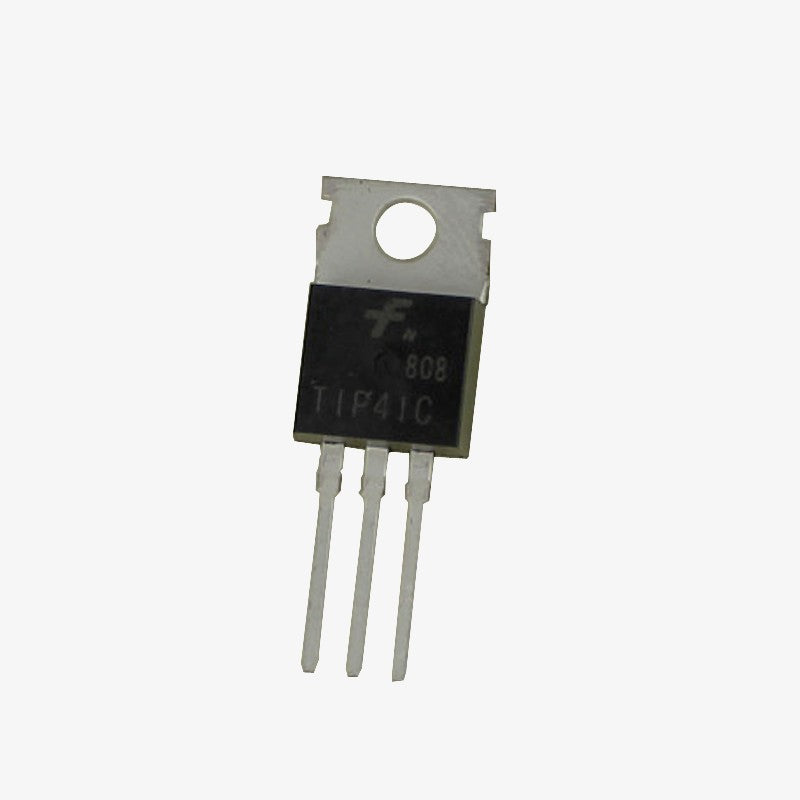

TIP41 transistor is an NPN power transistor with a maximum gain of 75. It has a collector continuous current of 6A and a Collector-Emitter voltage of 100V. The base current is about 3A and the Emitter base voltage is 5V. The TIP41 Bipolar Power Transistor is designed for a general-purpose power amplifier and switching applications.
The TIP41, TIP41A, TIP41B, TIP41C (NPN); and TIP42, TIP42A, TIP42B, TIP42C (PNP) are complementary devices. It is available in TO-220 Package. You can also check out other Power Transistors from TIP series such as TIP31(NPN), TIP41 (NPN), TIP42 (PNP), TIP127 (PNP), TIP122 (NPN), TIP2955 (PNP).
Features & Specifications
- Collector-Emitter Voltage (VCEO): 40V
- Collector-Base Voltage (VCBO): 40V
- Emitter−Base Voltage (VEB): 5.0V
- Collector Current (Ic): 6A
- DC Current Gain (hFE): 15 to 75
- Power Dissipation (PD): 65W
- Minimum Operating Temperature: -65 °C
- Maximum Operating Temperature: 150 °C
- fT Current Gain Bandwidth Product (VCE = 10V, IC = 500mA) 3.0 MH
- Available in TO-220 Package
Package Contents
1× TIP41 NPN Power Transistor
