ODROID-N2+ with 4GB RAM

Brand: ODROID
SKU: DVB-QC5788
Availability: 5 In Stock
Rs. 15,900.00
Subtotal: Rs. 15,900.00
Description
Description
x

ODROID-N2+ with 4GByte RAM is a high-performance single-board computer powered by the Amlogic S922X processor featuring a big.LITTLE architecture with Cortex-A73 and Cortex-A53 cores. Designed for embedded computing, home servers, media centers, AI applications, and Linux development, it offers powerful processing performance, advanced graphics capabilities, and extensive connectivity options.

ODROID-N2+ with 4GByte RAM Datasheet

Features:

  1. Amlogic S922X Hexa-Core Processor
  2. Quad-Core Cortex-A73 up to 2.4GHz
  3. Dual-Core Cortex-A53 up to 2.0GHz
  4. Mali-G52 GPU with 6 Execution Engines
  5. 4GB DDR4 High-Speed Memory
  6. Gigabit Ethernet Connectivity
  7. 4 USB 3.0 Host Ports
  8. HDMI 2.0 with 4K@60Hz Support
  9. 40-Pin GPIO Expansion Header
  10. Built-in RTC with Backup Battery Connector
  11. 8MB SPI Flash Boot Manager
  12. Large Passive Heatsink for Efficient Cooling

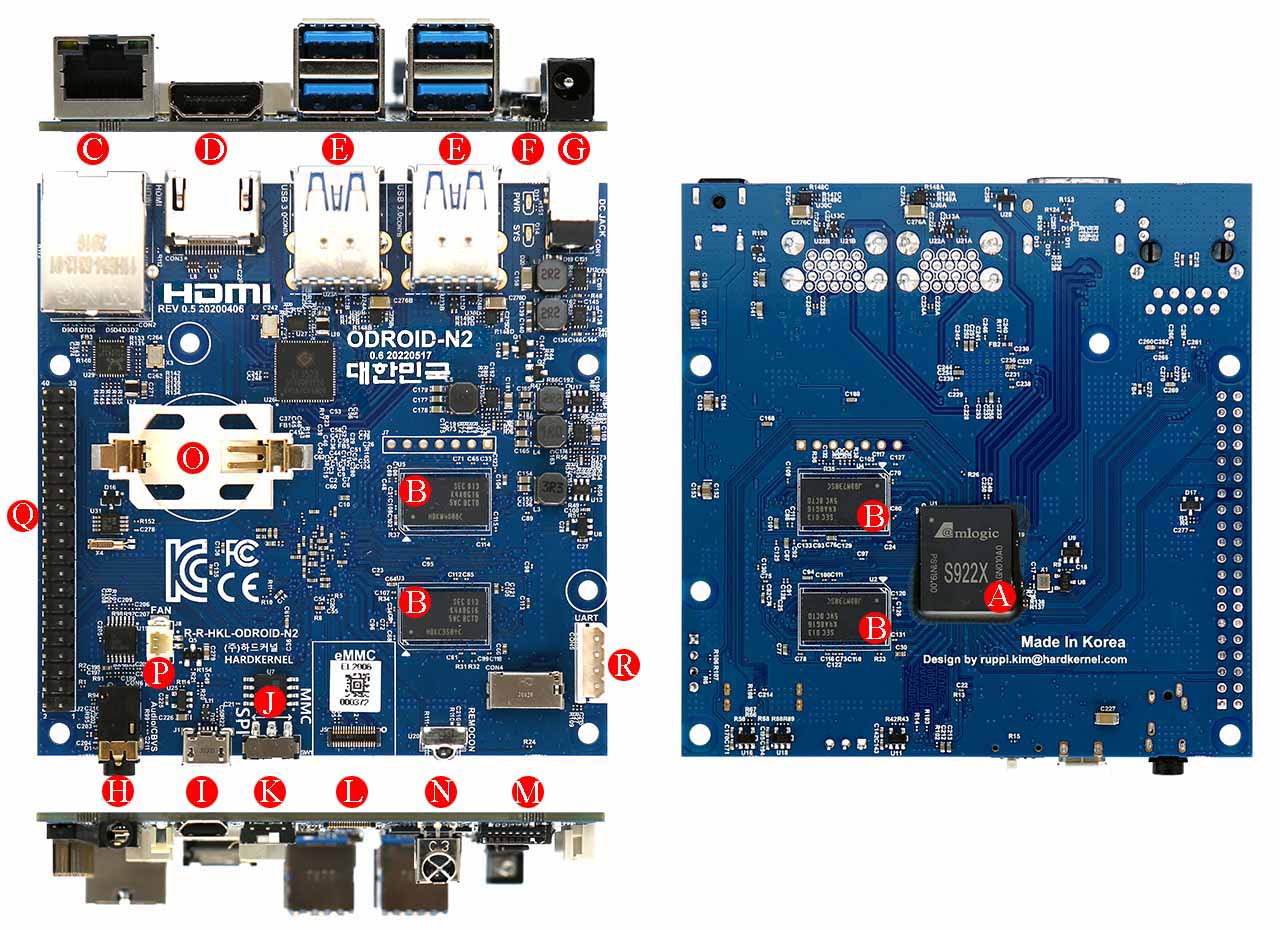

Board Details:

Label Component Description
A S922X CPU Amlogic S922X Hexa-Core Processor
B DDR4 RAM 4GB DDR4 System Memory
C RJ45 Ethernet Port Gigabit Ethernet Port (10/100/1000 Mbps)
D HDMI 2.0 HDMI Display Output up to 4K@60Hz
E USB 3.0 Ports 4 × USB 3.0 Host Ports
F System LED Indicators 2 × System Status LEDs
G DC Power Jack DC Power Input Connector
H AV Out Stereo Audio and Composite Video Output
I Micro USB 2.0 OTG USB OTG Port for Host/Device Mode
J SPI Flash 8MiB SPI Flash Memory
K SPI Boot Select Switch Boot Device Selection Switch
L eMMC Module Socket eMMC Storage Expansion Socket
M Micro SD Slot MicroSD Card Storage Slot
N IR Receiver Infrared Remote Control Receiver
O RTC Backup Battery Holder Real-Time Clock Backup Battery Connector
P Active Cooling Fan Connector 2-Pin Cooling Fan Header
Q GPIO Header 40-Pin GPIO Expansion Interface
R UART Console UART Port for System Debugging and Console Access



Pin Configuration:

  • GPIO Header: 40-Pin expansion header for external peripherals
  • SPI: High-speed serial communication interface
  • UART: Serial communication and debugging interface
  • I2C: Peripheral communication interface
  • USB 3.0: High-speed USB host connectivity
  • HDMI: Video output up to 4K resolution
  • RJ45 Ethernet: Gigabit network connection
  • RTC Connector: Backup battery connection for real-time clock
  • Fan Connector: 5V active cooling fan connection
  • IR Receiver: Infrared remote control input

Specifications:

Parameter Value
Brand Hardkernel
Model ODROID-N2+
Processor Amlogic S922X
CPU Architecture ARMv8-A big.LITTLE
High Performance Cores 4 × Cortex-A73 up to 2.4GHz
Efficiency Cores 2 × Cortex-A53 up to 2.0GHz
GPU Mali-G52 MP6
GPU Frequency 800MHz
RAM 4GB DDR4
Memory Data Rate 2640 MT/s
Storage Support eMMC Module Socket, MicroSD Card Slot
SPI Flash 8MB
Ethernet Gigabit RJ45 (10/100/1000Mbps)
HDMI HDMI 2.0 up to 4K@60Hz
USB Host Ports 4 × USB 3.0
USB OTG 1 × Micro USB 2.0 OTG
Audio Output 3.5mm Stereo Line-Out
Video Output Composite Video via 3.5mm Jack
GPIO Header 40-Pin
UART Yes
SPI Interface Yes
I2C Interface 2
ADC Inputs 2 (10-bit, 1.8V Max)
RTC On-board RTC with Battery Connector
Cooling Large Passive Heatsink
Fan Connector 5V 2-Pin
Power Input DC 7.5V – 18V
Recommended Adapter 12V / 2A
Idle Power Consumption 2.2W – 2.5W
Full Load Power Consumption 5.9W – 6.2W
Board Dimensions 90 × 90 × 17 mm
Heatsink Dimensions 100 × 91 × 18.75 mm
Weight 200 g



Also Check This Products:-

ODROID-N2+ with 2GByte RAM

ODROID-M1S with 4GByte RAM with US plug

ODROID-C5 with DDR4 4GByte RAM

Package Includes:

1 x ODROID-N2+ with 4GByte RAM (Without Power Adapter)
