ODROID-C5 with DDR4 4GByte RAM

ODROID-C5 with DDR4 4GByte RAM is a compact and powerful single-board computer powered by the Amlogic S905X5M processor. Featuring a Quad-Core Cortex-A55 CPU, ARM G310 V2 GPU, high-speed DDR4 memory, and Gigabit Ethernet connectivity, it is ideal for media centers, Linux development, embedded systems, networking applications, and edge computing projects.

ODROID-C5 with DDR4 4GByte RAM Datasheet

Features:

1. Amlogic S905X5M Quad-Core Processor
2. Quad-Core Cortex-A55 up to 2.5GHz
3. ARM G310 V2 GPU at 850MHz
4. 4GB DDR4 High-Speed Memory
5. High-Speed eMMC HS400 Support
6. Gigabit Ethernet Connectivity
7. HDMI 2.0 with 4K@60Hz Support
8. 40-Pin GPIO Expansion Header
9. Low Power Consumption Design
10. Compact Form Factor

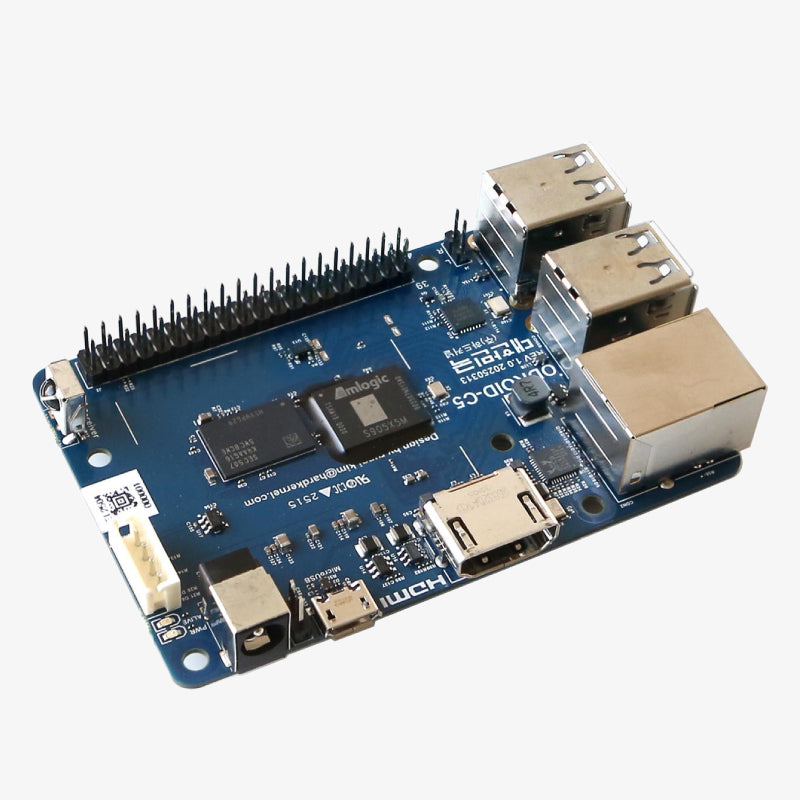

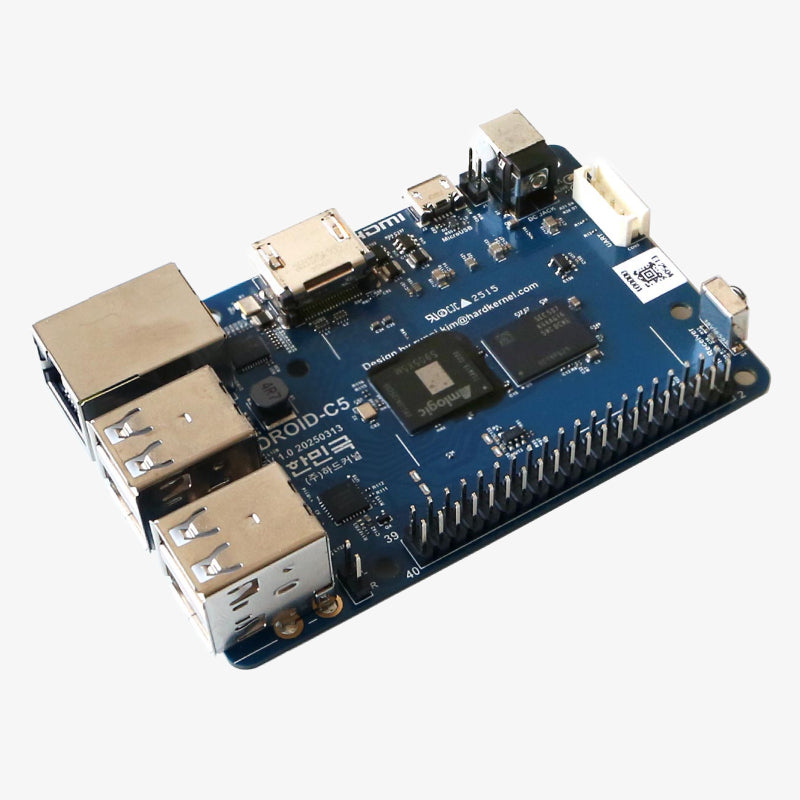

Board Details:

• A – CPU (Amlogic S905X5M): Quad-Core Cortex-A55 Processor running up to 2.5GHz
• B – DDR4 Memory: 4GB High-Speed DDR4 RAM
• C – USB 2.0 Host Ports: 4 × USB 2.0 interfaces for peripherals and accessories
• D – RJ45 Ethernet Port: Gigabit Ethernet connectivity (10/100/1000 Mbps)
• E – HDMI 2.0 Port: Display output supporting up to 4K@60Hz resolution
• F – Micro USB 2.0 OTG Port: USB device and host mode interface
• G – DC Power Jack: Main power input connector (5.5mm outer, 2.1mm inner diameter)
• H – System LED Indicators: Power and system activity status indicators
• I – UART Console Port: Serial communication and system debugging interface
• J – IR Receiver: Infrared remote control input
• K – 40-Pin GPIO Header: Expansion interface for sensors, modules, and peripherals
• L – Stereo Audio Output: 2-pin analog audio output connection
• M – eMMC Module Socket: High-speed HS400 eMMC storage interface
• N – Micro SD Slot: Expandable storage support via microSD card
• O – Alternative Power Input: 2-pin auxiliary power connector for board power supply

Specifications:

Also Check This Products:-

ODROID-N2+ with 4GByte RAM

ODROID-M1S with 4GByte RAM with US plug

ODROID-N2+ with  2GByte RAM

Package Includes:

1 x ODROID-C5 with DDR4 4GByte RAM
