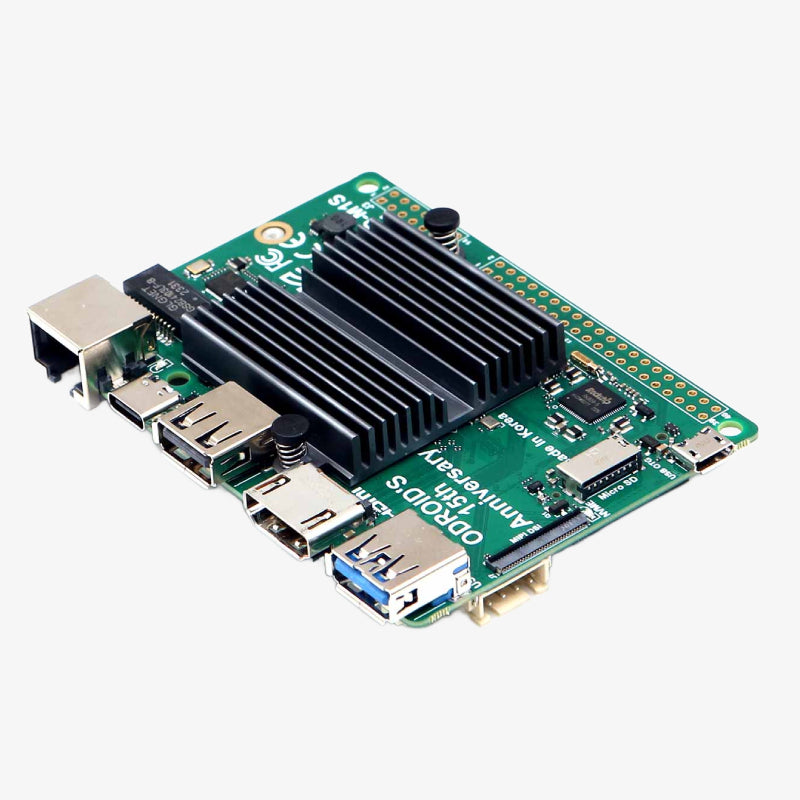

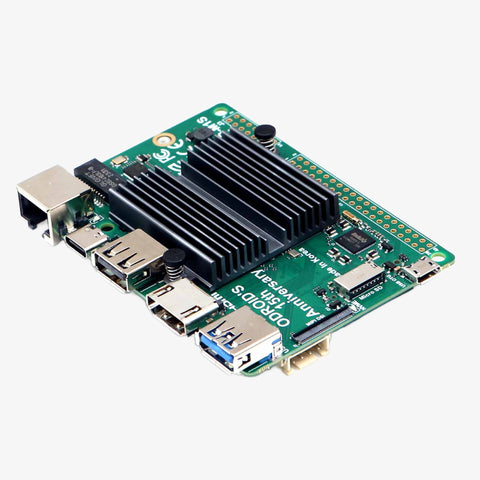

ODROID-M1S with 4GByte RAM

Brand: ODROID
SKU: DVB-QC5790
Availability: Out Of Stock
Rs. 9,820.00
Subtotal: Rs. 9,820.00
Description
Description
x

ODROID-M1S with 4GByte RAM is a compact and powerful single-board computer based on the Rockchip RK3566 processor, designed for AI applications, embedded systems, networking, media processing, and Linux development. Featuring onboard eMMC storage, NVMe SSD support, Gigabit Ethernet, and extensive GPIO connectivity, it delivers excellent performance with low power consumption.

ODROID-M1S with 4GByte RAM Datasheet

Features:

  1. Rockchip RK3566 Quad-Core Processor
  2. 4GB LPDDR4 High-Speed Memory
  3. Integrated RKNN NPU with 0.8 TOPS AI Performance
  4. Mali-G52 GPU with Hardware Acceleration
  5. 64GB Onboard eMMC Storage
  6. NVMe M.2 SSD Expansion Support
  7. Gigabit Ethernet Connectivity
  8. HDMI 2.0 with 4K@60Hz Output
  9. 40-Pin and 14-Pin GPIO Expansion Headers
  10. Low Power Consumption Design
  11. Includes USB Type-C US Power Adapter

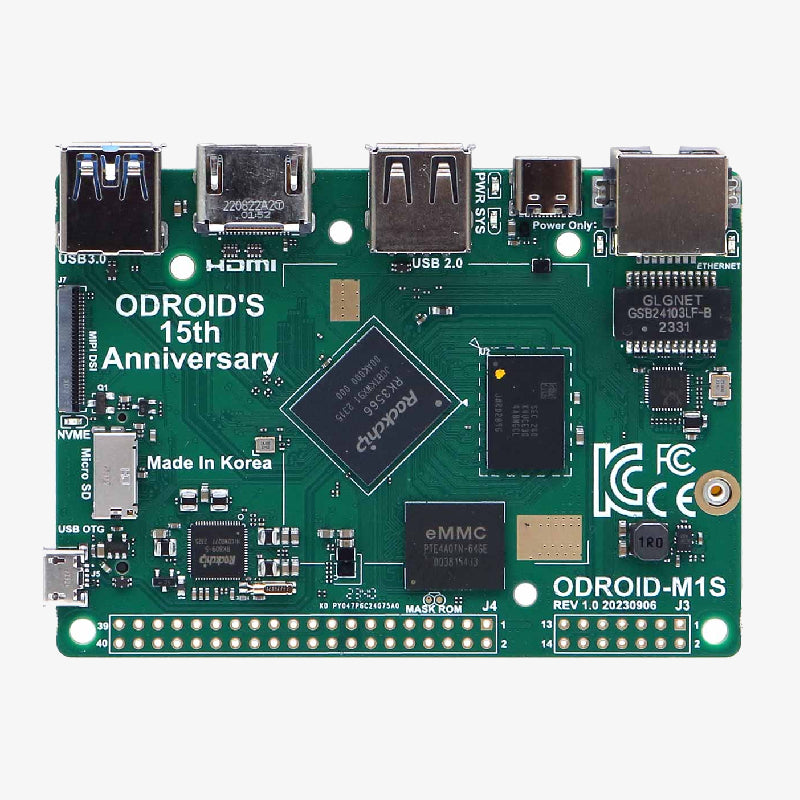

Board Details:

No. Component Description
1 Rockchip RK3566 CPU Quad-Core Cortex-A55 Processor
2 LPDDR4 RAM High-Speed System Memory
3 64GB eMMC Storage Onboard Embedded Storage
4 Ethernet Transformer Network Interface Controller
5 RJ45 Ethernet Port Gigabit Ethernet (10/100/1000 Mbps)
6 USB Type-C Power Connector 5V DC Power Input
7 USB 2.0 Port Standard USB Host Interface
8 HDMI 2.0 Port Display Output up to 4K@60Hz
9 USB 3.0 Port High-Speed USB Host Interface
10 MIPI DSI 4-Lane Connector LCD Display Interface
11 M.2 LED Indicator SSD Activity Status Indicator
12 Micro SD Card Slot Expandable Storage Support
13 Micro USB 2.0 OTG Port USB Device/Host Interface
14 40-Pin GPIO Header Peripheral Expansion Interface
15 14-Pin GPIO Header Additional GPIO and Control Signals
16 RTC Backup Battery Connector Real-Time Clock Backup Power Connection
17 UART Console Port Debugging and Serial Communication Interface
18 M.2 M-Key PCIe 2.1 x1 Slot NVMe SSD Expansion Interface



Pin Configuration:

  • 40-Pin GPIO Header: Expansion interface for sensors, displays, and peripherals
  • 14-Pin GPIO Header: Additional GPIO and hardware control signals
  • UART: Debug serial console interface
  • SPI: High-speed serial communication interface
  • I2C: Peripheral communication interface
  • PWM: Pulse Width Modulation output support
  • USB 3.0: High-speed USB host connectivity
  • USB 2.0: Standard USB host connectivity
  • USB OTG: Device and host mode support
  • HDMI 2.0: Display output up to 4K@60Hz
  • MIPI DSI: LCD display interface
  • RJ45 Ethernet: Gigabit network connection
  • RTC Connector: Backup battery connection for real-time clock

Specifications:

Parameter Value
Brand Hardkernel
Model ODROID-M1S
Product Type Single Board Computer
Processor Rockchip RK3566
CPU Quad-Core ARM Cortex-A55
CPU Frequency Up to 1.8GHz
CPU Architecture ARMv8-A with Neon & Crypto Extensions
GPU Mali-G52 2EE
GPU Frequency 800MHz
NPU RKNN AI Accelerator
AI Performance 0.8 TOPS (INT8)
RAM 4GB LPDDR4
Memory Data Rate 2112 MT/s
Memory Frequency Up to 1055MHz
Onboard Storage 64GB eMMC
MicroSD Support UHS-I SDR104
NVMe Support M.2 PCIe 2.1 x1
Ethernet Gigabit RJ45 (10/100/1000 Mbps)
USB 3.0 1 Port
USB 2.0 1 Host Port
USB OTG Micro USB 2.0 OTG
HDMI HDMI 2.0 up to 4K@60Hz
Display Interface MIPI DSI (30-Pin)
RTC Backup Battery Connector
Power Input USB Type-C
Input Voltage 4.9V – 5.3V DC
Recommended Adapter USB Type-C 5V/3A
Idle Power Consumption ≈1.1W
CPU Stress Power Consumption ≈3.52W
Board Dimensions 90 × 65 × 16 mm
Weight 52 g



Also Check This Products:-

ODROID-N2+ with 4GByte RAM

ODROID-C5 with DDR4 4GByte RAM

ODROID-C5 with DDR4 4GByte RAM

Package Includes:

1 x ODROID-M1S with 4GByte RAM

1 x USB Type-C US Power Adapter
