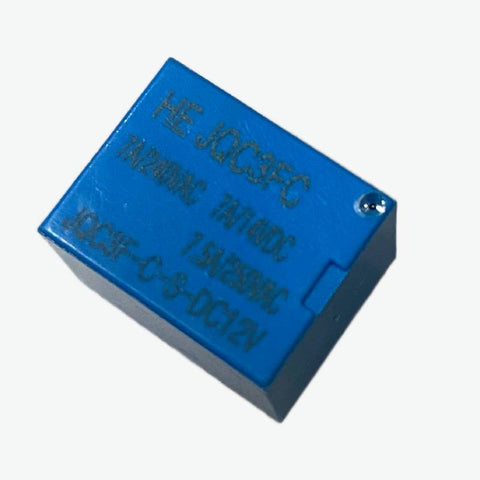

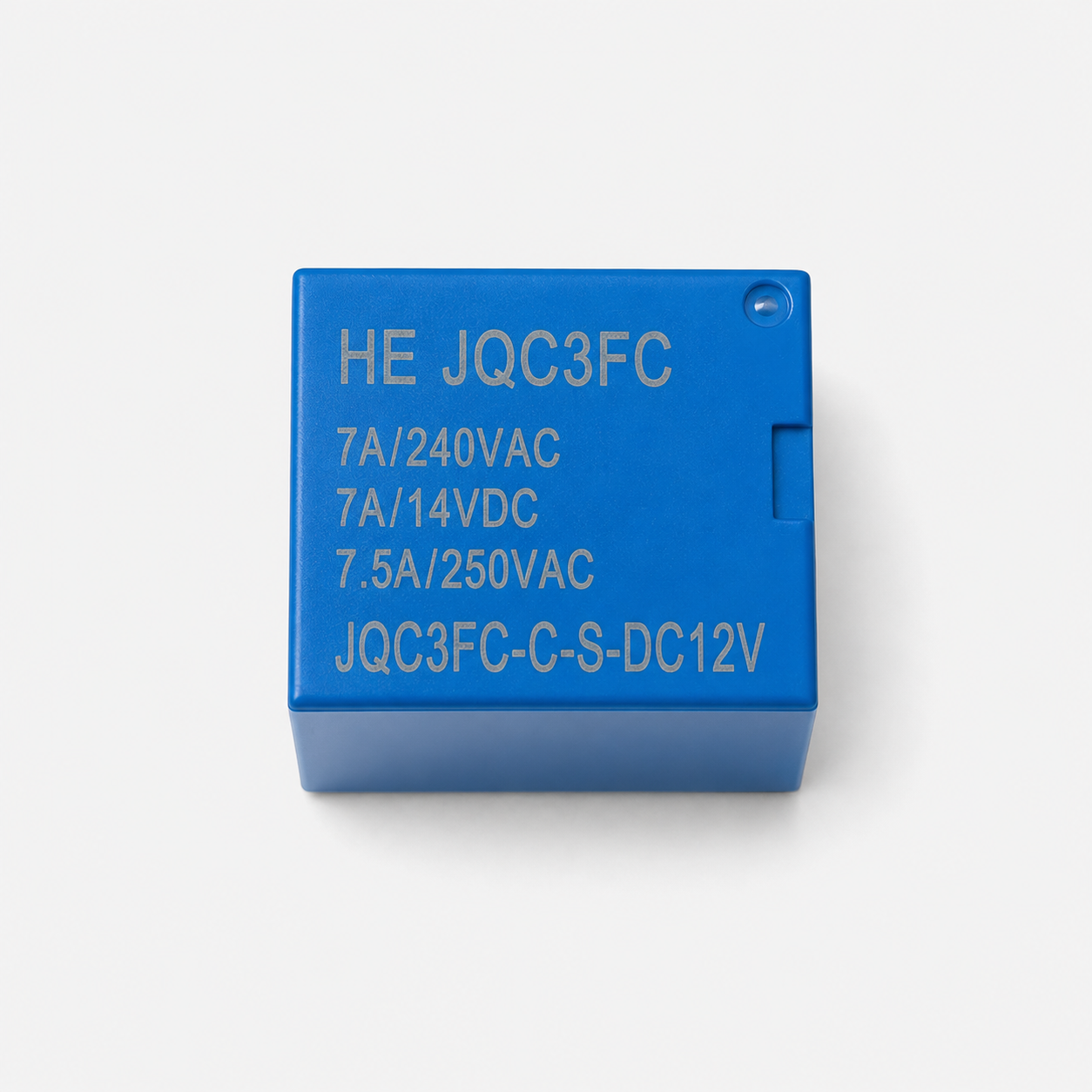

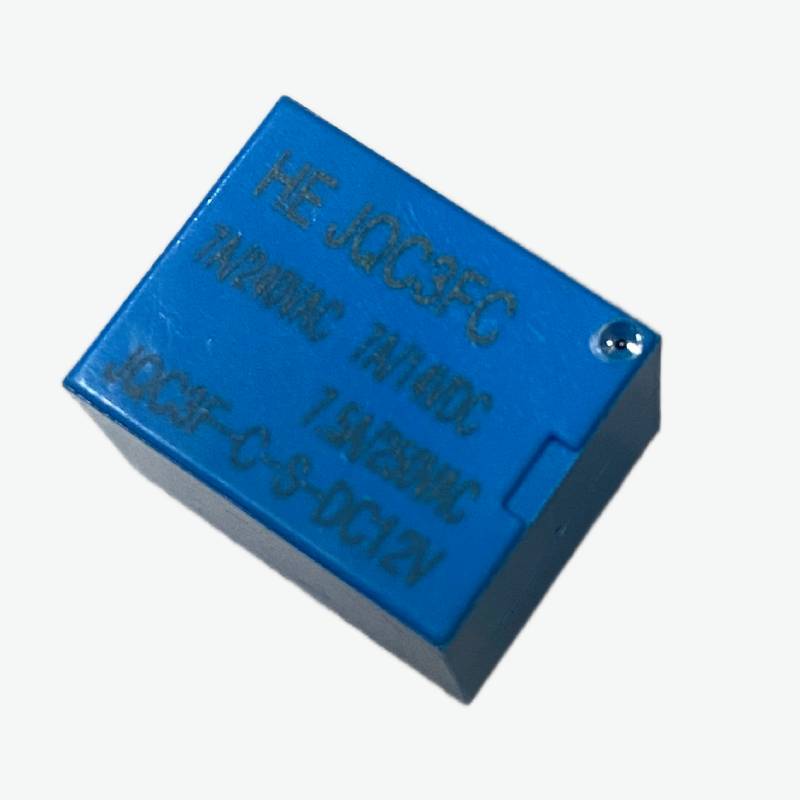

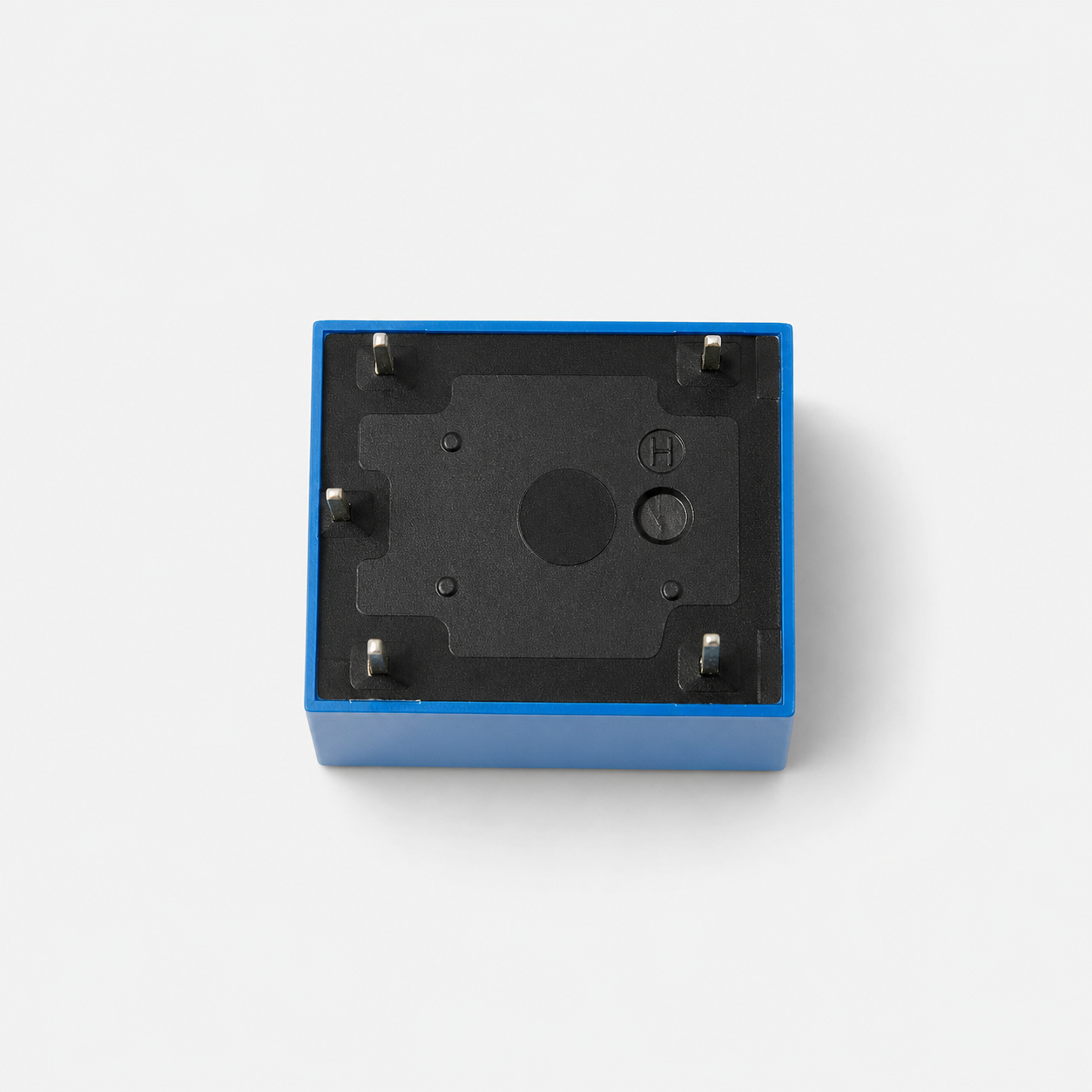

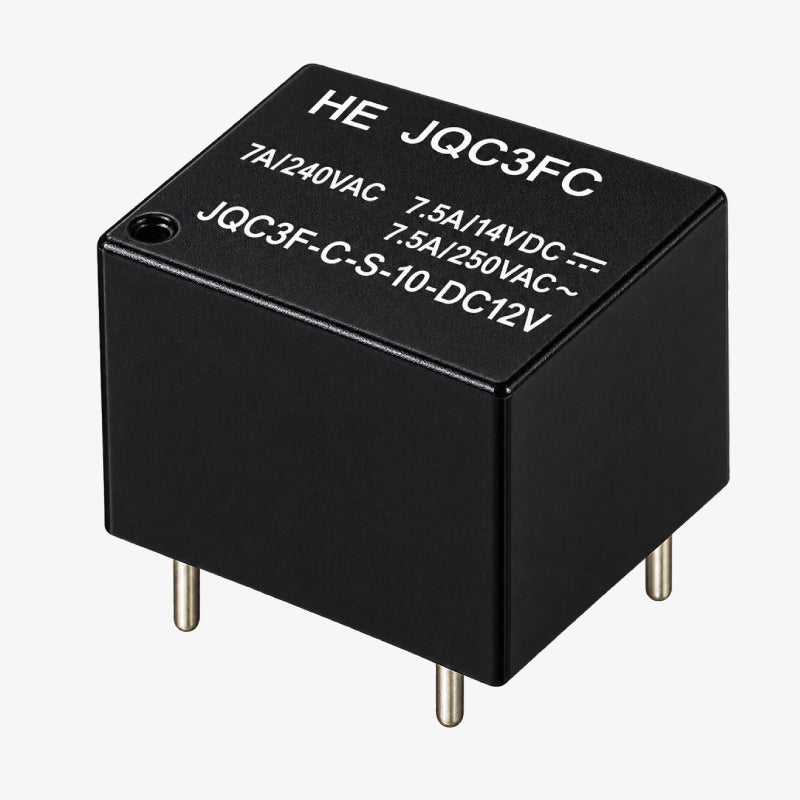

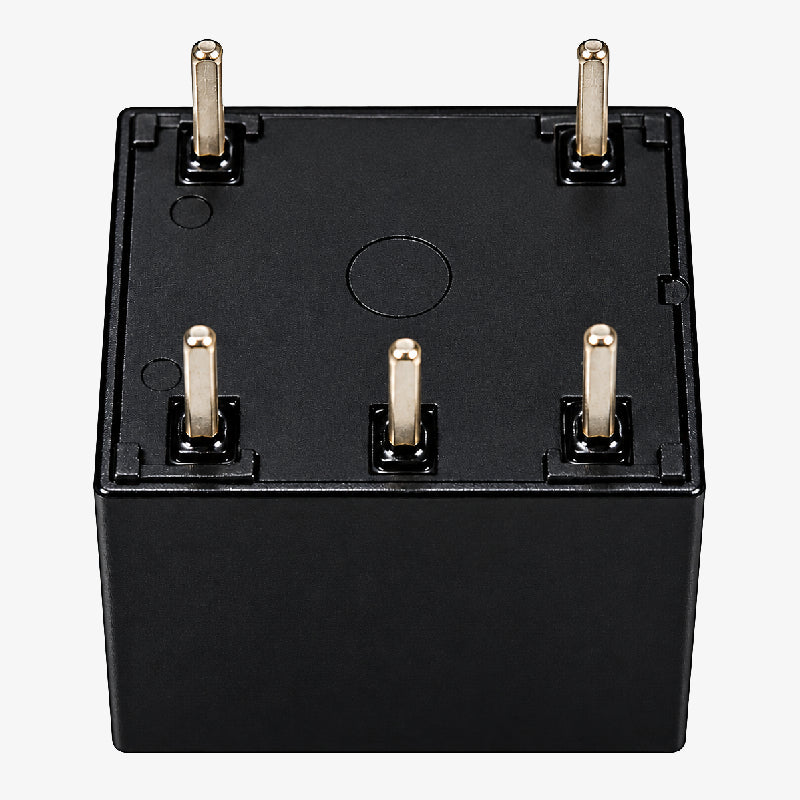

JQC3F-C-S-DC12V 7V 7A SPDT Power Relay

Brand: GENERIC
SKU: MOD-QC6000
Availability: 10 In Stock
Rs. 28.00
Subtotal: Rs. 28.00
Description
Description
x

JQC3F-C-S-DC12V-7V 7A SPDT Power Relay is a compact PCB mount electromagnetic relay designed for reliable switching of AC and DC loads in automation systems, household appliances, power supplies, communication equipment, electronic instruments, and industrial control circuits. Featuring a 12V DC coil, SPDT (1 Form C) contact configuration, and a 7A switching capacity, it offers low coil power consumption, fast switching performance, excellent insulation, and long mechanical life in a miniature package.

Features:

  1. 7A Switching Capacity
  2. 12V DC Coil Voltage
  3. SPDT (1 Form C) Contact Configuration
  4. Low Coil Power Consumption
  5. Compact PCB Mount Design
  6. Silver Alloy Contacts
  7. Fast Operate and Release Time
  8. High Dielectric Strength
  9. Long Mechanical and Electrical Life
  10. PCB Through-Hole Mounting
  11. Suitable for Home Appliances and Industrial Control
  12. RoHS Compliant

Specifications:

Parameter Value
Product Type PCB Power Relay
Model JQC3F-C-S-DC12V-7V
Contact Arrangement SPDT (1 Form C)
Contact Rating 7A @ 250VAC / 28VDC
Coil Voltage 12V DC
Coil Power 0.36W
Coil Resistance 400Ω ±10%
Pick-Up Voltage ≤9V DC
Drop-Out Voltage ≥1.2V DC
Maximum Coil Voltage 15.6V DC
Contact Material Silver Alloy
Contact Resistance ≤100mΩ (Initial)
Maximum Switching Current 7A
Maximum Switching Voltage 250VAC / 28VDC
Maximum Switching Power 1750VA / 196W
Operate Time ≤10ms
Release Time ≤5ms
Insulation Resistance ≥100MΩ @ 500VDC
Dielectric Strength (Coil to Contacts) 1500VAC for 1 Minute
Dielectric Strength (Open Contacts) 750VAC for 1 Minute
Mechanical Life 10,000,000 Operations
Electrical Life 100,000 Operations
Mounting Type PCB Through Hole
Construction Sealed
Operating Temperature -40°C to +85°C
Dimensions 19 × 15.2 × 15.5mm



Also Check These Out:

12V 8 Channel Relay Module with Optocoupler

16 Channel Relay 12V Module

4-Channel 12V Relay Module with Optocoupler

PCB For 1 Channel Relay Module with Optocoupler Input

Package Includes:

1 x JQC3F-C-S-DC12V-7V 7A SPDT Power Relay
