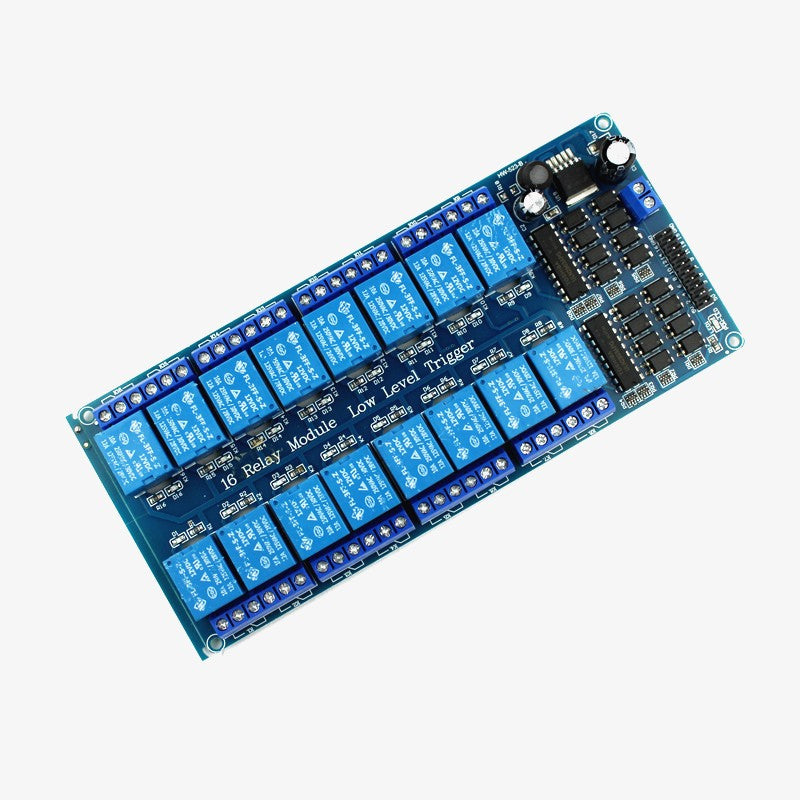

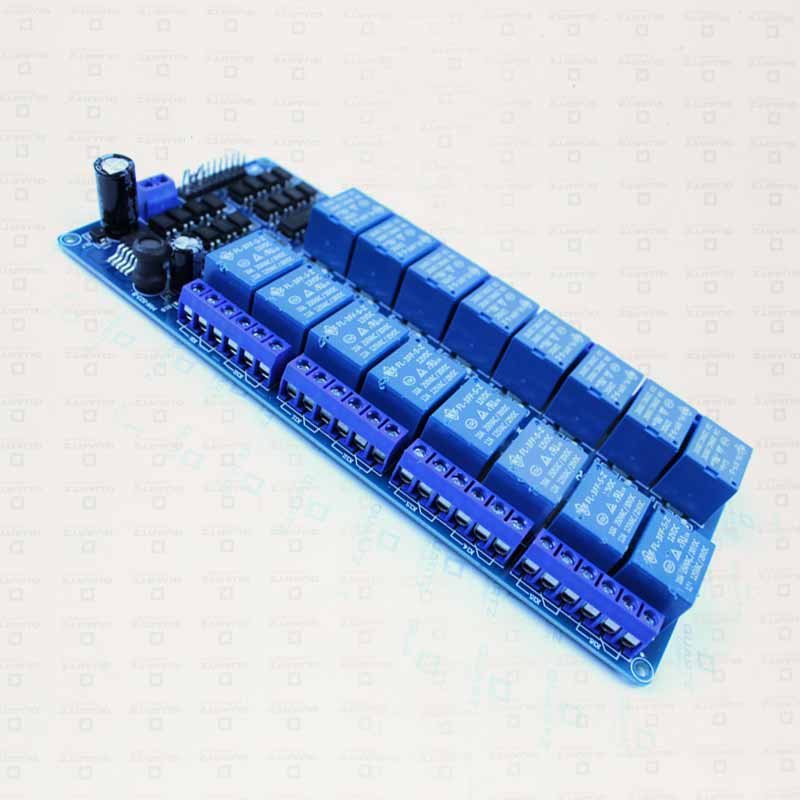

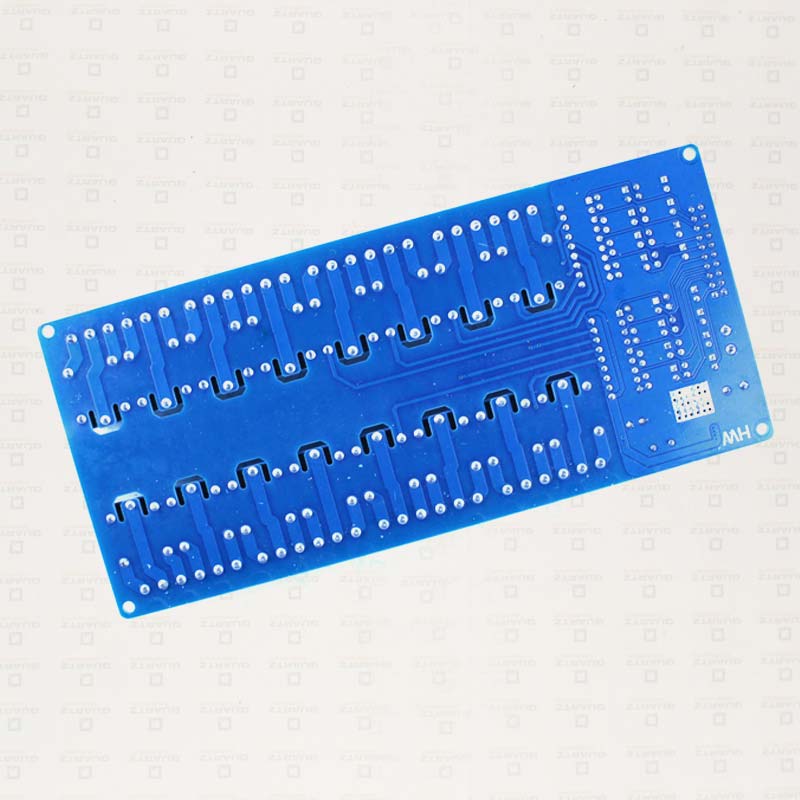

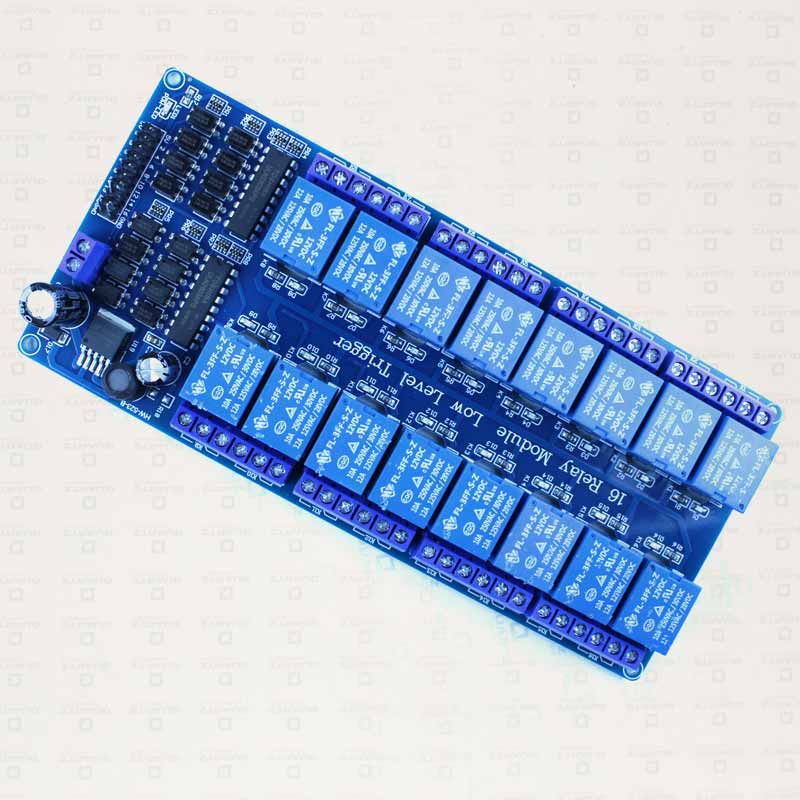

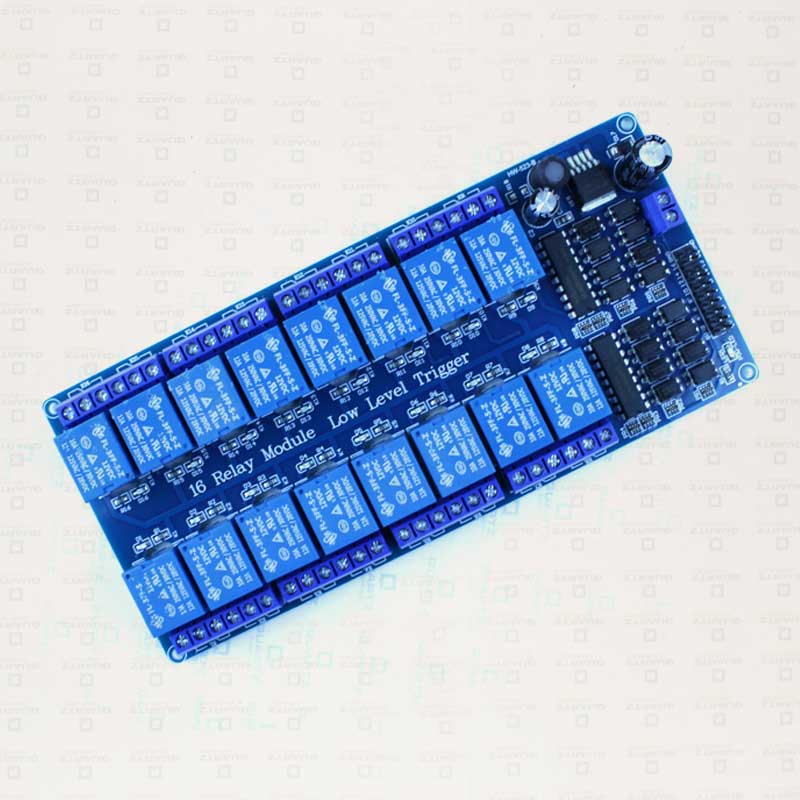

16 Channel Relay 12V Module
Sold Out

16 Channel Relay 12V Module 16 Channel Relay 12V Module

QC0709

Out of stock

Rs. 584.00

This 16 Channel Relay Module consists of sixteen 12V relays and each one of the individual relays needs 15-20mA driver current. This module has coupling protection (optocoupler) which provides opto-isolation for safety purposes. This is a Relay module of 16 channel interface board that can be control various appliances, and other electronic equipment with a large current. It can be controlled by Micro-controllers like Arduino, Raspberry-pi, ARM, TTL logic directly.



Specifications:

  • 12V relay with AC contact capacity of 10A 250V and optocoupler protection.
  • Onboard power supply module, doesn't need any external power supply.
  • The module can be used as a microcontroller development board module and also as appliance control, PLC extended output.
  • It is using the industry’s top-quality isolation optocouplers, strong anti-jamming ability, stable performance.
  • The 1-16 road can be any full on/off or any road.
  • All interfaces can be directly connected through the terminal leads, very convenient.
  • Indication LED’s for Relay output status
  •

    Package Includes :

    1 x 12V 16 Channel Relay Module with Light Coupling LM2576 Power Supply

    This 16 Channel Relay Module consists of sixteen 12V relays and each one of the individual relays needs 15-20mA driver current. This module has coupling protection (optocoupler) which provides opto-isolation for safety purposes. This is a Relay module of 16 channel interface board that can be control various appliances, and other electronic equipment with a large current. It can be controlled by Micro-controllers like Arduino, Raspberry-pi, ARM, TTL logic directly.



    Specifications:

  • 12V relay with AC contact capacity of 10A 250V and optocoupler protection.
  • Onboard power supply module, doesn't need any external power supply.
  • The module can be used as a microcontroller development board module and also as appliance control, PLC extended output.
  • It is using the industry’s top-quality isolation optocouplers, strong anti-jamming ability, stable performance.
  • The 1-16 road can be any full on/off or any road.
  • All interfaces can be directly connected through the terminal leads, very convenient.
  • Indication LED’s for Relay output status
  •

    Package Includes :

    1 x 12V 16 Channel Relay Module with Light Coupling LM2576 Power Supply
