PCB For 1 Channel Relay Module with Optocoupler Input

QC2082
39 In stock
Rs. 24.00 (Inc. GST)
Rs. 24.00

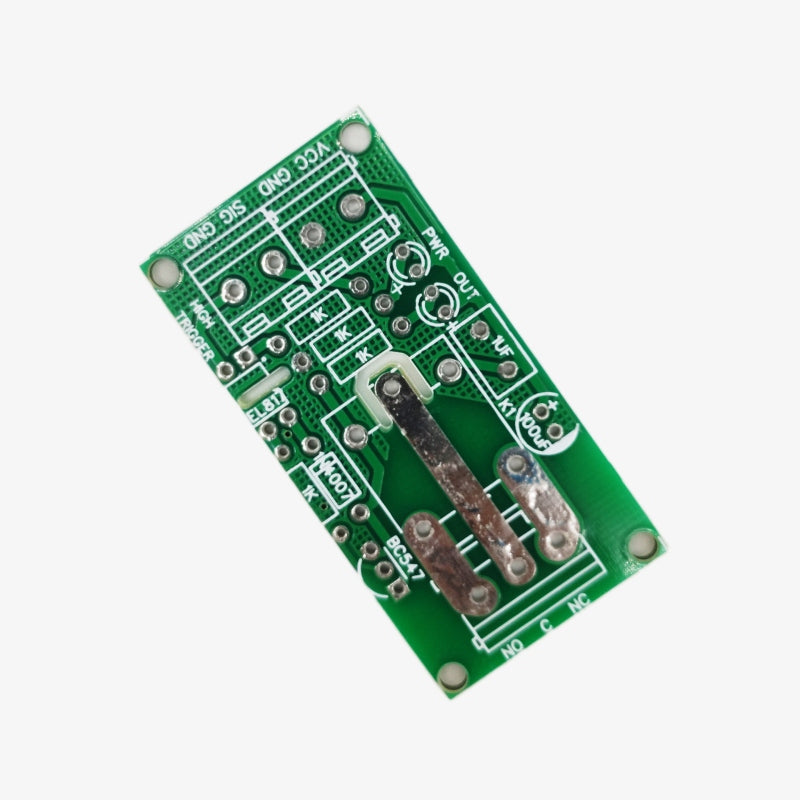

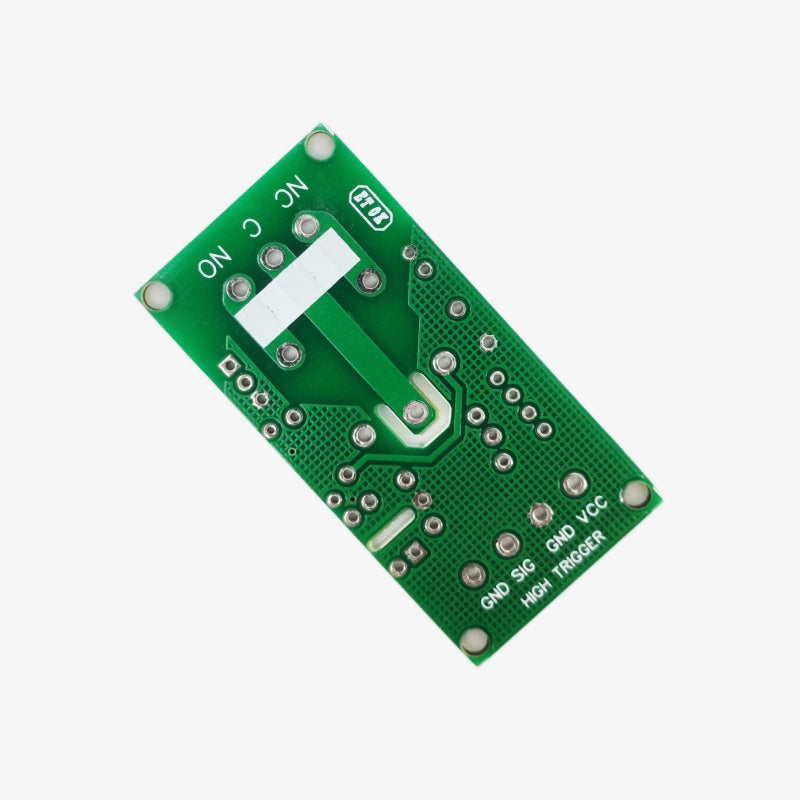

This is a PCB board designed for 1 Channel Relay Module with Optocoupler Input.

Specifications:

  • Size-56x29mm
  • Input signal type - Active high
  • All components are Through hole type
  • Optocoupler - EL817 OR PC817 4 PIN
  • Use 1K resistor for 5 voltage relay application (2.2k  for 12V)
  • Capacitor 1 -1uF or 100NF ceramic capacitor with 5mm pitch
  • Capacitor 2 -100uF 25V electrolytic capacitor with 2.54mm pitch
  • LED size -3mm
  • Transistor BC547 or BC546 or BC548
  • Terminal block connector -xy126 or zb126 or xy128 or  zb128 with 5mm pitch
  • Relay- Normal sugar cube
