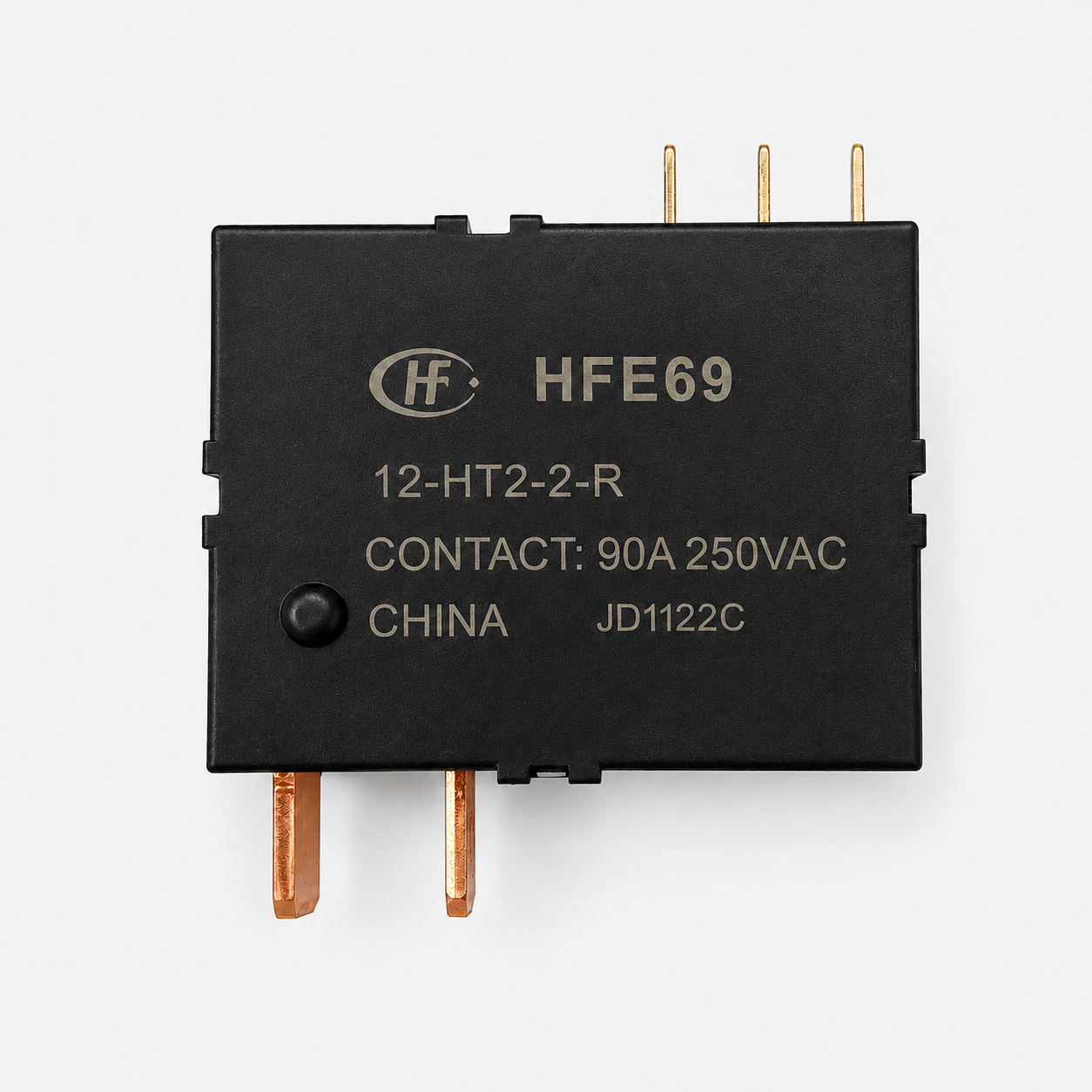

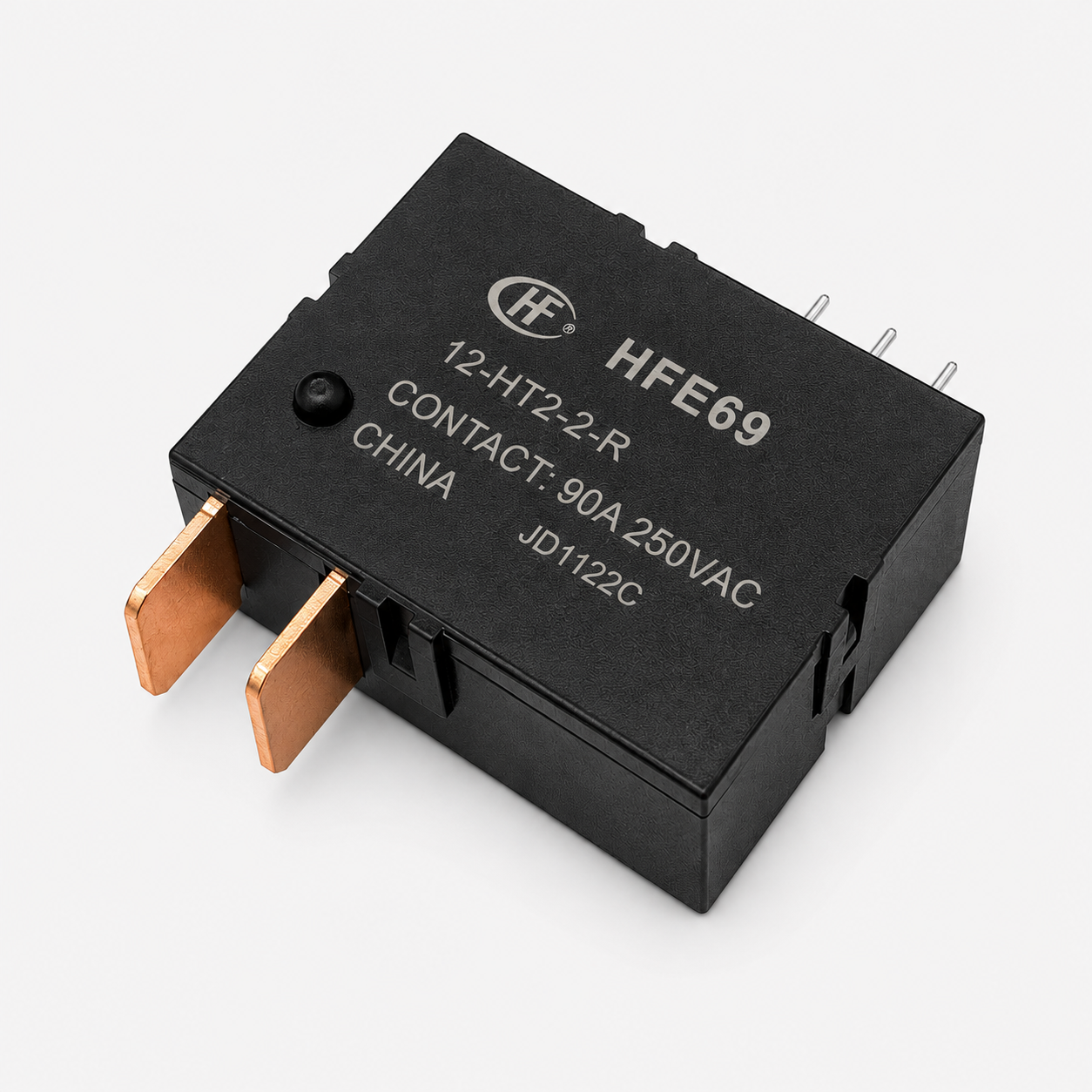

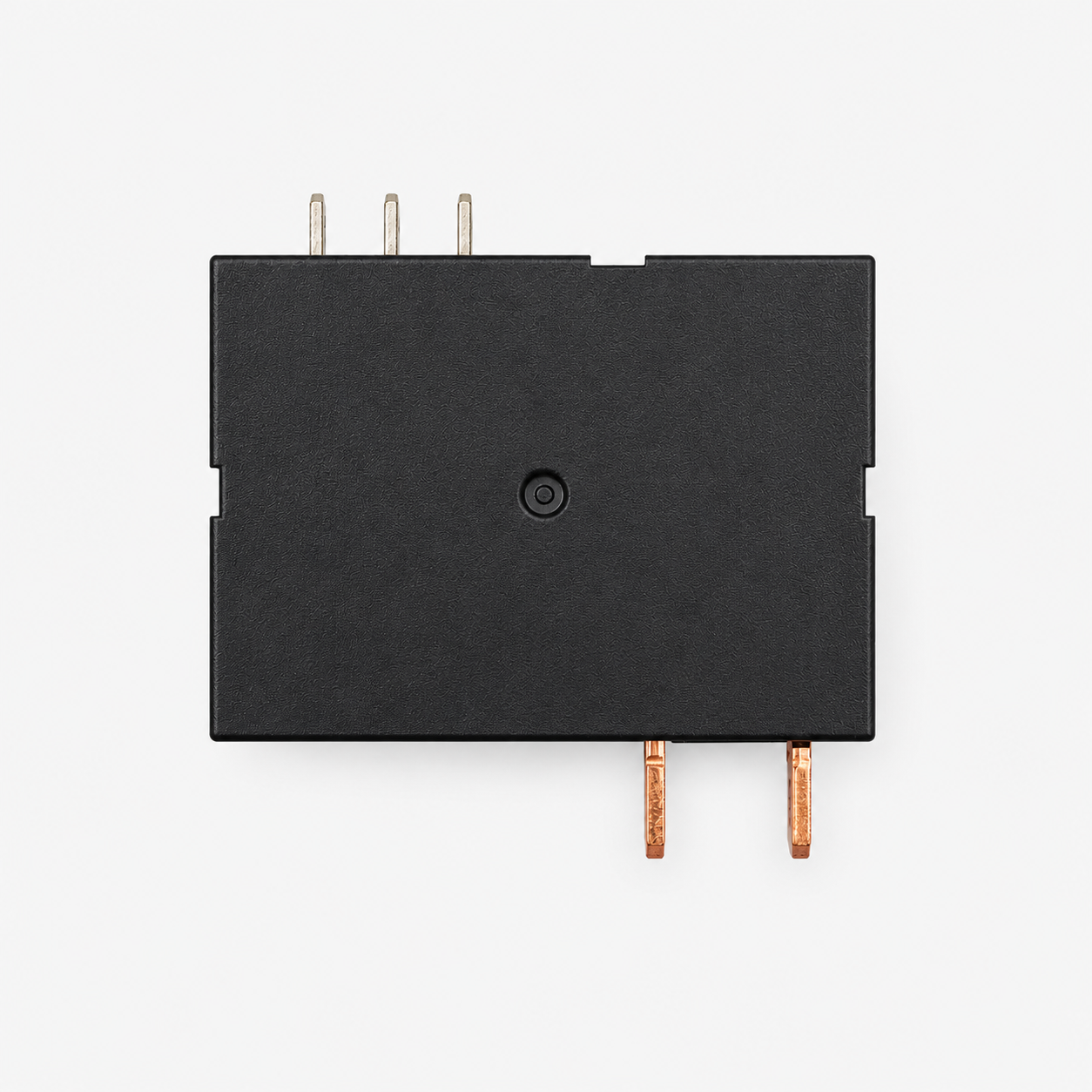

Hongfa HFE69/12-H7T2-2-R 12V 90A Miniature High Power Latching Relay
SKU:
MOD-QC5996
Availability:
10
In Stock
-
- Rs. 295.00
- Unit price
- per
Subtotal:
Rs. 295.00
Description
xHongfa HFE69/12-H7T2-2-R 12V 90A Miniature High Power Latching Relay is a high-current latching electromagnetic relay designed for efficient switching of heavy electrical loads while consuming power only during the switching pulse. Featuring a 12V DC double-coil latching mechanism and a contact rating of up to 90A, this relay is ideal for smart energy meters, EV charging stations, battery management systems (BMS), UPS systems, inverters, industrial automation, and power distribution equipment. Its compact design, low power consumption, and high electrical endurance make it suitable for demanding high-power applications.
Hongfa HFE69/12-H7T2-2-R 12V Miniature High Power Latching Relay Datasheet
Features:
- 12V DC Double-Coil Latching Relay
- High Switching Capacity up to 90A
- Power Consumed Only During Switching
- Compact Miniature High-Power Design
- Low Coil Power Consumption
- High Electrical and Mechanical Endurance
- Reliable Silver Alloy Contacts
- PCB Mount Construction
- Suitable for High-Power Switching Applications
- RoHS Compliant
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Miniature High Power Latching Relay |
| Brand | Hongfa |
| Model | HFE69/12-H7T2-2-R |
| Coil Voltage | 12V DC |
| Coil Type | Double Coil Latching |
| Contact Arrangement | 1 Form A (SPST-NO) |
| Contact Rating | 90A |
| Switching Voltage | Up to 277VAC / 60VDC |
| Contact Material | Silver Alloy (AgSnO₂) |
| Mounting Type | PCB Mount |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Strength | 4000VAC (Coil to Contacts) |
| Operating Temperature | -40°C to +85°C |
| Applications | Smart Energy Meters, EV Charging Stations, Battery Management Systems (BMS), UPS Systems, Inverters, Industrial Automation, Power Distribution Equipment |
| RoHS Compliance | Yes |
Also Check These Out:
12V 8 Channel Relay Module with Optocoupler
4-Channel 12V Relay Module with Optocoupler
PCB For 1 Channel Relay Module with Optocoupler Input
Package Includes:
1 x Hongfa HFE69/12-H7T2-2-R 12V 90A Miniature High Power Latching Relay
