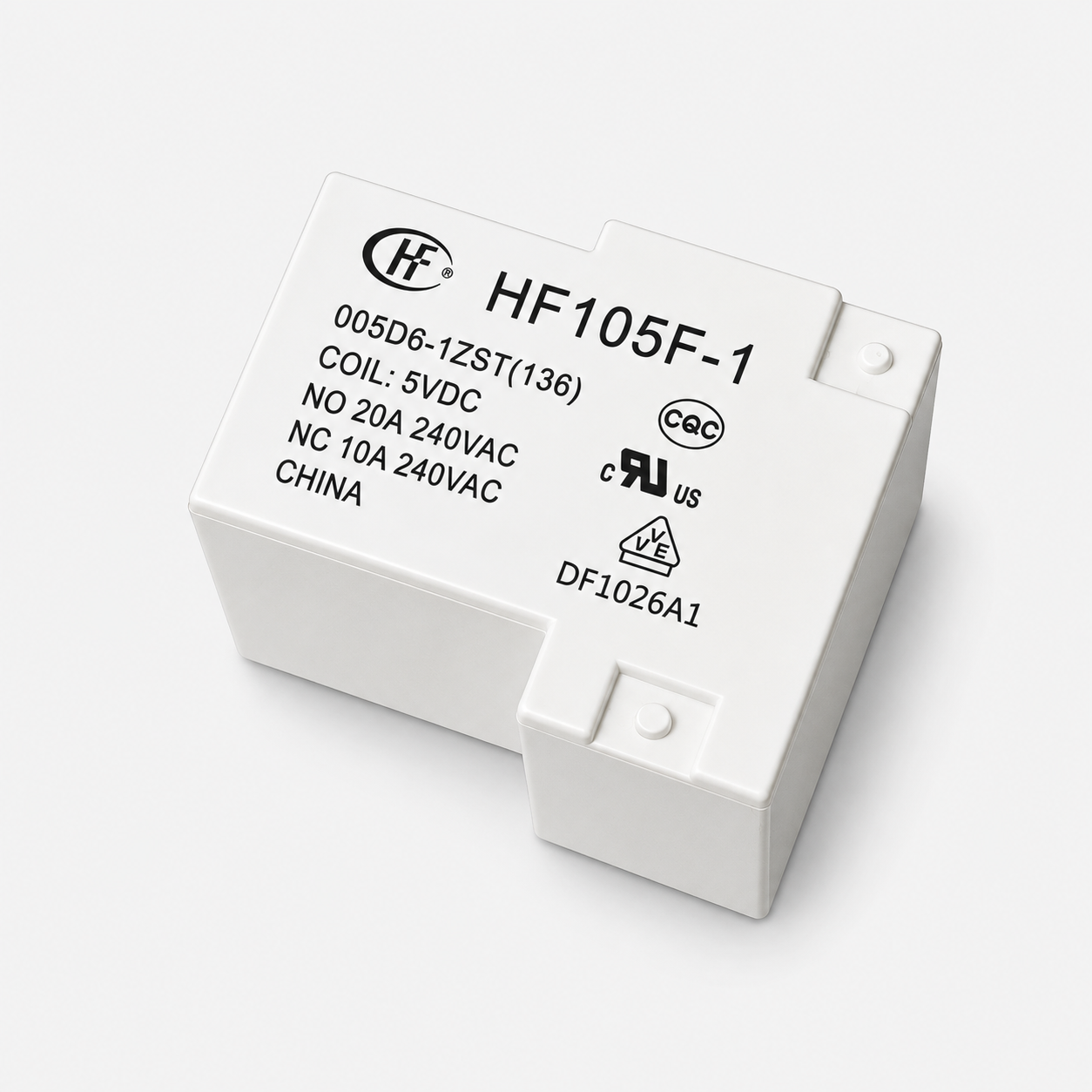

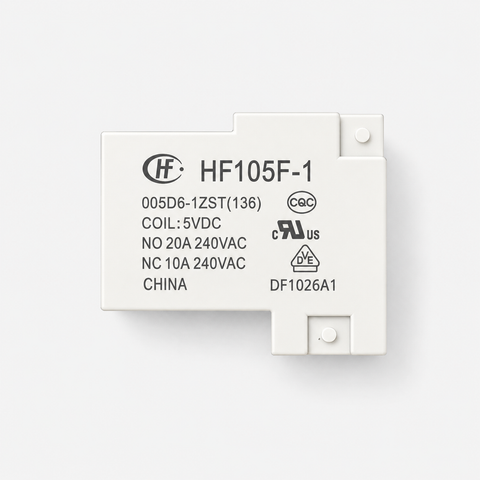

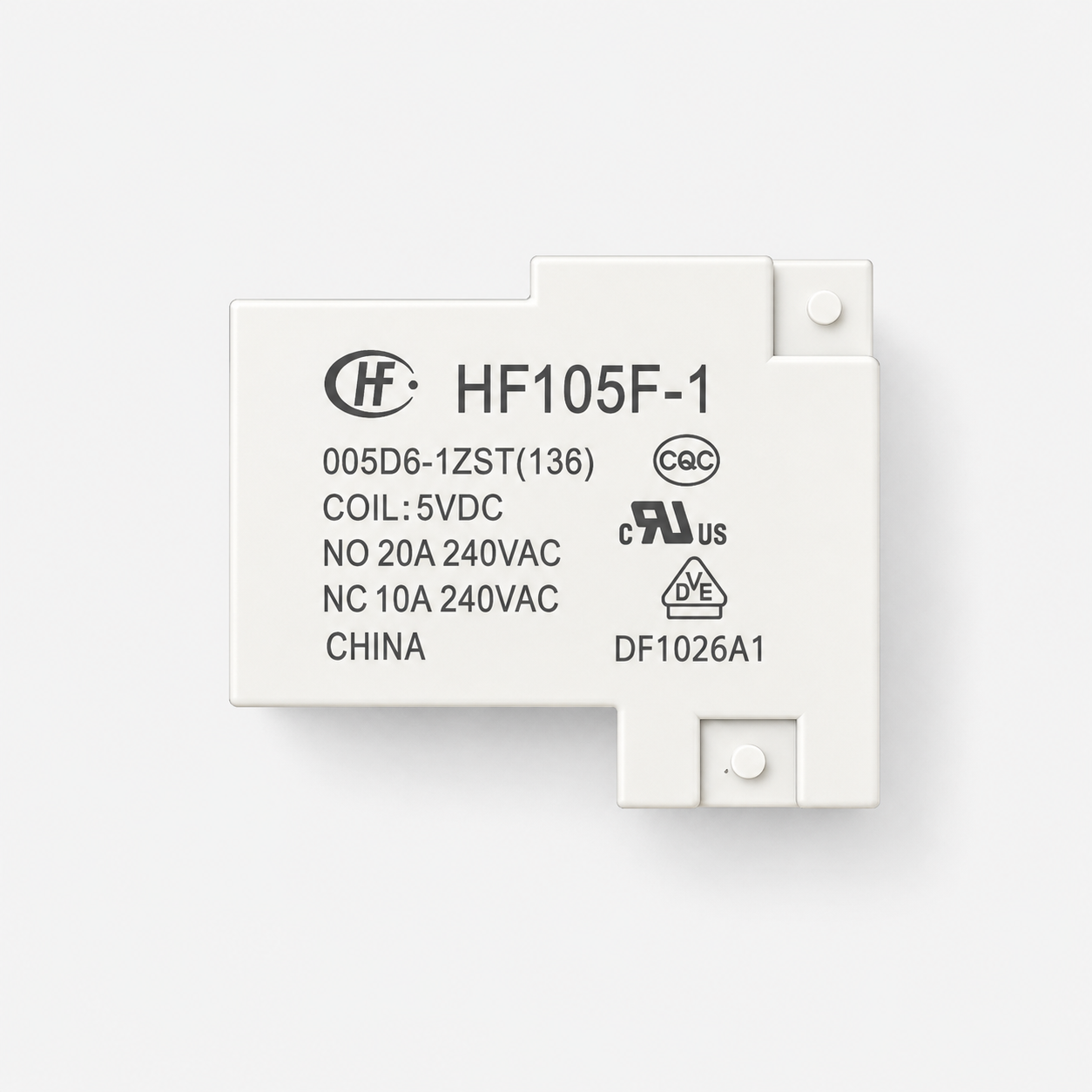

Hongfa HF105F-1/05D6-1ZST 5V 40A Miniature High Power Latching Relay
SKU:
MOD-QC5998
Availability:
5
In Stock
-
- Rs. 204.00
- Unit price
- per
Subtotal:
Rs. 204.00
Description
xHongfa HF105F-1/05D6-1ZST 5V 40A Miniature High Power Relay is a compact, high-current PCB mount electromagnetic relay designed for reliable switching of heavy AC and DC loads. Equipped with a 5V DC coil and a 1 Form C (SPDT) contact configuration, this relay supports switching currents up to 40A, making it suitable for industrial control systems, UPS units, battery chargers, inverters, HVAC equipment, power supplies, and home appliances. Its AgSnO₂ contacts, high dielectric strength, and long electrical life ensure dependable performance in demanding application.
Hongfa HF105F-1/05D-1ZST 12V Miniature High Power Latching Relay Datasheet
Features:
- 40A High Current Switching Capability
- 5V DC Coil Voltage
- 1 Form C (SPDT) Contact Configuration
- Approx. 900mW Low Coil Power Consumption
- 4kV Dielectric Strength Between Coil and Contacts
- Heavy Load Switching up to 7200VA
- Silver Tin Oxide (AgSnO₂) Contacts
- PCB Through-Hole Mounting
- Plastic Sealed Construction
- Long Mechanical and Electrical Life
- RoHS Compliant
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Miniature High Power Relay |
| Brand | Hongfa |
| Model | HF105F-1/05D6-1ZST |
| Contact Arrangement | 1 Form C (SPDT) |
| Contact Type | 1 NO + 1 NC |
| Coil Voltage | 5V DC |
| Coil Power | Approx. 900mW |
| Coil Resistance | 27Ω ±10% |
| Nominal Coil Current | Approx. 185mA |
| Pick-Up Voltage (Max.) | 3.75V DC |
| Drop-Out Voltage (Min.) | 0.5V DC |
| Maximum Coil Voltage | 6.5V DC |
| Contact Material | AgSnO₂ |
| Initial Contact Resistance | 50mΩ Max. (at 1A, 24VDC) |
| Maximum Switching Current | 40A |
| Maximum Switching Voltage | 277VAC / 28VDC |
| Maximum Switching Capacity | 5540VA / 600W (1 Form C NO Contact) |
| Rated Load (NO Contact) | 20A @ 240VAC, 20A @ 28VDC |
| Rated Load (NC Contact) | 10A @ 240VAC, 10A @ 28VDC |
| Insulation Resistance | 1000MΩ Min. @ 500VDC |
| Dielectric Strength (Coil to Contacts) | 2500VAC / 4000VAC for 1 Minute (depending on terminal version) |
| Dielectric Strength (Open Contacts) | 1500VAC for 1 Minute |
| Operate Time | 15ms Max. |
| Release Time | 10ms Max. |
| Mechanical Life | 10 Million Operations |
| Electrical Life | 100,000 Operations (Resistive Load) |
| Shock Resistance | Functional: 98m/s², Destructive: 980m/s² |
| Vibration Resistance | 10Hz–55Hz, 1.5mm Double Amplitude |
| Ambient Temperature | -55°C to +85°C (DC Coil) |
| Humidity | 5% to 85% RH |
| Mounting Type | PCB Through Hole |
| Terminal Type | PCB Pins |
| Construction | Plastic Sealed |
| Unit Weight | Approx. 36g |
| Safety Approvals | UL, cUL, VDE, CQC |
| Compliance | RoHS Compliant |
| Typical Applications | UPS Systems, Battery Chargers, Industrial Automation, Power Supplies, HVAC Equipment, Home Appliances, Inverters, Motor Control |
