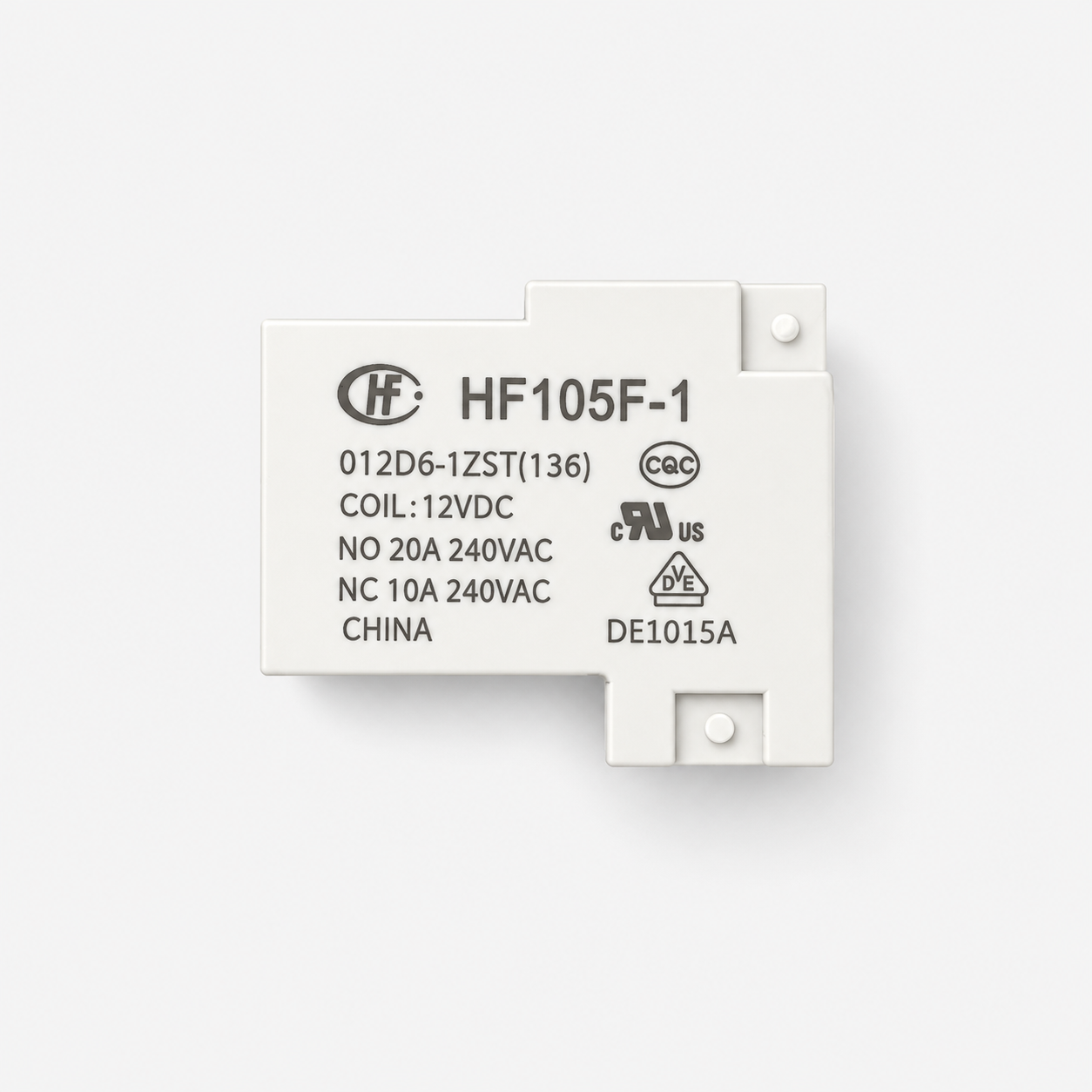

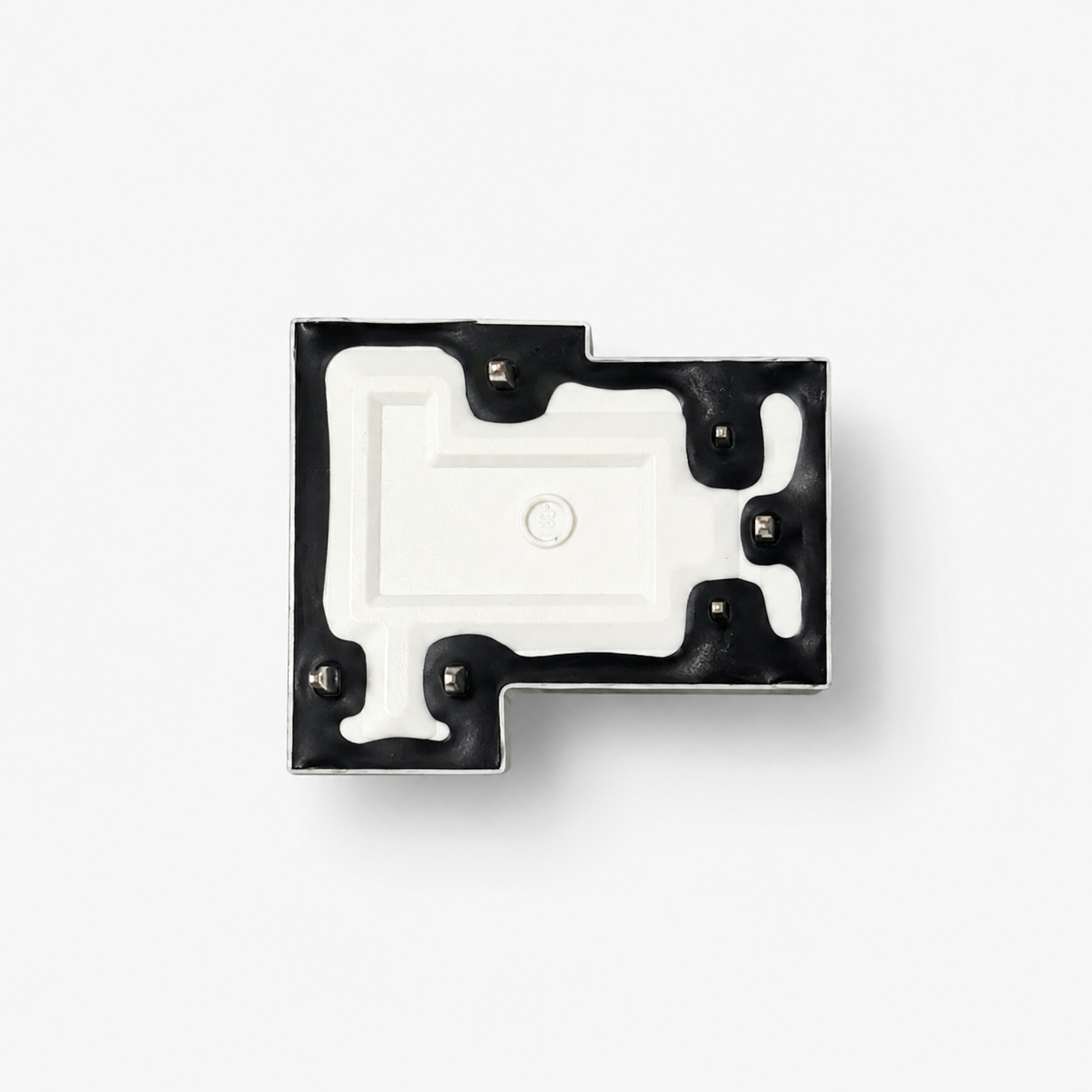

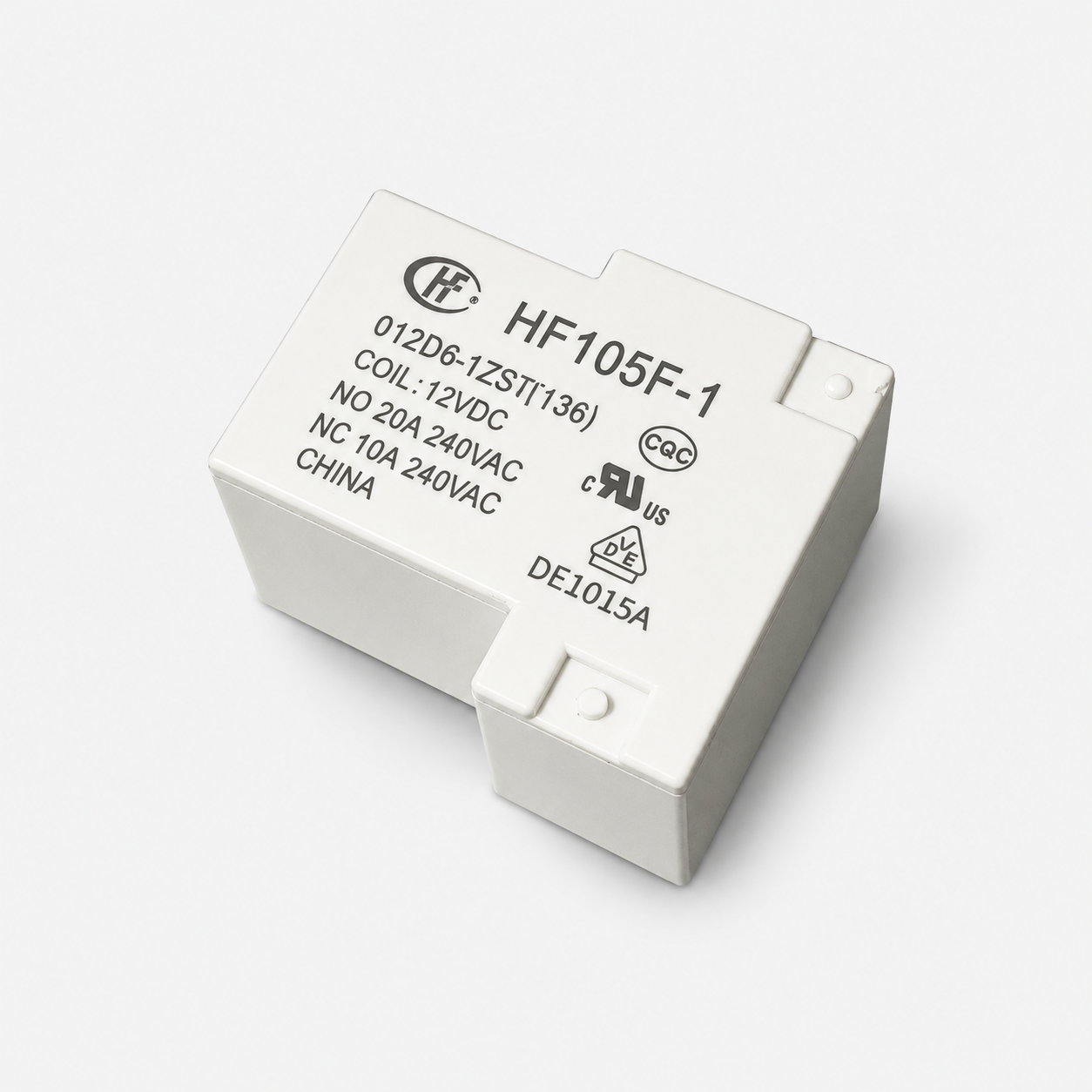

Hongfa HF105F-1/012D-1HST 12V 40A Miniature High Power Latching Relay
SKU:
MOD-QC5997
Availability:
1
In Stock
-
- Rs. 212.00
- Unit price
- per
Subtotal:
Rs. 212.00
Description
xHongfa HF105F-1/012D-1HST 12V 40A Miniature High Power Relay is a high-performance PCB mount electromagnetic relay designed for switching heavy AC and DC loads with excellent reliability and long service life. Featuring a 12V DC coil, SPST-NO (1 Form A) contact configuration, and a switching capacity of up to 40A, this relay is ideal for power supplies, industrial automation, battery chargers, UPS systems, inverters, HVAC equipment, and home appliances. Its compact design, high dielectric strength, and robust AgSnO₂ contacts ensure dependable operation in demanding applications.
Hongfa HF105F-1/012D-1HST 12V Miniature High Power Latching Relay Datasheet
Features:
- 40A High Current Switching Capability
- 12V DC Coil Voltage
- SPST-NO (1 Form A) Contact Configuration
- High 4kV Dielectric Strength Between Coil and Contacts
- Heavy Load Switching up to 7200VA
- Approx. 900mW Low Coil Power Consumption
- PCB Mount Design
- Silver Tin Oxide (AgSnO₂) Contacts
- Plastic Sealed Construction
- Long Mechanical and Electrical Life
- RoHS Compliant
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Miniature High Power Relay |
| Brand | Hongfa |
| Model | HF105F-1/012D-1HST |
| Contact Arrangement | 1 Form A (SPST-NO) |
| Coil Voltage | 12V DC |
| Rated Coil Power | Approx. 900mW |
| Coil Resistance | 155Ω ±10% |
| Pick-Up Voltage (Max.) | 9V DC |
| Drop-Out Voltage (Min.) | 1.2V DC |
| Maximum Coil Voltage | 15.6V DC |
| Nominal Coil Current | Approx. 77.4mA |
| Contact Material | AgSnO₂ |
| Contact Resistance | 50mΩ Max. (Initial) |
| Rated Switching Current | 40A Max. |
| Rated Load | 30A @ 240VAC, 20A @ 28VDC |
| Maximum Switching Voltage | 277VAC / 28VDC |
| Maximum Switching Capacity | 11080VA / 1200W |
| Dielectric Strength (Coil to Contacts) | 2500VAC / 4000VAC (Depending on Terminal Type) |
| Dielectric Strength (Open Contacts) | 1500VAC for 1 Minute |
| Insulation Resistance | 1000MΩ Min. @ 500VDC |
| Operate Time | 15ms Max. |
| Release Time | 10ms Max. |
| Mechanical Life | 10 × 10⁶ Operations |
| Electrical Life | 100,000 Operations (Resistive Load) |
| Shock Resistance | 98m/s² Functional, 980m/s² Destructive |
| Vibration Resistance | 10Hz–55Hz, 1.5mm Double Amplitude |
| Ambient Temperature | -55°C to +85°C (DC Coil) |
| Humidity | 5% to 85% RH |
| Mounting Type | PCB Through Hole |
| Termination | PCB Pins |
| Construction | Plastic Sealed |
| Approximate Weight | 36g |
| Safety Approvals | UL, cUL, VDE, CQC |
| Applications | UPS Systems, Power Supplies, Battery Chargers, Industrial Automation, HVAC Equipment, Home Appliances, Inverters, Motor Control |
| RoHS Compliance | Yes |
Also Check These Out:
12V 8 Channel Relay Module with Optocoupler
4-Channel 12V Relay Module with Optocoupler
PCB For 1 Channel Relay Module with Optocoupler Input
Package Includes:
1 x Hongfa HF105F-1/012D-1HST 12V 40A Miniature High Power Relay
