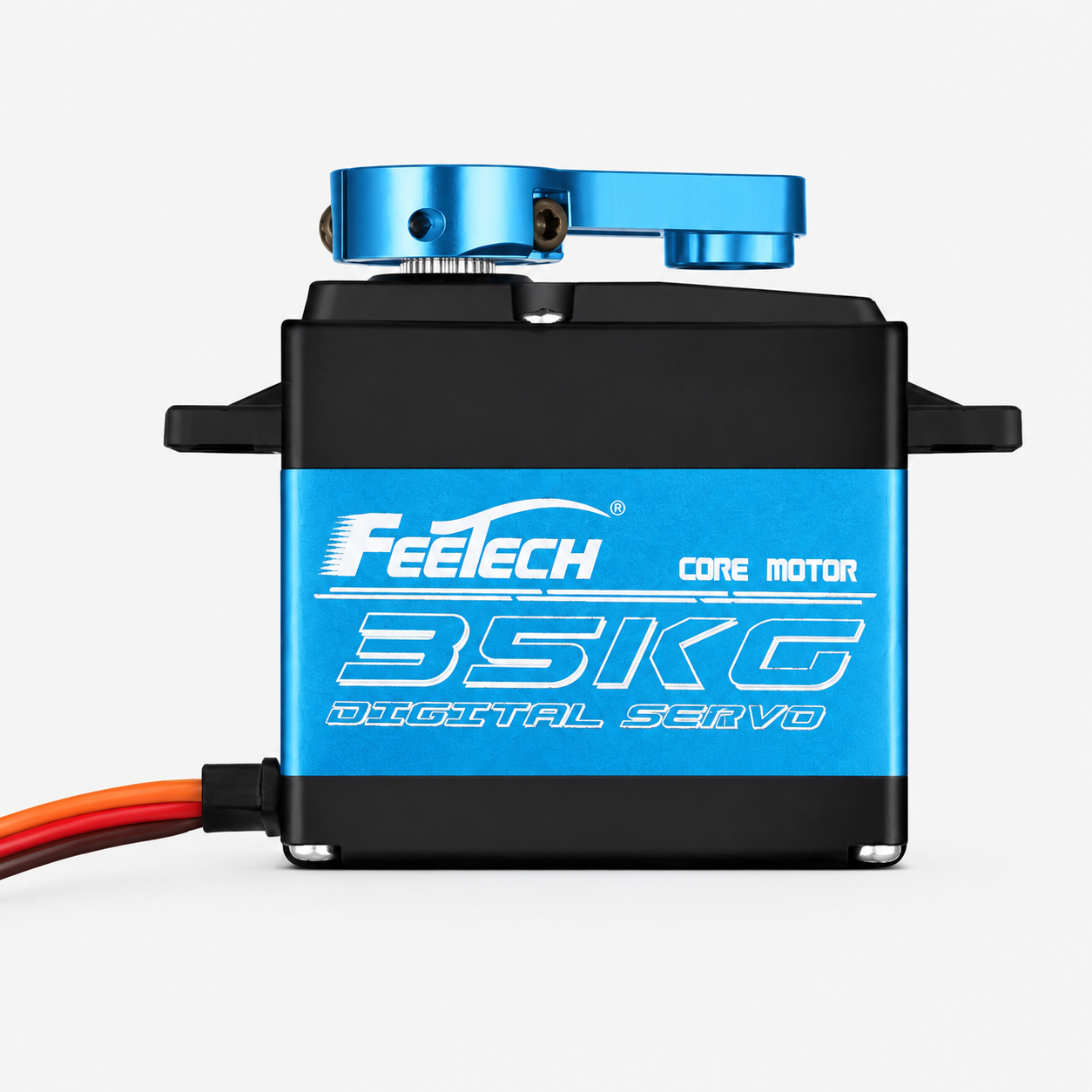

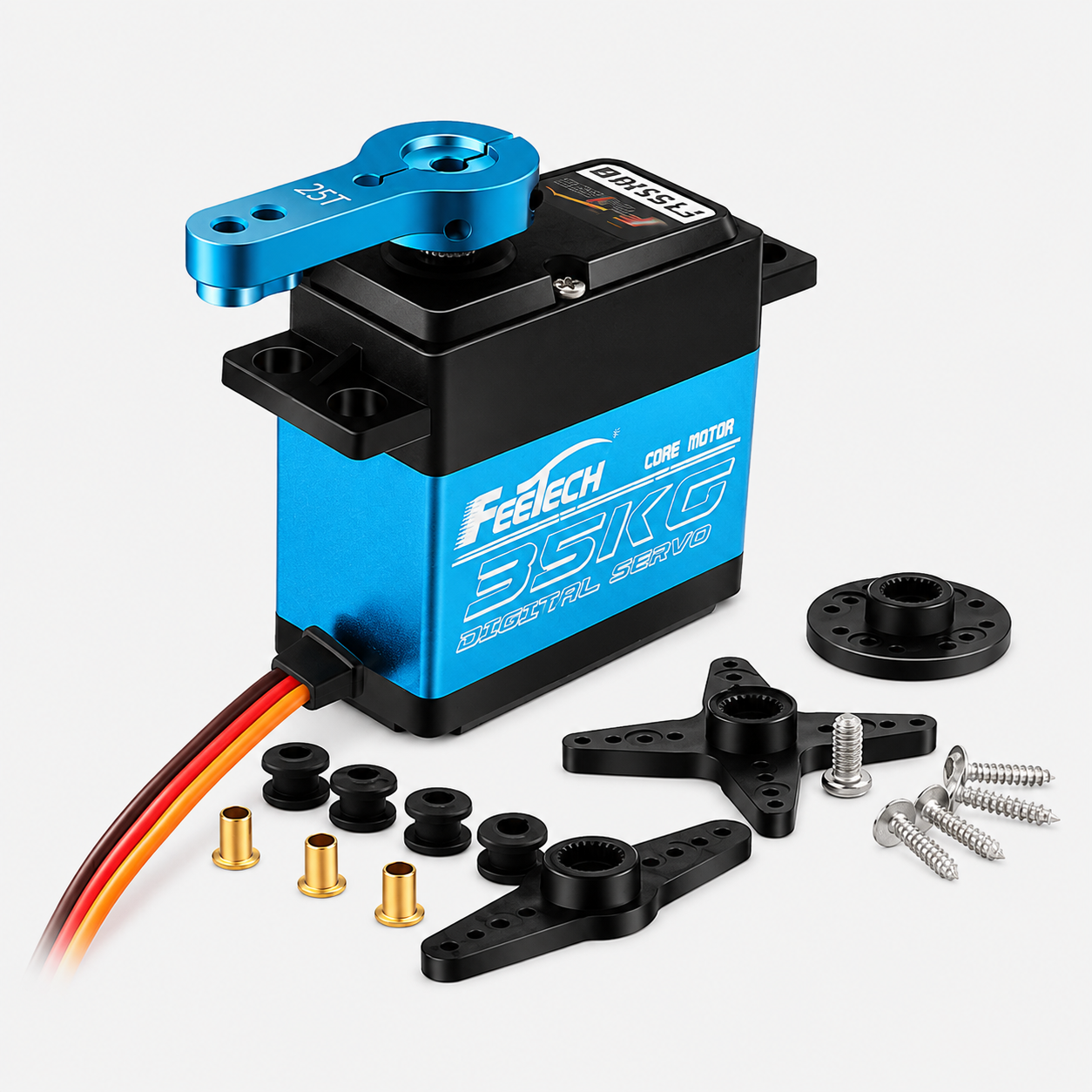

FT5330M 7.4V 35kg 180 degree Steel Gear Digital Servo Motor
SKU:
MTR-QC6059
Availability:
5
In Stock
-
- Rs. 1,585.00
- Unit price
- per
Subtotal:
Rs. 1,585.00
Description
xFT5330M 7.4V 35kg.cm Steel Gear Digital Servo Motor - 180 Degree is a high-performance digital servo motor designed for robotics, industrial automation, RC vehicles, robotic arms, quadruped robots, and other high-load applications. Featuring a hardened steel gear transmission, aluminum middle case, dual ball bearings, and a high-performance iron core motor, it delivers high torque, precise positioning, and reliable operation with excellent durability.
Features:
- High-torque digital servo with up to 35.5kg·cm stall torque.
- Supports precise 180° rotation.
- Hardened steel gear transmission for long service life.
- Aluminum middle case for efficient heat dissipation.
- Dual ball bearing design for smooth and stable operation.
- High-precision digital control with fast response.
- Wide operating voltage range from 6V to 7.4V.
- Standard 25T output spline for broad compatibility.
- Compatible with Arduino, ESP32, Raspberry Pi, STM32, and other PWM controllers.
- Ideal for robotic arms, RC vehicles, quadruped robots, automation systems, and DIY projects.
Specifications:
| Parameter | Value |
|---|---|
| Model | FT5330M |
| Servo Type | Digital Servo |
| Rotation Angle | 180° |
| Operating Voltage | 6V – 7.4V DC |
| Recommended Voltage | 7.4V |
| Stall Torque @ 6V | 28.8kg·cm |
| Stall Torque @ 7.4V | 35.5kg·cm |
| No-Load Speed @ 6V | 0.238 sec/60° |
| No-Load Speed @ 7.4V | 0.192 sec/60° |
| Motor Type | Iron Core DC Motor |
| Gear Material | Hardened Steel |
| Bearing Type | Dual Ball Bearings |
| Output Spline | 25T / 5.9mm |
| Control Method | PWM |
| Pulse Width Range | 500–2500µs |
| Neutral Pulse Width | 1500µs |
| Stall Current @ 7.4V | 3.9A |
| Case Material | PA + Aluminum Middle Shell |
| Connector Type | Standard 3-Pin Servo Connector |
| Connector Wire Length | 300mm |
| Dimensions | 55 × 20 × 43mm |
| Weight | 67 ±1g |
| Operating Temperature | -20°C to +60°C |
| Waterproof Rating | IP54 |
| Mounting Type | Standard Servo Mount |
| Compatible Controllers | Arduino, ESP32, Raspberry Pi, STM32, AVR, PIC and other PWM controllers |
| Applications | Robotic Arms, Quadruped Robots, Humanoid Robots, AGVs, Industrial Automation, RC Cars, RC Boats, RC Aircraft, Smart Robotics, DIY Projects |
Also Check These Out:
MG996R Tower Pro Digital Metal Gear High Torque Servo Motor
MG996R Tower Pro Digital Metal Gear High Torque Servo Motor
MG995 Metal Gear Servo Motor (180 Degree Rotation)

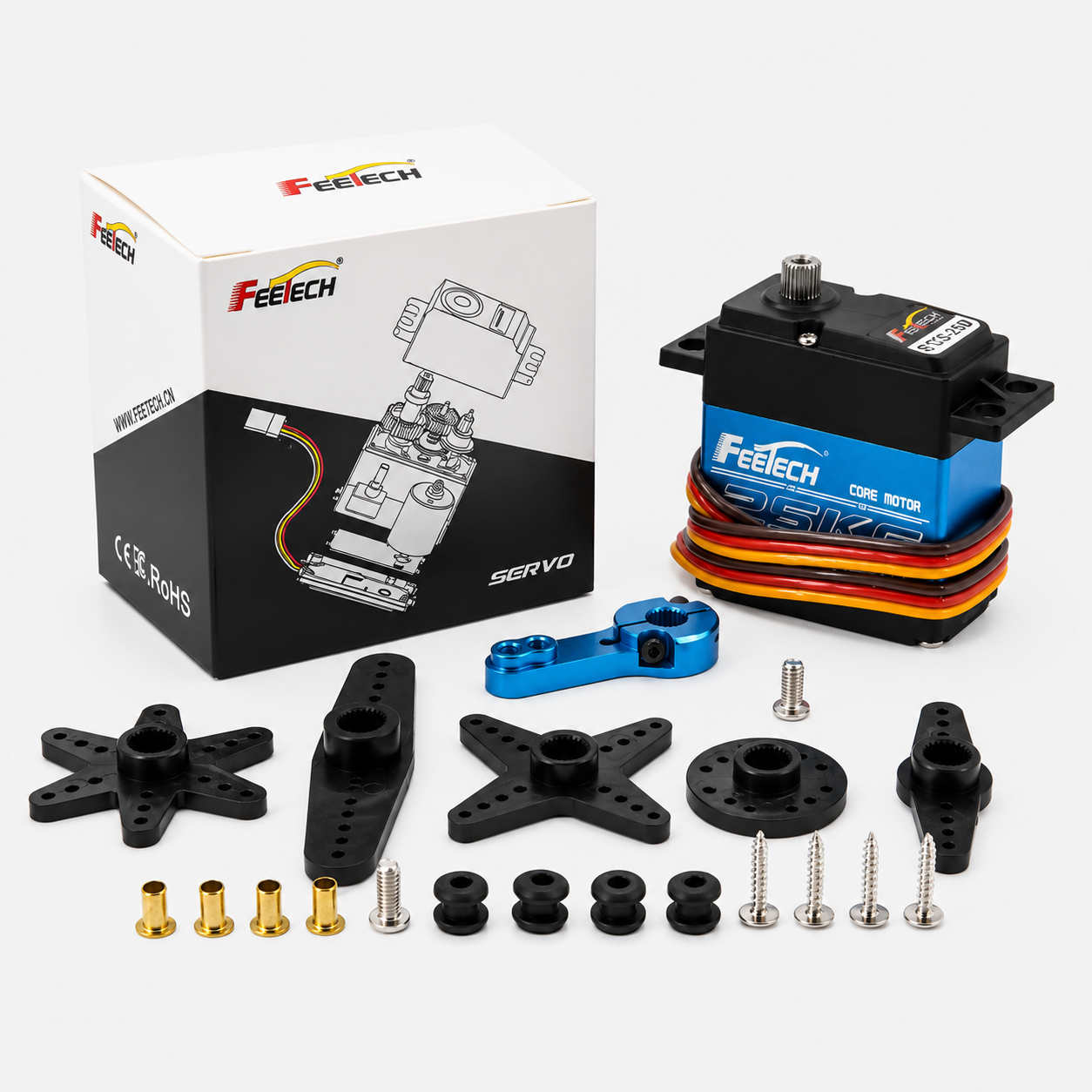

Package Includes:
1 × FT5330M 7.4V 35kg.cm Steel Gear Digital Servo Motor - 180 Degree
