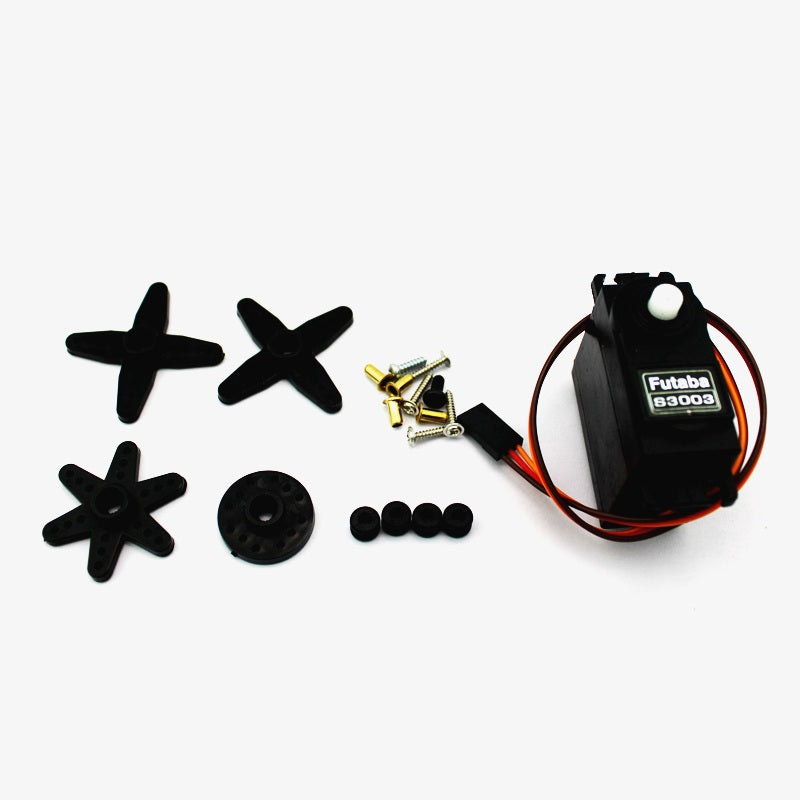

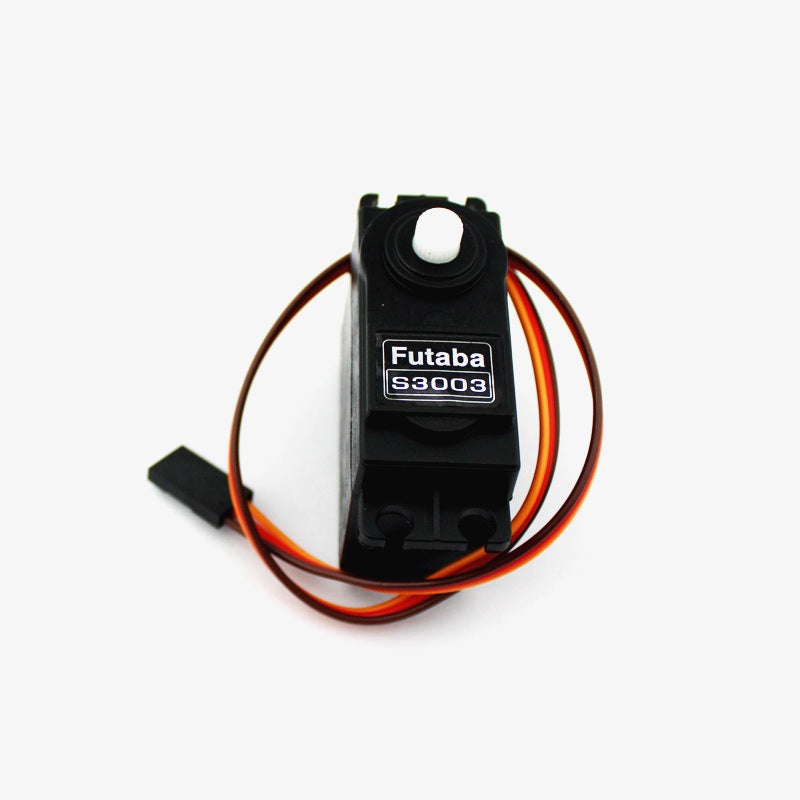

S3003 Servo Motor Futaba S3003 Servo Motor Futaba

QC1156

25 In stock

Rs. 215.00
(Excluding 18% GST)
-
+
[Delivery: 2 to 5 days]

The Futaba Compatible S3003 Plastic Geared Servo Motor is a decent servo for every hobbyist and electronics student. The powerful motor is PWM controlled for easy interfacing.



​Features:​

  • Control System: +Pulse Width Control 1520usec Neutral
  • Required Pulse: 3-5 Volt Peak to Peak Square Wave
  • Operating Voltage: 4.8-6.0 Volts
  • Operating Temperature Range: -20 to +60 Degree C
  • Operating Speed (4.8V): 0.23sec/60 degrees at no load
  • Operating Speed (6.0V): 0.19sec/60 degrees at no load
  • Stall Torque (4.8V): 44 oz/in. (3.2kg.cm)
  • Stall Torque (6.0V): 56.8 oz/in. (4.1kg.cm)
  • Operating Angle: 45 Deg. one side pulse traveling 400usec
  • Continuous Rotation Modifiable: Yes
  • Direction: Counter Clockwise/Pulse Traveling 1520-1900usec
  • Current Drain (4.8V): 7.2mA/idle
  • Current Drain (6.0V): 8mA/idle
  • Motor Type: 3 Pole Ferrite
  • Potentiometer Drive: Indirect Drive
  • Bearing Type: Plastic Bearing
  • Gear Type: All Nylon Gears
  • Connector Wire Length: 12"
  • Dimensions: 1.6" x 0.8"x 1.4" (41 x 20 x 36mm)
  • Weight: 1.3oz. (37.2g)



Application:

  • Futaba S3003 High torque Dual ball bearing Servo motors for robotics and industrial application, It provides 7Kgcm torque at 6V, Perfect Compatible with Hitec HS-311.

The Futaba Compatible S3003 Plastic Geared Servo Motor is a decent servo for every hobbyist and electronics student. The powerful motor is PWM controlled for easy interfacing.



​Features:​

  • Control System: +Pulse Width Control 1520usec Neutral
  • Required Pulse: 3-5 Volt Peak to Peak Square Wave
  • Operating Voltage: 4.8-6.0 Volts
  • Operating Temperature Range: -20 to +60 Degree C
  • Operating Speed (4.8V): 0.23sec/60 degrees at no load
  • Operating Speed (6.0V): 0.19sec/60 degrees at no load
  • Stall Torque (4.8V): 44 oz/in. (3.2kg.cm)
  • Stall Torque (6.0V): 56.8 oz/in. (4.1kg.cm)
  • Operating Angle: 45 Deg. one side pulse traveling 400usec
  • Continuous Rotation Modifiable: Yes
  • Direction: Counter Clockwise/Pulse Traveling 1520-1900usec
  • Current Drain (4.8V): 7.2mA/idle
  • Current Drain (6.0V): 8mA/idle
  • Motor Type: 3 Pole Ferrite
  • Potentiometer Drive: Indirect Drive
  • Bearing Type: Plastic Bearing
  • Gear Type: All Nylon Gears
  • Connector Wire Length: 12"
  • Dimensions: 1.6" x 0.8"x 1.4" (41 x 20 x 36mm)
  • Weight: 1.3oz. (37.2g)



Application:

  • Futaba S3003 High torque Dual ball bearing Servo motors for robotics and industrial application, It provides 7Kgcm torque at 6V, Perfect Compatible with Hitec HS-311.
