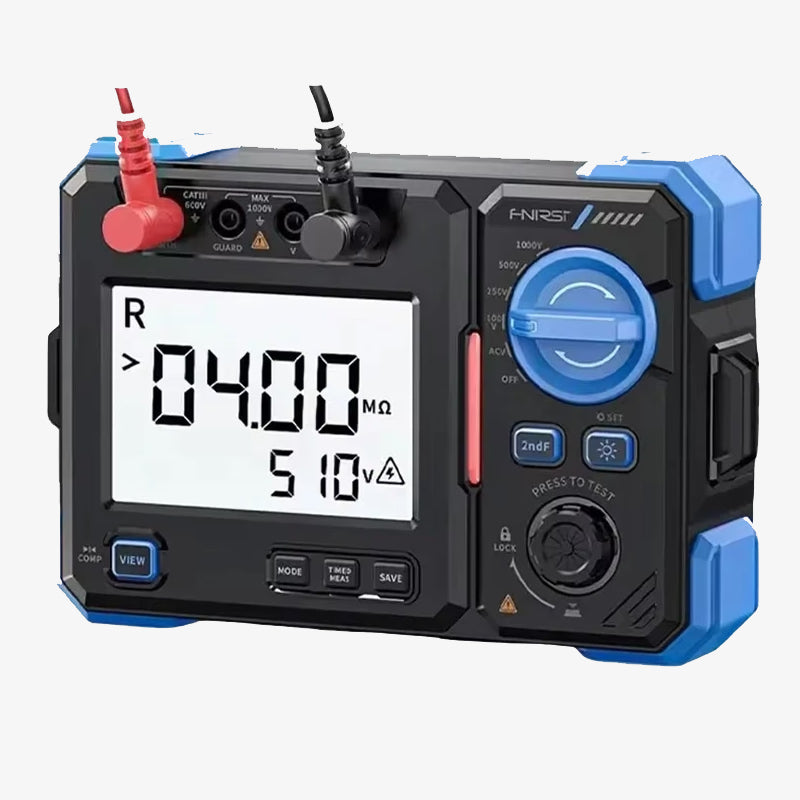

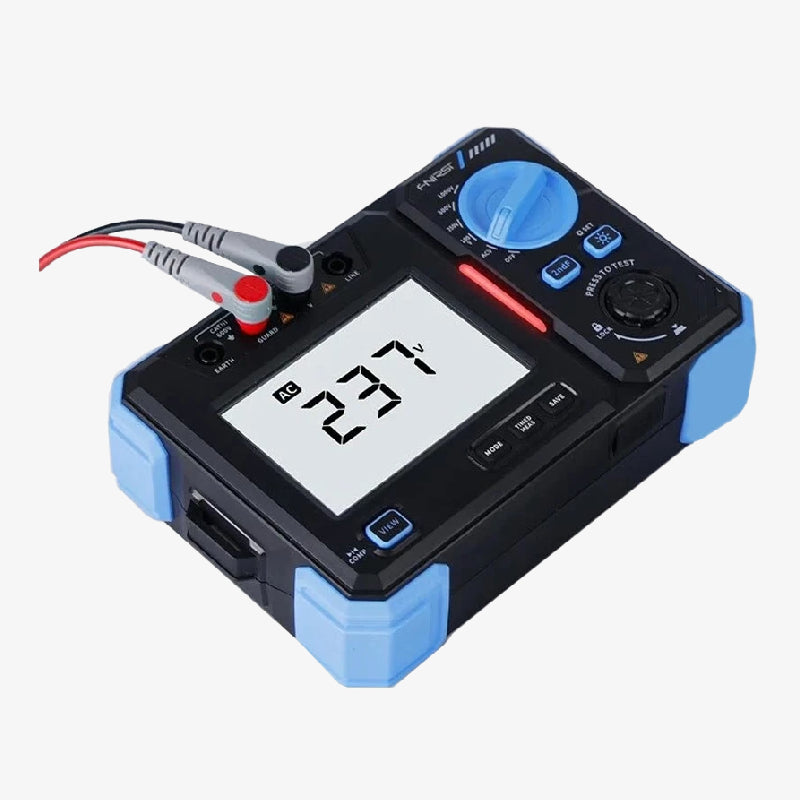

FNIRSI® MRT2050 250V–2500V Insulation Resistance Tester with AC/DC Voltage Measurement
SKU:
TLS-QC6371
Availability:
2
In Stock
-
- Rs. 5,458.00
- Unit price
- per
Subtotal:
Rs. 5,458.00
Description
xFNIRSI MRT2050 250V–2500V Insulation Resistance Tester with AC/DC Voltage Measurement is a professional digital insulation resistance tester designed for electrical maintenance, power equipment testing, industrial inspection, and field diagnostics. It provides four insulation test voltages from 250V to 2500V, measures insulation resistance up to 200GΩ, and supports AC/DC voltage measurement, PI, DAR, timed measurement, comparison testing, automatic discharge, and data storage.
FNIRSI MRT2050 250V–2500V Insulation Resistance Tester with AC/DC Voltage Measurement Datasheet
Features:
- 250V, 500V, 1000V and 2500V insulation test voltages
- Insulation resistance measurement up to 200GΩ
- 250V resistance range from 0.1MΩ to 2GΩ
- 500V resistance range from 0.5MΩ to 5GΩ
- 1000V resistance range from 3MΩ to 20GΩ
- 2500V resistance range from 5MΩ to 200GΩ
- AC voltage measurement from 30V to 750V
- DC voltage measurement up to 1000V
- PI and DAR measurement functions
- Timed and continuous measurement modes
- Automatic discharge function
- Comparison testing with audible alarm
- Up to 100 groups of test data storage
- Backlit digital display
- High-voltage warning function
- Low-battery indication
- Portable handheld design
Specifications:
| Specification | Value |
|---|---|
| Brand | FNIRSI |
| Model | MRT2050 |
| Product Type | Insulation Resistance Tester |
| Insulation Test Voltage | 250V / 500V / 1000V / 2500V |
| Insulation Resistance Range | 0.1MΩ to 200GΩ |
| 250V Resistance Range | 0.1MΩ to 2GΩ |
| 500V Resistance Range | 0.5MΩ to 5GΩ |
| 1000V Resistance Range | 3MΩ to 20GΩ |
| 2500V Resistance Range | 5MΩ to 200GΩ |
| Insulation Resistance Accuracy | ±(5% + 3 bits) |
| DC Voltage Range | 0 to ±1000V |
| AC Voltage Range | 30V to 750V |
| AC Voltage Frequency | 45Hz to 200Hz |
| Voltage Resolution | 1V |
| AC/DC Voltage Accuracy | ±(2% + 3 bits) |
| Test Short-Circuit Current | 1.5mA |
| Data Storage | Up to 100 Groups |
| Power Supply | 8 × AA 1.5V Batteries / DC 12V |
| Dimensions | 182 × 124 × 66mm |
| Weight | 684g |
Explore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.
Also Check These Products:-
FNIRSI HRM-10 Battery Voltage Internal Resistance Tester
FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester
FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester
FNIRSI DMC-100 DC AC Current Voltage Digital Clamp Multimeter
FNIRSI DMT-99 Intelligent Color Screen Digital MultiMeter
Package Includes:
1 × FNIRSI MRT-2050 Insulation Resistance Tester
1 × Test Lead Set
1 × Red Alligator Clip
1 × Black Alligator Clip
1 × Storage Bag
1 × Instruction Manual
1 × Nylon Tape
