FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester

Brand: FNIRSI
SKU: TLS-QC5070
Availability: 3 In Stock
Rs. 2,570.00
Subtotal: Rs. 2,570.00
Description
Description
x

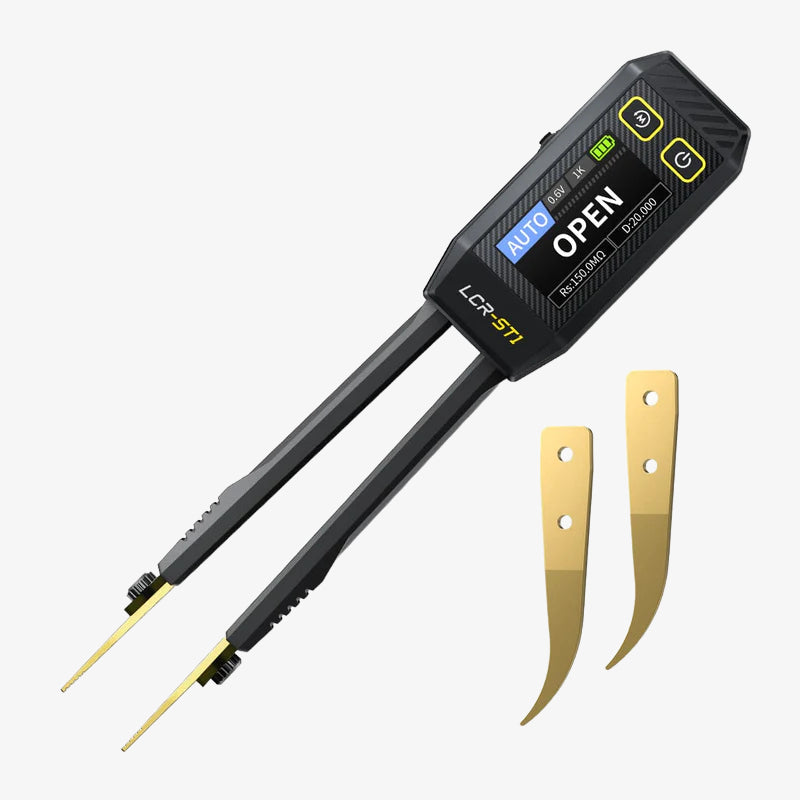

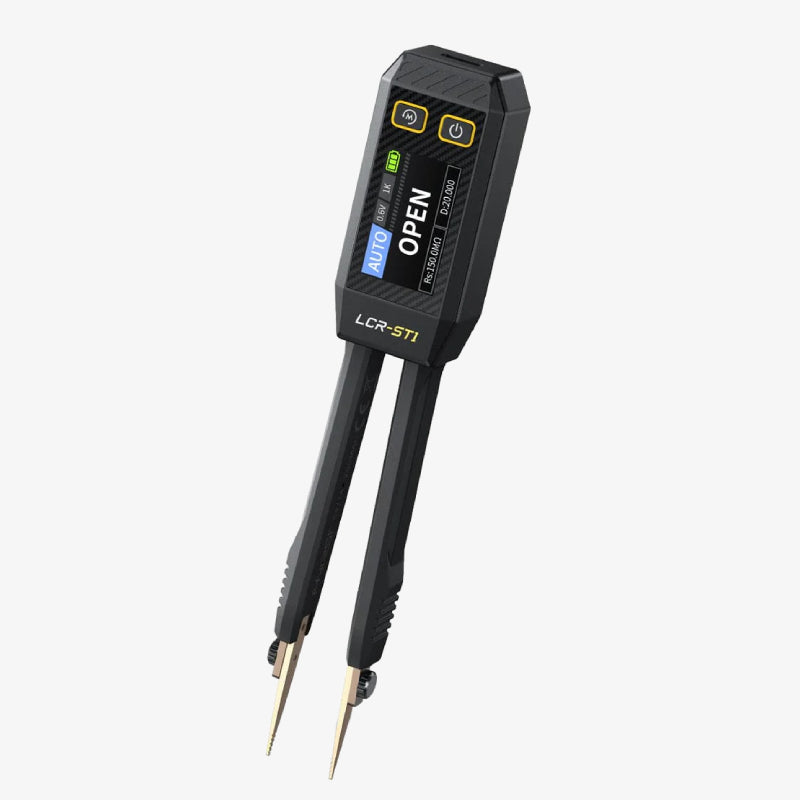

FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester is a compact tweezer-style LCR tester designed for precise measurement of SMD components. Ideal for resistance, capacitance, inductance, diode, and continuity testing in compact spaces.

Features:

  1. Automatic Component Recognition
  2. Measures R, L, C, Diode and Continuity
  3. Tweezer Design for SMD Components
  4. 1.14" Color Display
  5. Supports ESR, D, Q, Z, X Parameters
  6. Multiple Test Frequencies (100Hz / 1kHz / 10kHz)
  7. Dual Test Levels (0.3V / 0.6V RMS)
  8. Rechargeable 250mAh Battery
  9. Type-C Charging Interface
  10. Data Hold and Auto Shutdown
  11. Replaceable Tweezer Head
  12. PC Connectivity for Data Export

Specifications:

Parameter Value
Brand FNIRSI
Model LCR-ST1
Capacitance Range 1pF – 22mF
Inductance Range 1µH – 10H
Resistance Range 10mΩ – 10MΩ
Diode Test 0.7V
Test Frequency 100Hz / 1kHz / 10kHz
Test Level 0.3V / 0.6V RMS
Display 1.14" Color Screen
Battery 250mAh Lithium
Charging Type-C (5V)
Auto Measurement Supported
Data Hold Supported
Auto Shutdown Supported
PC Connectivity Supported
Language English / Chinese
Dimensions 28 × 19 × 150 mm
Weight 41g


Also Check This Out :-

FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester

FNIRSI DMC-100 DC AC Current Voltage Digital Clamp Multimeter

FNIRSI HRM-10 Battery Voltage Internal Resistance Tester

Package Includes:

1 x FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester
