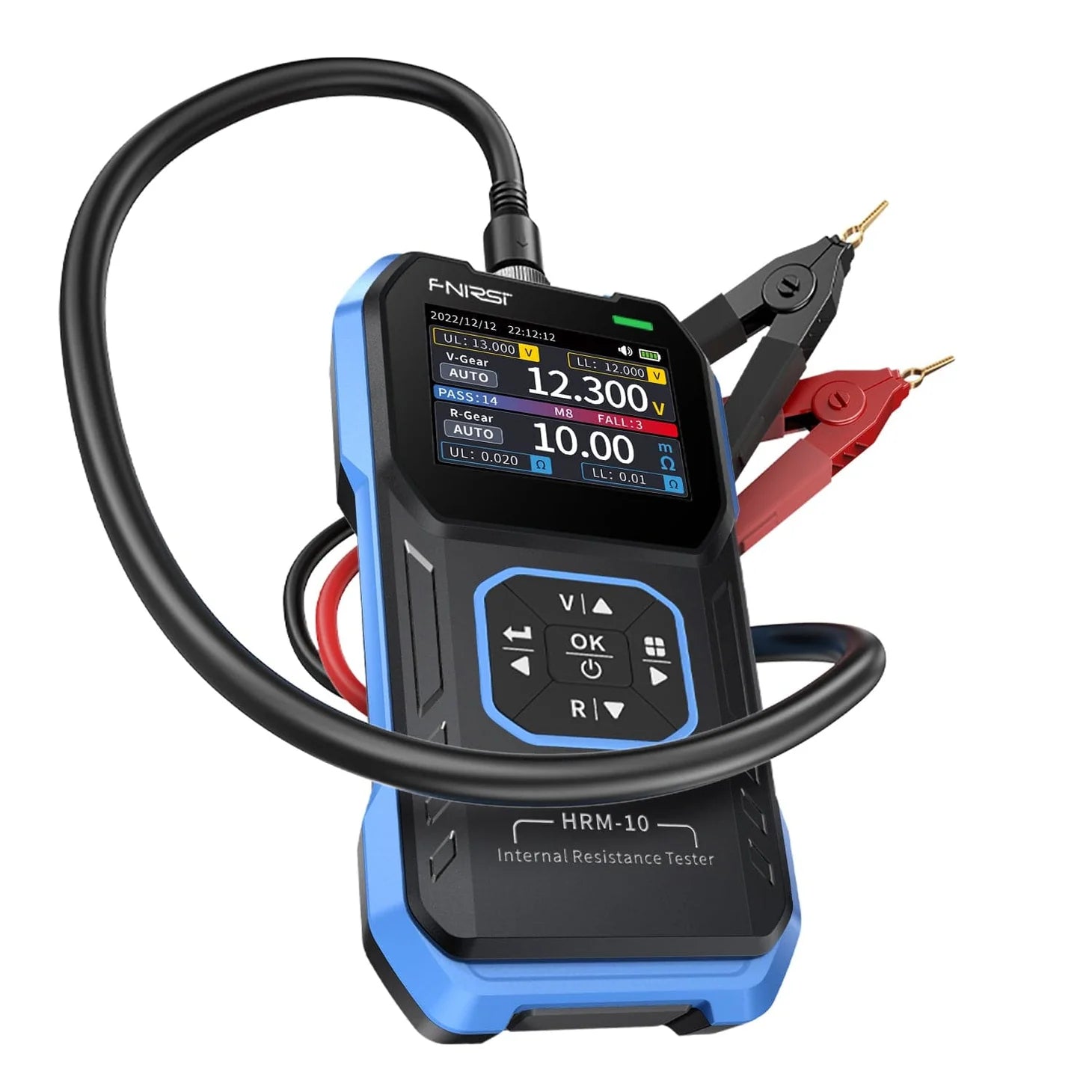

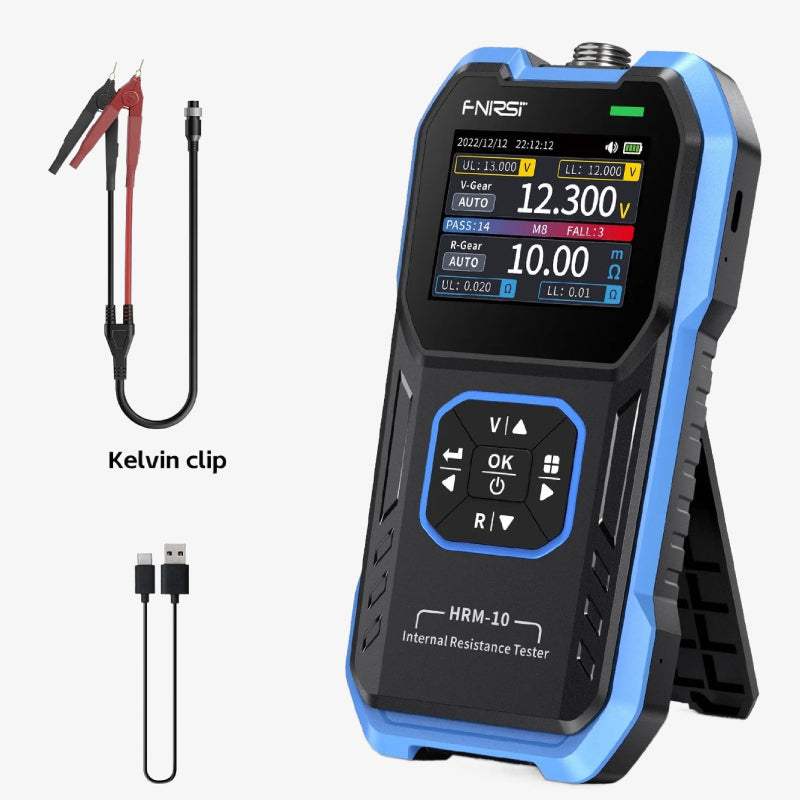

FNIRSI HRM-10 Battery Voltage Internal Resistance Tester is High-precision handheld tester designed for measuring battery voltage and internal resistance using four-wire method. Ideal for battery testing, sorting, and maintenance applications.
| Parameter | Value |
|---|---|
| Brand | FNIRSI |
| Model | HRM-10 |
| Type | Battery Internal Resistance Tester |
| Voltage Range | 0 ~ ±100V DC |
| Voltage Range Modes | Auto / 1V / 10V / 100V |
| Resistance Range | 0 ~ 200Ω |
| Resistance Range Modes | Auto / 20mΩ / 200mΩ / 2Ω / 20Ω / 200Ω |
| Accuracy | ±0.5% |
| Signal Frequency | AC 1kHz |
| Battery | 1000mAh Lithium |
| Charging | Type-C (5V/1A) |
| Calibration | Supported |
| Sorting Mode | Supported |
| Data Storage | Supported |
| Data Export | Supported |
| Working Temperature | -10°C to +45°C |
| Storage Temperature | -20°C to +80°C |
| Dimensions | 158.7 × 80.5 × 28.4 mm |
| Weight | 225g |
FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester
FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester
1 x FNIRSI HRM-10 Battery Voltage Internal Resistance Tester
