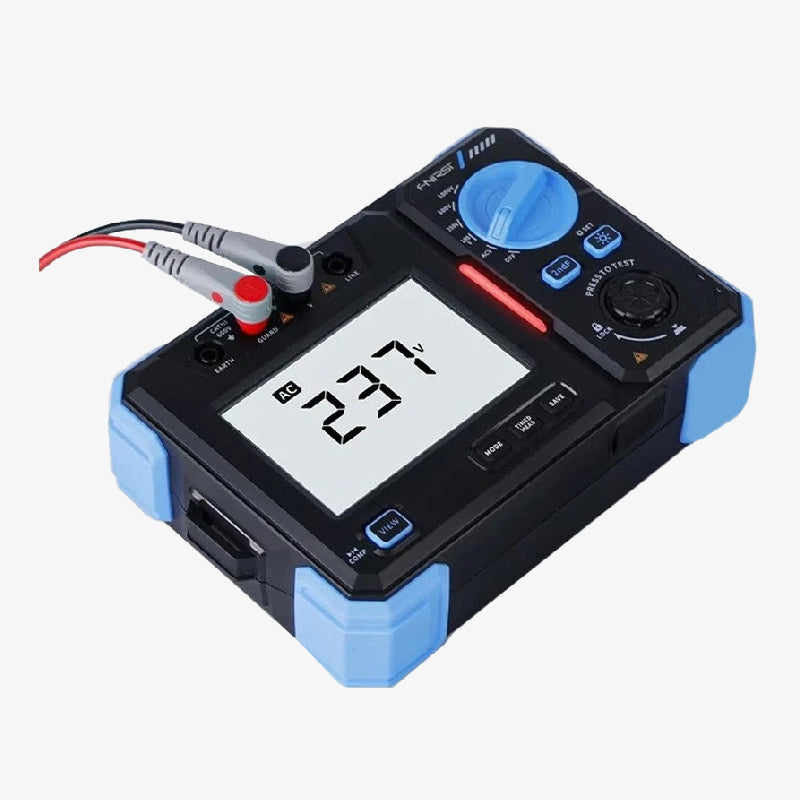

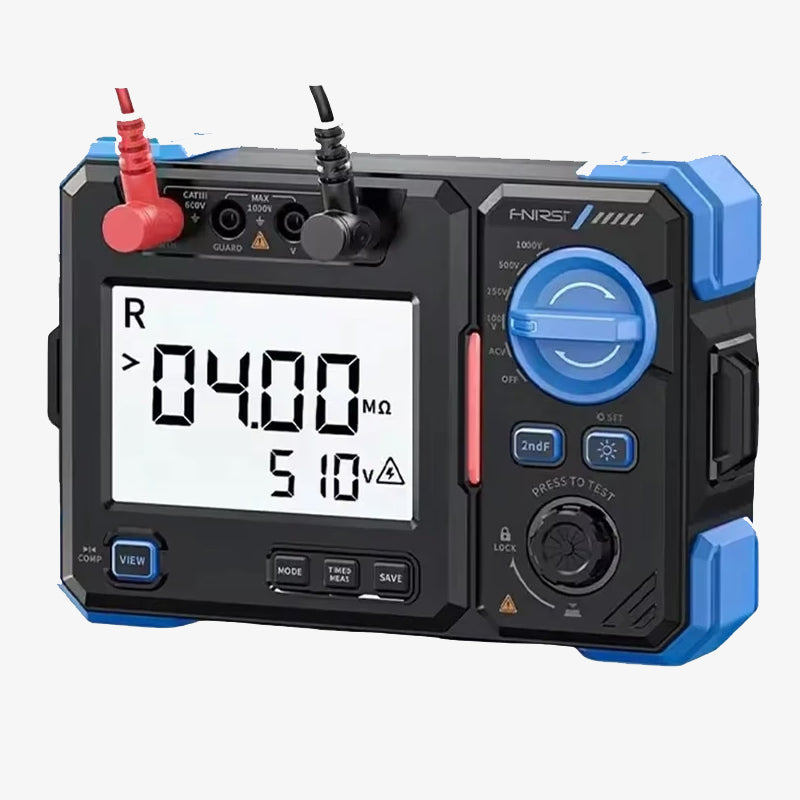

FNIRSI® MRT1050 Insulation Resistance Tester AC DC Voltage Meter 100V to 1000V High Accuracy Portable Electrical Testing
SKU:
TLS-QC6370
Availability:
2
In Stock
-
- Rs. 4,975.00
- Unit price
- per
Subtotal:
Rs. 4,975.00
Description
xFNIRSI MRT1050 Insulation Resistance Tester AC DC Voltage Meter 100V to 1000V High Accuracy Portable Electrical Testing is a digital insulation resistance tester designed for electrical maintenance, insulation testing, and field diagnostics. It provides selectable 100V, 250V, 500V, and 1000V insulation test voltages, insulation resistance measurement up to 20GΩ, and AC/DC voltage measurement. It also features PI, DAR, timed measurement, comparison, data storage, automatic discharge, backlight, and high-voltage warning functions.
Features:
- 100V, 250V, 500V and 1000V insulation test voltages
- Insulation resistance measurement up to 20GΩ
- 100V measurement range from 0.1MΩ to 200MΩ
- 250V measurement range from 0.1MΩ to 2GΩ
- 500V measurement range from 0.5MΩ to 5GΩ
- 1000V measurement range from 3MΩ to 20GΩ
- AC voltage measurement from 30V to 750V
- DC voltage measurement up to 1000V
- PI and DAR measurement functions
- Timed and continuous measurement modes
- Automatic discharge function
- PASS/FAIL comparison function
- Up to 100 groups of data storage
- 1999-count digital display
- Backlight and low-battery indication
- High-voltage warning and overload indication
- Portable handheld design
Specifications:
| Specification | Value |
|---|---|
| Brand | FNIRSI |
| Model | MRT1050 |
| Product Type | Digital Insulation Resistance Tester |
| Insulation Test Voltage | 100V / 250V / 500V / 1000V |
| Insulation Resistance Range | 0.1MΩ to 20GΩ |
| 100V Resistance Range | 0.1MΩ to 200MΩ |
| 250V Resistance Range | 0.1MΩ to 2GΩ |
| 500V Resistance Range | 0.5MΩ to 5GΩ |
| 1000V Resistance Range | 3MΩ to 20GΩ |
| Insulation Resistance Accuracy | ±(5% + 3 bits) |
| DC Voltage Range | 0 to ±1000V |
| AC Voltage Range | 30V to 750V |
| AC Voltage Frequency | 45Hz to 200Hz |
| Voltage Resolution | 1V |
| AC/DC Voltage Accuracy | ±(2% + 3 bits) |
| Display Count | 1999 |
| Power Supply | 8 × AA 1.5V Batteries / DC 12V |
| Data Storage | Up to 100 Groups |
| Functions | PI / DAR / Timed Measurement / Comparison |
| Dimensions | 182 × 124 × 66mm |
| Weight | 684g |
Explore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.
Also Check These Products:-
FNIRSI HRM-10 Battery Voltage Internal Resistance Tester
FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester
FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester
FNIRSI DMC-100 DC AC Current Voltage Digital Clamp Multimeter
FNIRSI DMT-99 Intelligent Color Screen Digital MultiMeter

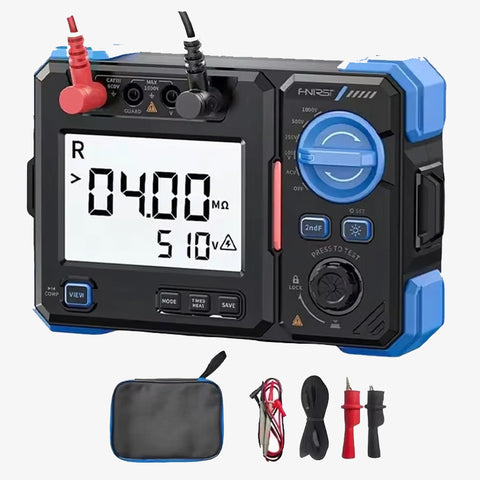

Package Includes:
1 × FNIRSI MRT-1050 Insulation Resistance Tester
1 × Storage Bag
1 × Instruction Manual
1 × Test Lead Set
1 × Red Alligator Clip
1 × Black Alligator Clip
1 × Nylon Tape
