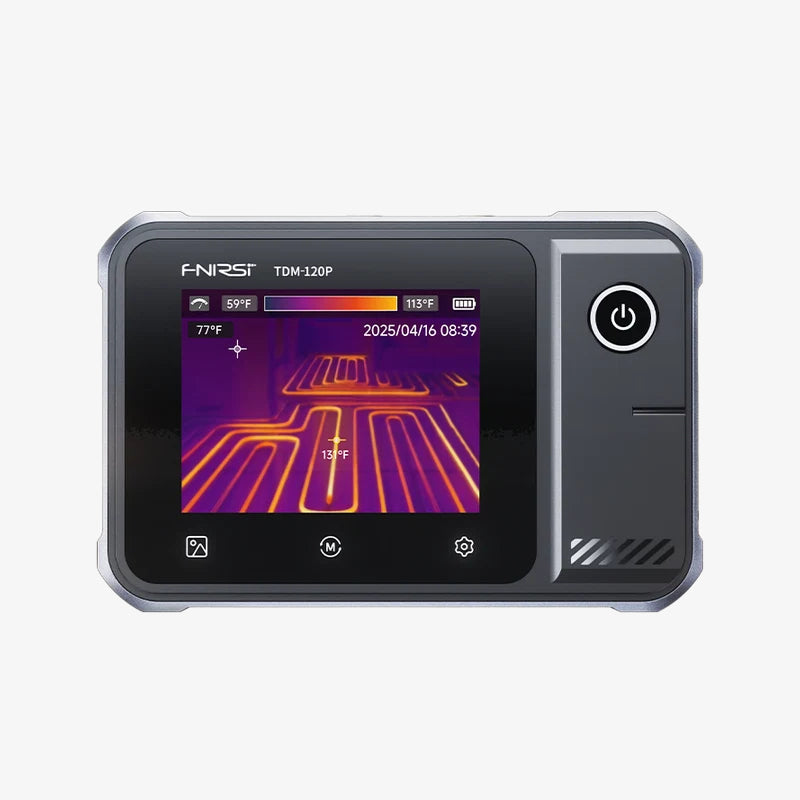

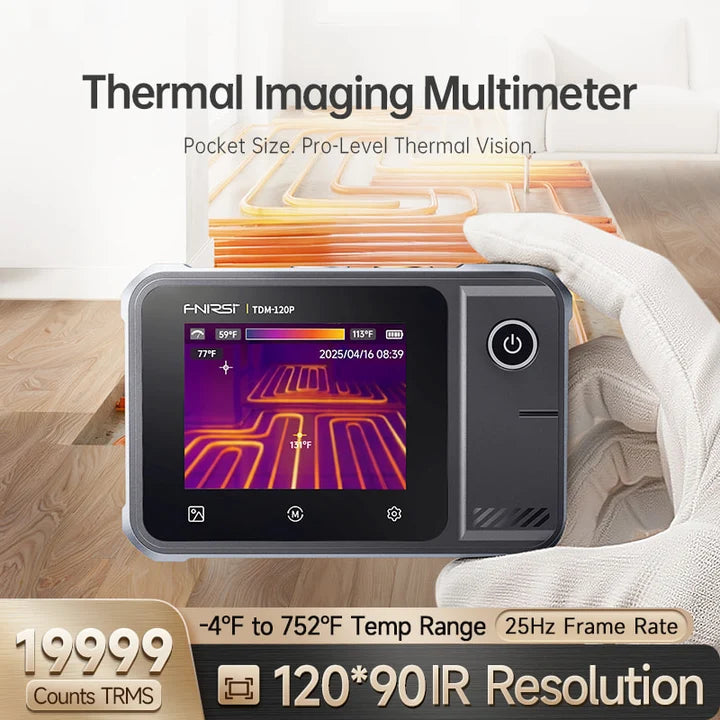

FNIRSI® TDM-120P Thermal Imaging Multimeter

FNIRSI® TDM-120P Thermal Imaging Multimeter is a professional 2-in-1 handheld test instrument that combines a high-resolution thermal imaging camera with a 19,999-count True RMS digital multimeter. It features a 120 × 90 infrared detector, <60mK thermal sensitivity, a wide -20°C to 400°C temperature measurement range, adjustable emissivity, automatic high/low temperature tracking, and a 2.8-inch touchscreen LCD with seven selectable color palettes. The integrated multimeter supports AC/DC voltage, resistance, capacitance, diode, and continuity testing, making the TDM-120P suitable for electrical inspection, HVAC troubleshooting, automotive diagnostics, PCB testing, industrial maintenance, and thermal fault detection.

FNIRSI® TDM-120P Thermal Imaging Multimeter Manual

Features:

1. 2-in-1 thermal imaging camera and True RMS digital multimeter.
2. 120 × 90 infrared thermal imaging resolution.
3. High thermal sensitivity of less than 60mK.
4. Vanadium oxide infrared detector.
5. 25Hz maximum thermal imaging frame rate.
6. Wide temperature measurement range from -20°C to 400°C.
7. Temperature range from -4°F to 752°F.
8. Temperature measurement accuracy of ±2°C or ±2%.
9. Adjustable emissivity from 0.01 to 1.00.
10. 50° field of view.
11. Center-point temperature measurement.
12. Automatic high-temperature and low-temperature tracking.
13. High-temperature and low-temperature alarm function.
14. Seven selectable thermal image color palettes.
15. 2.8-inch LCD capacitive touchscreen.
16. Supports Celsius and Fahrenheit temperature units.
17. 19,999-count True RMS multimeter.
18. Measures AC voltage, DC voltage, resistance, capacitance, diode, and continuity.
19. Data hold function for electrical measurements.
20. Real-time maximum and minimum value display.
21. One-click thermal image capture.
22. Image and measurement data export through USB.
23. Built-in 32GB storage for thermal images and data.
24. USB Type-C charging and data interface.
25. Adjustable screen brightness.
26. Adjustable automatic power-off timer.
27. Simplified Chinese and English language support.
28. Compact portable design for field measurements.
29. Suitable for electrical, HVAC, automotive, industrial, construction, electronics, and maintenance applications.

Basic Specifications:

Thermal Imaging Specifications:

Thermal Image Display Specifications:

DC Voltage Specifications:

AC Voltage Specifications:

Resistance Specifications:

Capacitance Specifications:

Additional Multimeter Functions:

Power & Data Specifications:

Explore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.

Also Check These Products:-

FNIRSI HRM-10 Battery Voltage Internal Resistance Tester

FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester

FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester

FNIRSI DMC-100 DC AC Current Voltage Digital Clamp Multimeter

FNIRSI DMT-99 Intelligent Color Screen Digital MultiMeter

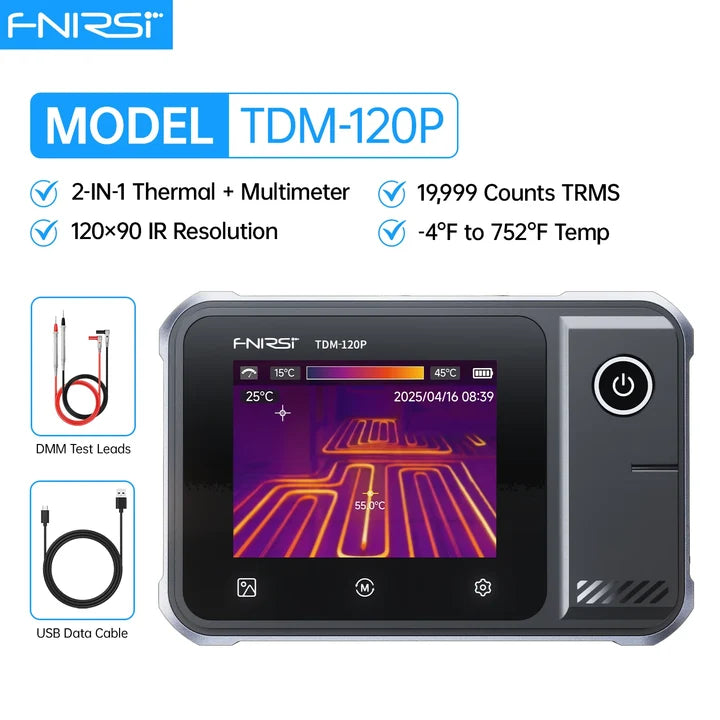

Package Includes:

1 x FNIRSI® TDM-120P Thermal Imaging Multimeter

1 x USB Data Cable

1 x Digital Multimeter Test Lead Set

1 x Tool Bag

1 x User Guide
