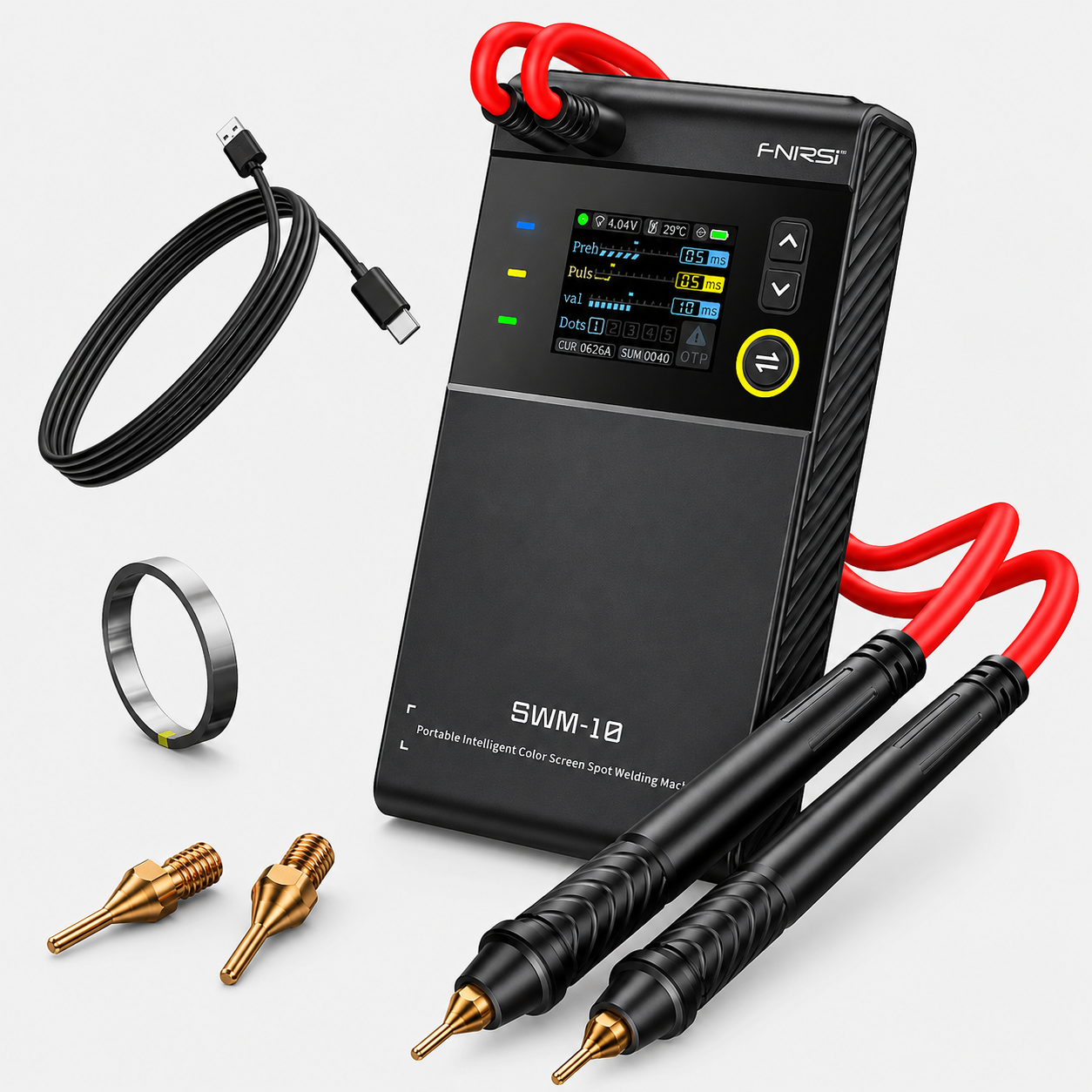

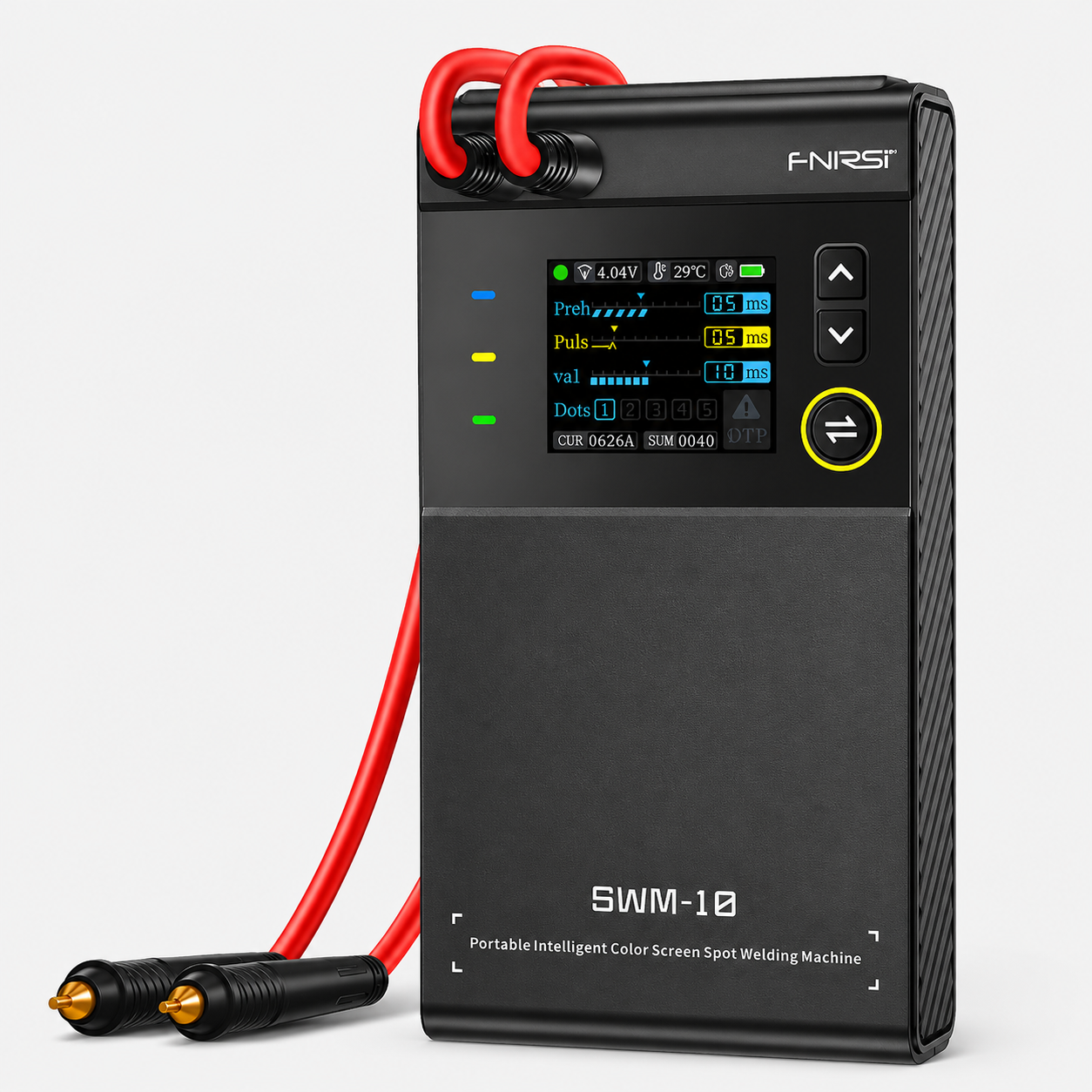

FNIRSI® SWM-10 Portable Intelligent Spot Welding Machine
SKU:
TLS-QC5885
Availability:
20
In Stock
-
- Rs. 4,580.00
- Unit price
- per
Subtotal:
Rs. 4,580.00
Description

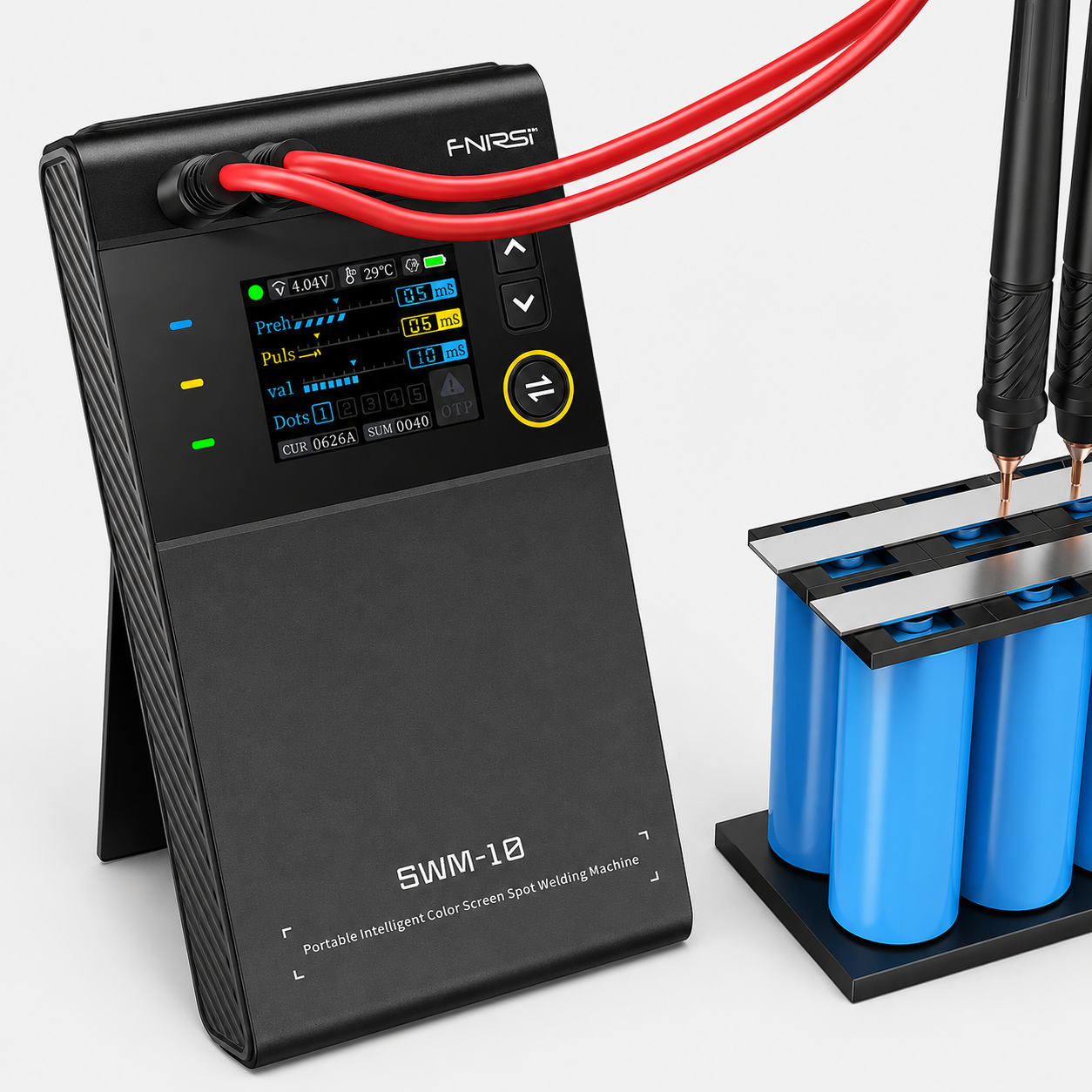

xFNIRSI® SWM-10 Portable Intelligent Color Screen Spot Welding Machine is a portable intelligent spot welding machine designed for assembling and repairing lithium battery packs with high precision and efficiency. Equipped with advanced double-pulse welding technology, a powerful 1200A welding current, and a built-in 5000mAh rechargeable battery, it delivers stable, firm welds while also functioning as a portable power bank. Its 1.8-inch high-definition color display, intelligent temperature control, customizable welding parameters, and multiple safety protections make it an ideal choice for battery pack manufacturers, repair technicians, and DIY enthusiasts.
FNIRSI® SWM-10 Portable Intelligent Spot Welding Machine User Manual
Features:
- Double-Pulse Spot Welding Technology
- 1200A Maximum Welding Current
- Built-in 5000mAh Rechargeable Lithium Battery
- Integrated Power Bank Function
- 1.8-inch HD Color LCD Display
- Intelligent Temperature Monitoring
- Adjustable Preheating & Pulse Parameters
- 4-Level Welding Power Adjustment
- Supports Nickel, Iron, Stainless Steel & Aluminum Sheets
- Over-Temperature Protection
- Low Voltage Protection
- Short Circuit Protection
- Portable & Lightweight Design
Basic Specifications
| Parameter | Value |
|---|---|
| Brand | FNIRSI® |
| Model | SWM-10 |
| Product Type | Portable Intelligent Spot Welding Machine |
| Display | 1.8-inch HD TFT Color Screen |
| Battery Capacity | 5000mAh |
| Dimensions | 155 × 82 × 28mm |
Spot Welding Specifications
| Parameter | Value |
|---|---|
| Welding Technology | Double Pulse Spot Welding |
| Maximum Welding Current | 1200A |
| Welding Thickness | 0.1mm – 0.25mm |
| Adjustable Welding Power | 4 Combination Gear Levels |
| Adjustable Parameters | Preheat, Pulse, Interval, Weld Count |

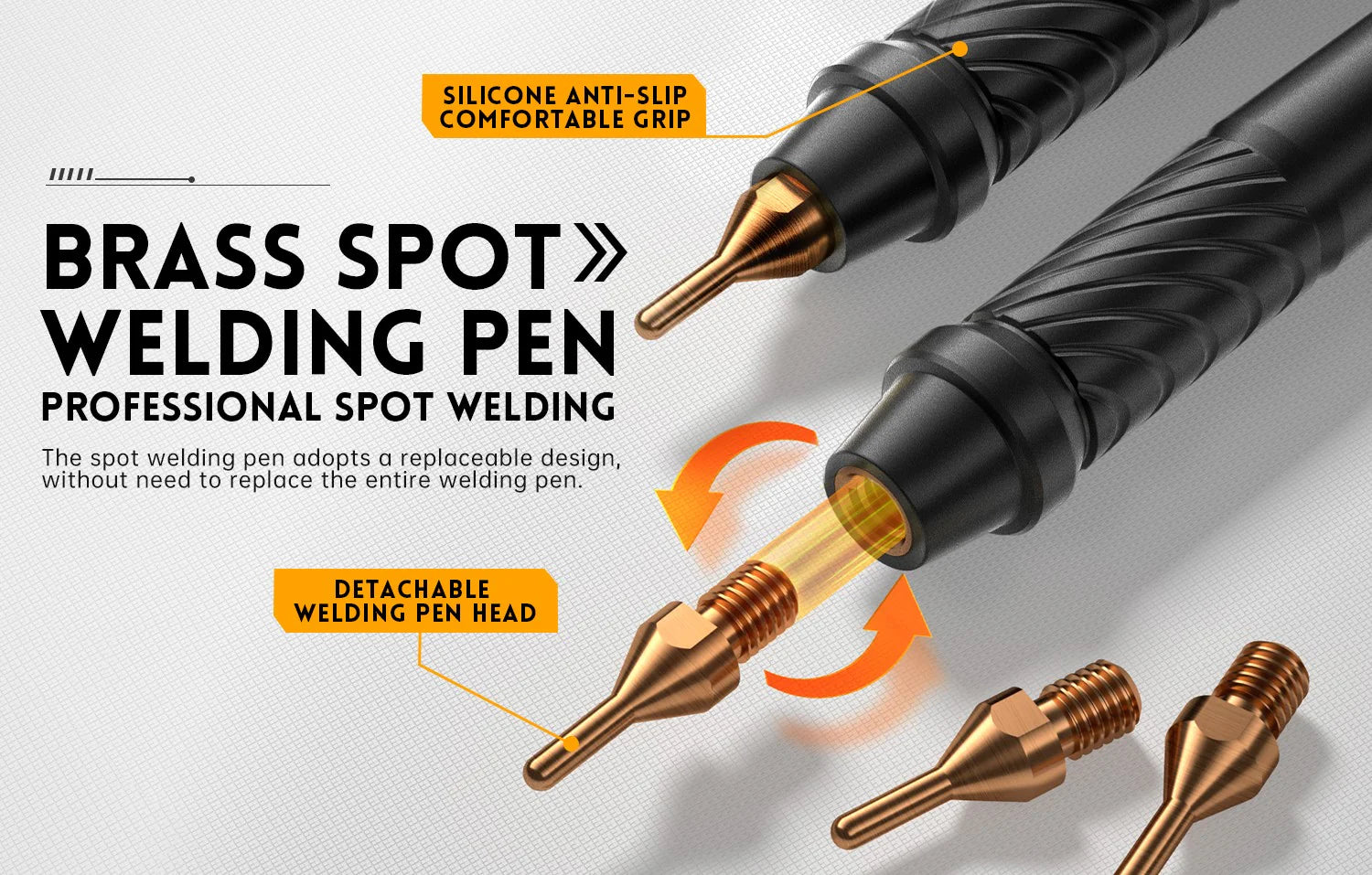

| Spot Welding Pen | Included |
| Intelligent Anti-Burn | Supported |
Supported Welding Materials
| Parameter | Value |
|---|---|
| Nickel Sheet | Supported |
| Iron Sheet | Supported |
| Stainless Steel Sheet | Supported |
| Aluminum Sheet | Supported |
Power & Battery Specifications
| Parameter | Value |
|---|---|
| Battery Type | High-Quality Grade-A Lithium Battery |
| Battery Capacity | 5000mAh |
| Charging Input | 5V / 2.1A |
| USB Output | 5V / 2.1A |
| Power Bank Function | Supported |
| Charging Interface | USB |
Display & Smart Functions
| Parameter | Value |
|---|---|
| Display Type | TFT HD Color Screen |
| Display Size | 1.8 Inch |
| Temperature Monitoring | Intelligent Real-Time Monitoring |
| Over-Temperature Protection | Supported |
| Low Voltage Protection | Supported |
| Short Circuit Protection | Supported |
| Welding Parameter Adjustment | Supported |
| Status Display | Real-Time |
Safety & Protection
| Parameter | Value |
|---|---|
| Intelligent Temperature Control | Yes |
| Over-Temperature Protection | Yes |
| Low Voltage Protection | Yes |
| Short Circuit Protection | Yes |
| Intelligent Anti-Burn Protection | Yes |
Physical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 155 × 82 × 28mm |
| Design | Portable Handheld |
| Display | 1.8-inch Color LCD |
Explore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.
Also Check These Products:-
FNIRSI HRM-10 Battery Voltage Internal Resistance Tester
FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester
FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester
FNIRSI DMC-100 DC AC Current Voltage Digital Clamp Multimeter
FNIRSI DMT-99 Intelligent Color Screen Digital MultiMeter
Package Includes:
1 x FNIRSI® SWM-10 Portable Intelligent Color Screen Spot Welding Machine
1 x Spot Welding Pen
1 x USB Charging Cable
1 x User Manual
