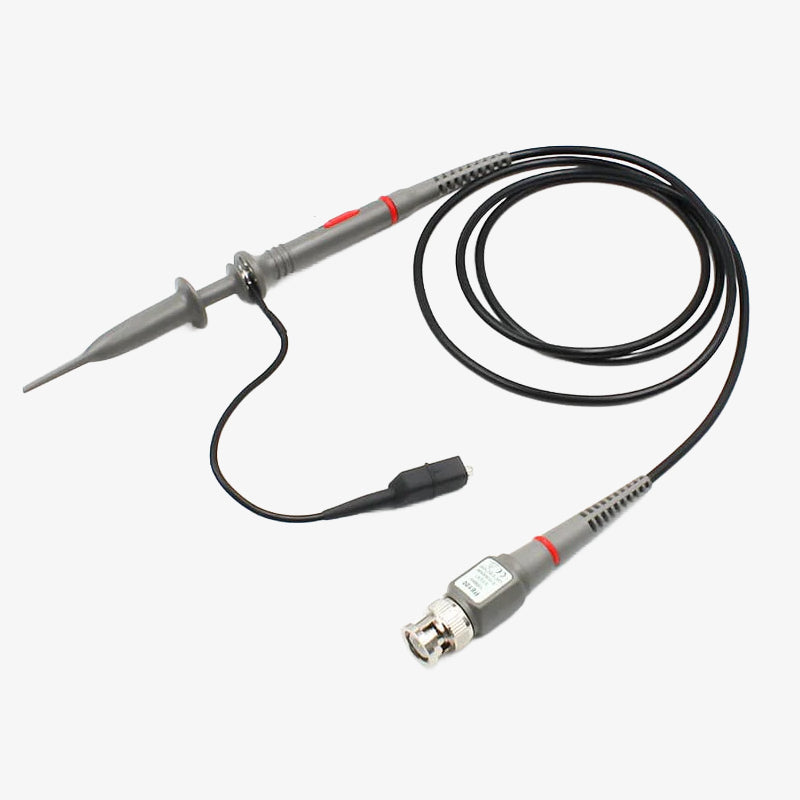

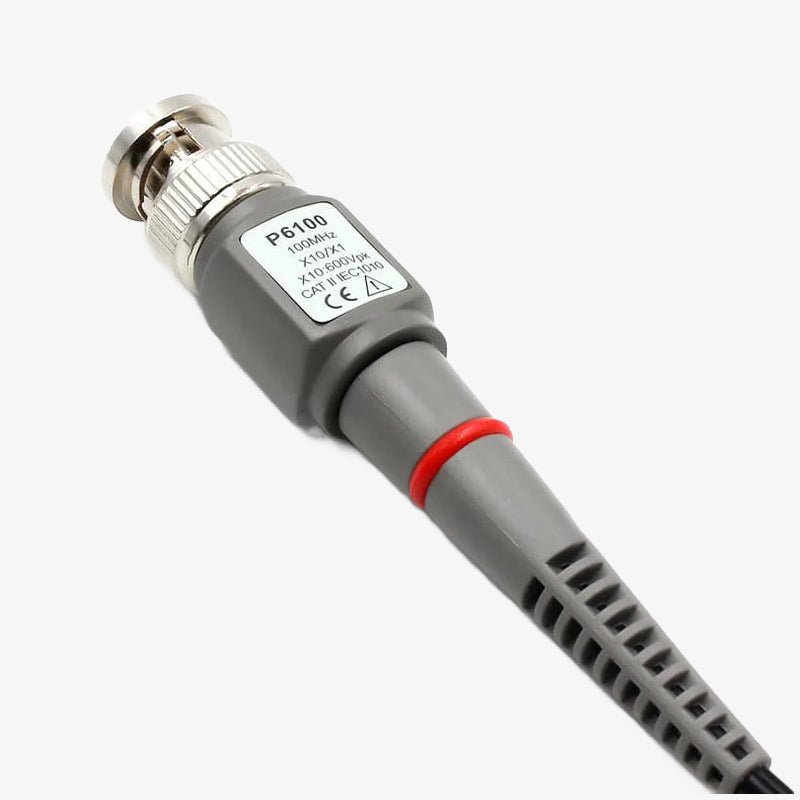

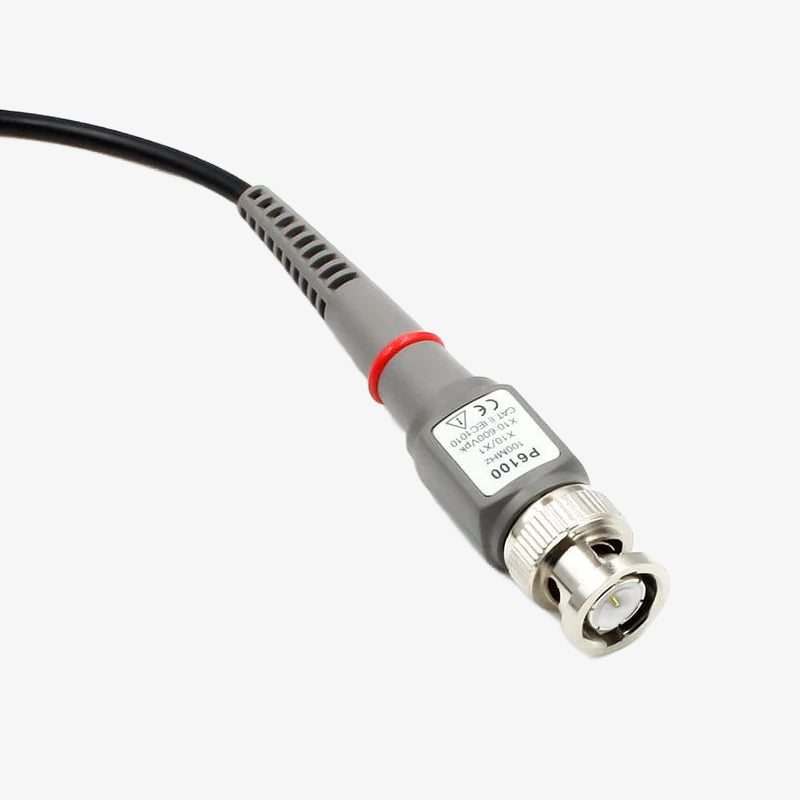

FNIRSI® P6100 Oscilloscope Probe is designed for accurate signal measurement and waveform analysis in oscilloscopes and electronic testing applications. Featuring switchable 1X/10X attenuation, high bandwidth performance, and adjustable compensation, it is ideal for laboratories, electronics repair, circuit debugging, and educational use.
| Parameter | Value |
|---|---|
| Brand | FNIRSI® |
| Model | P6100 |
| Product Type | Oscilloscope Probe |
| Bandwidth (1X) | DC – 6MHz |
| Bandwidth (10X) | DC – 100MHz |
| Attenuation Ratio | 1X / 10X |
| Input Resistance | 1MΩ / 10MΩ |
| Input Capacitance (1X) | 85pF – 120pF |
| Input Capacitance (10X) | 18.5pF – 22.5pF |
| Compensation Range | 10pF – 30pF |
| Rise Time | < 3.5ns |
| Working Voltage (1X) | < 200V DC + AC Peak |
| Working Voltage (10X) | < 600V DC + AC Peak |
| Cable Length | 120 cm |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +75°C |
| Humidity | ≤ 85% RH |
| Color | Grey + Black |
| Weight | 80 g |
Explore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.
FNIRSI HRM-10 Battery Voltage Internal Resistance Tester
FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester
FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester
FNIRSI DMC-100 DC AC Current Voltage Digital Clamp Multimeter
FNIRSI DMT-99 Intelligent Color Screen Digital MultiMeter
1 x FNIRSI® P6100 Oscilloscope Probe
