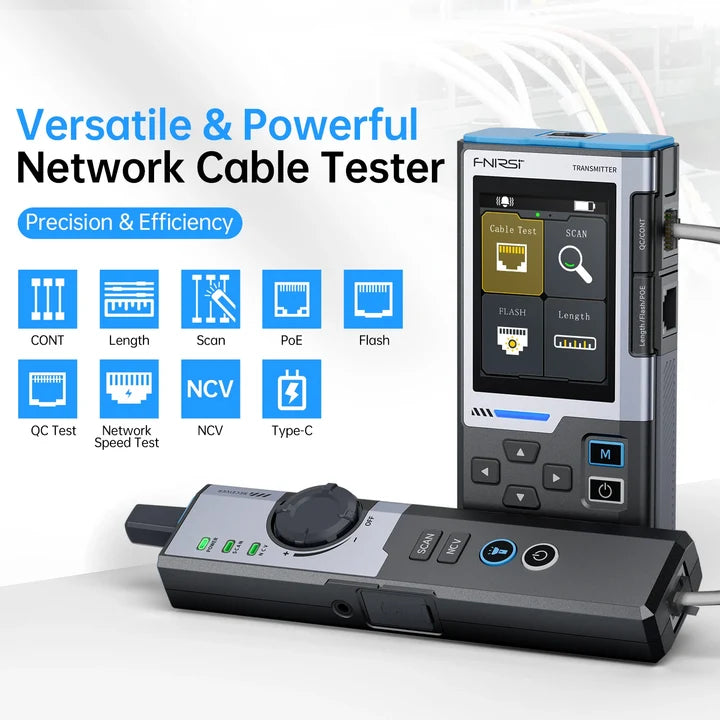

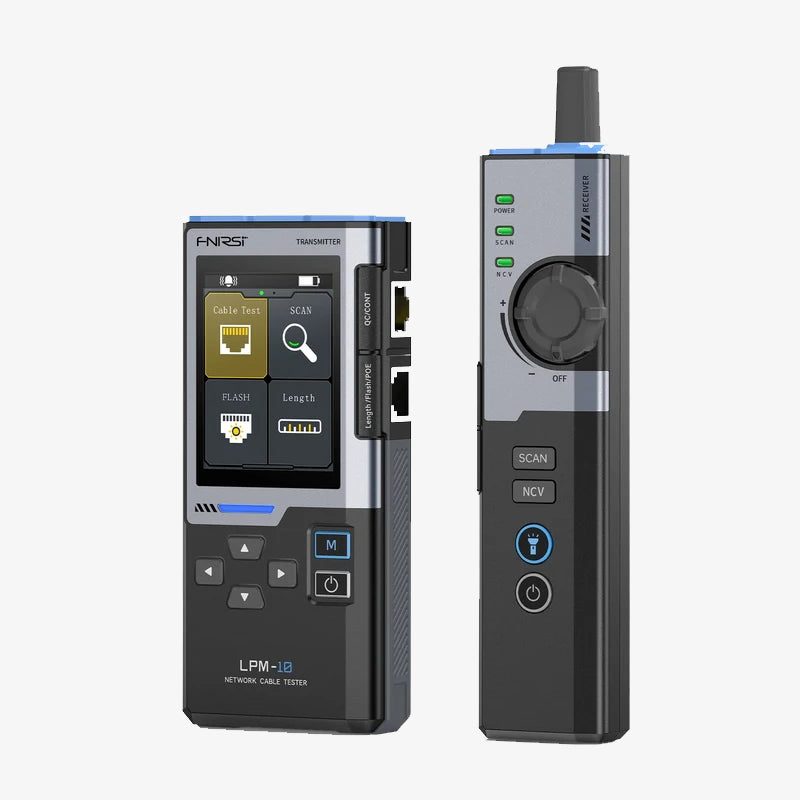

FNIRSI® LPM-10A Multifunctional Network Cable Tracker

FNIRSI® LPM-10A Multifunctional Network Cable Tracker is a multifunctional cable tracing and network testing instrument designed for network installation, cable identification, troubleshooting, and maintenance. It features a 2.4-inch color display and combines network cable continuity testing, wiremap and fault detection, cable tracing, cable length measurement, crimp testing, PoE detection, network port flashing, network speed testing, and NCV detection in a compact handheld design. The LPM-10A uses a 1500mAh rechargeable battery and USB Type-C charging, making it suitable for field engineers, network technicians, electricians, IT professionals, and electronics technicians.

FNIRSI® LPM-10A Multifunctional Network Cable Tracker Mannual

Features:

1. 2.4-inch color display with adjustable backlight.
2. Normal cable tracing mode for locating network and telephone cables.
3. Anti-interference cable tracing mode for identifying cables in electrically noisy environments.
4. Network cable connection and continuity testing.
5. Wiremap testing for identifying incorrect wire sequences.
6. Detects open-circuit, short-circuit, crossover, and other wiring faults.
7. Cable length measurement function.
8. Cable length measurement accuracy of approximately ±3.2m over 100m.
9. RJ45 connector crimping test.
10. Detects incorrect pin connections in crimped network cables.
11. PoE detection for identifying PoE power supply information.
12. Supports PoE power mode and protocol detection.
13. Measures PoE voltage level.
14. Network port flashing function for identifying connected switch/router ports.
15. Network speed testing function with duplex-mode testing.
16. NCV non-contact voltage detection.
17. Built-in flashlight for working in dark or confined areas.
18. Adjustable cable-tracing sensitivity.
19. Type-C charging interface.
20. Built-in 1500mAh rechargeable lithium battery.
21. Up to approximately 10 hours of continuous operation.
22. Compact and ergonomic handheld design.
23. Suitable for CAT5e, CAT6, RJ45, RJ11, telephone, and compatible network cabling.
24. Suitable for network installation, maintenance, troubleshooting, and cable identification.

Basic Specifications:

Network Cable Testing Specifications:

Cable Tracing Specifications:

PoE & Network Testing Specifications:

NCV & Additional Functions:

Power & Design Specifications:

Explore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.

Also Check These Products:-

FNIRSI HRM-10 Battery Voltage Internal Resistance Tester

FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester

FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester

FNIRSI DMC-100 DC AC Current Voltage Digital Clamp Multimeter

FNIRSI DMT-99 Intelligent Color Screen Digital MultiMeter

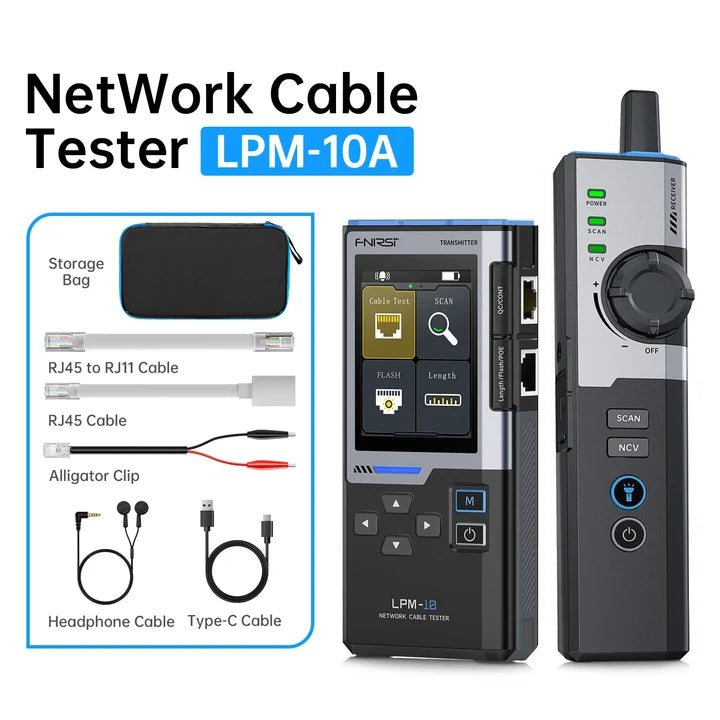

Package Includes:

1 x FNIRSI® LPM-10A Multifunctional Network Cable Tracker

1 x Type-C Cable

1 x Alligator Clip

1 x Headphone Cable

1 x RJ45 to RJ11 Cable

1 x RJ45 Network Cable

1 x Storage Bag
