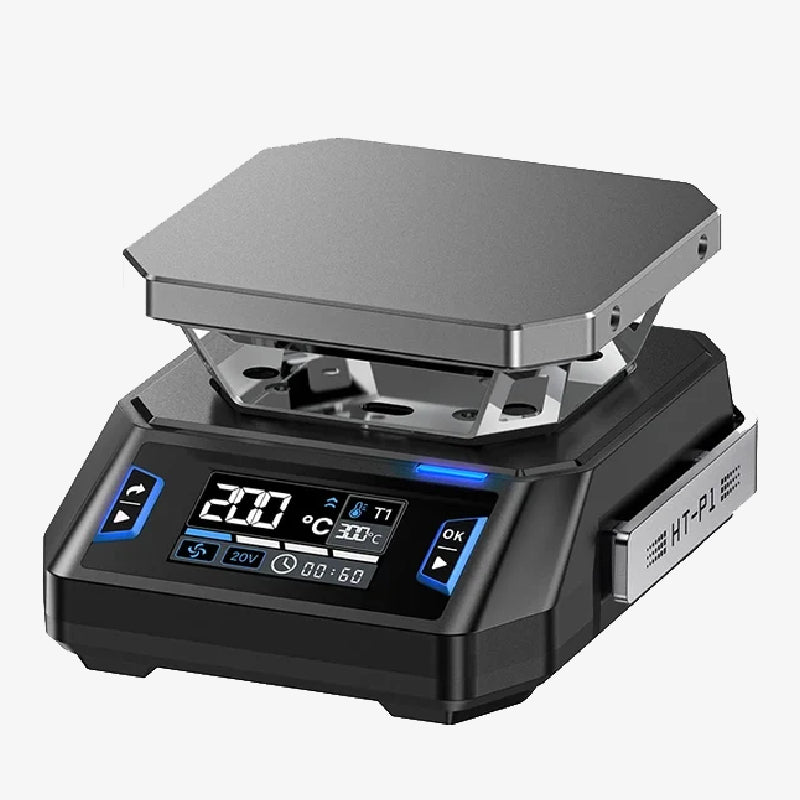

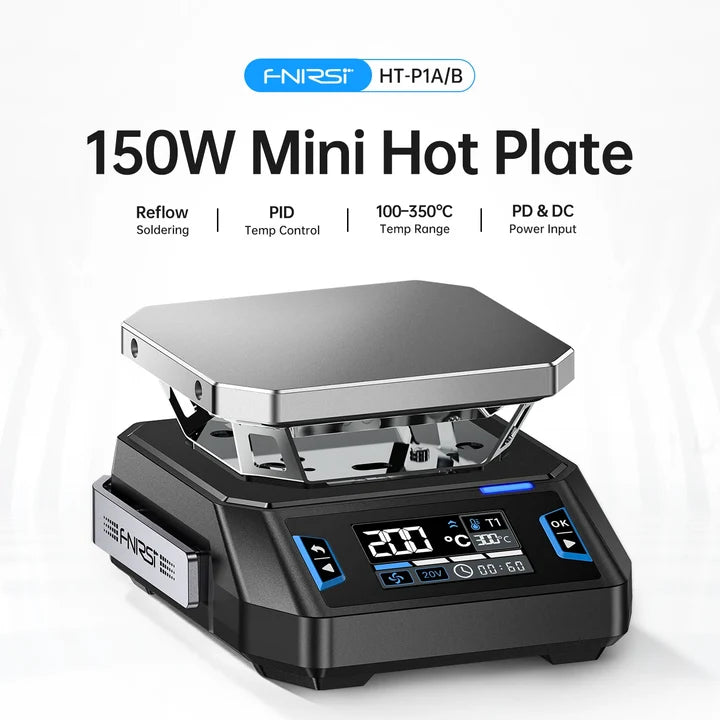

FNIRSI® HT-P1A Mini Hot Plate Dual Mode Reflow & Heating Station, DC/USB-C PD

FNIRSI® HT-P1A Mini Hot Plate Dual Mode Reflow & Heating Station, DC/USB-C PD is a compact portable heating and reflow station designed for PCB preheating, SMD rework, component heating, soldering, and small-board reflow applications. It provides up to 150W of adjustable heating power, a 100°C to 350°C temperature range, PID temperature control with ±3°C stability, and a 50 × 50mm heating surface. The HT-P1 supports both DC and USB Type-C PD power input, features constant-temperature heating and simulated reflow modes, and includes a 1.44-inch color display for real-time monitoring of temperature, voltage, power, heating time, and system status.

FNIRSI® HT-P1A Mini Hot Plate Dual Mode Reflow & Heating Station Manual

Features:

1. 150W high-power heating system for rapid thermal response.
2. Adjustable heating power from 30W to 150W.
3. Dual power input through DC and USB Type-C PD.
4. Supports DC input from 12V to 28V.
5. Supports USB Type-C PD input.
6. HT-P1B variant supports PD 2.0, PD 3.0, and PD 3.1 protocols.
7. Wide temperature adjustment range of 100°C to 350°C.
8. Intelligent PID temperature control.
9. Temperature stability of approximately ±3°C.
10. Dual working modes: constant-temperature heating and simulated reflow soldering.
11. 50 × 50mm heating surface suitable for small PCBs and SMD components.
12. Three programmable temperature presets: T1, T2, and T3.
13. 1.44-inch full-color display.
14. Real-time display of actual temperature and target temperature.
15. Displays input voltage, heating power, heating time, and system status.
16. Adjustable power control for compatibility with different power adapters.
17. Built-in over-temperature protection.
18. Built-in low-voltage warning and protection.
19. Long-time heating protection.
20. Adjustable tilt detection from 20° to 50°.
21. Automatic protection when abnormal tilt is detected.
22. USB Type-C firmware upgrade support.
23. Adjustable display brightness and volume.
24. Selectable temperature units.
25. Adjustable automatic exit timing.
26. Compact and lightweight portable design.
27. Detachable structure for easier maintenance and portability.
28. Heat-resistant silicone cover included.
29. Suitable for PCB preheating, SMD rework, soldering, desoldering, and component heating.

Basic Specifications:

Power Specifications:

Heating & Reflow Specifications:

Display & Smart Functions:

Safety & Protection Specifications:

Design Specifications:

Explore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.

Also Check These Products:-

FNIRSI HRM-10 Battery Voltage Internal Resistance Tester

FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester

FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester

FNIRSI DMC-100 DC AC Current Voltage Digital Clamp Multimeter

FNIRSI DMT-99 Intelligent Color Screen Digital MultiMeter

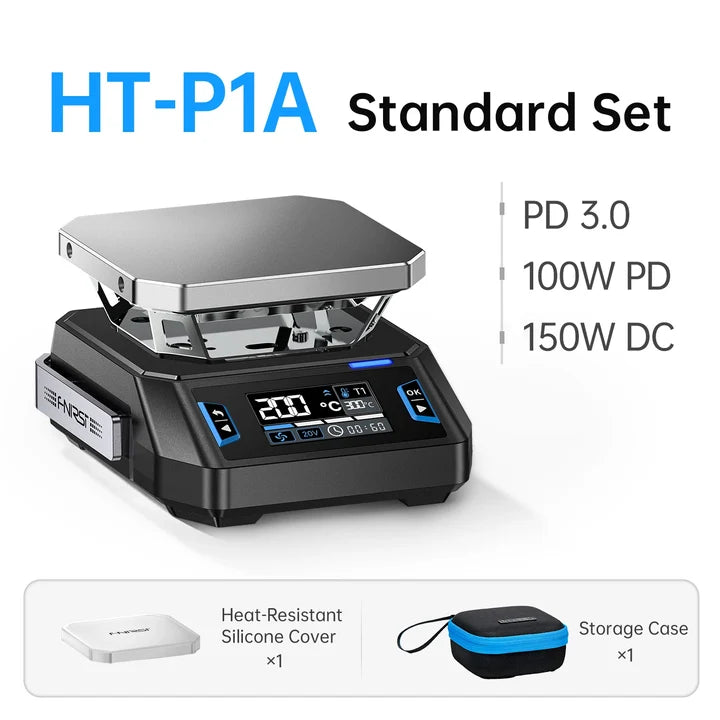

Package Includes:

1 x FNIRSI® HT-P1A Mini Hot Plate

1 x Heat-Resistant Silicone Cover

1 x Transparent Protective Cover

1 x User Manual

1 x Storage Case
