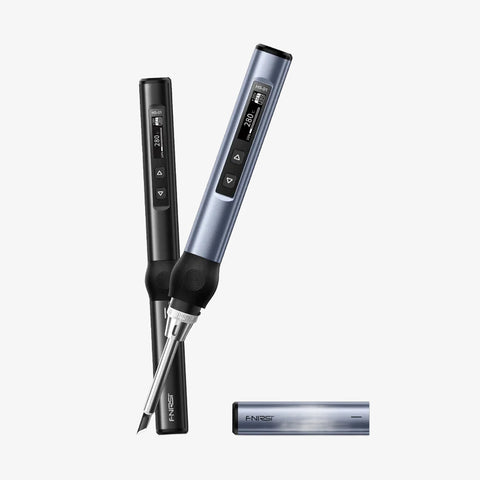

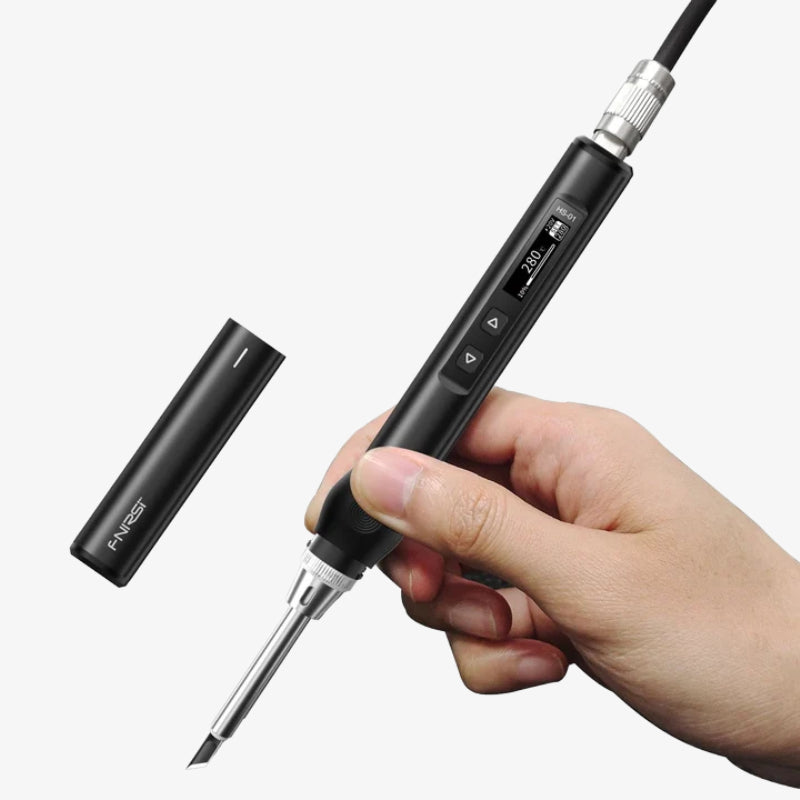

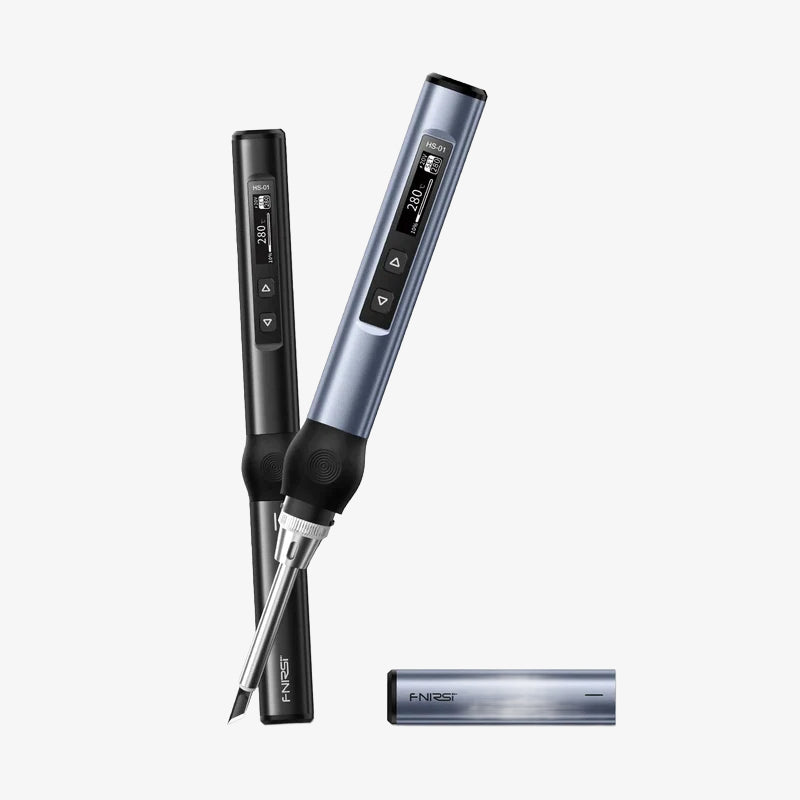

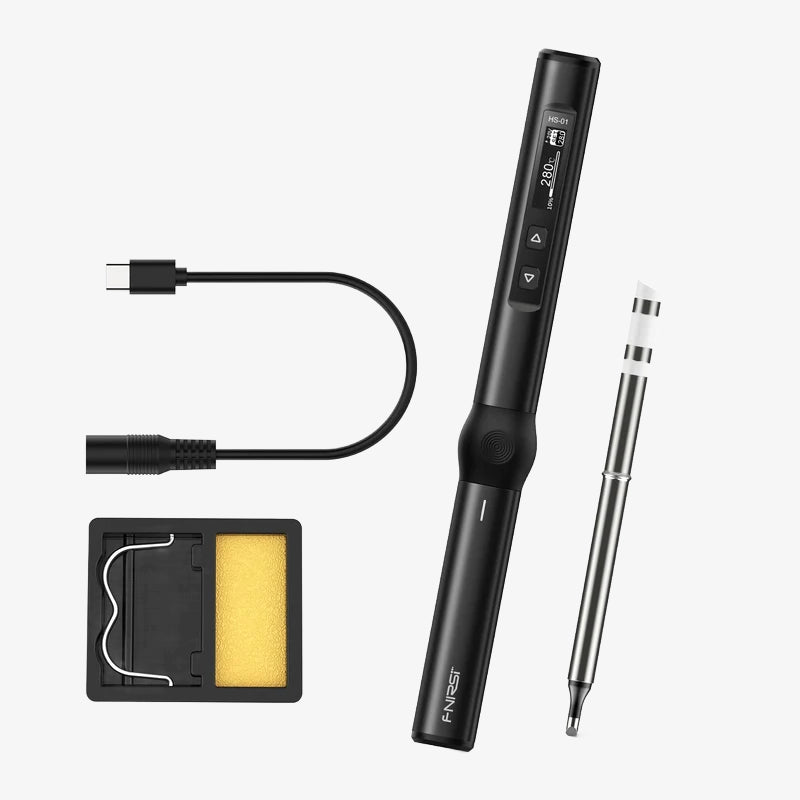

FNIRSI® HS-01 Intelligent Soldering Iron

FNIRSI® HS-01 Intelligent Soldering Iron is a compact intelligent constant-temperature soldering iron designed for electronics soldering, repair, prototyping, and precision soldering work. It features a wide adjustable temperature range of 80–420°C, PID temperature control with accuracy below 2%, rapid heating and temperature recovery, and a built-in 0.87-inch OLED display. The HS-01 supports USB Type-C PD power up to 65W and DC power up to 96W, with selectable operating voltages of 9V, 12V, 15V, and 20V when used with a compatible PD power supply. Its pencil-style ergonomic design, integrated soldering tip, left/right-hand setting, and automatic sleep functionality make it suitable for portable and workshop use.

FNIRSI® HS-01 Intelligent Soldering Iron Mannual

Features:

1. Intelligent constant-temperature soldering iron.
2. Adjustable temperature range from 80°C to 420°C.
3. Temperature control accuracy of less than 2% using PID control.
4. Supports USB Type-C PD power supply up to 65W.
5. Supports DC power input up to 96W.
6. 9V, 12V, 15V, and 20V selectable operating voltage with compatible PD power supply.
7. Rapid heating and fast temperature recovery.
8. Built-in 0.87-inch OLED display.
9. Displays operating temperature and power-related information.
10. Integrated soldering iron tip design.
11. Ergonomic pencil-style body for comfortable handling.
12. Left-hand and right-hand operating modes.
13. Compact and lightweight design for portable use.
14. Efficient heat dissipation.
15. Anti-scald protective cap design.
16. Intelligent sleep function.
17. Automatic shutdown/sleep functionality.
18. Type-C interface for convenient power connection.
19. Supports PD trigger fast-charging protocol.
20. Suitable for PCB assembly, electronics repair, DIY projects, prototyping, and field servicing.

Basic Specifications:

Power Specifications:

Heating Specifications:

Display & Smart Functions:

Soldering Tip Specifications:

Design Specifications:
