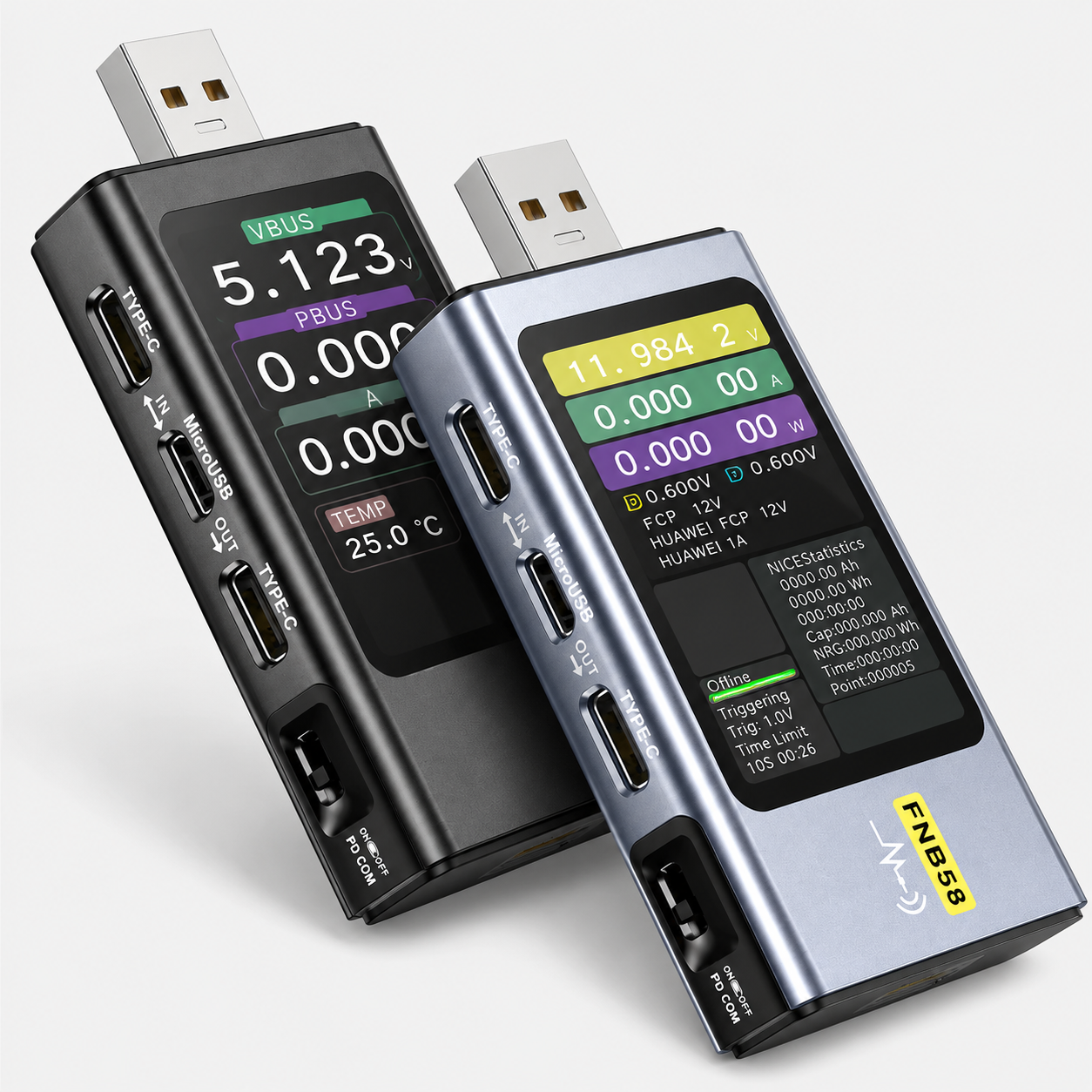

FNIRSI® FNB58 USB Fast Charge Tester
SKU:
TLS-QC5886
Availability:
10
In Stock
-
Rs. 3,775.00- Rs. 3,750.00
- Unit price
- per
Subtotal:
Rs. 3,750.00
Description

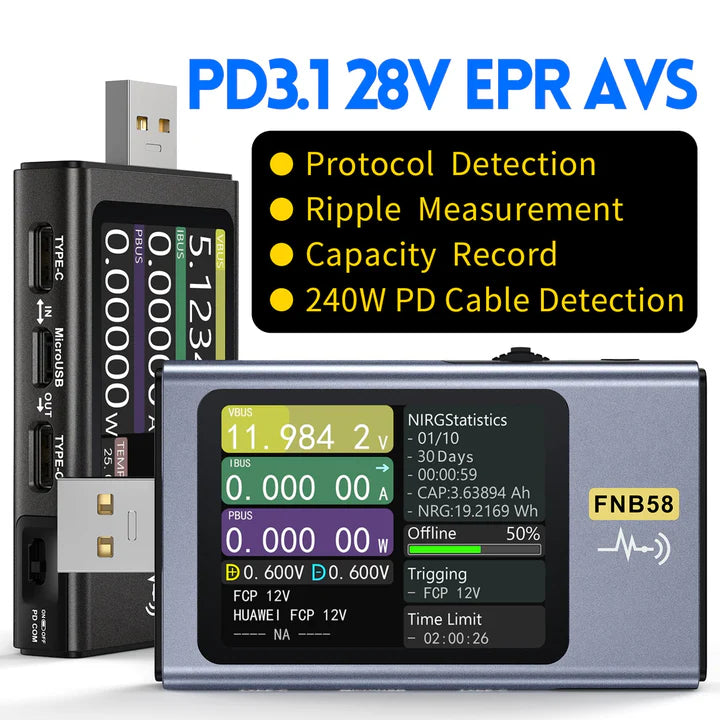

xFNIRSI® FNB58 USB Fast Charge Tester is a professional USB power analyzer and fast charging protocol tester designed for measuring voltage, current, power, capacity, energy, cable resistance, and charging protocols across USB-powered devices. Equipped with a 2.0-inch TFT color display, integrated USB-A, USB Type-C, and Micro-USB interfaces, the FNB58 supports nearly all major fast charging protocols including PD, QC, VOOC, SCP, AFC, and more. It also features waveform recording, E-Marker cable detection, PD monitoring, and data logging, making it an essential tool for engineers, technicians, repair professionals, and electronics enthusiasts.
FNIRSI® FNB58 USB Fast Charge Tester Datasheet

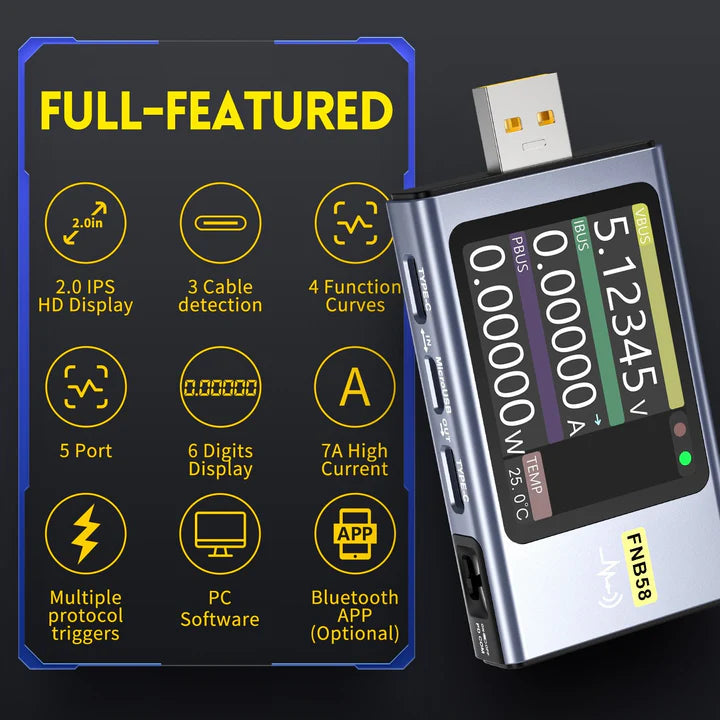

Features:
- 2.0-inch Full Color TFT LCD Display
- Integrated USB-A, USB Type-C & Micro-USB Interfaces
- 16-bit High Precision ADC
- Supports USB Power Monitoring up to 140W
- Fast Charging Protocol Analyzer
- PD2.0 / PD3.0 Trigger Support
- QC2.0 / QC3.0 Trigger Support
- FCP / SCP / AFC Protocol Support
- VOOC / WARP / Super VOOC Trigger Support
- MTK-PE Automatic Detection
- QC to PD Protocol Conversion
- Cable Resistance Measurement
- E-Marker Cable Detection
- DASH Cable Data Reading
- Real-Time Voltage, Current & Power Monitoring
- Waveform Recording & Analysis
- Internal Temperature Monitoring
- Firmware Upgrade Support
Basic Specifications
| Parameter | Value |
|---|---|
| Brand | FNIRSI® |
| Model | FNB58 |
| Product Type | USB Fast Charge Tester |
| Display | 2.0-inch TFT Full Color LCD |
| ADC Resolution | 16-bit High Precision ADC |
| PD Controller | Dedicated PD Protocol Physical Chip |
Measurement Specifications
| Parameter | Value |
|---|---|
| Voltage Measurement | 4V – 28V |
| Current Measurement | 0 – 7A |
| Power Measurement | 0 – 140W |
| D+ / D- Voltage | 0 – 3.3V |
| Cable Resistance | 0 – 9999.9Ω |
| Load Equivalent Resistance | 0 – 9999.9Ω |
| Capacity Measurement | 0 – 9999.99Ah |
| Energy Measurement | 0 – 9999.99Wh |
| Temperature Display | °C / °F |
| Device Running Time | 99 Days 23:59:59 |
| Data Recording Time | 99 Days 23:59:59 |
Fast Charging Protocol Support
| Protocol | Support |
|---|---|
| USB PD 2.0 | Yes |
| USB PD 3.0 | Yes |
| Qualcomm QC2.0 | Yes |
| Qualcomm QC3.0 | Yes |
| Huawei FCP | Yes |
| Huawei SCP | Yes |
| Samsung AFC | Yes |
| MediaTek PE | Automatic Detection |
| OPPO VOOC | Yes |
| WARP Charge | Yes |
| Super VOOC 1.0 | Yes |
| Super VOOC 2.0 | Yes |
| QC2.0 → PD2.0 Conversion | Supported |
Monitoring & Analysis Functions
| Function | Support |
|---|---|
| Real-Time Voltage Monitoring | Yes |
| Real-Time Current Monitoring | Yes |
| Real-Time Power Monitoring | Yes |
| Capacity Statistics | Yes |
| Energy Statistics | Yes |
| Internal Resistance Measurement | Yes |
| Cable Resistance Test | Yes |
| D+ / D- Voltage Detection | Yes |
| Startup Time Recording | Yes |
| Onboard Temperature Monitoring | Yes |
| PD Communication Monitoring | Yes |
| Analog DASH Cable | Supported |
| E-Marker Cable Reading | Supported |
| DASH Cable Data Reading | Supported |
Data Logging & Waveform Functions
| Parameter | Value |
|---|---|
| Data Storage | 10 Independent Groups |
| Waveform Recording | Supported |
| Low-Speed Sampling | 2 SPS – 100 SPS |
| High-Speed Ripple Sampling | Up to 4MSPS |
| Waveform Display | Supported |
| Data Logging | Supported |

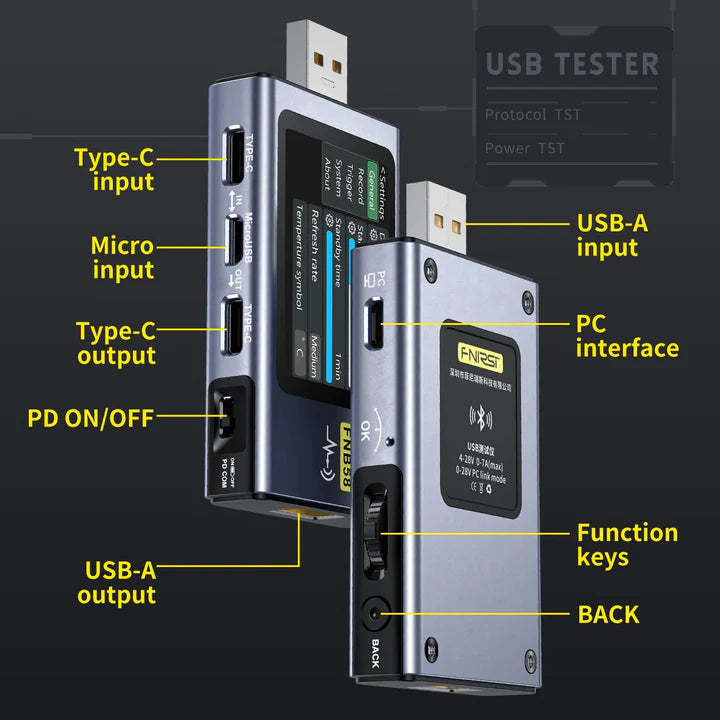

Interface Specifications
| Parameter | Value |
|---|---|
| USB-A | Integrated |
| USB Type-C | Integrated |
| Micro-USB | Integrated |
| Firmware Upgrade | Supported |
| PC Software Support | Supported |
Physical Specifications
| Parameter | Value |
|---|---|
| Display Size | 2.0 Inches |
| Display Type | TFT Full Color LCD |
| Construction | Portable Handheld Design |
Explore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.
Also Check These Products:-
FNIRSI HRM-10 Battery Voltage Internal Resistance Tester
FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester
FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester
FNIRSI DMC-100 DC AC Current Voltage Digital Clamp Multimeter
FNIRSI DMT-99 Intelligent Color Screen Digital MultiMeter
Package Includes:
1 x FNIRSI® FNB58 USB Fast Charge Tester
