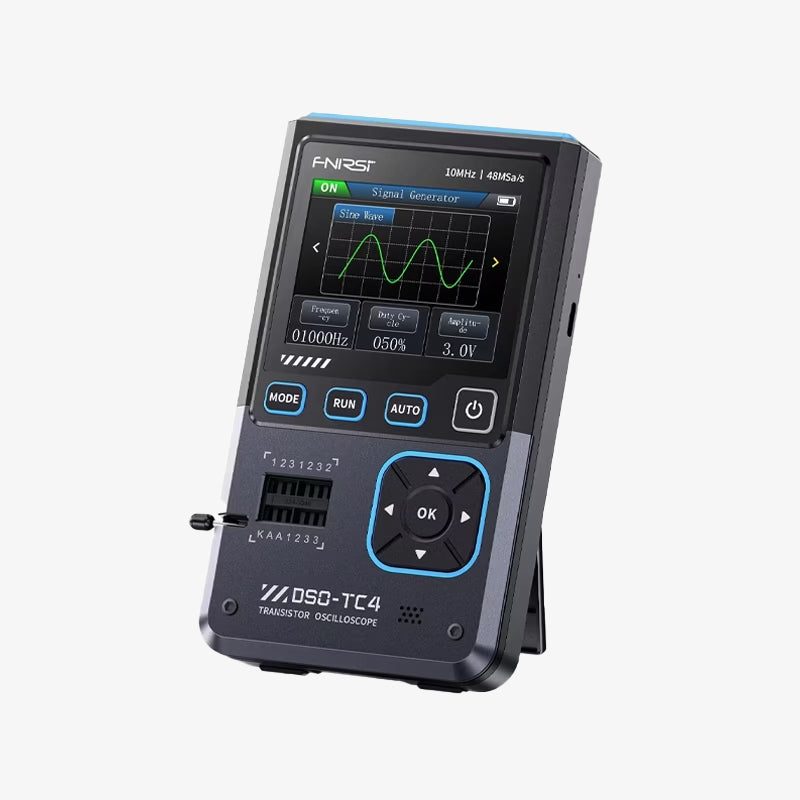

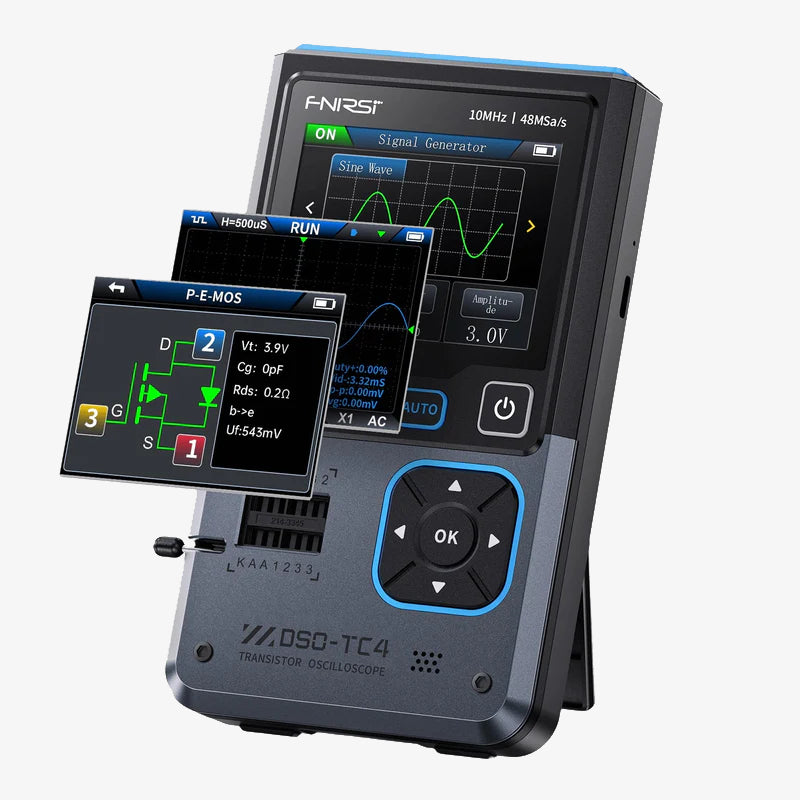

FNIRSI® DSO-TC4 3-IN-1 10MHz 48MSa/s Digital Oscilloscope Transistor Tester Signal Generator
SKU:
TLS-QC5799
Availability:
20
In Stock
-
- Rs. 5,605.00
- Unit price
- per
Subtotal:
Rs. 5,605.00
Description
xFNIRSI® DSO-TC4 3-IN-1 10MHz 48MSa/s Digital Oscilloscope Transistor Tester Signal Generator is a versatile multifunction test instrument that combines a digital oscilloscope, component tester, and signal generator into a single portable device. Ideal for electronics troubleshooting, circuit debugging, component analysis, education, and laboratory applications.
FNIRSI® DSO-TC4 3-IN-1 10MHz 48MSa/s Digital Oscilloscope Datasheet
Features:
- 3-in-1 Multifunction Design
- 10MHz Digital Oscilloscope
- 48MSa/s Real-Time Sampling Rate
- Built-in Transistor and Component Tester
- Integrated Signal Generator
- 2.8-Inch TFT Color Display
- One-Key Automatic Component Identification
- Full-Range Burnout Protection
- 13 Signal Generator Waveforms
- Rechargeable Lithium Battery
- USB Type-C Charging Interface
- Portable Handheld Design
Specifications:
| Parameter | Value |
|---|---|
| Brand | FNIRSI® |
| Model | DSO-TC4 |
| Product Type | Oscilloscope, Component Tester & Signal Generator |
| Display | 2.8 Inch TFT Color Screen |
| Backlight | Adjustable |
| Power Supply | USB Type-C (5V/1A) |
| Battery | 3.7V 1500mAh Lithium Battery |
| Languages | Chinese, English, German, Portuguese, Japanese, Spanish, Korean, Russian |
| Dimensions | 90 × 142 × 27.5 mm |
| Weight | 186 g |
Oscilloscope Specifications:
| Parameter | Value |
|---|---|
| Real-Time Sampling Rate | 48MSa/s |
| Analog Bandwidth | 10MHz |
| Input Impedance | 1MΩ |
| Coupling Mode | AC / DC |
| Input Voltage Range (1X Probe) | 80Vpp (±40V) |
| Input Voltage Range (10X Probe) | 800Vpp (±400V) |
| Vertical Sensitivity | 10mV/div ~ 10V/div |
| Time Base Range | 50ns ~ 20s |
| Trigger Mode | Auto / Normal / Single |
| Trigger Type | Rising Edge / Falling Edge |
| Trigger Level | Adjustable |
| Waveform Freeze | Supported |
| Automatic Measurements | Max, Min, Avg, RMS, Vpp, Frequency, Period, Duty Cycle |
Component Tester Specifications:
| Parameter | Value |
|---|---|
| Resistor Range | 0.01Ω ~ 50MΩ |
| Capacitor Range | 25pF ~ 100mF |
| Inductor Range | 10μH ~ 1000μH |
| Diode Test | Supported |
| Zener Diode Test | 0.01V ~ 32V |
| Transistor Test | Supported |
| MOSFET Test | Supported |
| JFET Test | Supported |
| IGBT Test | Supported |
| SCR Test | Supported |
| TRIAC Test | Supported |
| DS18B20 Detection | Supported |
| DHT11 Detection | Supported |
Signal Generator Specifications:
| Parameter | Value |
|---|---|
| Output Waveforms | 13 Types |
| Frequency Range | 0 ~ 50kHz |
| Square Wave Duty Cycle | 0 ~ 100% |
| Output Amplitude | 0.1V ~ 3.0V |
Explore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.
Also Check These Products:-
FNIRSI HRM-10 Battery Voltage Internal Resistance Tester
FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester
FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester
FNIRSI DMC-100 DC AC Current Voltage Digital Clamp Multimeter
FNIRSI DMT-99 Intelligent Color Screen Digital MultiMeter

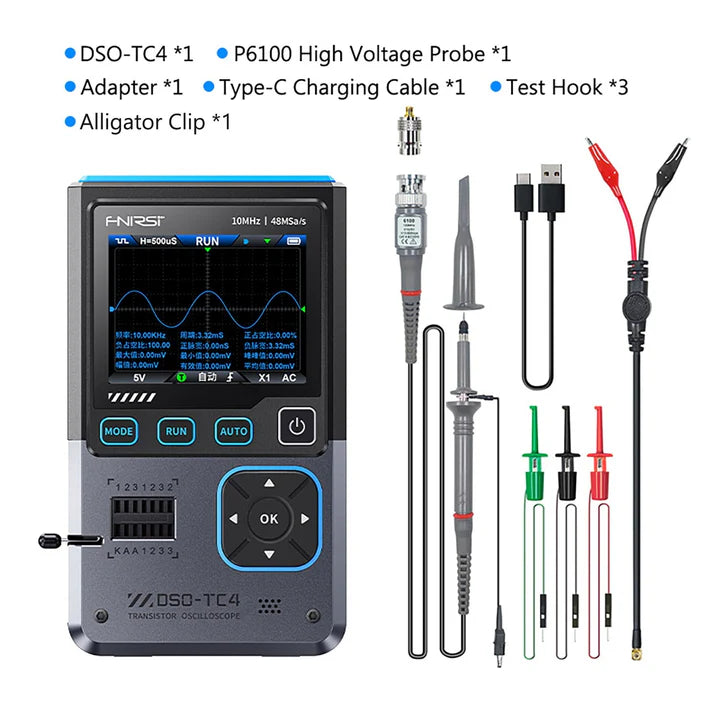

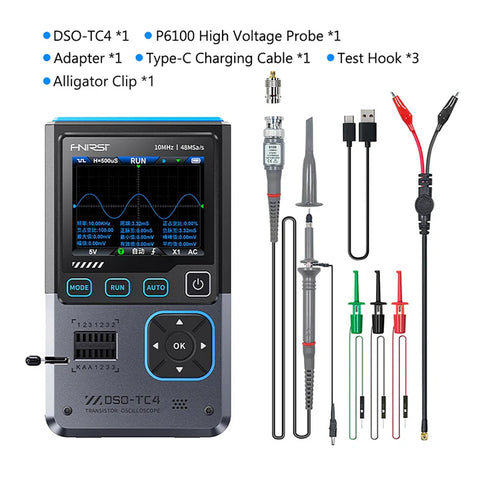

Package Includes:
1 x FNIRSI® DSO-TC4 3-IN-1 10MHz 48MSa/s Digital Oscilloscope Transistor Tester Signal Generator
