FNIRSI® DLA-32 Plus Logic Analyzer, USB 3.0, 4Gbit

FNIRSI® DLA-32 Plus Logic Analyzer, USB 3.0, 4Gbit is a professional 32-channel USB logic analyzer designed for high-speed digital signal acquisition, timing analysis, waveform inspection, and protocol decoding. It supports sampling rates up to 1GHz on selected channels and up to 250MHz when all 32 channels are used simultaneously, providing significantly greater parallel signal visibility for complex embedded and digital systems. The analyzer incorporates 4Gbit hardware memory for high-speed buffer capture and uses USB 3.0 connectivity with data transfer rates up to 5Gbps. It supports more than 120 protocol decoders, custom protocol decoding, flexible Buffer, Stream, and Roll acquisition modes, four 3.3V PWM output channels, and advanced serial and parallel trigger functions exclusive to the DLA-32 Plus.

FNIRSI® DLA-32 Plus Logic Analyzer, USB 3.0, 4Gbit User Manual

Features:

1. FNIRSI DLA-32 Plus professional USB logic analyzer
2. 32 independent digital input channels
3. Up to 1GHz maximum sampling rate
4. Up to 1GHz sampling with 1 selected channel
5. Up to 1GHz sampling with 8 selected channels
6. Up to 250MHz sampling with all 32 channels
7. 4Gbit built-in hardware memory
8. Approximately 512MB hardware capture memory
9. High-speed USB 3.0 computer interface
10. USB 3.0 transfer rate up to 5Gbps
11. High-speed digital waveform acquisition
12. Timing analysis capability
13. Digital signal monitoring
14. More than 120 built-in protocol decoders
15. Custom protocol decoding support
16. UART protocol analysis
17. SPI protocol analysis
18. I²C protocol analysis
19. CAN protocol analysis
20. RS232 protocol analysis
21. RS485 protocol analysis
22. Serial protocol analysis
23. Parallel protocol analysis
24. Buffer acquisition mode
25. Stream acquisition mode
26. Roll acquisition mode
27. Advanced serial trigger functions
28. Advanced parallel trigger functions
29. Advanced trigger functionality exclusive to DLA-32 Plus
30. Four-channel PWM output
31. 3.3V PWM output
32. PWM frequency range from 1Hz to 20MHz
33. Suitable for microcontroller debugging
34. Suitable for embedded-system development
35. Suitable for Arduino, STM32, ESP32 and other MCU platforms
36. Suitable for FPGA and digital-logic debugging
37. Suitable for communication-bus analysis
38. Suitable for timing and signal-integrity troubleshooting
39. Useful for reverse engineering of digital communication protocols
40. PC-connected operation through USB
41. Designed for laboratory, development, repair, and educational use
42. Supports high channel-count digital signal monitoring
43. Provides simultaneous observation of multiple digital buses and control signals

Specifications:

Explore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.

Also Check These Products:-

FNIRSI HRM-10 Battery Voltage Internal Resistance Tester

FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester

FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester

FNIRSI DMC-100 DC AC Current Voltage Digital Clamp Multimeter

FNIRSI DMT-99 Intelligent Color Screen Digital MultiMeter

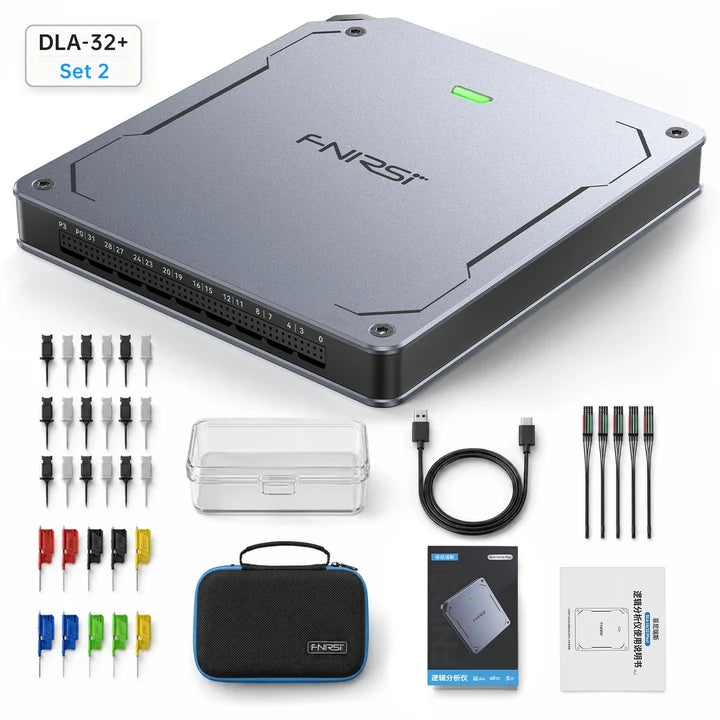

Package Includes:

1 x FNIRSI® DLA-32 Plus Logic Analyzer
4 x Sets of 5 Shielded Cables
18 x Mini IC Test Hooks
10 x IC Test Hooks
1 x USB 3.0 Data Cable
1 x Transparent Storage Case for Test Hooks
1 x Storage Bag
1 x User Manual
1 x Packaging Box
