FNIRSI® DLA-16 Plus Logic Analyzer, USB 3.0, 4Gbit

FNIRSI® DLA-16 Plus Logic Analyzer, USB 3.0, 4Gbit is a high-speed 16-channel USB logic analyzer designed for capturing, viewing, timing, and decoding digital signals in embedded systems and electronic circuits. It provides up to 500MHz buffer-mode sampling across all 16 channels, while selected-channel operation can reach up to 1GHz sampling. The analyzer incorporates 4Gbit hardware memory for high-speed buffer acquisition and supports USB 3.0 communication with transfer speeds up to 5Gbps. It supports more than 120 protocol decoders along with custom protocol decoding, making it suitable for debugging interfaces such as UART, SPI, I²C, CAN, RS232, RS485, and other digital communication buses. It also provides Buffer, Stream, and Roll acquisition modes and four 3.3V PWM output channels with a frequency range of 1Hz to 20MHz.

FNIRSI® DLA-16 Plus Logic Analyzer, USB 3.0, 4Gbit User Manual

Features:

1. FNIRSI DLA-16 Plus professional USB logic analyzer
2. 16 independent digital input channels
3. Up to 1GHz maximum sampling rate in selected-channel operation
4. Up to 500MHz sampling rate with all 16 channels in Buffer mode
5. Up to 125MHz Stream-mode sampling with 16 channels
6. 4Gbit built-in hardware memory
7. High-speed USB 3.0 interface
8. USB data transfer speed up to 5Gbps
9. High-speed digital waveform capture
10. Real-time digital signal monitoring
11. Timing analysis for embedded digital systems
12. More than 120 built-in protocol decoders
13. Support for custom protocol decoding
14. UART protocol analysis
15. SPI protocol analysis
16. I²C protocol analysis
17. CAN protocol analysis
18. RS232 protocol analysis
19. RS485 protocol analysis
20. Support for serial and parallel digital signal analysis
21. Buffer acquisition mode
22. Stream acquisition mode
23. Roll acquisition mode
24. Four-channel PWM output function
25. 3.3V PWM output
26. PWM frequency range from 1Hz to 20MHz
27. Suitable for microcontroller debugging
28. Suitable for Arduino and embedded-system development
29. Suitable for STM32, ESP32 and other MCU-based systems
30. Useful for FPGA and digital-logic debugging
31. Suitable for analyzing communication buses
32. Useful for reverse engineering of digital protocols
33. USB-powered computer-connected operation
34. Designed for high-speed digital troubleshooting
35. Compact laboratory and field-service test instrument
36. Compatible with Windows and macOS software environments
37. Supplied with shielded signal cables and IC test hooks

Specifications:

Explore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.

Also Check These Products:-

FNIRSI HRM-10 Battery Voltage Internal Resistance Tester

FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester

FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester

FNIRSI DMC-100 DC AC Current Voltage Digital Clamp Multimeter

FNIRSI DMT-99 Intelligent Color Screen Digital MultiMeter

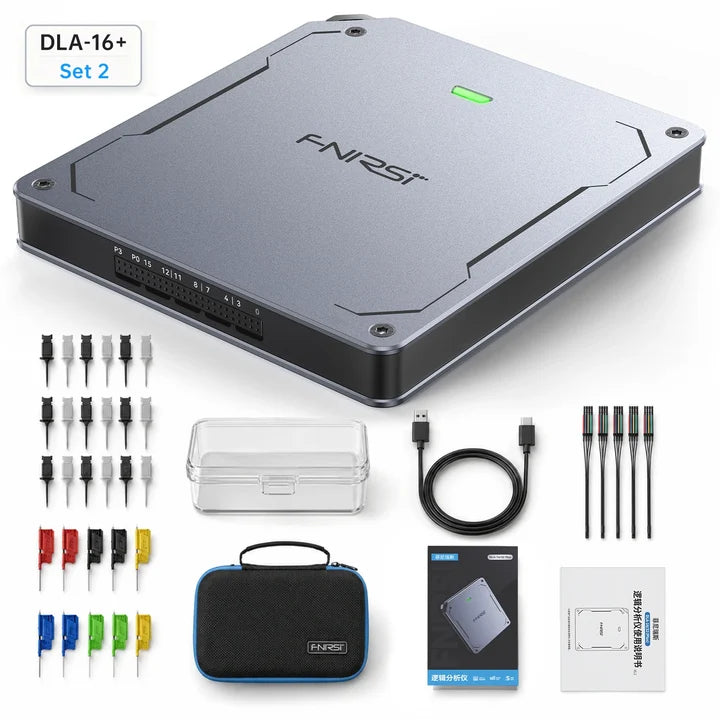

Package Includes:

1 x FNIRSI® DLA-16 Plus Logic Analyzer
4 x Sets of 5 Shielded Cables
18 x Mini IC Test Hooks
10 x IC Test Hooks
1 x USB 3.0 Data Cable
1 x Transparent Storage Case for Test Hooks
1 x Storage Bag
1 x User Manual
1 x Packaging Box
