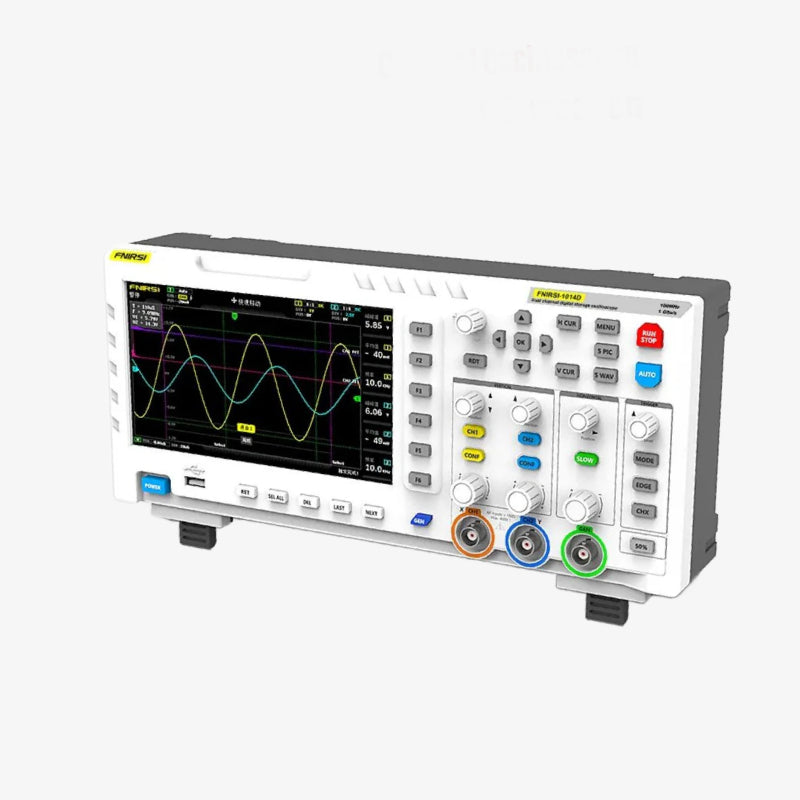

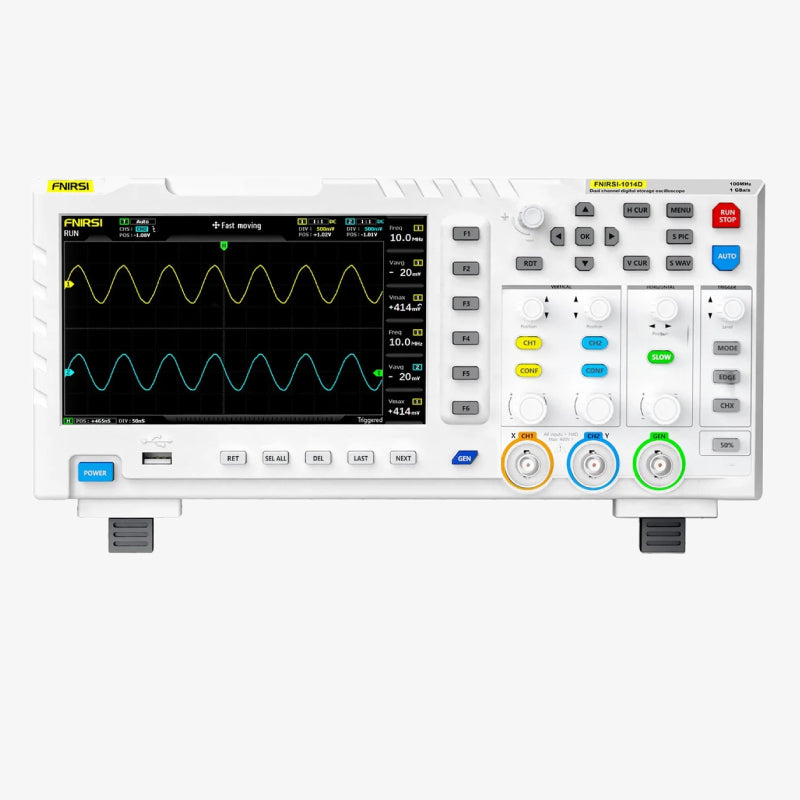

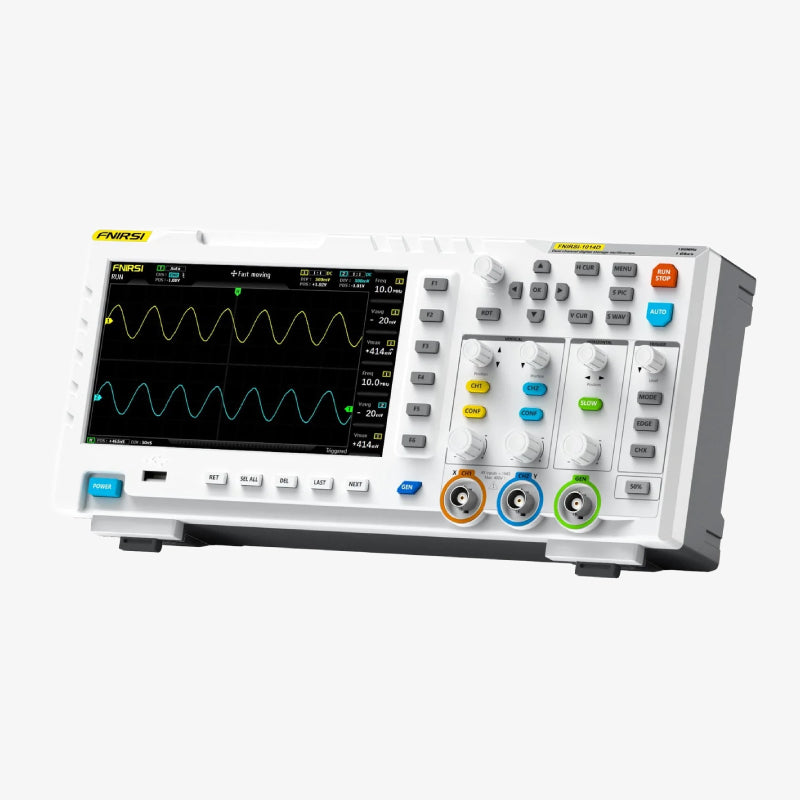

FNIRSI® 1014D 2-IN-1 Dual Channel 100MHz 1GS/s Digital Oscilloscope Signal Generator
SKU:
TLS-QC5803
Availability:
Out Of Stock
-
- Rs. 12,755.00
- Unit price
- per
Subtotal:
Rs. 12,755.00
Description
xFNIRSI® 1014D 2-IN-1 Dual Channel 100MHz 1GS/s Digital Oscilloscope Signal Generator is a professional desktop test instrument that combines a dual-channel digital oscilloscope and DDS signal generator in a single device. Featuring a 1GSa/s sampling rate, 100MHz bandwidth, 7-inch HD display, FFT analysis, waveform storage, and customizable signal generation, it is ideal for electronics development, circuit debugging, laboratory testing, maintenance, and educational applications.3
FNIRSI® 1014D 2-IN-1 100MHz Digital Oscilloscope Signal Generator Datasheet
Features:
- 2-in-1 Oscilloscope and DDS Signal Generator
- Dual Channel Input Design
- 100MHz Analog Bandwidth per Channel
- 1GSa/s Real-Time Sampling Rate
- 7-Inch High-Resolution TFT LCD Display
- 14 Built-In Signal Generator Waveforms
- Custom Signal Generation Support
- Lissajous Graphic Display Function
- FFT Spectrum Analysis Function
- One-Button AUTO Measurement
- Waveform Screenshot and Storage Support
- USB Export Function
- High Voltage Protection Design
Specifications:
| Parameter | Value |
|---|---|
| Brand | FNIRSI® |
| Model | 1014D |
| Product Type | Digital Oscilloscope & Signal Generator |
| Channels | 2 |
| Display Size | 7 Inch |
| Display Resolution | 800 × 480 Pixels |
| Material | ABS |
| Power Supply | 5V 2A / 3A / 4A |
| Dimensions | 310 × 145 × 70 mm |
Oscilloscope Specifications:
| Parameter | Value |
|---|---|
| Analog Bandwidth | 100MHz × 2 |
| Sampling Rate | 1GSa/s |
| Vertical Sensitivity | 50mV/div ~ 500V/div |
| Horizontal Time Base | 50s/div ~ 10ns/div |
| Storage Depth | 240Kbit |
| Input Resistance | 1MΩ |
| ADC Resolution | 8-bit |
| Rise Time | < 3ns |
| Coupling Mode | AC / DC |
| Trigger Modes | Auto / Normal / Single |
| Trigger Edge | Rising Edge / Falling Edge |
| External Trigger Voltage | 0 ~ 40V |
| Maximum Input Voltage (1X Probe) | 40V |
| Maximum Input Voltage (10X Probe) | 400V |
| Frequency Accuracy | ±0.01% |
| Roll Mode | Supported |
| One-Button AUTO | Supported |
| Waveform Storage | 1000 Screenshots + 1000 Waveforms |
| USB Export | Supported |
| Screenshot Capture | Supported |
| FFT Analysis | Supported |
| Lissajous Display | Supported |
| Measurement Parameters | 12 Types |
Signal Generator Specifications:
| Parameter | Value |
|---|---|
| Output Channels | 1 |
| Output Waveforms | 14 Standard + 1 Custom Waveform |
| Output Amplitude | 2.5Vpp |
| Sine Wave Maximum Frequency | 10MHz |
| Other Waveforms Maximum Frequency | 2MHz |
| Custom Waveform Maximum Frequency | 1MHz |
| Frequency Resolution | 1Hz |
| Custom Signal Storage | Up to 1000 Signals |
| Capture Output | Supported |
Explore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.
Also Check These Products:-
FNIRSI HRM-10 Battery Voltage Internal Resistance Tester
FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester
FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester
FNIRSI DMC-100 DC AC Current Voltage Digital Clamp Multimeter
FNIRSI DMT-99 Intelligent Color Screen Digital MultiMeter
Package Includes:

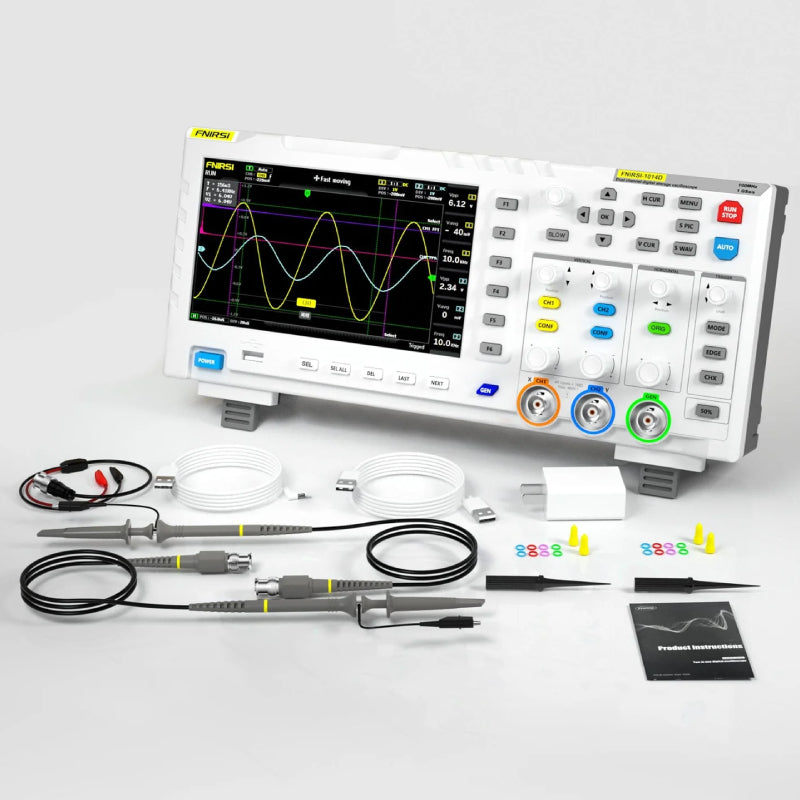

1 x FNIRSI® 1014D 2-IN-1 Dual Channel 100MHz 1GS/s Digital Oscilloscope Signal Generator
