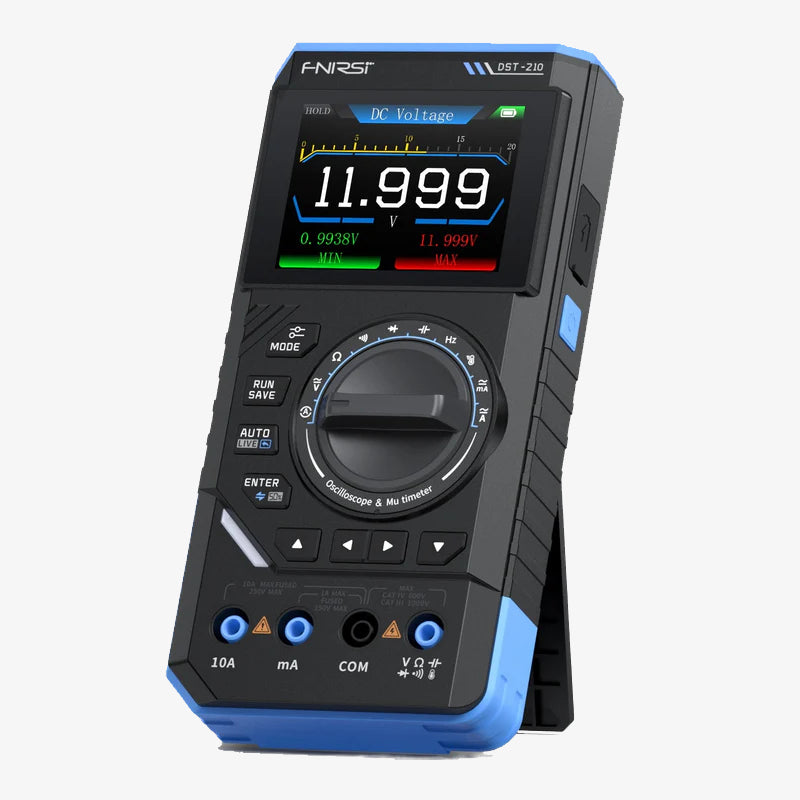

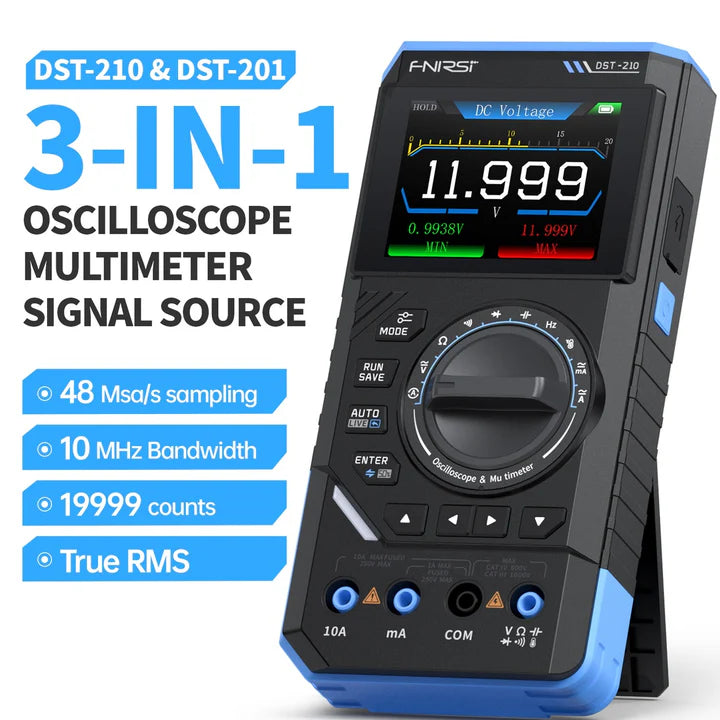

FNIRSI® DST-210 Portable 3-IN-1 True RMS Multimeter Oscilloscope Signal Generator
SKU:
TLS-QC5804
Availability:
Out Of Stock
-
- Rs. 4,392.00
- Unit price
- per
Subtotal:
Rs. 4,392.00
Description
xFNIRSI® DST-210 Portable 3-IN-1 True RMS Multimeter Oscilloscope Signal Generator is a versatile handheld test instrument that combines a True RMS digital multimeter, digital oscilloscope, and signal generator into a single compact device. Featuring a 48MSa/s sampling rate, 10MHz bandwidth, 19999-count display, and 13 waveform outputs, it is ideal for electronics troubleshooting, circuit analysis, laboratory testing, and field maintenance.
FNIRSI® DST-210 Portable 3-IN-1 True RMS Multimeter Datasheet
Features:
- 3-in-1 Oscilloscope, Multimeter, and Signal Generator
- True RMS Measurement Technology
- 48MSa/s Real-Time Sampling Rate
- 10MHz Oscilloscope Bandwidth
- 13 Built-In Signal Generator Waveforms
- 19999 Count High-Resolution Display
- ±400V Input Protection with Anti-Burn Design
- 2.8-Inch TFT Color Display
- Adjustable Backlight Brightness
- Type-C Charging Interface
- Built-in 3000mAh Rechargeable Battery
- Portable Handheld Design
Specifications:
| Parameter | Value |
|---|---|
| Brand | FNIRSI® |
| Model | DST-210 |
| Product Type | 3-in-1 Oscilloscope, Multimeter & Signal Generator |
| Display | 2.8 Inch TFT Color Screen |
| Display Count | 19999 Counts |
| Backlight | Adjustable Brightness |
| Oscilloscope Bandwidth | 10MHz |
| Sampling Rate | 48MSa/s |
| Input Protection | ±400V Anti-Burn Protection |
| Signal Generator Waveforms | 13 Types |
| Signal Generator Frequency | 0 – 10kHz |
| Signal Generator Amplitude | Adjustable up to 3V |
| Measurement Type | True RMS |
| Power Supply | USB Type-C (5V/1A) |
| Battery Capacity | 3000mAh Lithium Battery |
| Dimensions | 200 × 85 mm |
| Weight | 622 g |
Oscilloscope Specifications:
| Parameter | Value |
|---|---|
| Sampling Rate | 48MSa/s |
| Analog Bandwidth | 10MHz |
| Input Protection | ±400V |
| Trigger Modes | Auto / Normal / Single |
| Coupling Mode | AC / DC |
| Waveform Hold | Supported |
| Automatic Measurement | Supported |
Multimeter Specifications:
| Parameter | Value |
|---|---|
| Measurement Type | True RMS |
| Display Count | 19999 |
| DC Voltage Measurement | Supported |
| AC Voltage Measurement | Supported |
| DC Current Measurement | Supported |
| AC Current Measurement | Supported |
| Resistance Measurement | Supported |
| Capacitance Measurement | Supported |
| Frequency Measurement | Supported |
| Temperature Measurement | Supported |
| Diode Test | Supported |
| Continuity Test | Supported |
Signal Generator Specifications:
| Parameter | Value |
|---|---|
| Waveform Types | 13 |
| Frequency Range | 0 – 10kHz |
| Output Amplitude | Adjustable up to 3V |
| Duty Cycle Adjustment | Supported |
Explore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.
Also Check These Products:-
FNIRSI HRM-10 Battery Voltage Internal Resistance Tester
FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester
FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester
FNIRSI DMC-100 DC AC Current Voltage Digital Clamp Multimeter
FNIRSI DMT-99 Intelligent Color Screen Digital MultiMeter
Package Includes:
1 x FNIRSI® DST-210 Portable 3-IN-1 True RMS Multimeter Oscilloscope Signal Generator
