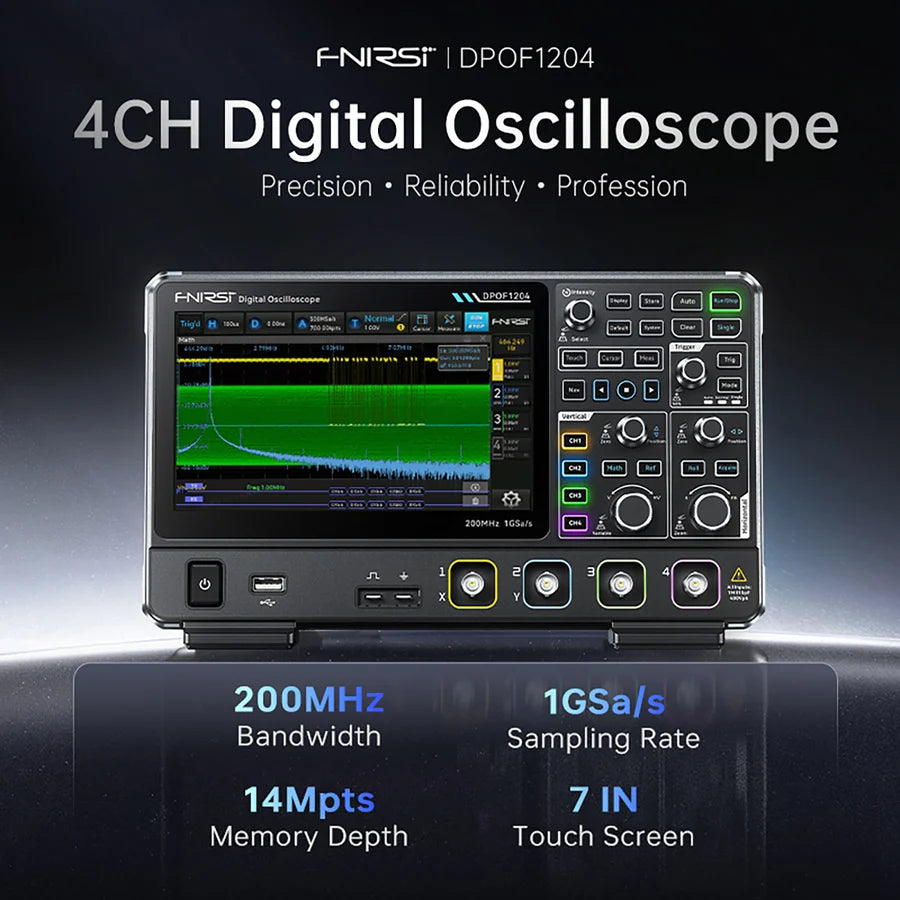

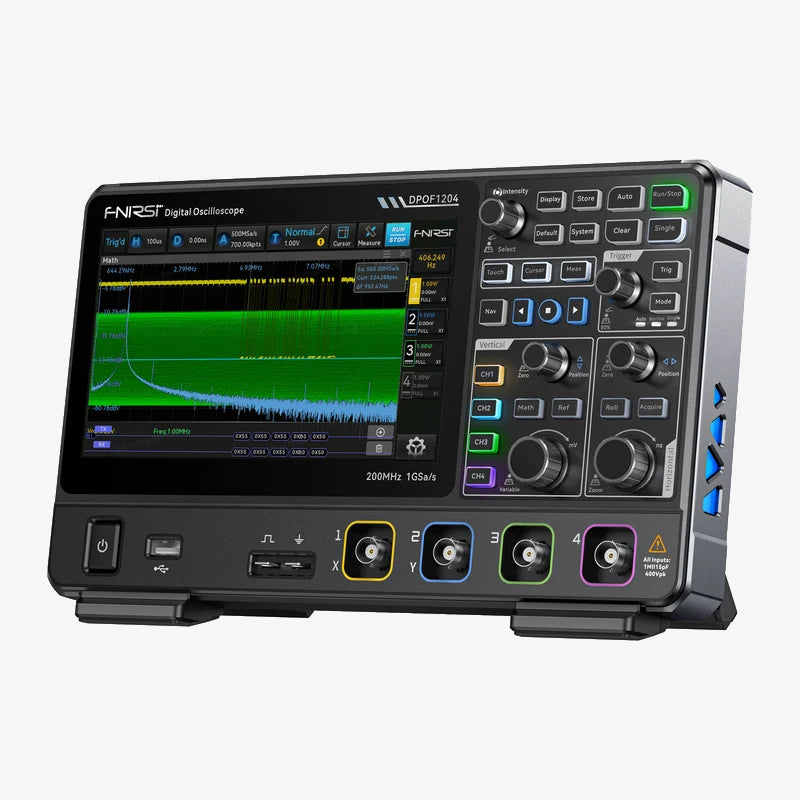

FNIRSI® DPOF1204 Analog 4CH 200MHz 1GSa/s Digital Phosphor Oscilloscope
SKU:
TLS-QC6372
Availability:
2
In Stock
-
Rs. 45,599.00- Rs. 43,999.00
- Unit price
- per
Subtotal:
Rs. 43,999.00
Description
xFNIRSI® DPOF1204 4CH 200MHz 1GSa/s Digital Phosphor Oscilloscope is a high-performance four-channel digital phosphor oscilloscope designed for advanced electronics measurement, signal analysis, embedded-system debugging, and electrical diagnostics. It combines 200MHz bandwidth, up to 1GSa/s real-time sampling, 14Mpts memory depth, 450,000 wfms/s waveform capture, FFT analysis, serial protocol decoding, advanced triggering, and a 7-inch touchscreen display.
FNIRSI® DPOF1204 Analog 4CH 200MHz 1GSa/s Digital Phosphor Oscilloscope Datasheet
Features:
- 4 independent analog channels
- 200MHz analog bandwidth
- Up to 1GSa/s real-time sampling rate
- Up to 450,000 wfms/s waveform capture rate
- Up to 14Mpts memory depth
- 70–90µVrms ultra-low noise performance
- 500µV/div maximum sensitivity
- 13+ hardware trigger modes
- I2C, SPI, UART, CAN and LIN protocol decoding
- Up to 1M-point FFT analysis
- 38 automatic measurement parameters
- Up to 90,000 segmented history records
- Pass/Fail testing function
- 7-inch 800 × 480 touchscreen display
- USB Host, USB Device and LAN interfaces
- SCPI command and WebControl support
Specifications:
| Specification | Value |
|---|---|
| Brand | FNIRSI |
| Model | DPOF1204 |
| Product Type | Digital Phosphor Oscilloscope |
| Channels | 4 |
| Analog Bandwidth | 200MHz |
| Maximum Real-Time Sampling Rate | 1GSa/s |
| Sampling Rate per Channel | 500MSa/s |
| Maximum Waveform Capture Rate | 450,000 wfms/s |
| Maximum Memory Depth | 14Mpts |
| Non-Interleaved Memory Depth | 7Mpts |
| Display | 7-inch Touchscreen |
| Display Resolution | 800 × 480 |
| Sensitivity | 500µV/div |
| Noise Floor | 70–90µVrms |
| FFT Analysis | Up to 1M Points |
| Automatic Measurements | 38 |
| History Records | Up to 90,000 Segments |
| Trigger Types | Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video, Serial |
| Protocol Decoding | I2C, SPI, UART, CAN, LIN |
| Interfaces | USB Host, USB Device, LAN, Pass/Fail, Trigger Out |
| Probes | 4 × 200MHz FOP-200B Passive Probes |
| Weight | 1036g |
Explore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.
Also Check These Products:-
FNIRSI HRM-10 Battery Voltage Internal Resistance Tester
FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester
FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester
FNIRSI DMC-100 DC AC Current Voltage Digital Clamp Multimeter
FNIRSI DMT-99 Intelligent Color Screen Digital MultiMeter

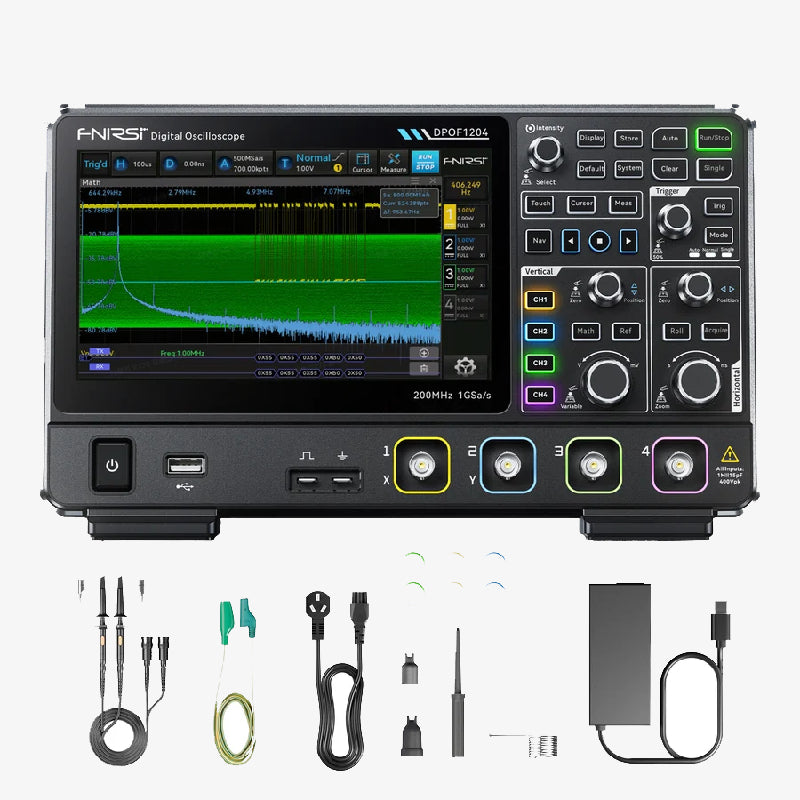

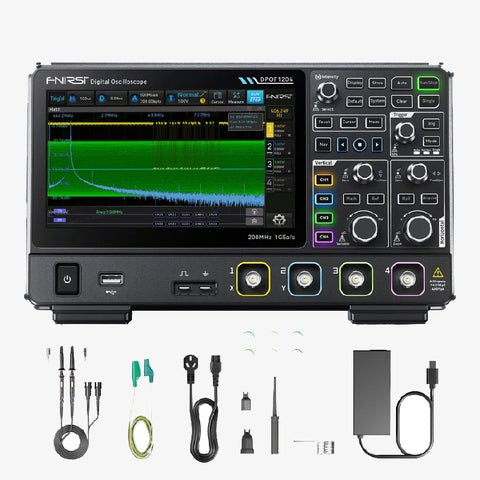

Package Includes:
1 × FNIRSI® DPOF1204 Oscilloscope
4 × 200MHz Passive Probes
1 × Grounding Wire
1 × Power Adapter
1 × USB-A to USB-B Cable
1 × User Guide
