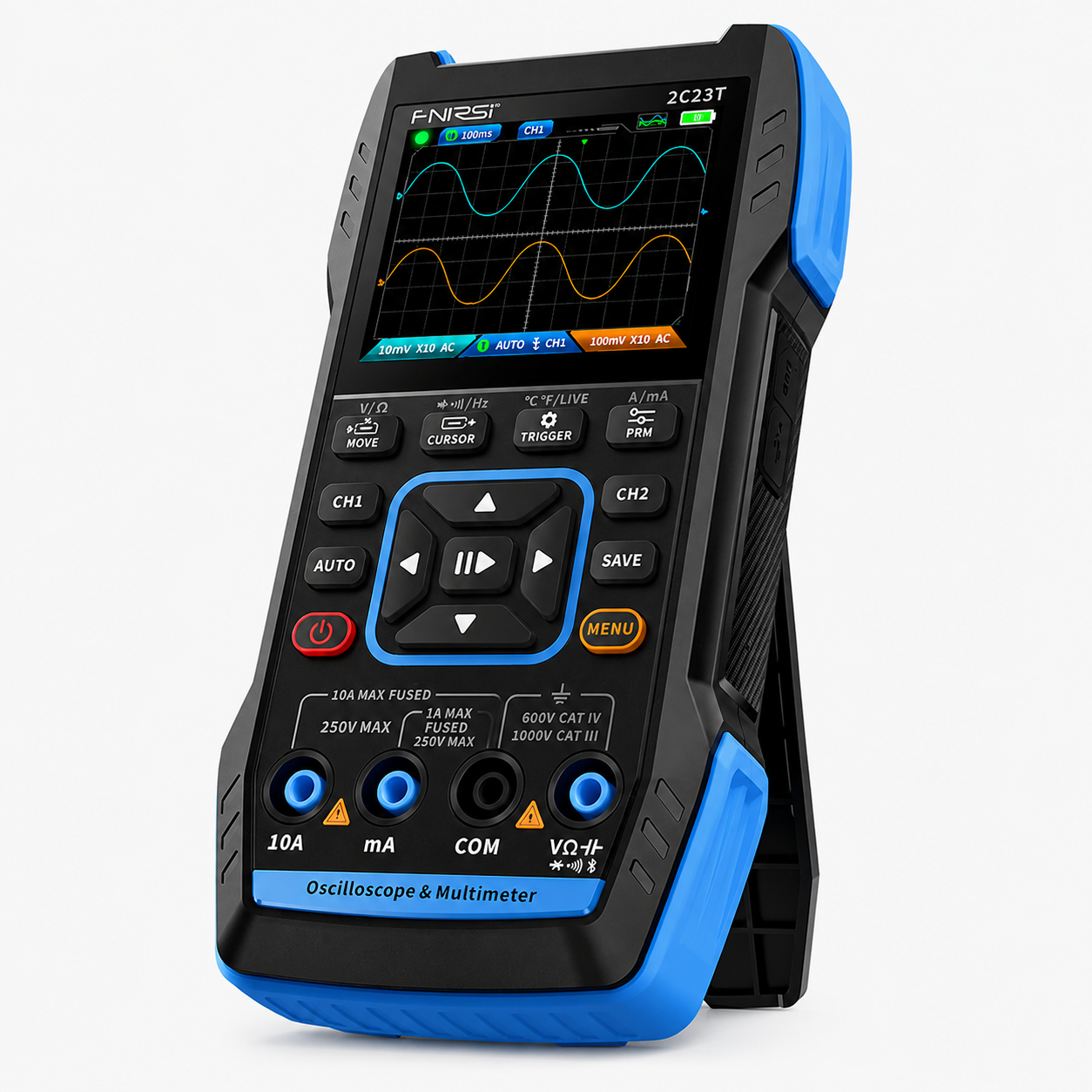

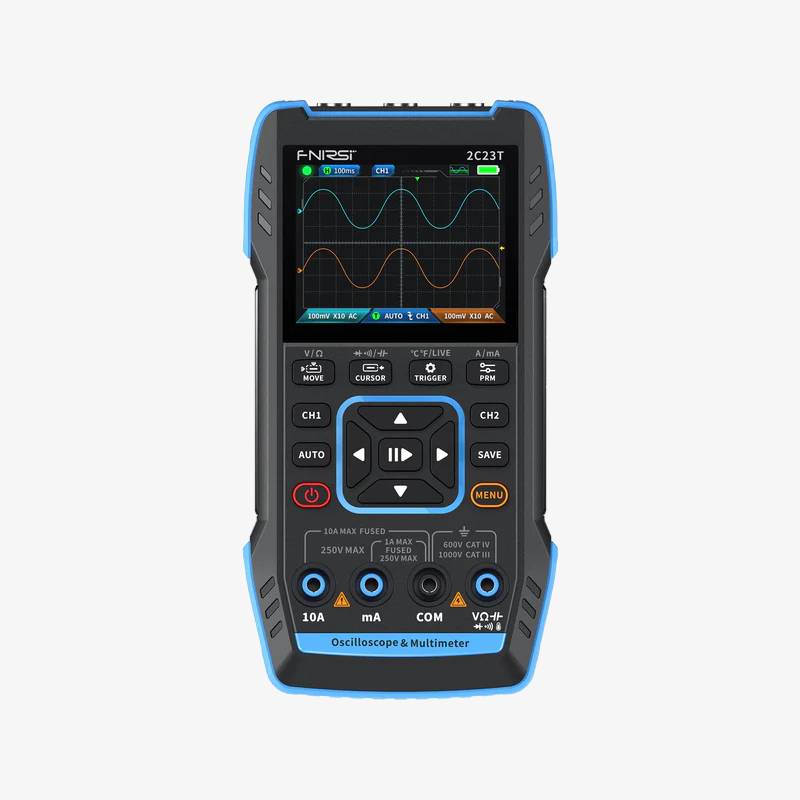

FNIRSI® 2C23T Plus Handheld Dual Channel 3-in-1 10MHz 50MS/s Oscilloscope Multimeter DDS Function Generator
SKU:
TLS-QC5883
Availability:
10
In Stock
-
- Rs. 6,695.00
- Unit price
- per
Subtotal:
Rs. 6,695.00
Description

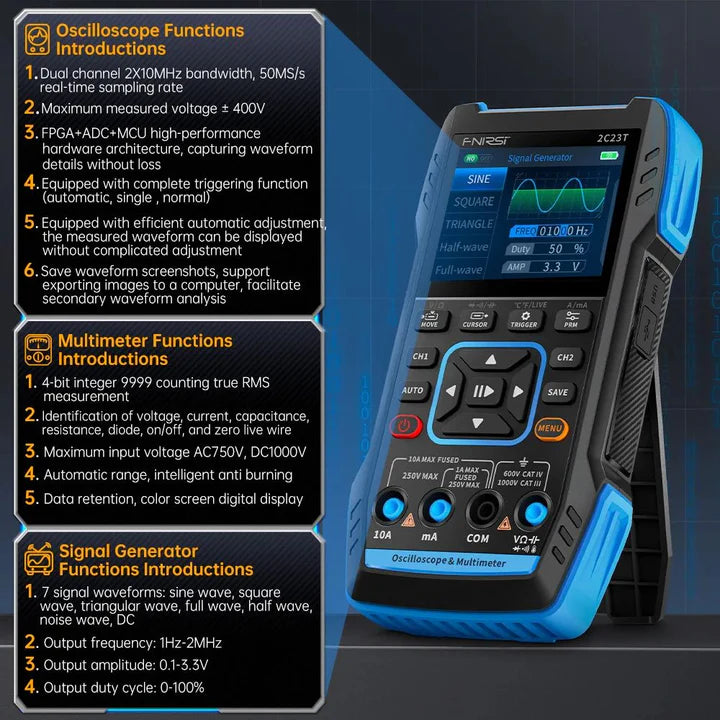

xFNIRSI® 2C23T Handheld Dual Channel 3-in-1 10MHz 50MS/s Oscilloscope Multimeter DDS Function Generator is a versatile 3-in-1 handheld test instrument that combines a dual-channel digital oscilloscope, True RMS digital multimeter, and DDS function generator into a compact portable device. Built on an FPGA + MCU + ADC hardware architecture, it delivers reliable waveform analysis, accurate electrical measurements, and signal generation for troubleshooting, maintenance, education, and embedded system development. The 2.8-inch HD color display, built-in 3000mAh rechargeable battery, waveform storage, screenshot export, and high-voltage protection make it an ideal tool for professionals, students, and electronics enthusiasts.
FNIRSI® 2C23T Handheld Dual Channel 3-in-1 10MHz 50MS/s Datasheet

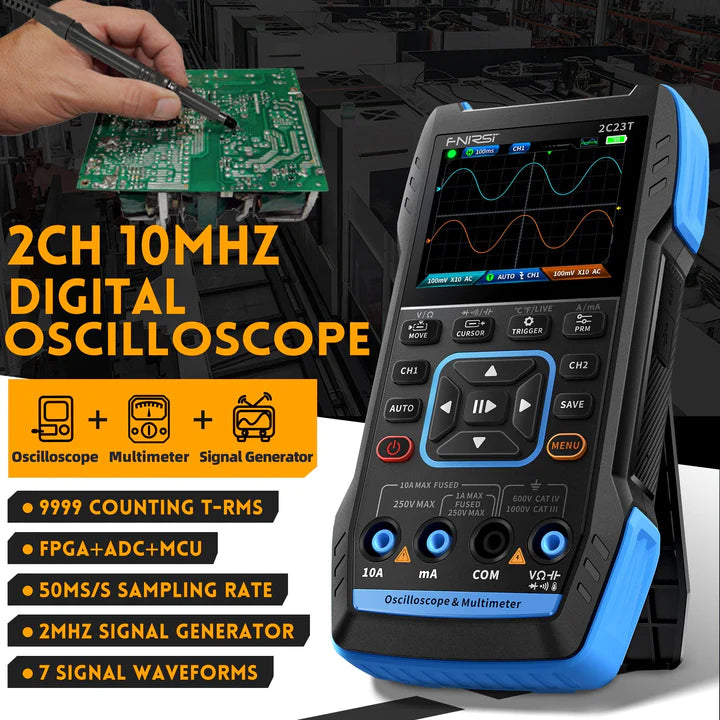

Features:
- Dual-Channel 10MHz Digital Oscilloscope
- 50MS/s Real-Time Sampling Rate
- Built-in True RMS Digital Multimeter
- DDS Function Generator up to 2MHz
- 7 Built-in Waveform Outputs
- Waveform Save & Screenshot Export
- Reference Waveform Comparison
- FPGA + MCU + ADC Hardware Architecture
- Built-in High Voltage Protection
- 2.8-inch HD Color Display
- 3000mAh Rechargeable Lithium Battery
- USB Type-C Charging & Data Export
Basic Specifications
| Parameter | Value |
|---|---|
| Brand | FNIRSI® |
| Model | 2C23T |
| Product Type | 3-in-1 Oscilloscope + Multimeter + Signal Generator |
| Display | 2.8-inch HD Color LCD |
| Resolution | 320 × 240 Pixels |
| Language | English |
| Battery | 3000mAh Lithium Battery |
| Charging Interface | USB Type-C |
| Charging Specification | 5V / 1A |
| Standby Time | Up to 6 Hours |
| Product Dimensions | 167 × 89 × 35mm |
| Weight | 300g |
Oscilloscope Specifications
| Parameter | Value |
|---|---|
| Channels | Dual Channel |
| Real-Time Sampling Rate | 50MS/s |
| Analog Bandwidth | 10MHz (Independent on Both Channels) |
| Storage Depth | 32KB |
| Input Impedance | 1MΩ |
| Vertical Sensitivity | 20mV/div ~ 10V/div (X1) |
| Time Base Range | 50ns/div ~ 10s/div |
| Maximum Input Voltage | ±400V |
| Coupling | AC / DC |
| Trigger Modes | Auto / Normal / Single |
| Trigger Type | Rising Edge / Falling Edge |
| Display Mode | YT / Scroll |
| Automatic Measurement | Supported |
| Waveform Screenshot | Supported |
| Waveform Export | Supported |
| Waveform Storage | Supported |
Digital Multimeter Specifications
| Parameter | Value |
|---|---|
| Display Count | 10,000 Counts (4 Digit) |
| Measurement Type | True RMS |
| DC Voltage | 9.999V / 99.99V / 999.9V |
| DC Voltage Accuracy | ±(0.5% + 3) |
| AC Voltage | 9.999V / 99.99V / 750V |
| AC Voltage Accuracy | ±(1% + 3) |
| DC Current | 9999μA / 99.99mA / 999.9mA / 9.999A |
| DC Current Accuracy | ±(1.2% + 3) |
| AC Current | 9999μA / 99.99mA / 999.9mA / 9.999A |
| AC Current Accuracy | ±(1.5% + 3) |
| Resistance | 999.9Ω ~ 99.99MΩ |
| Resistance Accuracy | ±(0.5% + 3) to ±(1.5% + 3) |
| Capacitance | 9.999nF ~ 99.99mF |
| Capacitance Accuracy | ±(2.0% + 5) to ±(5.0% + 20) |
| Temperature | -55°C ~ 1300°C (-67°F ~ 2372°F) |
| Temperature Accuracy | ±(2.5% + 5) |
| Diode Test | Supported |
| Continuity Test | Supported |
| Live Wire Detection | Supported |
DDS Signal Generator Specifications
| Parameter | Value |
|---|---|
| Output Channels | 1 |
| Frequency Range | 1Hz ~ 2MHz |
| Output Amplitude | 0.1V ~ 3.3V |
| Duty Cycle | 0% ~ 100% |
| Output Waveforms | Sine, Square, Triangle, Full Wave, Half Wave, Noise, DC Output |
Display & User Interface
| Parameter | Value |
|---|---|
| Display Size | 2.8 Inches |
| Display Resolution | 320 × 240 Pixels |
| Waveform Save | Supported |
| Screenshot Save | Supported |
| Screenshot Export | Supported |
| Reference Waveform Display | Supported |
| Measured Waveform Comparison | Supported |
Battery & Power Specifications
| Parameter | Value |
|---|---|
| Battery Type | Rechargeable Lithium Battery |
| Battery Capacity | 3000mAh |
| Charging Interface | USB Type-C |
| Charging Voltage | 5V |
| Charging Current | 1A |
| Standby Time | Up to 6 Hours |
Physical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 167 × 89 × 35mm |
| Weight | 300g |
| Construction | Portable Handheld Unit |
Explore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.
Also Check These Products:-
FNIRSI HRM-10 Battery Voltage Internal Resistance Tester
FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester
FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester
FNIRSI DMC-100 DC AC Current Voltage Digital Clamp Multimeter
FNIRSI DMT-99 Intelligent Color Screen Digital MultiMeter

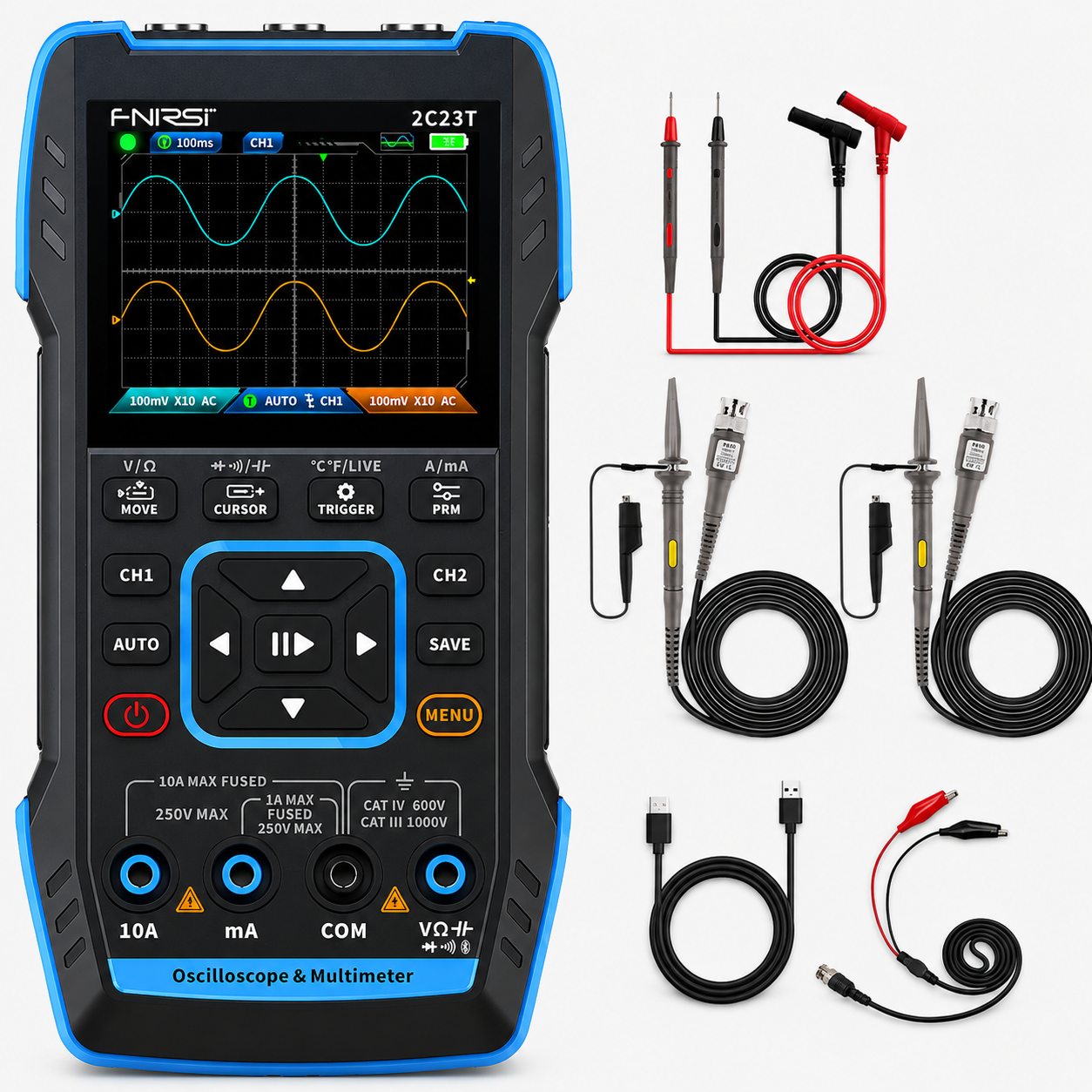

Package Includes:
1 x FNIRSI® 2C23T Handheld Dual Channel 3-in-1 10MHz 50MS/s Oscilloscope Multimeter DDS Function Generator
