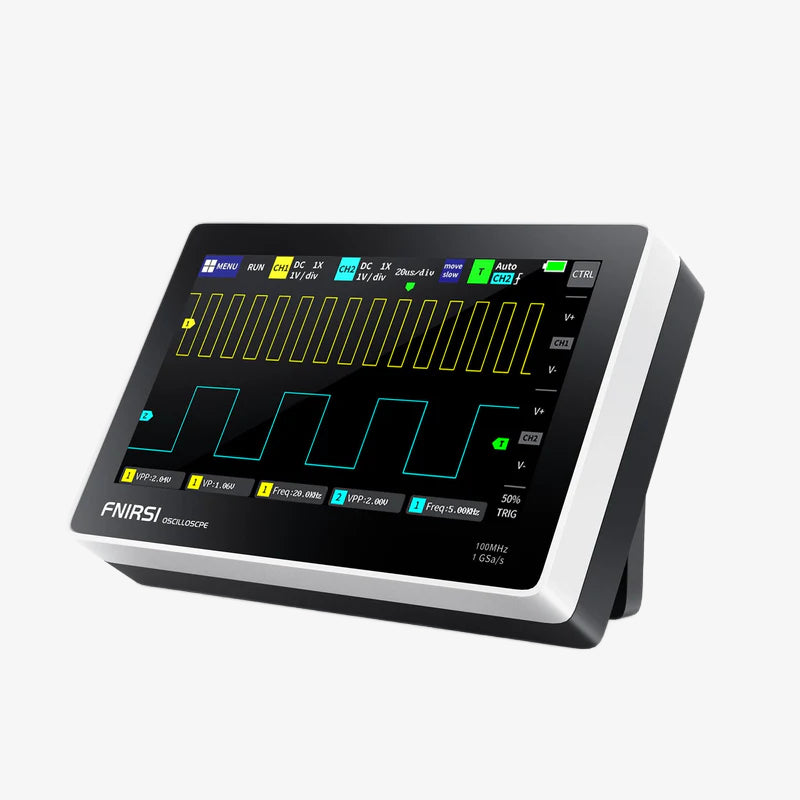

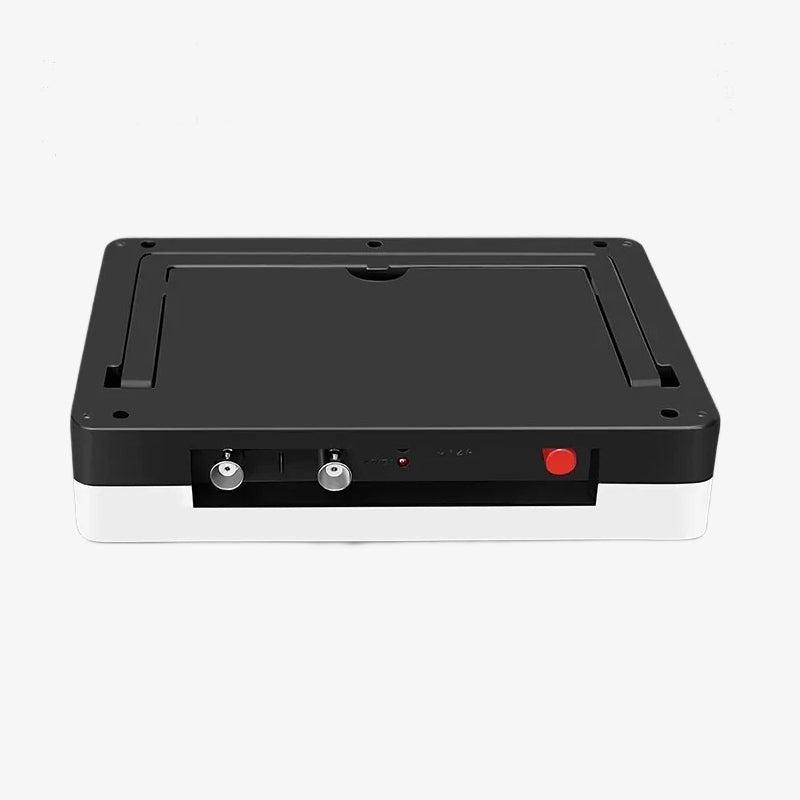

FNIRSI® 1013D Tablet Dual Channel 100MHz 1GS/s Touchable Panel Oscilloscope
SKU:
TLS-QC5798
Availability:
5
In Stock
-
- Rs. 12,355.00
- Unit price
- per
Subtotal:
Rs. 12,355.00
Description
xFNIRSI® 1013D Tablet Dual Channel 100MHz 1GS/s Touchable Panel Oscilloscope is a professional portable oscilloscope designed for electronics troubleshooting, signal analysis, circuit debugging, and R&D applications. Featuring dual-channel input, 100MHz bandwidth, a 7-inch touch screen, FFT analysis, waveform storage, and a built-in rechargeable battery, it provides powerful measurement capabilities in a compact handheld design.
FNIRSI® 1013D Tablet Dual Channel Touchable Panel Oscilloscope Datasheet
Features:
- Dual Channel Oscilloscope Design
- 100MHz Analog Bandwidth per Channel
- 1GSa/s Real-Time Sampling Rate
- 7-Inch TFT LCD Touch Screen
- Complete Trigger Functions (Auto, Normal, Single)
- Lissajous Graphic Display Support
- FFT Spectrum Analysis Function
- Waveform Storage and Screenshot Capture
- Cursor Measurement Function
- USB Waveform and Image Export
- Built-in 6000mAh Rechargeable Battery
- Portable Tablet-Style Design
Specifications:
| Parameter | Value |
|---|---|
| Brand | FNIRSI® |
| Model | 1013D |
| Product Type | Tablet Oscilloscope |
| Channels | 2 |
| Display Size | 7 Inch |
| Display Resolution | 800 × 480 Pixels |
| Analog Bandwidth | 100MHz × 2 |
| Sampling Rate | 1GSa/s |
| Rise Time | < 3ns |
| Storage Depth | 240 Kbit |
| Time Base Range | 50s ~ 10ns |
| Vertical Sensitivity | 50mV ~ 500V |
| Input Resistance | 1MΩ |
| Coupling Mode | AC / DC |
| Trigger Mode | Single / Normal / Auto |
| Trigger Edge | Rising / Falling |
| Voltage Accuracy | ±2% |
| Frequency Accuracy | ±0.01% |
| Waveform Parameters | 12 Types |
| Waveform Storage | 1000 Screenshots + 1000 Waveforms |
| Cursor Measurement | Supported |
| Roll Mode | Supported |
| One-Button AUTO | Supported |
| FFT Analysis | Supported |
| Lissajous Display | Supported |
| USB Export | Supported |
| Input Voltage (1X Probe) | 0 ~ 40V |
| Input Voltage (10X Probe) | 0 ~ 400V |
| Input Voltage (100X Probe) | 0 ~ 4000V |
| Battery Capacity | 6000mAh Lithium Battery |
| Operating Time | Up to 4 Hours |
| Charging Interface | USB Type-C |
| Charging Input | 5V 2A / 3A / 4A |
Explore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.
Also Check These Products:-
FNIRSI HRM-10 Battery Voltage Internal Resistance Tester
FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester
FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester
FNIRSI DMC-100 DC AC Current Voltage Digital Clamp Multimeter
FNIRSI DMT-99 Intelligent Color Screen Digital MultiMeter
Package Includes:
1 x FNIRSI® 1013D Tablet Dual Channel 100MHz 1GS/s Touchable Panel Oscilloscope
